Understanding the Basics of a Liebig Condenser in Distillation
The Liebig condenser is a crucial component in the distillation process, primarily designed to facilitate the efficient condensation of vapors back into liquid form. Comprised of a straight glass tube with an outer jacket, it operates on the principle of heat exchange where the inner tube carries the vapor while the outer jacket flows with a cooling liquid, usually water. This setup allows for effective thermal management, ensuring that the vapor cools sufficiently to form a liquid as it passes through the condenser. Understanding this basic operation is key to optimizing any distillation process.
In practice, the Liebig condenser is most effective when the temperature gradient between the vapor and the cooling water is maintained. This is typically achieved by circulating cold water through the outer jacket, allowing for maximum heat removal from the vapor. Proper positioning and orientation of the condenser are essential to prevent back pressure and ensure a smooth flow of condensed liquid. By utilizing the Liebig condenser correctly, users can enhance the purity and yield of their distilled products, making it an indispensable tool in both educational and professional laboratory settings.
Key Components and Construction of a Liebig Condenser
A Liebig condenser is an essential apparatus in distillation processes, commonly used in laboratories and industrial applications. The design consists of two concentric glass tubes, where the inner tube allows vapor to pass through while the outer tube circulates a cooling liquid, typically water. This configuration enhances heat transfer efficiency, leading to the quick condensation of vapor back into liquid form. According to industry standards, a well-constructed Liebig condenser can achieve a cooling efficiency of up to 90%, making it highly effective in various distillation setups.
Key components of a Liebig condenser include the outer jacket for the coolant, the inner tube where vapor flows, and secured seals to prevent leaks. Proper construction ensures minimal heat loss and optimal cooling rates. Reports from chemical engineering journals indicate that maintaining a consistent coolant flow rate is critical; variations in flow can lead to increased vapor temperatures and reduced efficiency, affecting the purity of the distilled product. Furthermore, insulating materials can be applied to the outer layer to improve overall thermal performance, supporting a more sustainable and efficient distillation process, which is crucial for industries such as pharmaceuticals and petrochemicals where precision is paramount.
Principles of Heat Exchange in the Liebig Condenser
The Liebig condenser operates on fundamental principles of heat exchange that are crucial for any efficient distillation process. As the vapor travels through the inner tube of the condenser, it encounters cooler surfaces that facilitate heat transfer away from the vapor. This process relies on the concept of thermal conductivity, where heat moves from the hotter vapor to the cooler walls, condensing the vapor back into liquid form. According to studies in the field of chemical engineering, optimizing the temperature differential between the condensing vapor and the cooling water can significantly enhance condensing efficiency, potentially improving yield by up to 15% in optimal systems.
Moreover, the effectiveness of the Liebig condenser is influenced by the flow rate of the cooling water. Reports indicate that maintaining a steady coolant flow rate, typically recommended at 1-2 liters per minute for standard laboratory setups, can ensure efficient heat removal. Variations in flow rate can lead to temperature fluctuations, potentially resulting in lower efficiency and higher energy consumption. The heat exchange coefficient can also be affected by the inner diameter of the condenser, as larger diameters generally provide less resistance to vapor flow, optimizing condensation rates further. By understanding these principles, users can maximize the performance of their Liebig condenser systems in various distillation applications.
Efficient Setup: Positioning and Connecting the Liebig Condenser
When setting up a Liebig condenser for an efficient distillation process, proper positioning and connection are crucial to ensure optimal performance. The Liebig condenser operates by allowing the vaporized liquid to cool and condense back into a liquid form as it passes through the inner tube, where cold water circulates in the outer tube. To achieve this, position the condenser horizontally with the inlet and outlet for water facing downward. This orientation reduces the risk of air bubbles forming, which can impede condensation. According to a report from the American Chemical Society, effective cooling in a distillation setup can increase yield by up to 30%, emphasizing the importance of proper installation.
When connecting the Liebig condenser, ensure that the water flow is consistent and counterintuitive to the direction of vapor flow. This setup maximizes the cooling surface area and minimizes the chances of the condensate boiling back into vapor. Utilize high-quality vinyl tubing for water connections, as it enhances flow control and reduces leak risks. Additionally, a flow rate of around 1 liter per minute is recommended for optimal cooling efficiency, as per the guidelines from the Society of Chemical Industry.
Tips: Regularly check for any leaks or blockages in the water lines, as these can drastically reduce the cooling efficiency of the condenser. It’s advisable to use an adjustable water pressure valve to fine-tune the water flow based on experimental conditions. Lastly, keeping the condenser clean and free from residue will ensure continuous efficiency during the distillation process.
Optimizing Cooling Water Flow for Maximum Efficiency
To achieve maximum efficiency when using a Liebig condenser in the distillation process, it is essential to optimize the cooling water flow. The Liebig condenser operates by directing cold water through its jacket while vapor passes through its inner tube, allowing for effective heat exchange that converts vapor back to liquid. Therefore, the rate at which cooling water flows is crucial; too slow a flow may fail to adequately absorb the heat, while too fast can lead to inefficient use of water and potential operational issues.
Adjusting the flow rate of cooling water begins with ensuring that the inlet and outlet connections are properly set up for optimal circulation. A consistent flow of water, maintaining a temperature significantly lower than that of the vapor, enhances the condenser's performance. Additionally, it’s beneficial to monitor the pressure and temperature of the exiting water; ideally, it should exit at a temperature that indicates sufficient cooling action has occurred. Using a flow rate that can be adjusted according to the distillation scale will also ensure that the system can adapt to varying thermal loads efficiently, thereby maximizing the overall efficacy of the distillation process.
How to Use a Liebig Condenser for Efficient Distillation Process - Optimizing Cooling Water Flow for Maximum Efficiency
| Parameter | Ideal Value | Notes |
| Cooling Water Flow Rate | 1-2 L/min | Too high may lead to inefficiency |
| Condenser Length | 300-400 mm | Longer condensers improve cooling |
| Operating Temperature | Below 60°C | Reduces vapor escape |
| Material | Glass/Metal | Glass offers better visibility |
| Cooling Water Temperature | 15-20°C | Lower temperatures enhance efficiency |
Common Mistakes to Avoid When Using a Liebig Condenser
When using a Liebig condenser for distillation, avoiding common mistakes can significantly enhance your results. One prevalent error is not maintaining adequate cooling water flow. The condenser relies on a continuous flow of cold water to efficiently dissipate heat. If the water flow is too slow or insufficient, it can lead to vapor losses, which decreases yield. It's essential to check your water supply and ensure that the flow rate is appropriate for the size of your condenser, allowing for optimal condensation of the vapor back into liquid.
Another common mistake is improper assembly of the condenser. Ensuring that all connections are tight and leak-free is critical for maintaining an effective distillation process. Any air leaks can disrupt the pressure and lead to inefficient condensation. Additionally, be mindful of the orientation of the condenser; it should always be positioned to allow the ascending vapor to move smoothly through the unit without obstruction. By paying attention to these details, you can improve the efficiency of your distillation processes and avoid frustrations that may arise from these typical oversights.
Efficiency of Distillation Process Using a Liebig Condenser

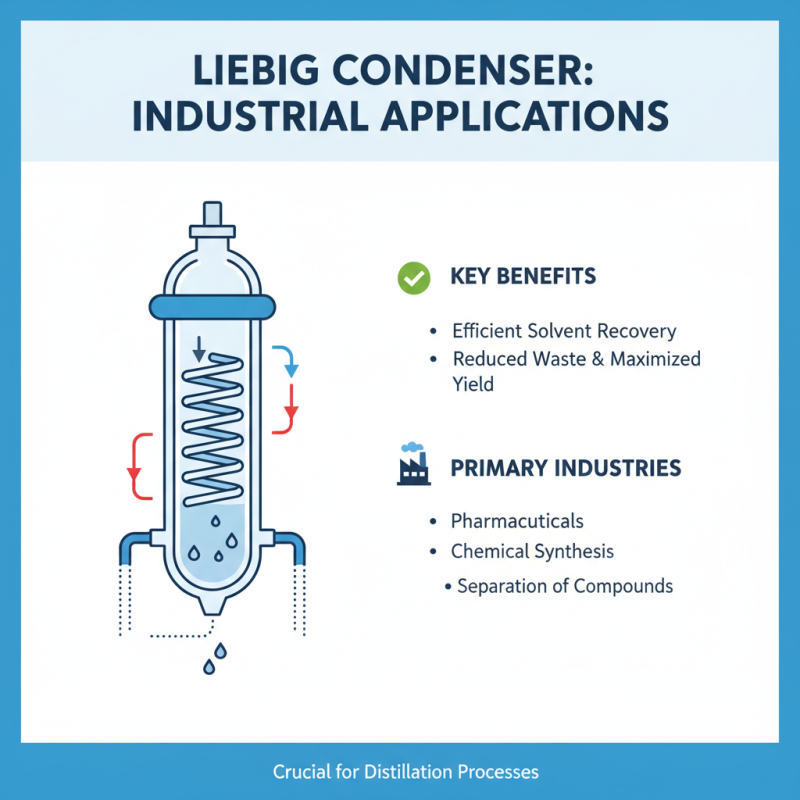

Applications of the Liebig Condenser in Various Industries
The Liebig condenser, a crucial component in distillation processes, finds applications across various industries due to its efficiency and reliability. In the pharmaceutical industry, for instance, it is used to purify solvents and separate chemical compounds during the synthesis of active pharmaceutical ingredients. The ability to condense vapors back into liquid form allows for the effective recovery of solvents, minimizing waste and maximizing yield in drug production.
In the field of environmental science, Liebig condensers play a vital role in the process of extracting essential oils from plants. By facilitating the distillation of volatile compounds, they ensure that the delicate aromas and medicinal properties of the oils are retained. This application is not only significant for the cosmetic and fragrance industries but also for the food and beverage sector, where high-quality extracts are sought for flavoring and preservation.
Moreover, in the petrochemical industry, Liebig condensers are utilized in the separation and purification of hydrocarbons. Their design allows for efficient heat exchange, making them ideal for distillation processes that require temperature control. This results in high purity products that meet industry standards. Overall, the versatility and efficiency of Liebig condensers make them indispensable in various industrial applications centered around distillation and separation processes.
FAQS
: A Liebig condenser is an essential apparatus used in distillation processes, designed with two concentric glass tubes where vapor passes through the inner tube while cooling liquid circulates in the outer tube, facilitating the quick condensation of vapor back into liquid form.
The key components of a Liebig condenser include the outer jacket for the coolant, the inner tube for vapor flow, and secured seals to prevent leaks, ensuring minimal heat loss and optimal cooling rates.
The cooling water flow rate is crucial; an adequate flow absorbs heat effectively, while too slow a flow can result in increased vapor temperatures, reducing efficiency and affecting the purity of the distilled product.
It is important to monitor the pressure and temperature of the exiting water, ensuring it indicates sufficient cooling action, and to adjust the cooling water flow rate based on the distillation scale to adapt to varying thermal loads.
Liebig condensers are used in the pharmaceutical industry for purifying solvents, in environmental science for extracting essential oils, and in the petrochemical industry for separating and purifying hydrocarbons, among other applications.
The condenser helps condense vapors back into liquid form, allowing effective recovery of solvents, thus minimizing waste and maximizing yield during the synthesis of active pharmaceutical ingredients.
Liebig condensers facilitate the distillation of volatile compounds, preserving the delicate aromas and medicinal properties of essential oils, which is important for the cosmetic, fragrance, and food and beverage industries.
Consistent coolant flow improves the heat exchange process, leading to more effective condensation of vapor and enhancing the overall performance and efficiency of the distillation process.
Yes, insulating materials can be applied to the outer layer of a Liebig condenser to enhance thermal performance, contributing to a more sustainable and efficient distillation process.
A well-constructed Liebig condenser can achieve a cooling efficiency of up to 90%, making it highly effective for various distillation setups.
Conclusion
The article "How to Use a Liebig Condenser for Efficient Distillation Process" provides a comprehensive overview of the Liebig Condenser, a crucial apparatus used in distillation. It begins by outlining the fundamental principles behind the Liebig Condenser, including its key components and construction. The discussion then shifts to the heat exchange principles that facilitate efficient distillation, emphasizing the importance of proper setup and positioning.
Additionally, the article highlights best practices for optimizing cooling water flow, which is vital for maximizing the condenser's efficiency. It also addresses common mistakes users might encounter during operation, ensuring a successful distillation process. Lastly, various applications of the Liebig Condenser across different industries are explored, demonstrating its versatility and significance in laboratory and industrial settings. Overall, understanding these elements empowers users to effectively utilize the Liebig Condenser for enhanced results in their distillation processes.
