Boro 3.3 Glass Beaker with Graduation and Spout

Glass Beaker

1. Description:Lab glass beaker with graduation and spout
2. Color: Transparent
3. Material: Borosilicate glass 3.3
4. Volume:5ml-20000ml
5. Temperature Resistance:560℃
6. Mouth: Flat, flanging,with or without spout
7. Application Laboratory, Chemical, School
8. OEM/ODM: Yes,your idea or drawing can be designed by us and produced or printing on.

Features of Glass Beaker:

* The thickness of beaker is uniform, and there is no special distortion during the production process;
* Beakers surfaces are smooth and no impurities; The edges are intact and no cracks. They will not affect the numerical result of measuring the liquid.
* Each beaker is engraved with a standard scale that allows you to accurately measure the volume of the liquid. Clear scales help you to read values quickly and without errors.
* This glass beaker is resistant to high temperatures and corrosion, so you don't have to worry about chemical reactions with liquids. You can save the cost by cleaning and reusing beakers.
* Widely Uses: Beaker sets can be used in the laboratory, classroom teaching, etc.

About Glass Beaker:

A beaker is a common laboratory glassware, usually made of glass, plastic, or heat-resistant glass. Beaker and cylindrical, there is a small opening on one side at the top of the slot, is advantageous for the dumping of liquid. Some of the outer wall of the beaker with scale, can be roughly estimated volume of liquid in the beaker. A beaker can be heated, in general should be uniform heating, heating is best not to dry.

    Glass Measuring Cylinder

    ● High borosilicate glass
    ● Stable base
    ● Clear scale

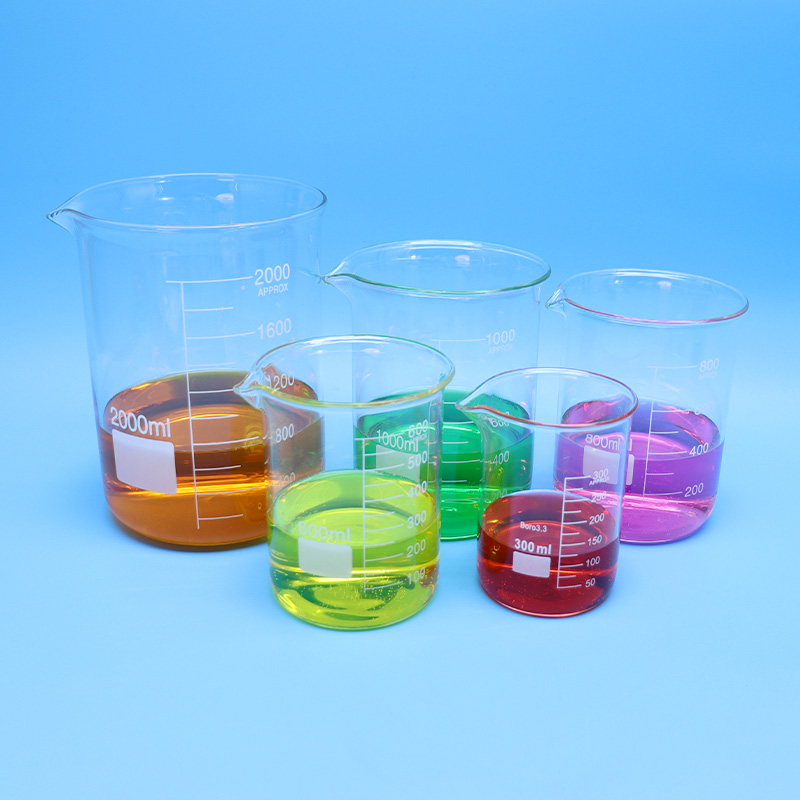

    • glass1

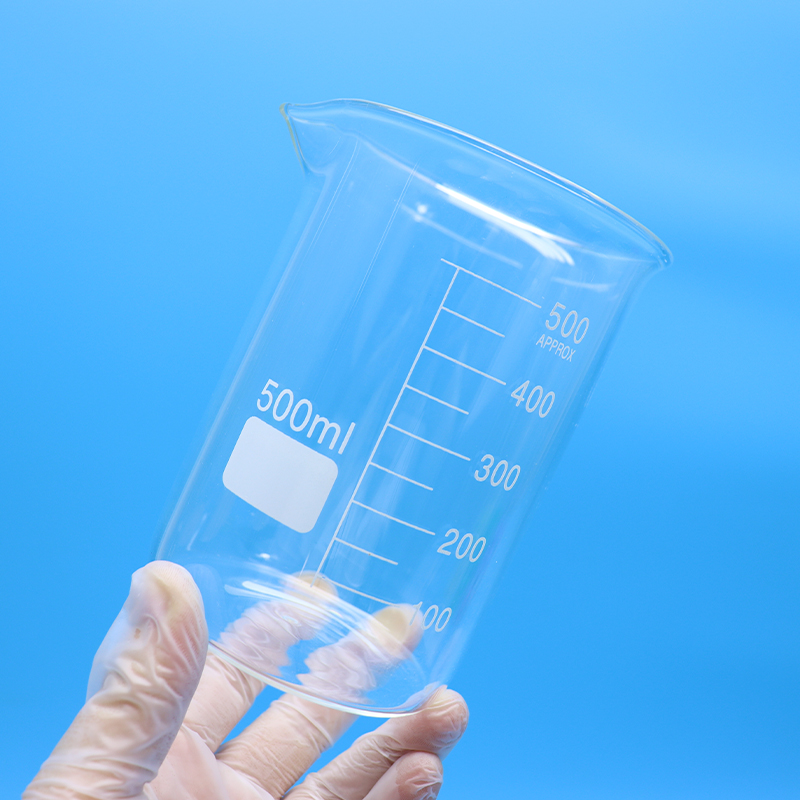

    • IMG_7658

    Beaker Low Form

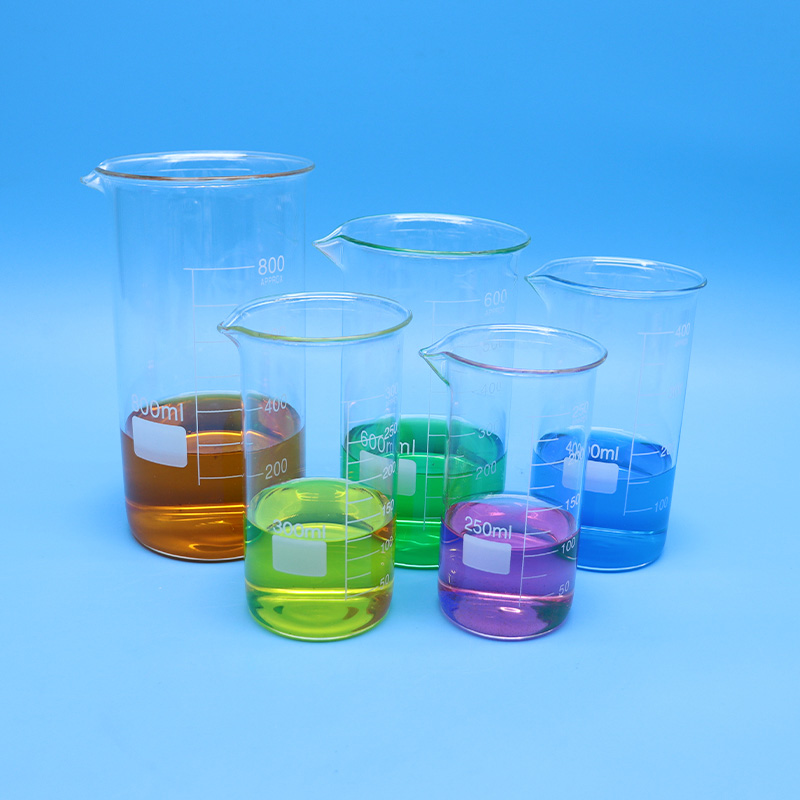

    • glass2

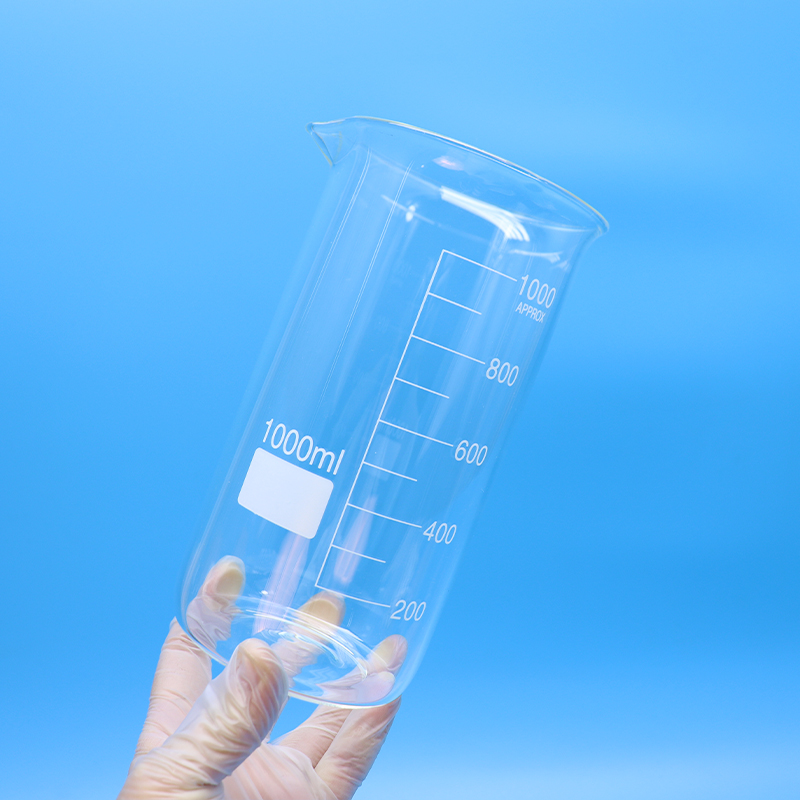

    • IMG_7855

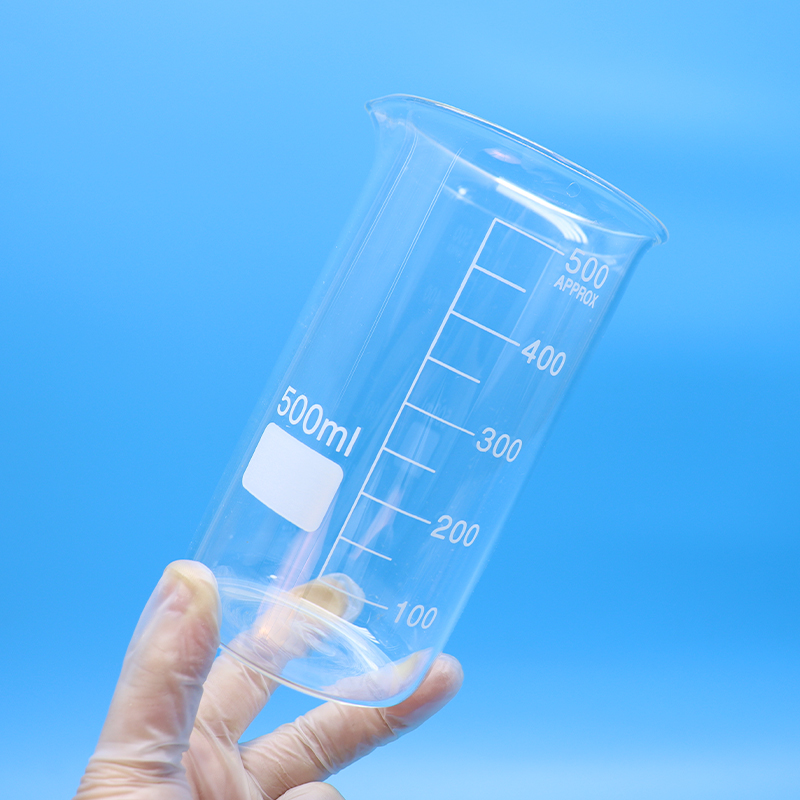

    Beaker High Form
    Product Name: Boro 3.3 Glass Beaker
    Product Type: 5–2000ml
    Product Material: High borosilicate glass
    Product Introduction:High borosilicate glass has a very low coefficient of thermal expansion, about one-third that of ordinary glass. It can withstand high temperatures of 200 ℃ temperature difference, low expansion rate, high strength, high chemical stability. The laboratory sterilization temperature standard is 121°C/134°C, and the bottle cap can withstand up to 140°C high temperature.
    It can serve as a material reactor, determine combustion products, be used to dissolve and crystallize a substance, hold solutions for evaporation, concentration, or heating, and also be used to hold corrosive solid chemicals for weighing.

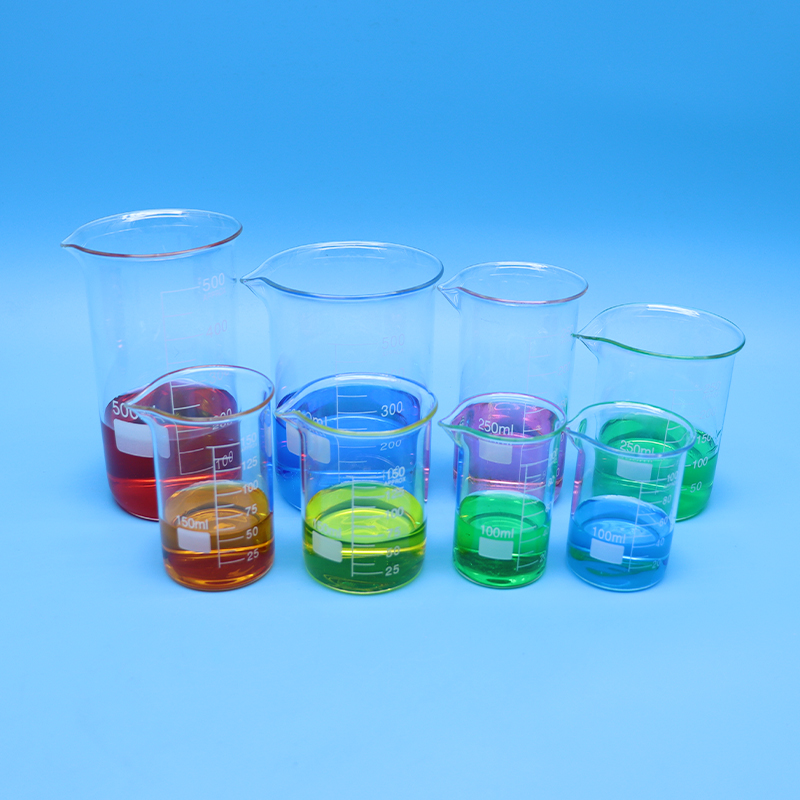

    Product  Show

    ● Clear markings, high transparency.
    ● The bottom of the cup is flat, heats evenly, and is not easily shattered due to rapid heating.
    ● Uniform wall thickness, no air bubbles.

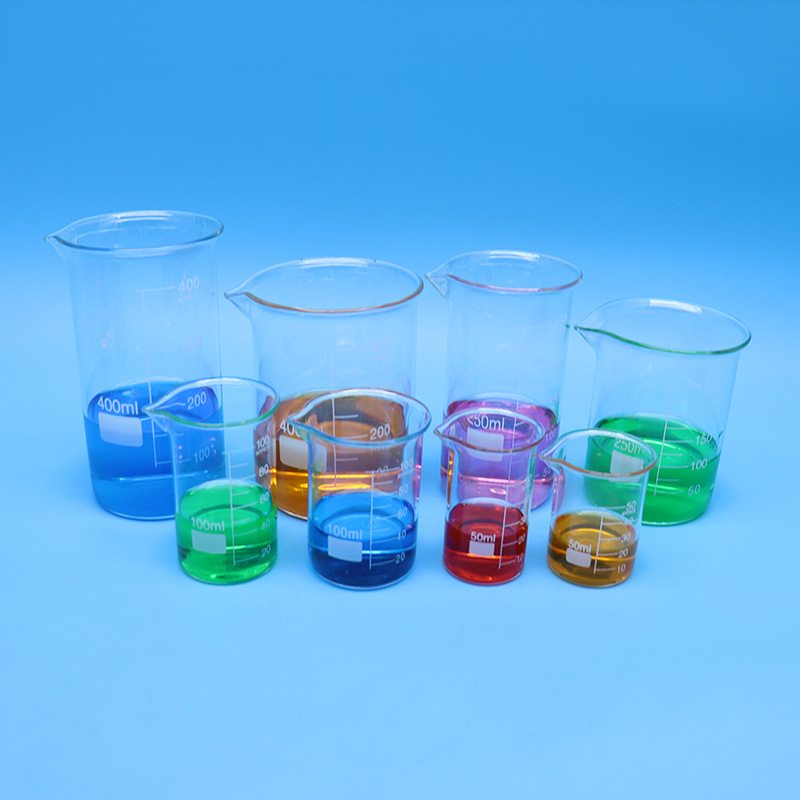

    glass3

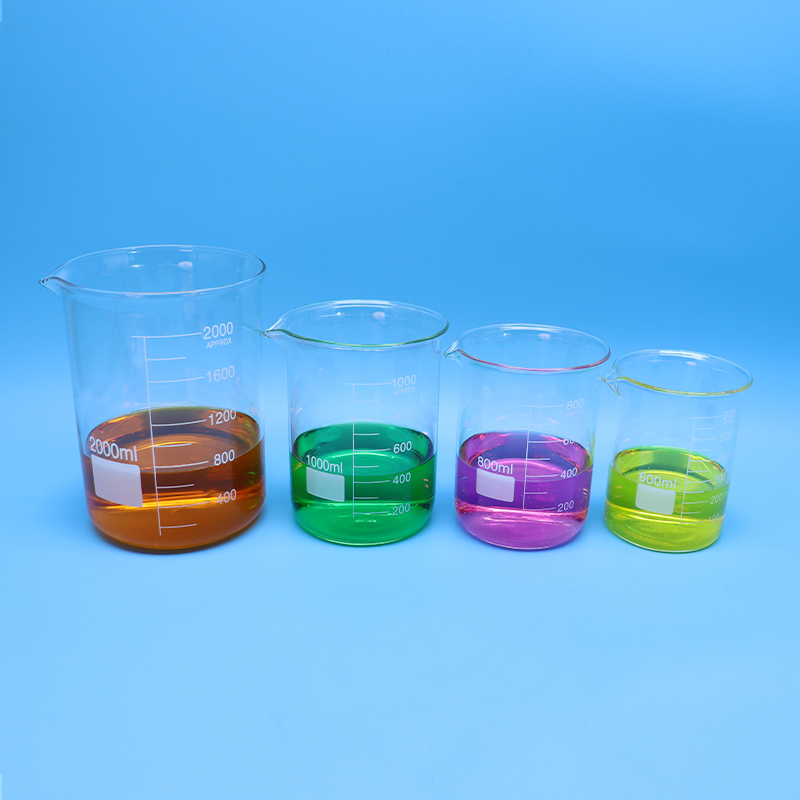

    Beaker Low Form Show

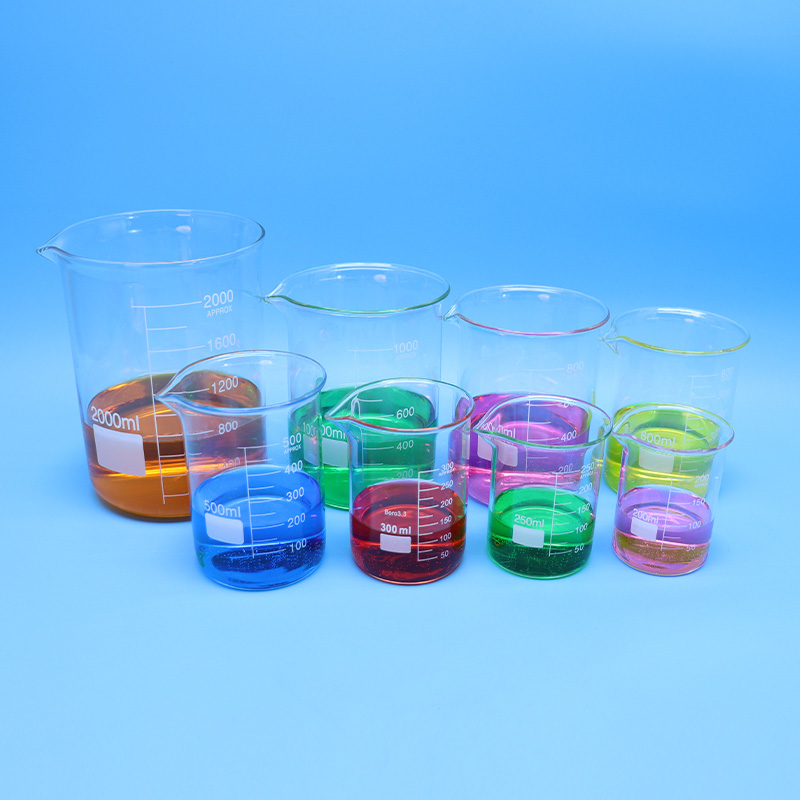

    • glass4

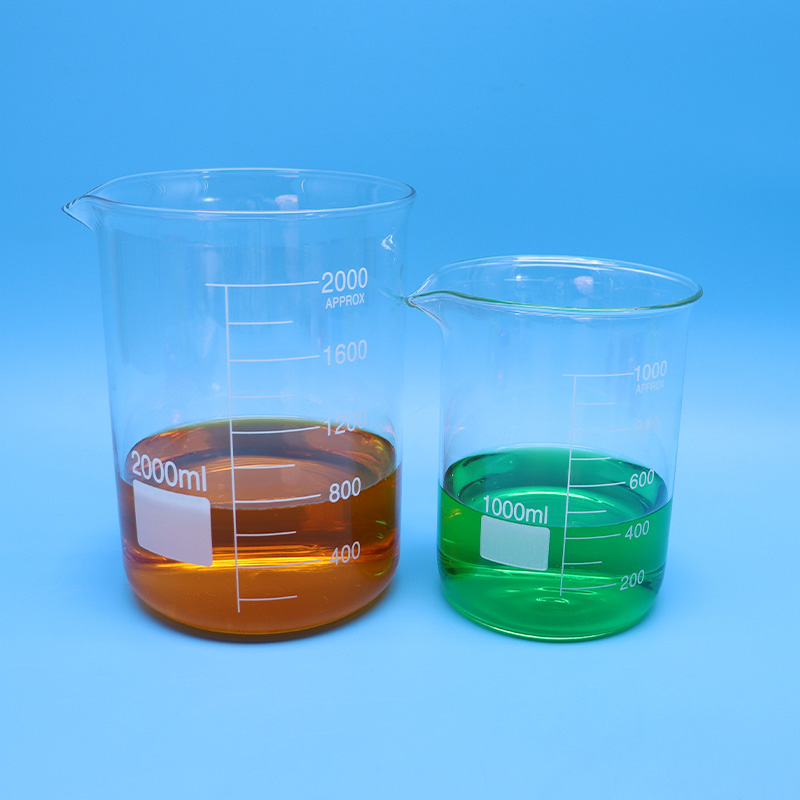

      glass6

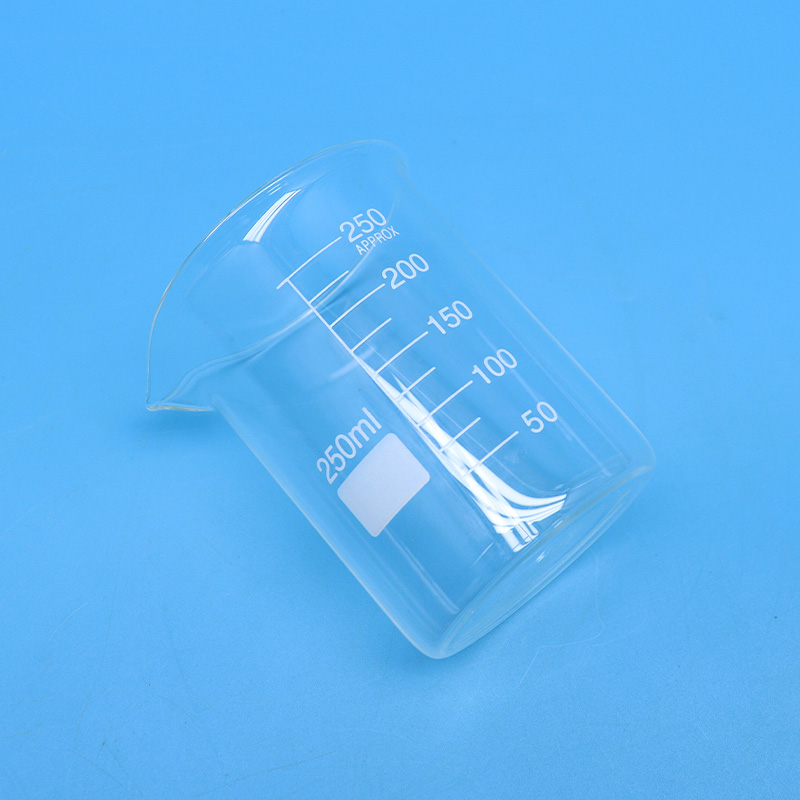

      glass8

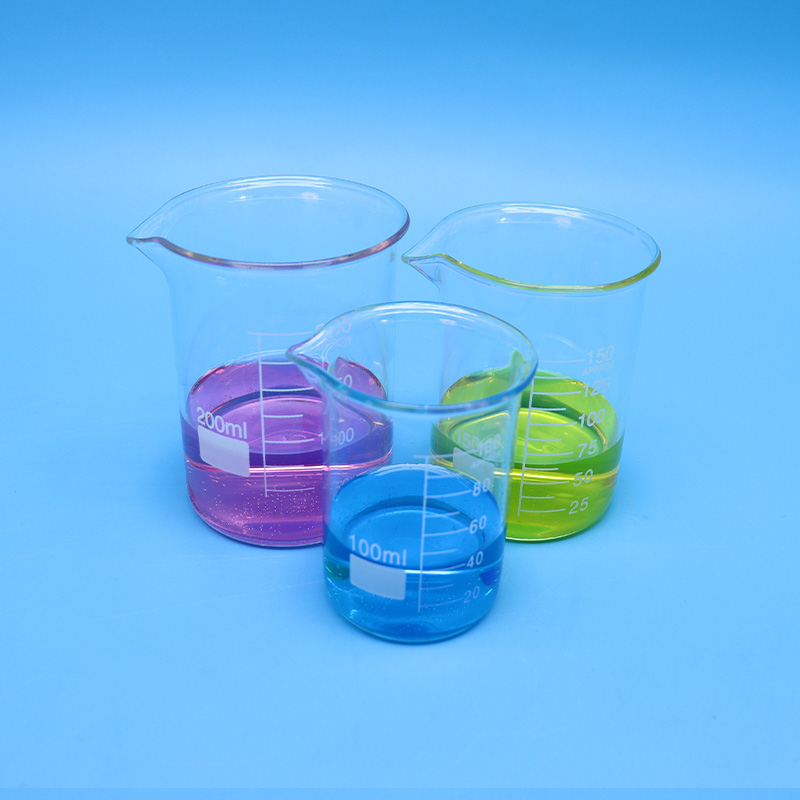

    • glass5

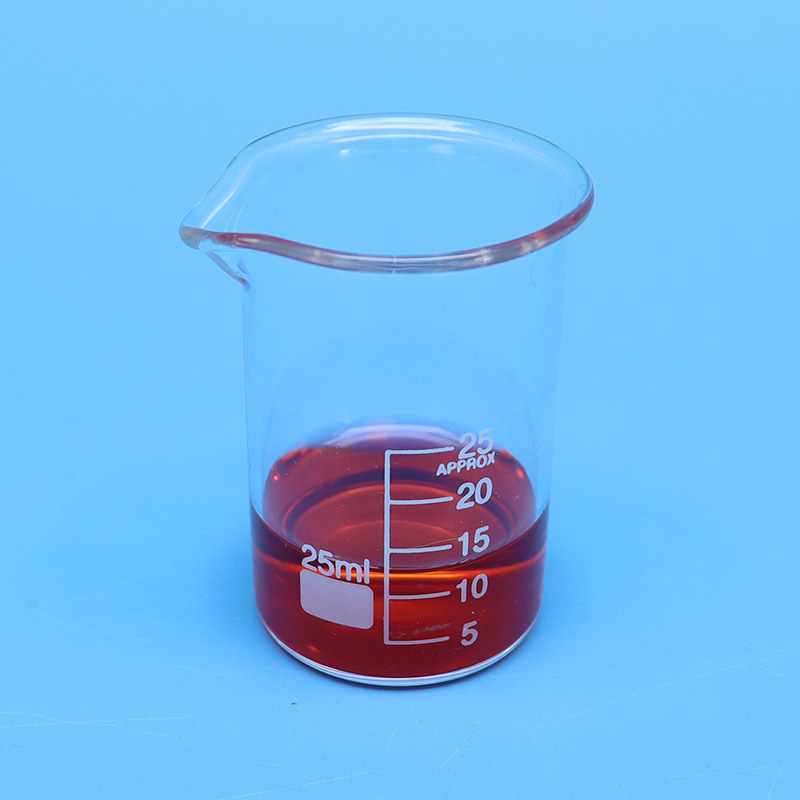

      glass7

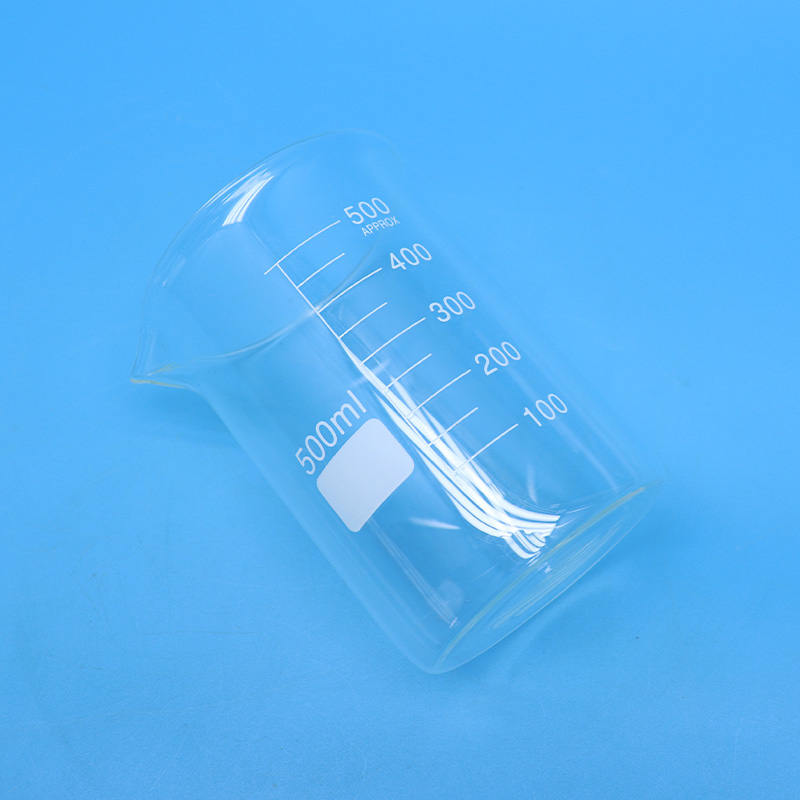

      glass9

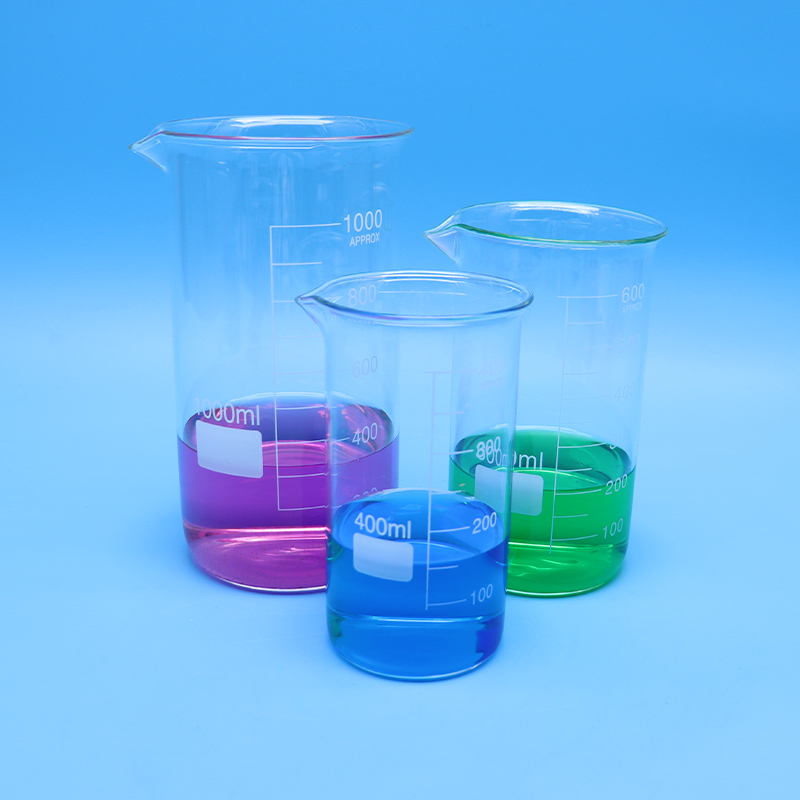

    Beaker High Form Show

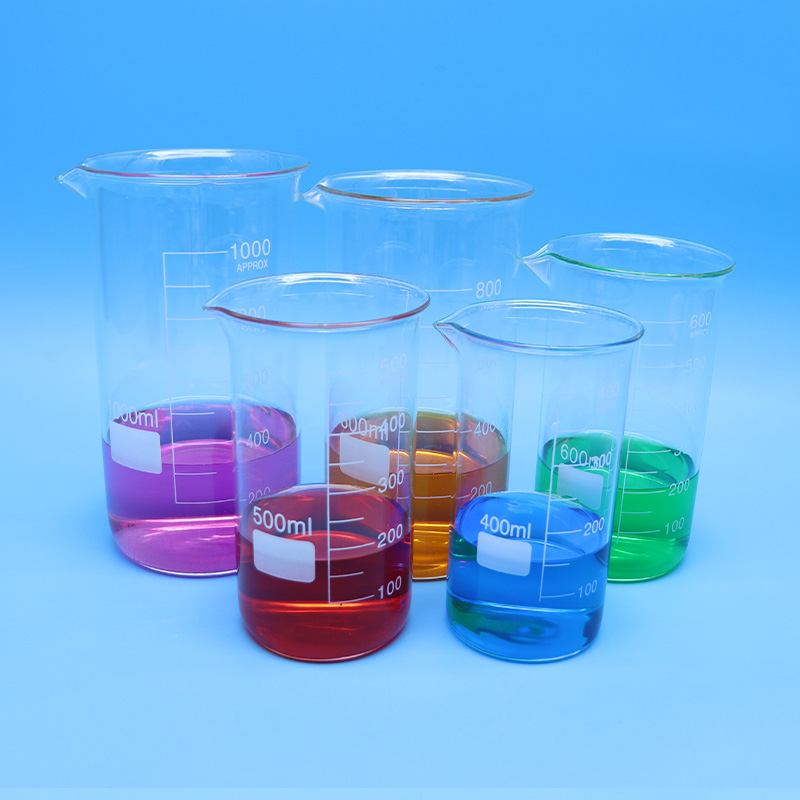

    • glass10

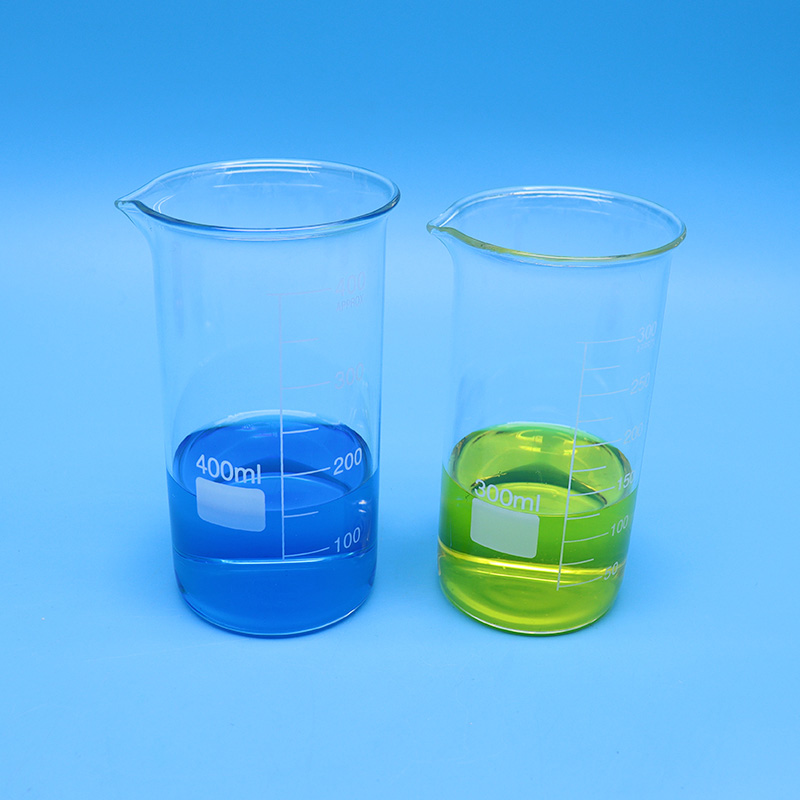

      glass12

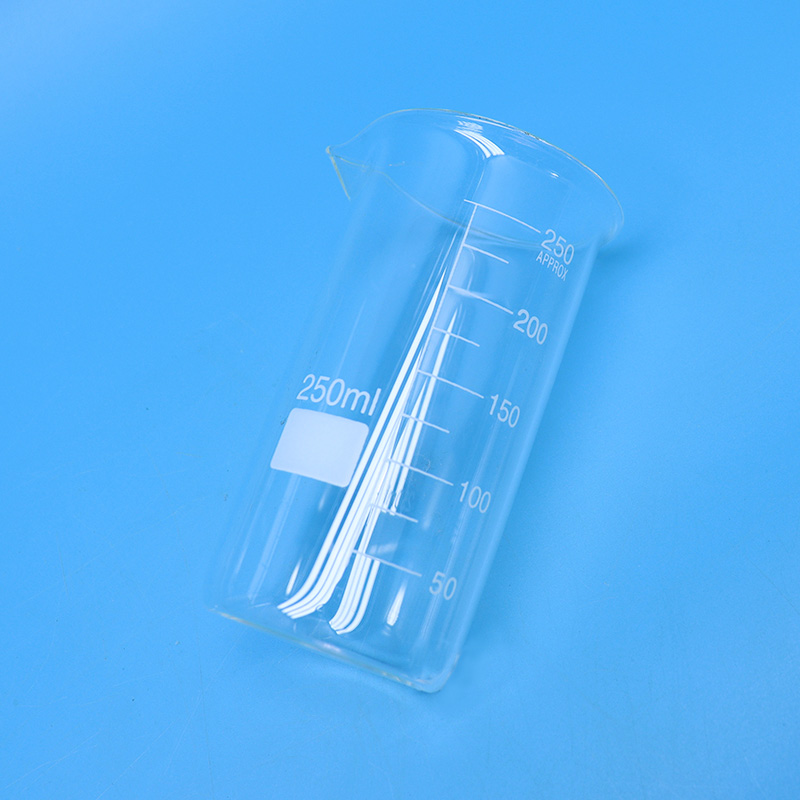

      glass14

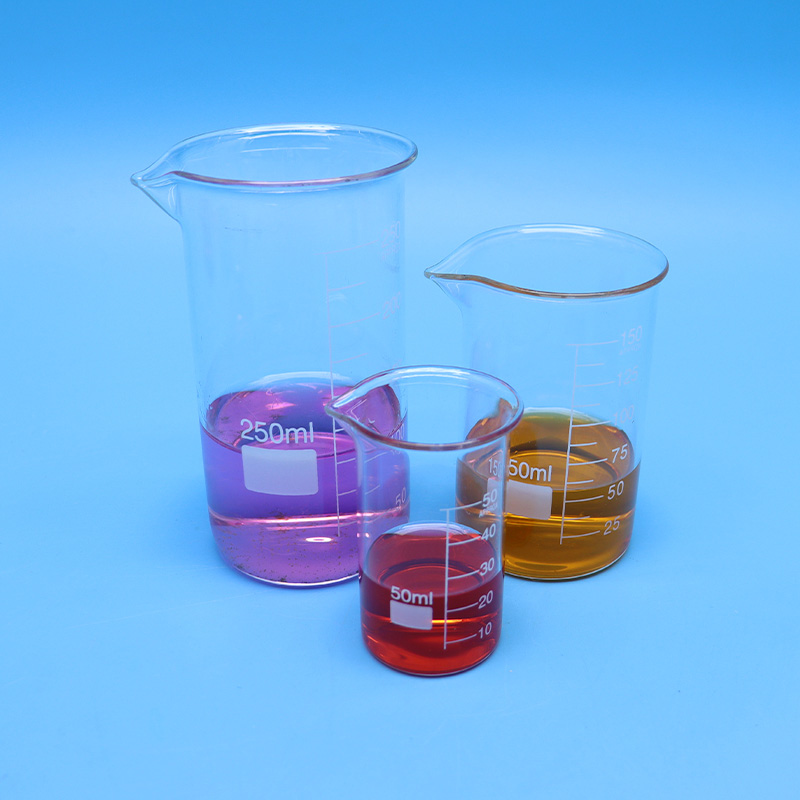

    • glass11

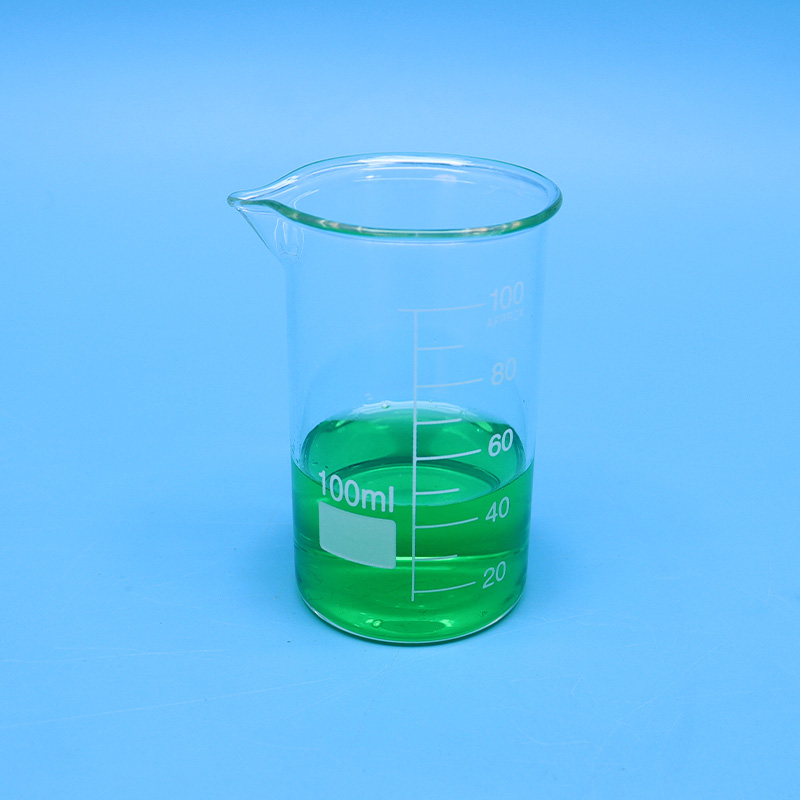

      glass13

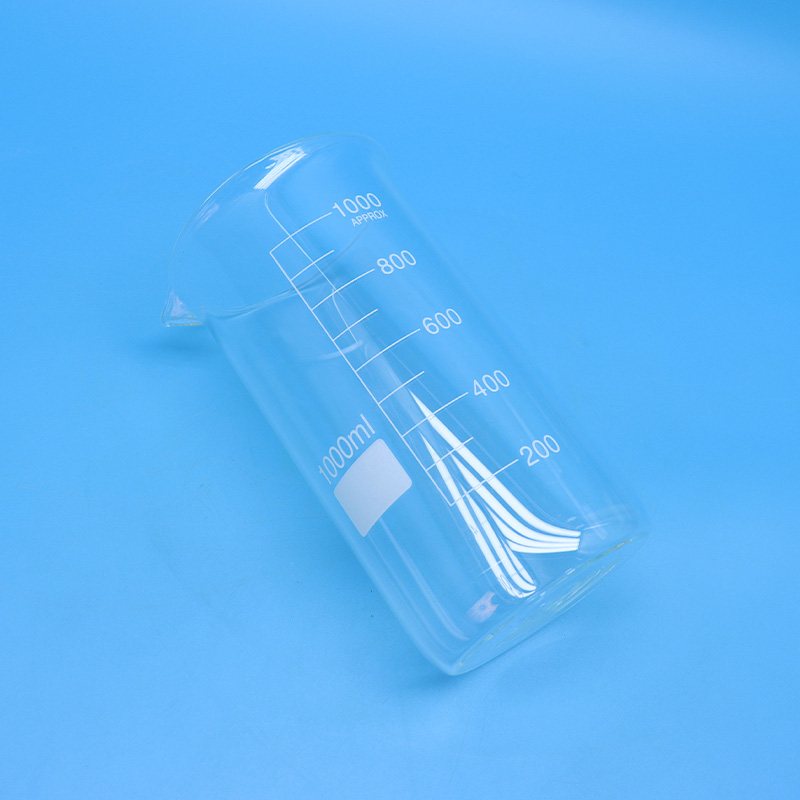

      glass15

    Product Details Show

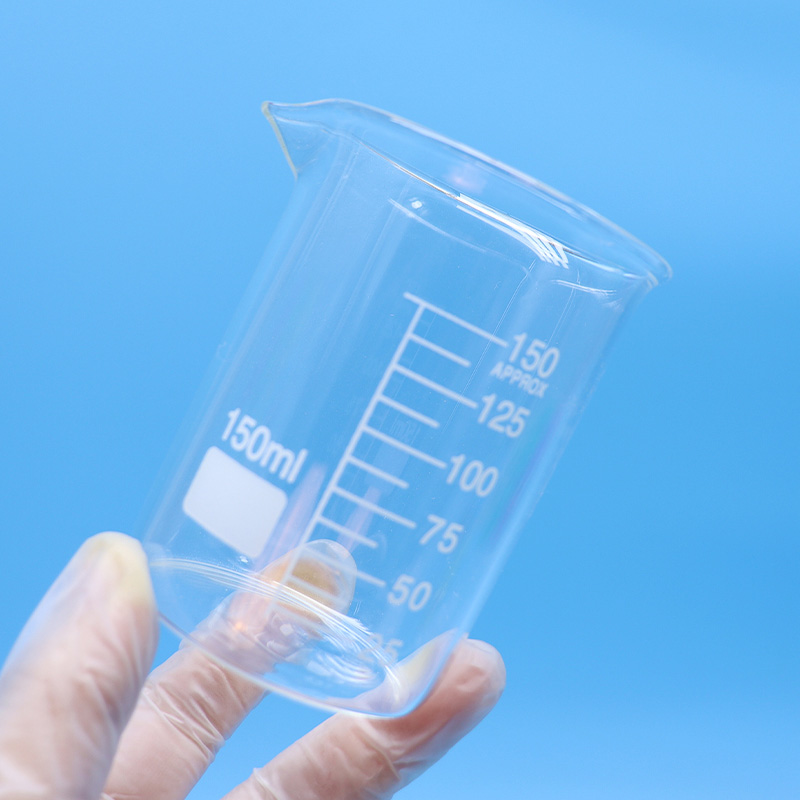

    • glass16

      glass18

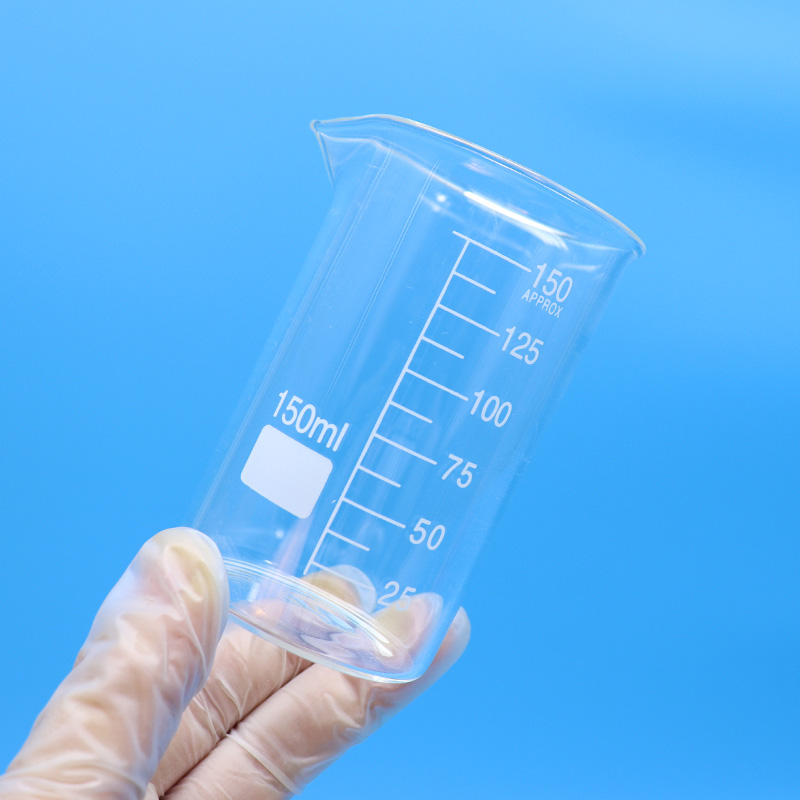

    • glass17

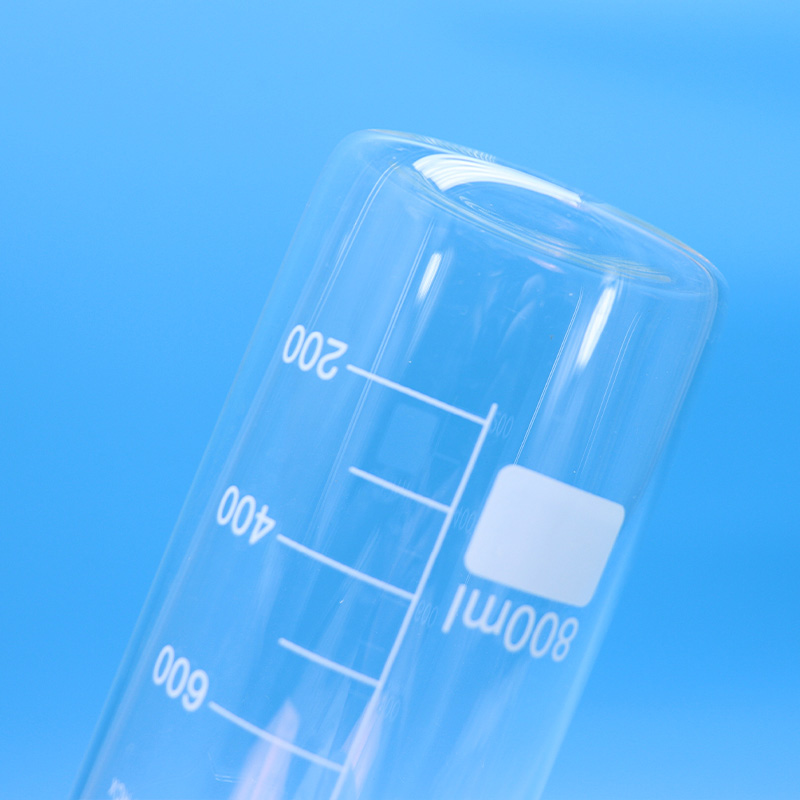

      glass19

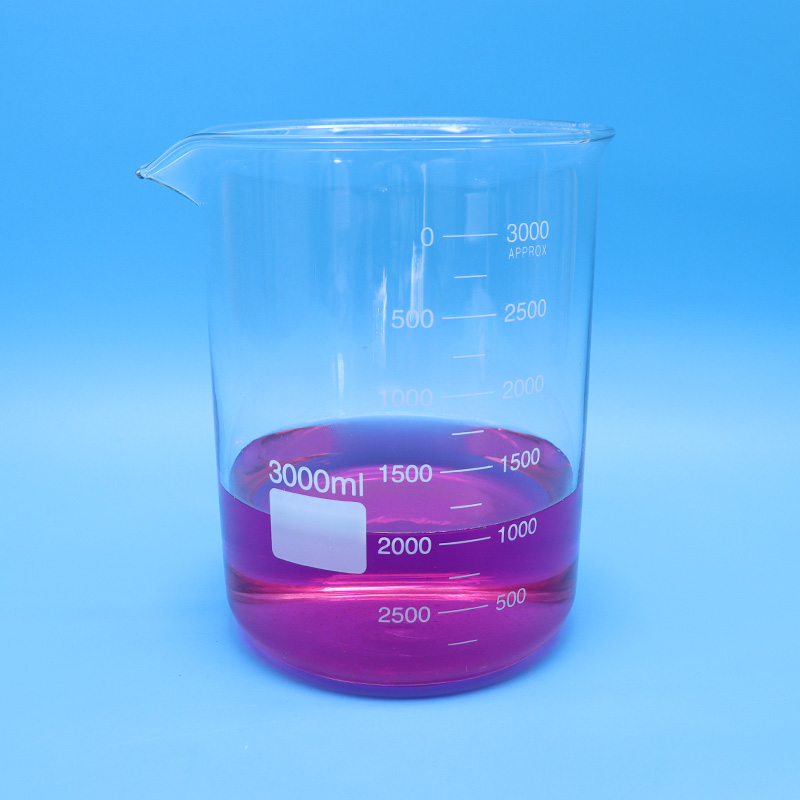

    • glass20

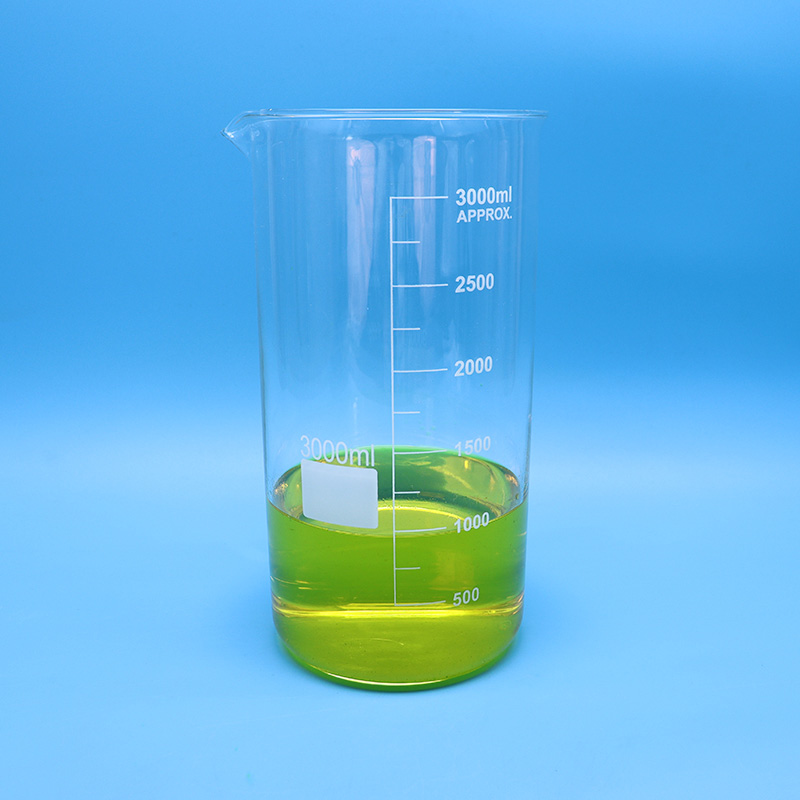

    • glass21

    Size Show

    • 5ml

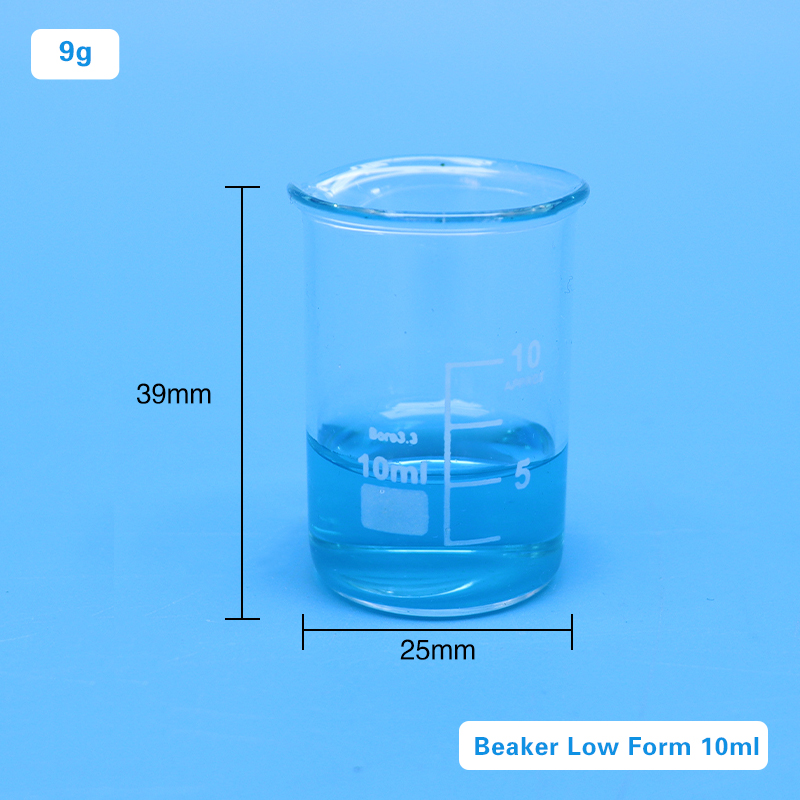

    • 10ml
    • 25ml

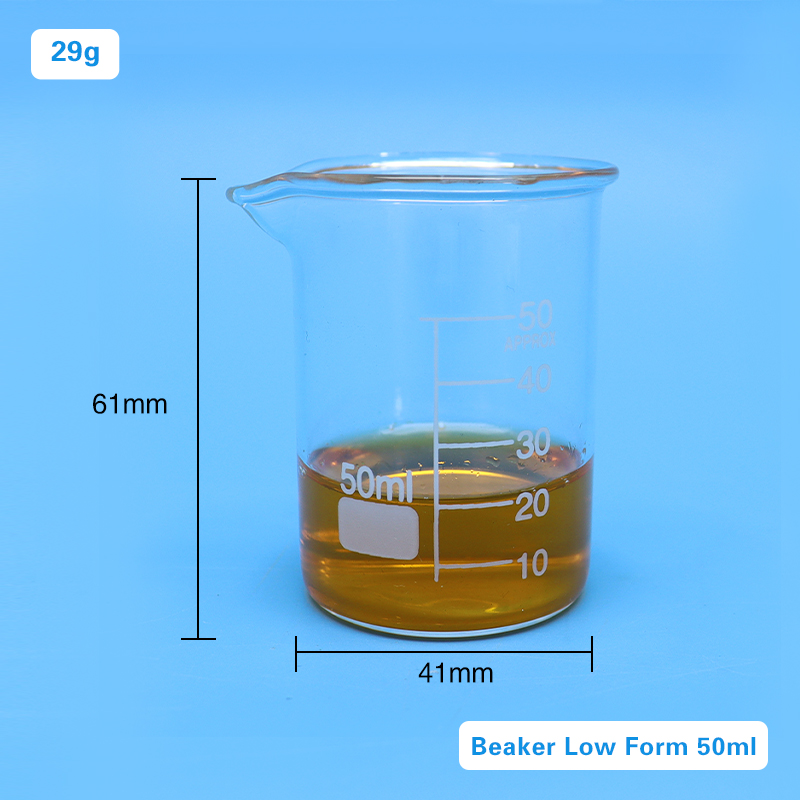

    • 50ml
    • 100ml

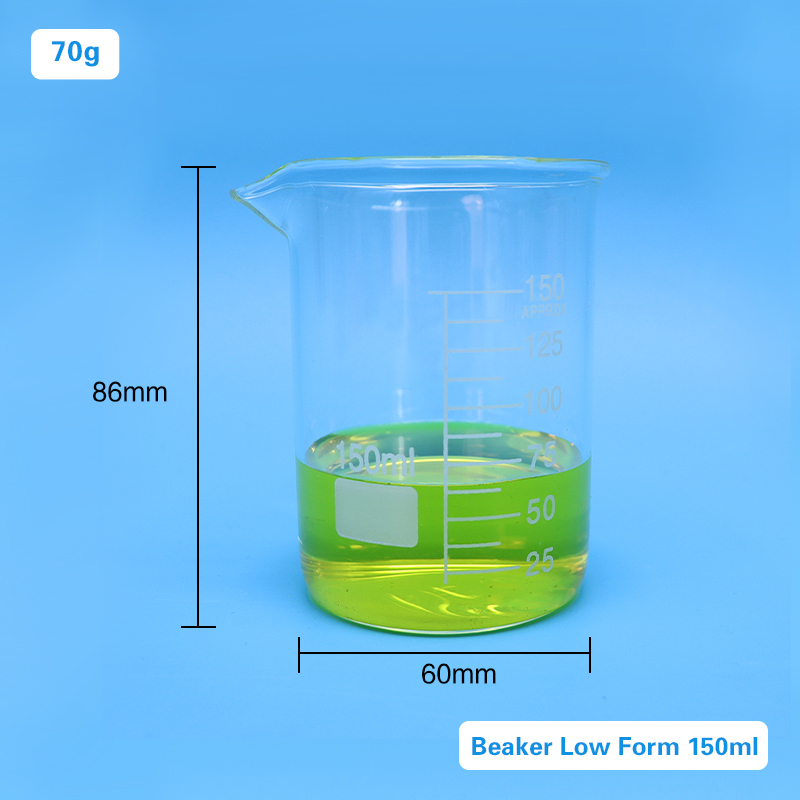

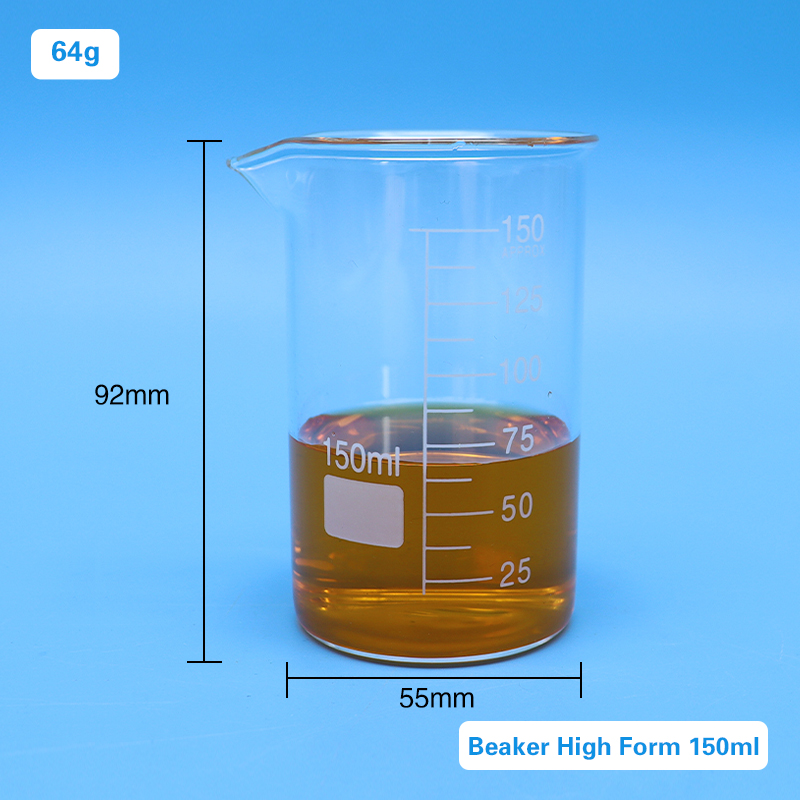

    • 150ml
    • 200ml

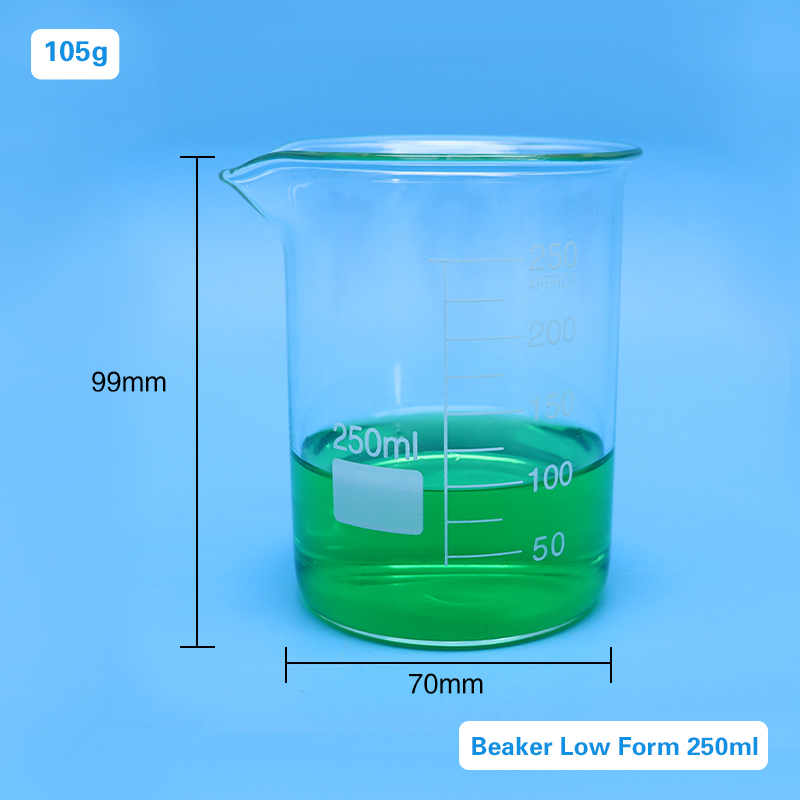

    • 250ml
    • 300ml

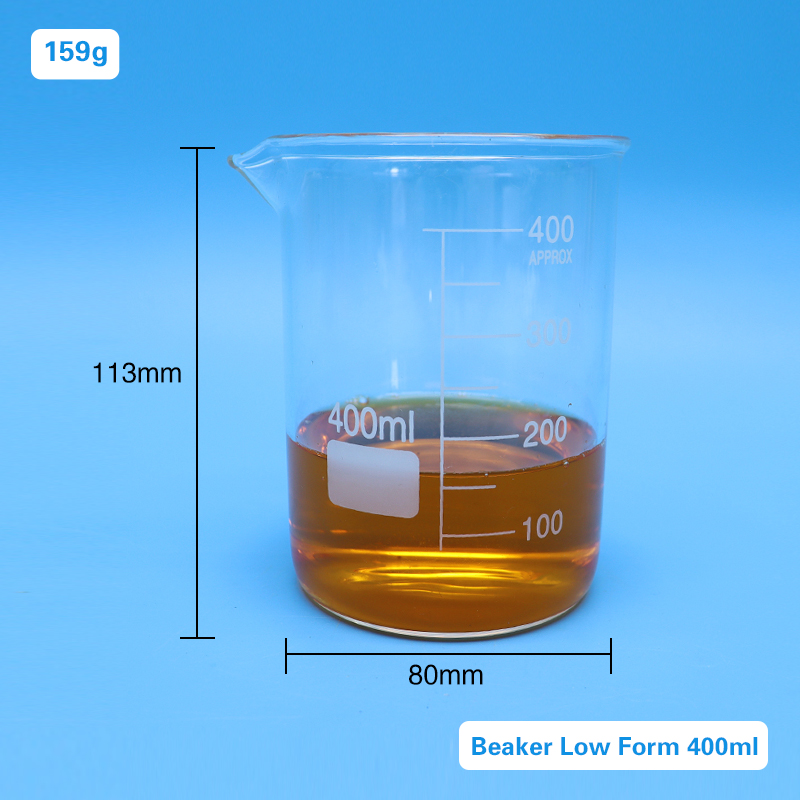

    • 400ml
    • 500ml

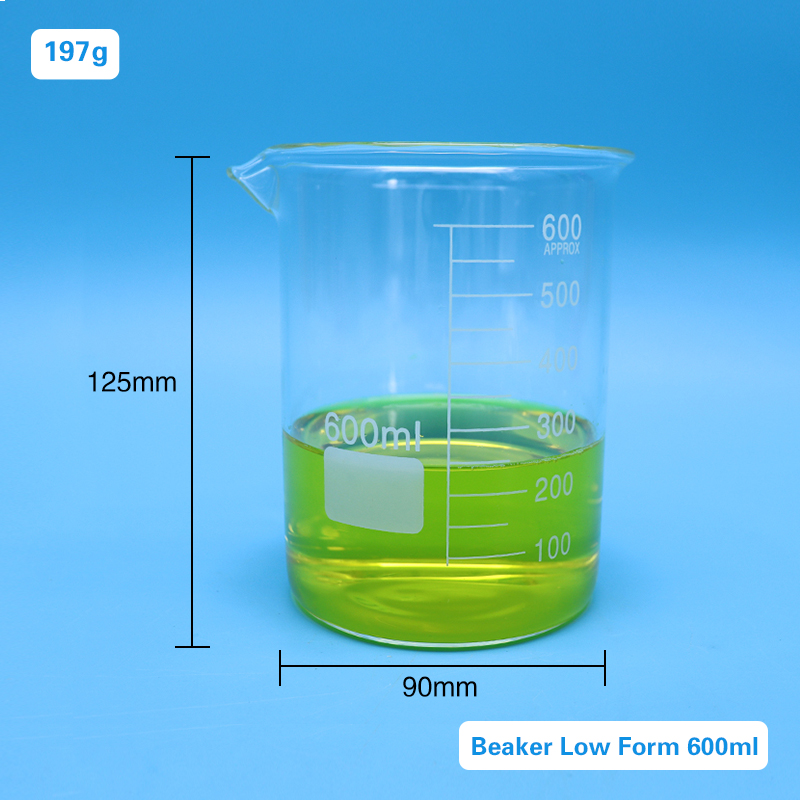

    • 600ml
    • 800ml
    • 1000ml
    • 2000ml
    • 3000ml
    • 5000ml
    • 10000ml
    • 20000ml
    • 50ml

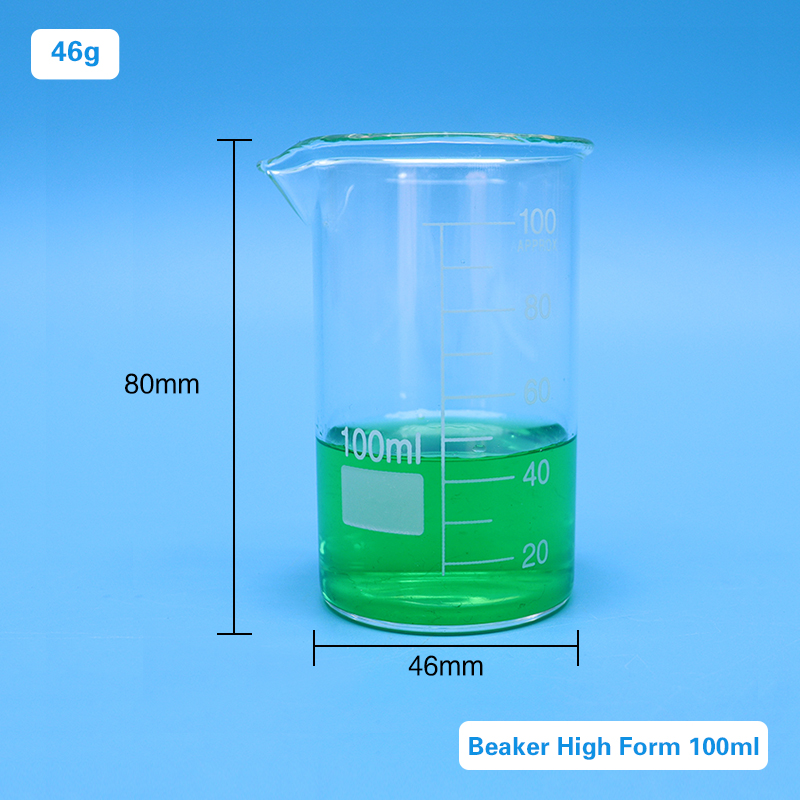

    • 100ml
    • 150ml

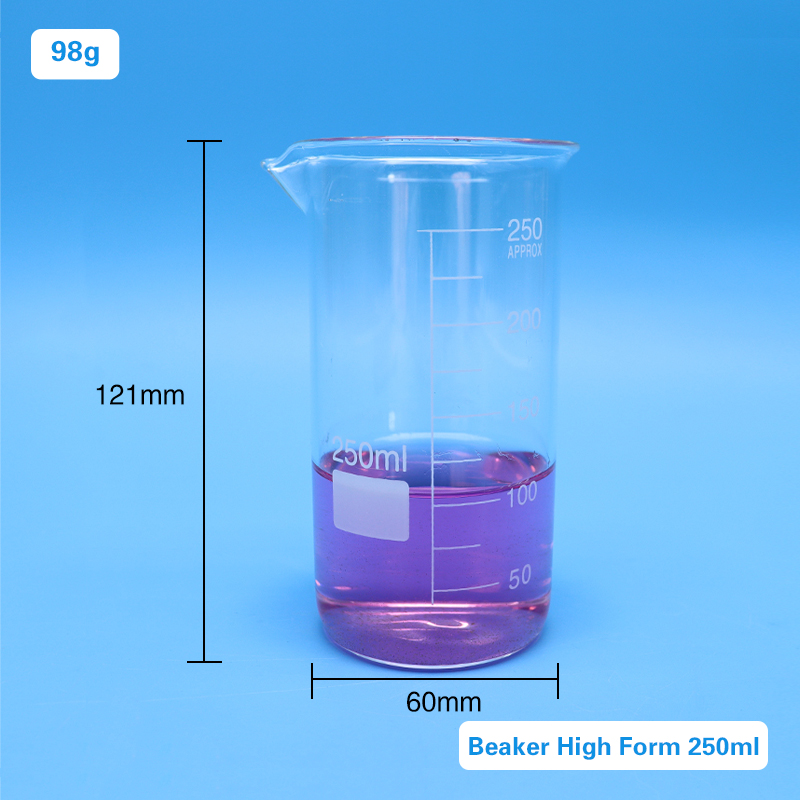

    • 250ml
    • 300ml
    • 400ml
    • 500ml
    • 600ml
    • 800ml
    • 1000ml
    • 2000ml
    3000ml

    Boro 3.3 Glass Beaker Specs

    Description Picture Spec
    (ml)
    Outer  Diameter(mm) Height
    (mm)
    Weight(g)
    BeakerLow Form

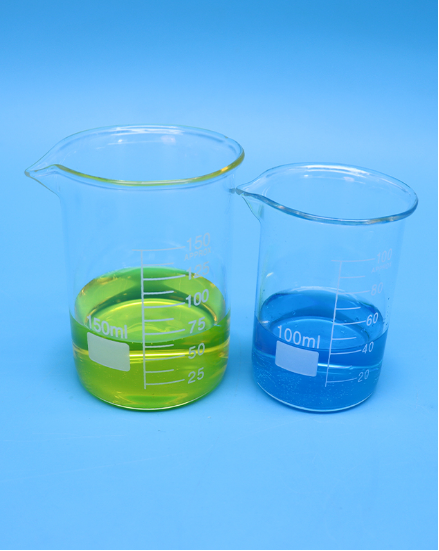

    glass001

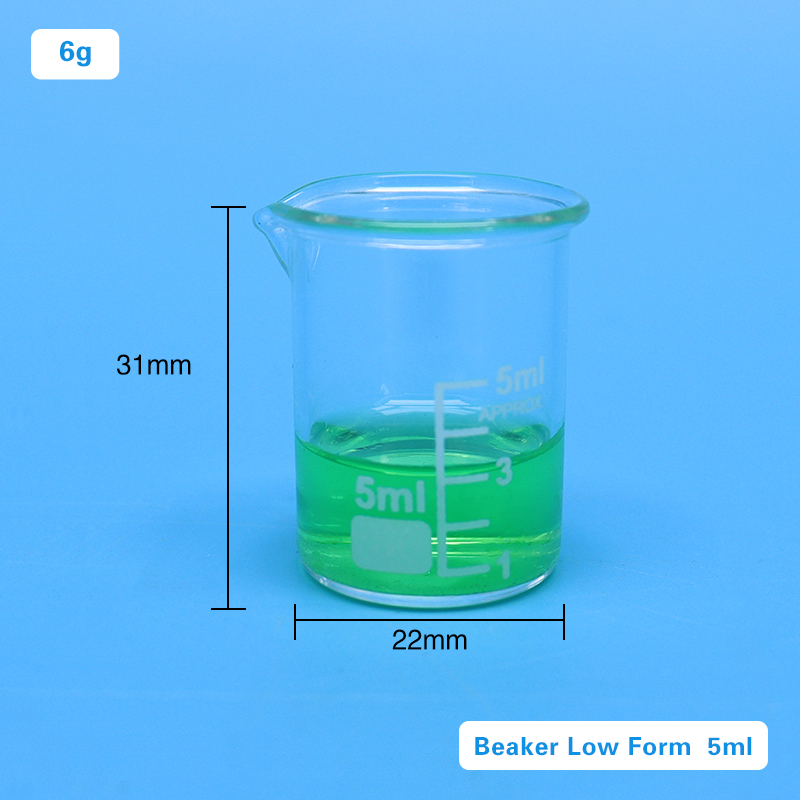

    5 22 31 6
    10 25 39 9

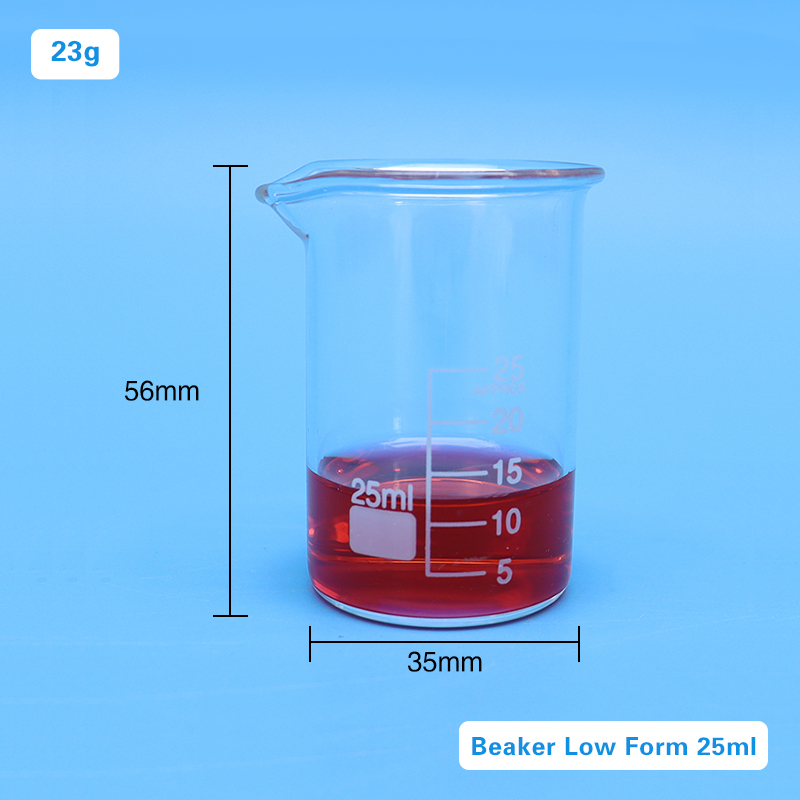

    25 35 56 23
    50 41 61 29

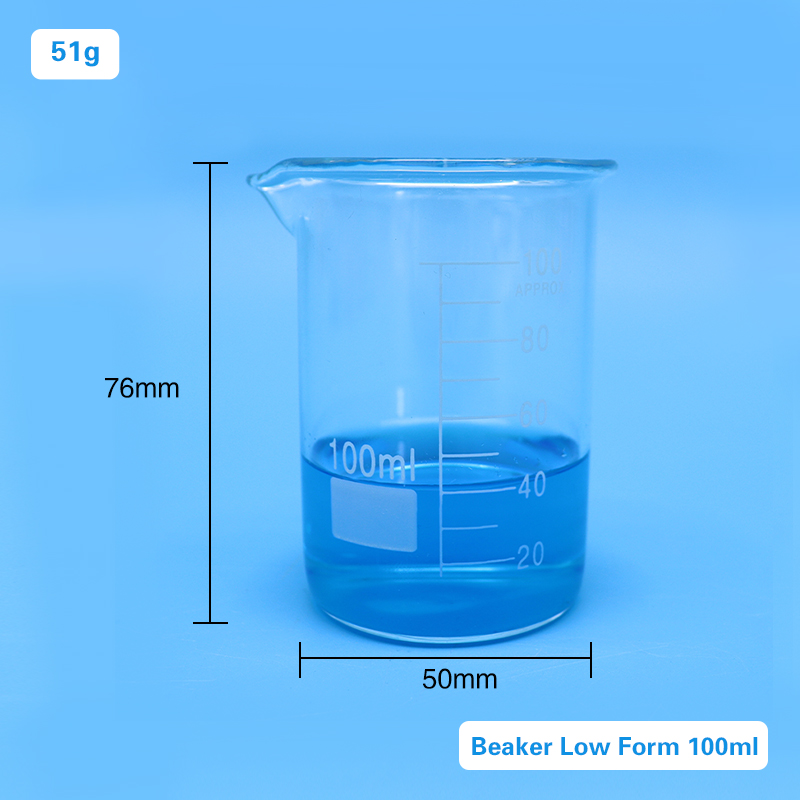

    100 50 76 51
    150 60 86 70

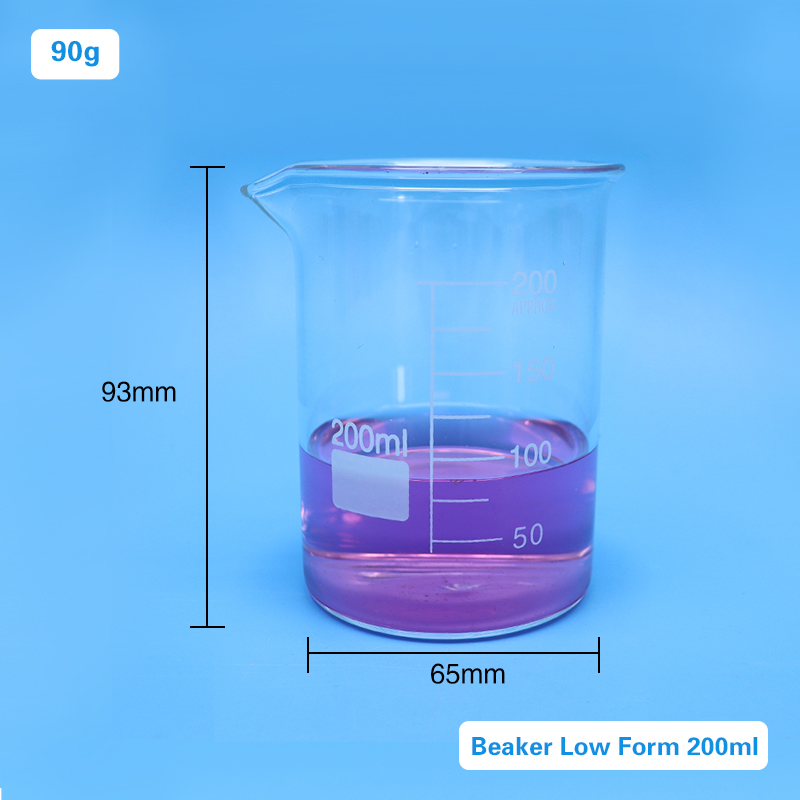

    200 65 93 90
    250 70 99 105

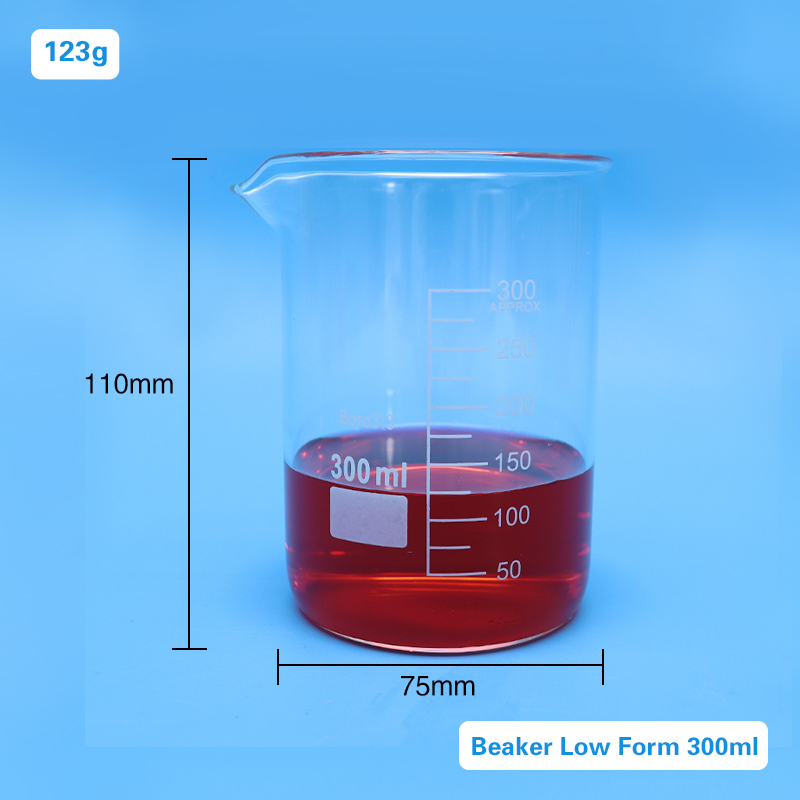

    300 75 110 123
    400 80 113 159

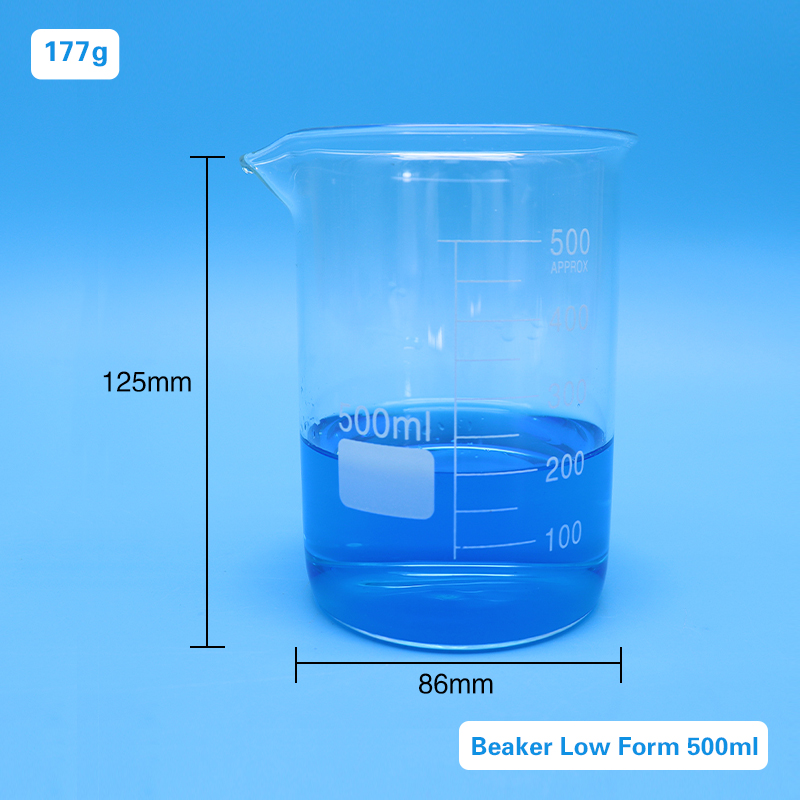

    500 86 125 177
    600 90 125 197

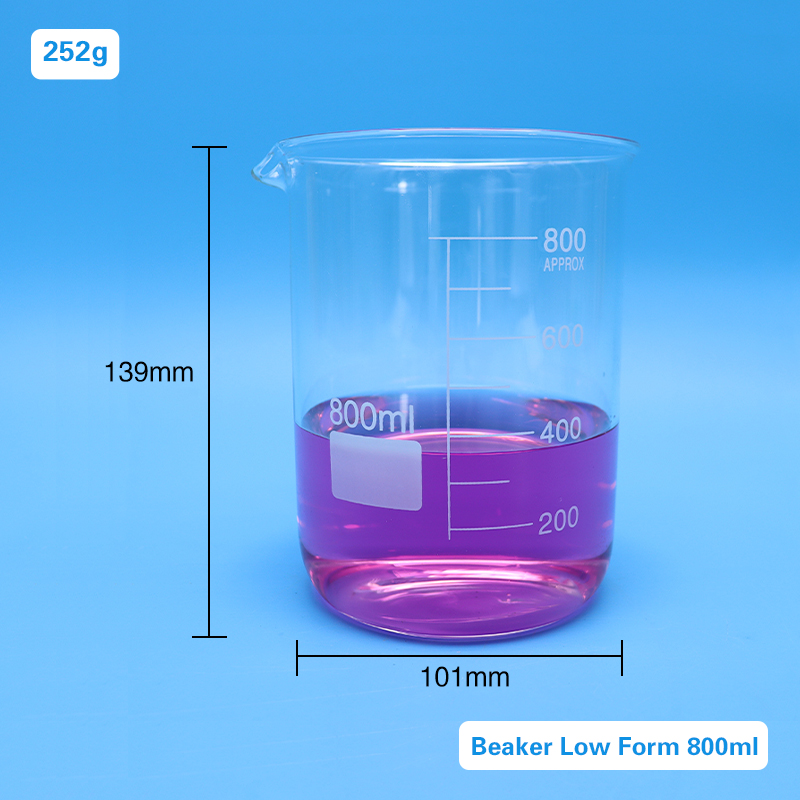

    800 101 139 252

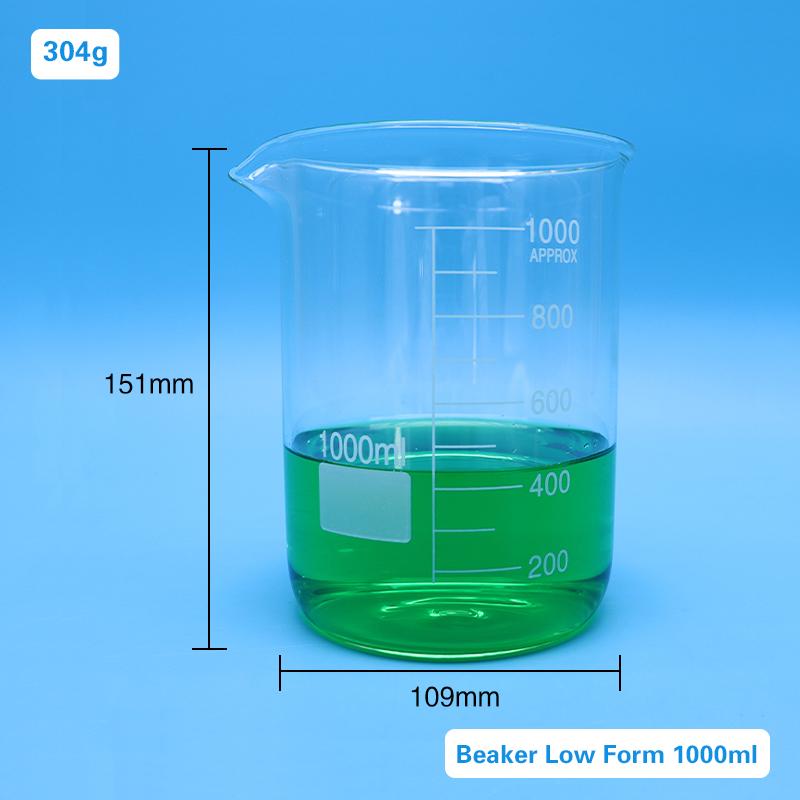

    1000 109 151 304

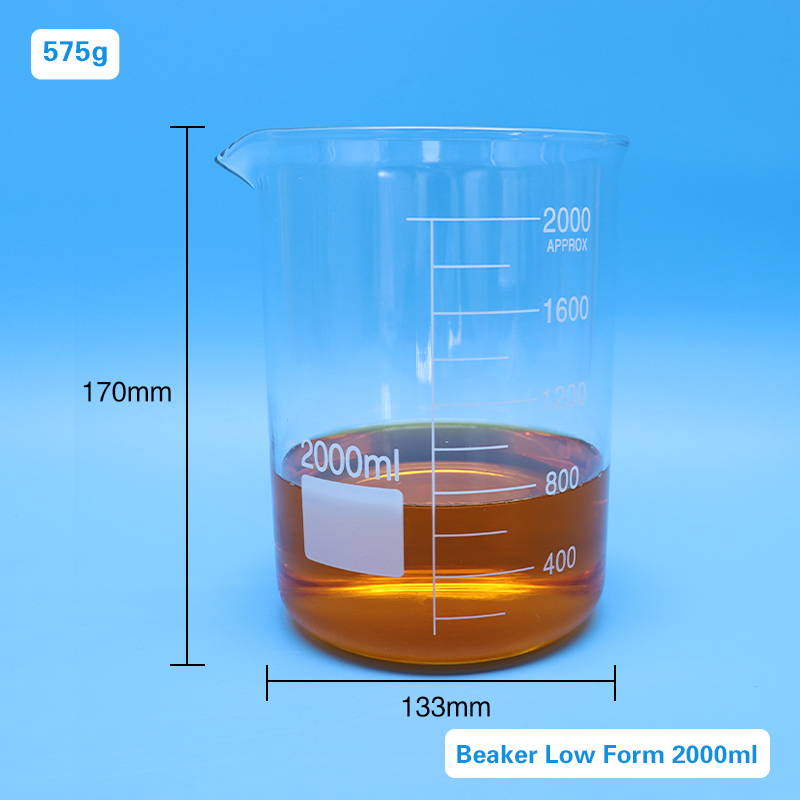

    2000 133 170 575

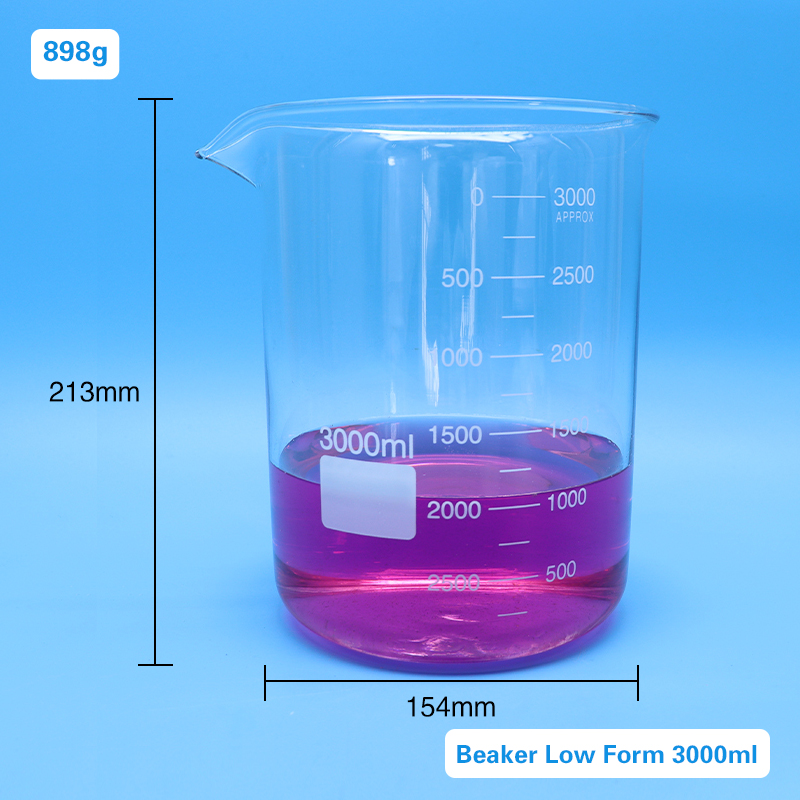

    3000 154 213 898

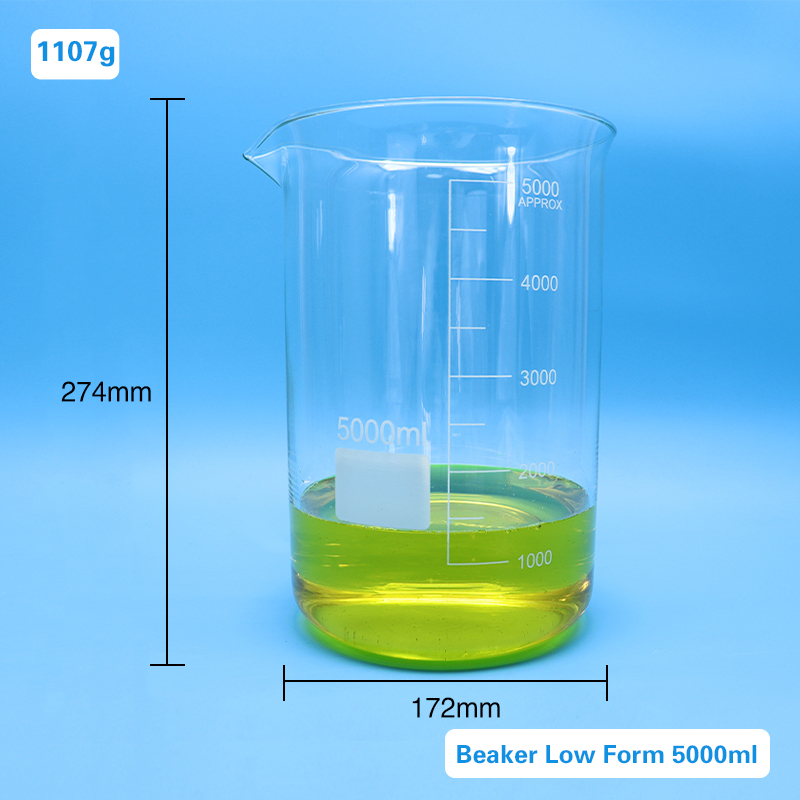

    5000 172 274 1107

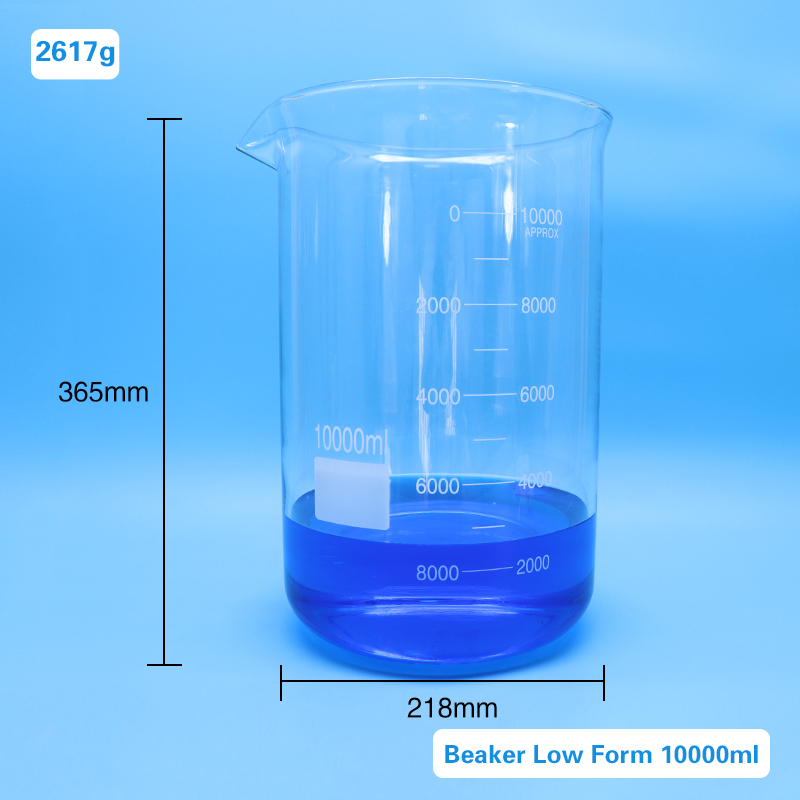

    10000 218 365 2617

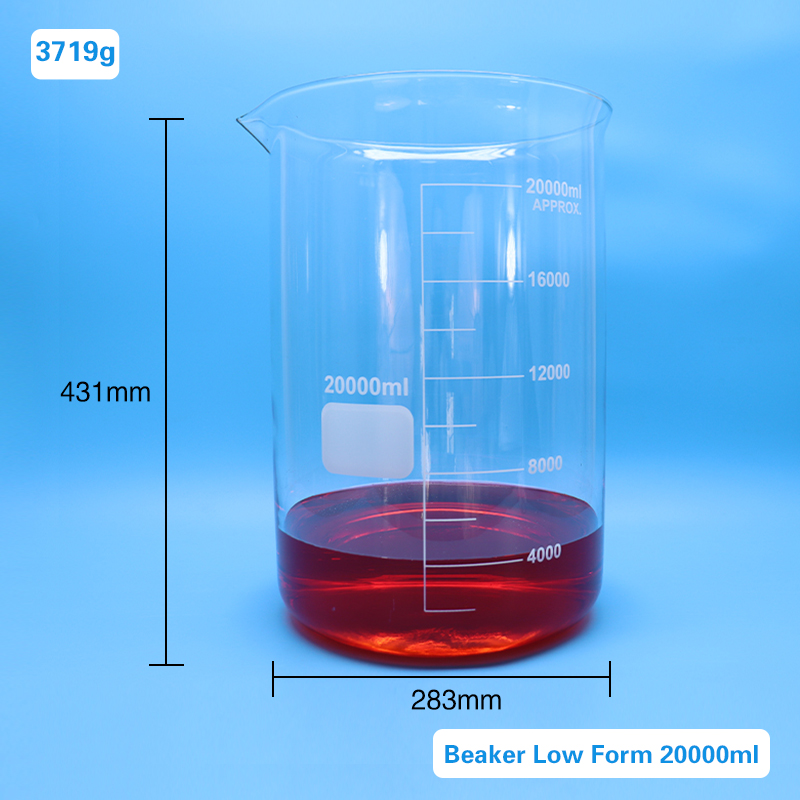

    20000 283 431 3719
    Beaker HighForm

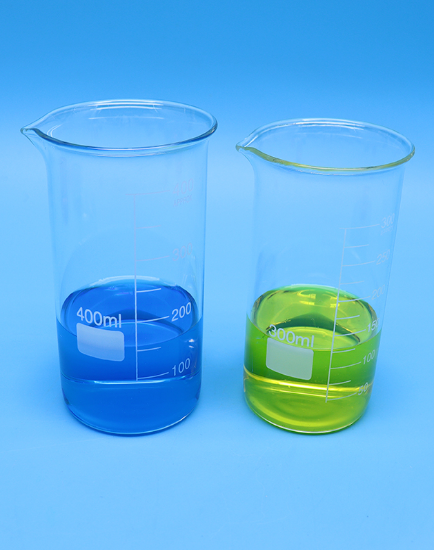

    glass00

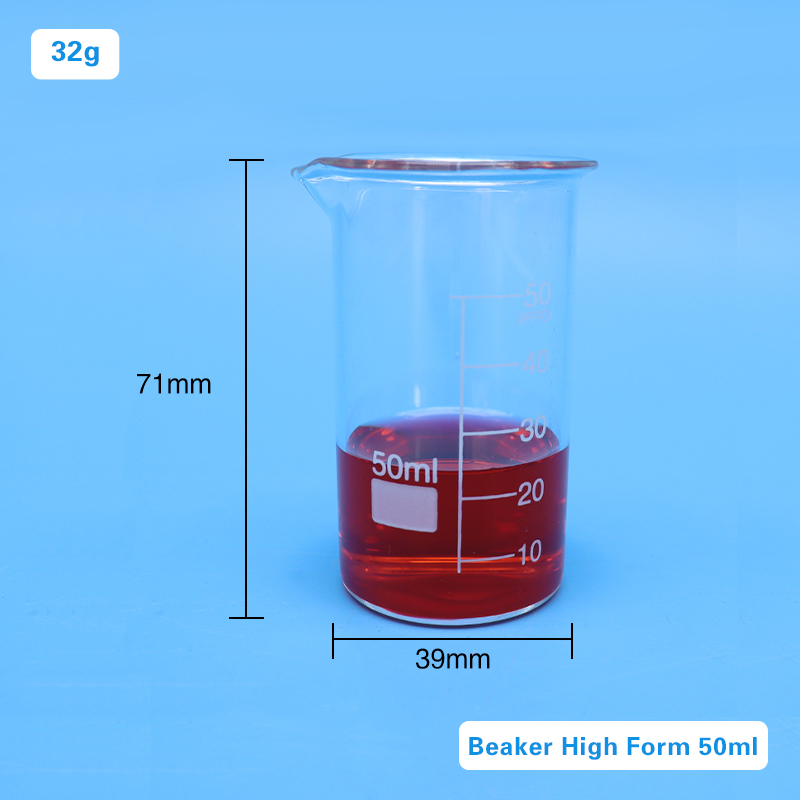

    50 39 71 32
    100 46 80 46
    150 55 92 64
    250 60 121 98

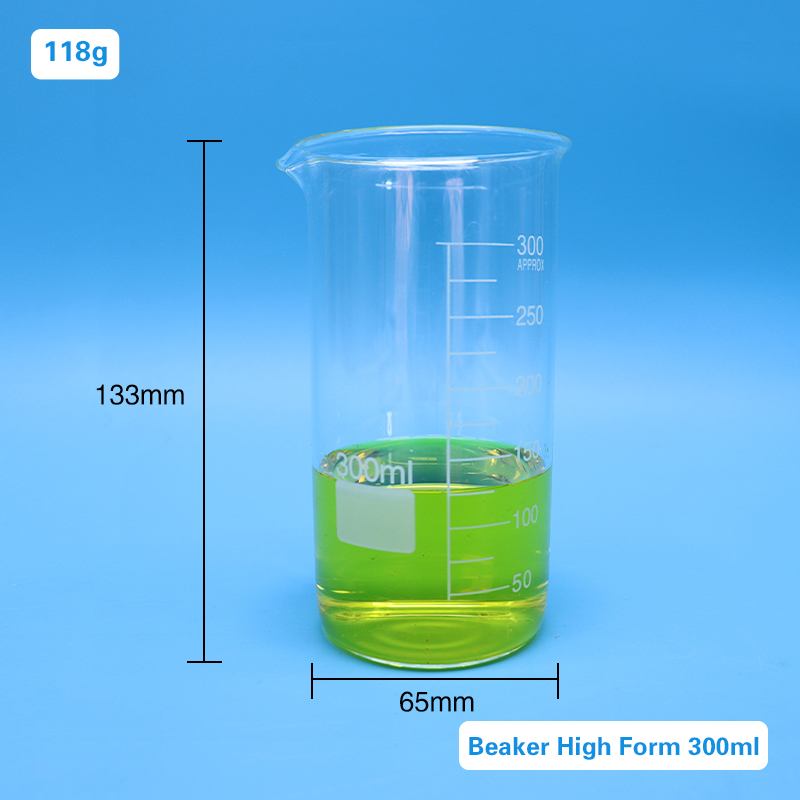

    300 65 133 118

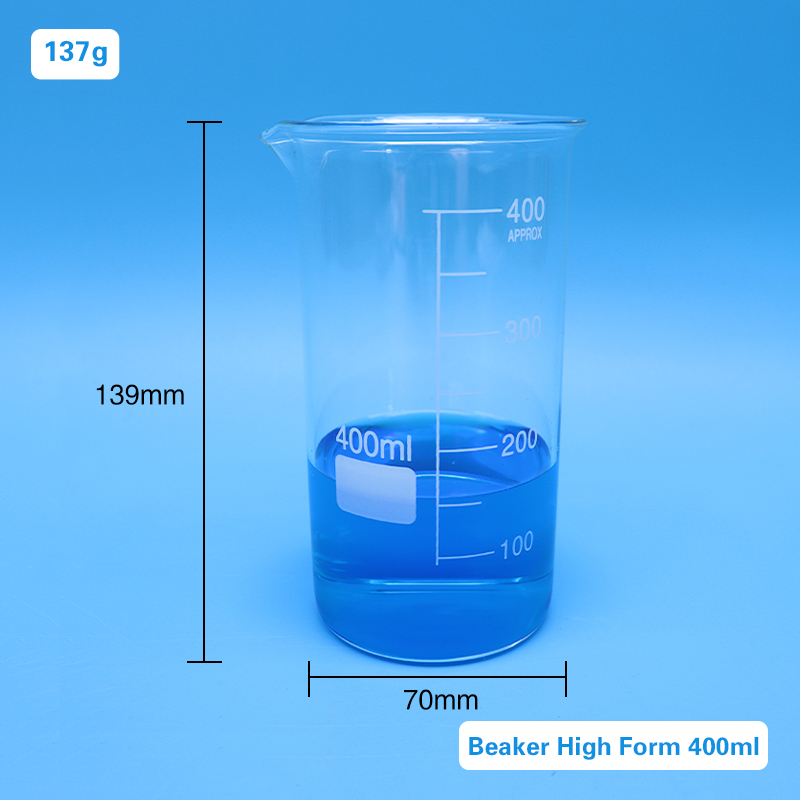

    400 70 139 137

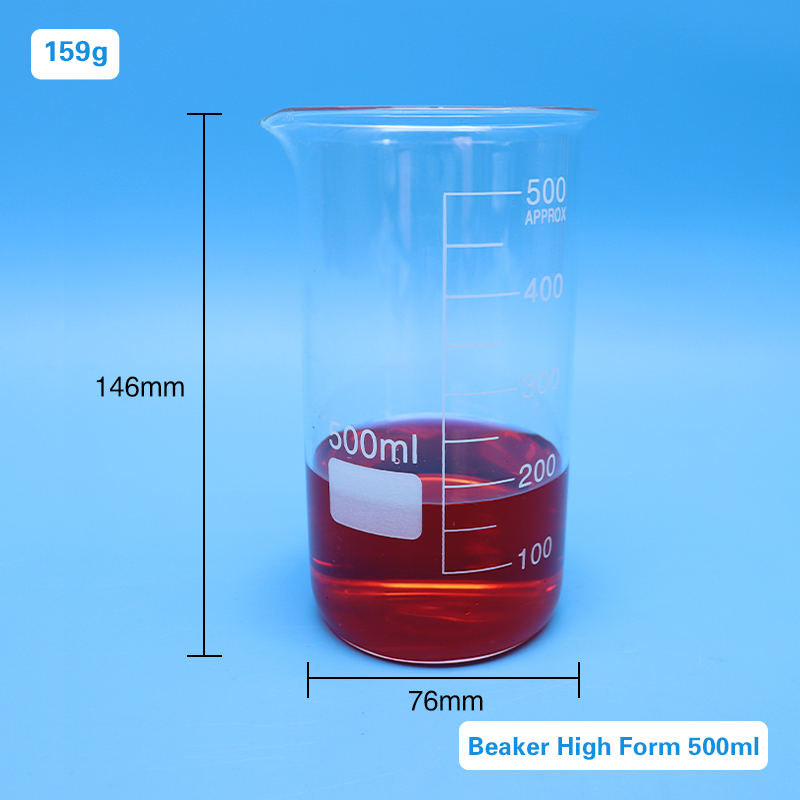

    500 76 146 159

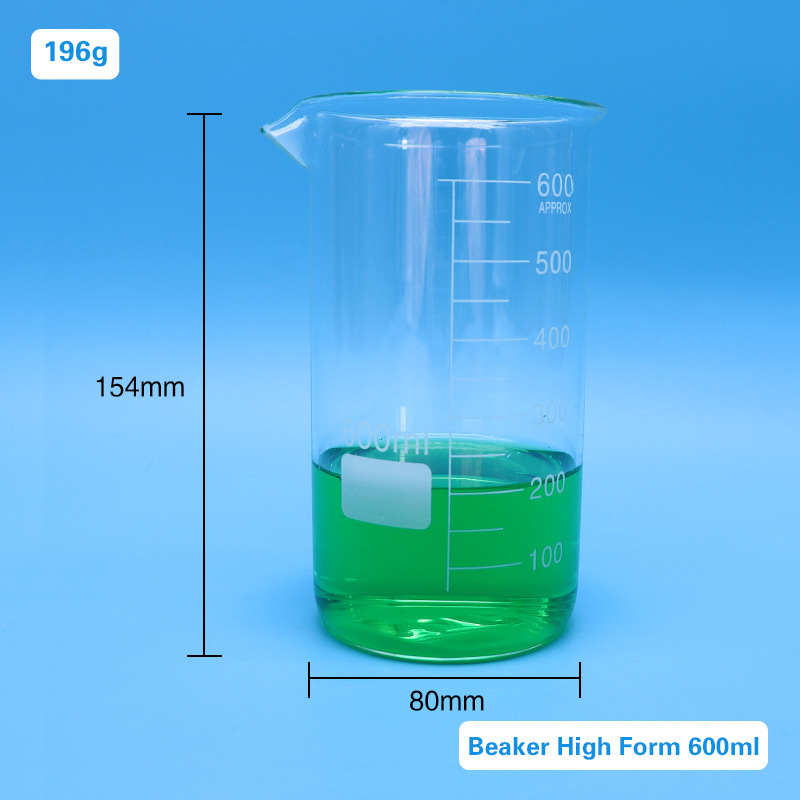

    600 80 154 196

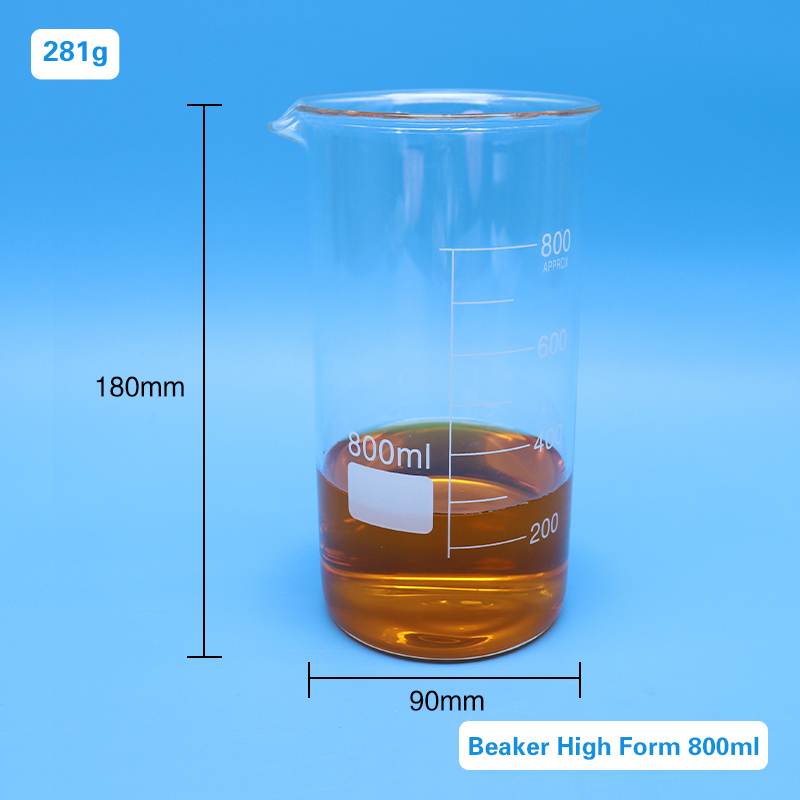

    800 90 180 281

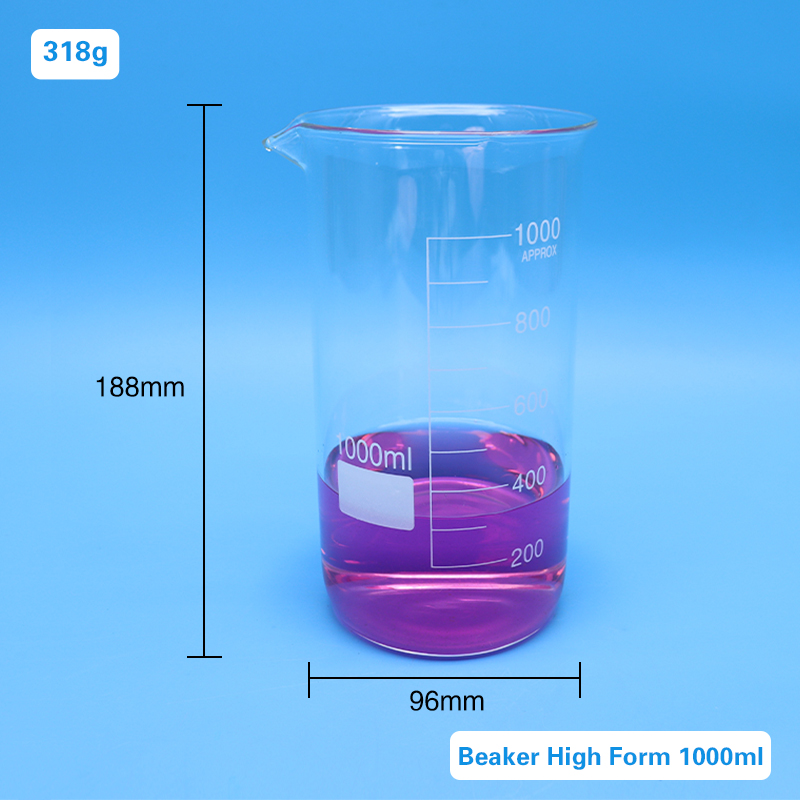

    1000 96 188 318

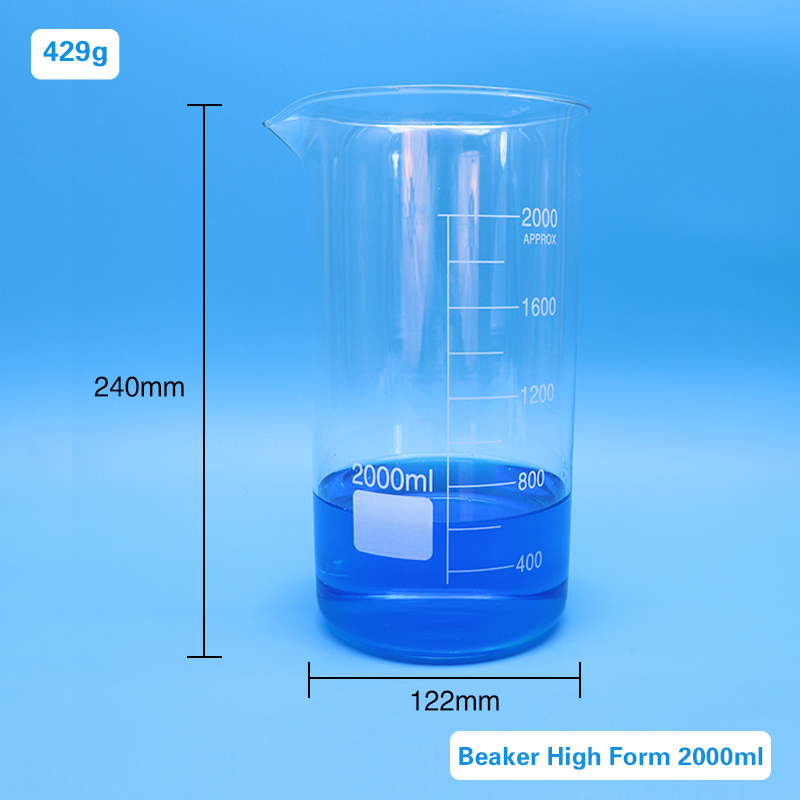

    2000 122 240 429

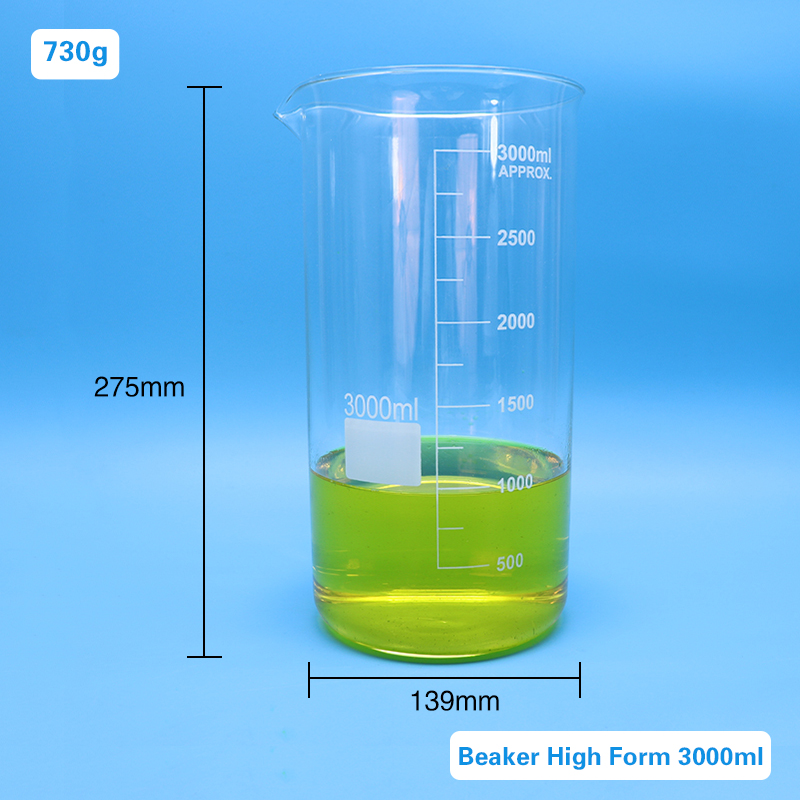

    3000 139 275 730

    Precautions For Use

    1. 1. Do not inject more than half of its capacity; too much can easily cause splashing.
    2. 2. When heating a beaker, place a wire gauze underneath to distribute the heat evenly.
    3. 3. Do not use products that are corroded, cracked, chipped, or scratched.
    4. 4. When heating, the outside of the beaker must be wiped dry.
