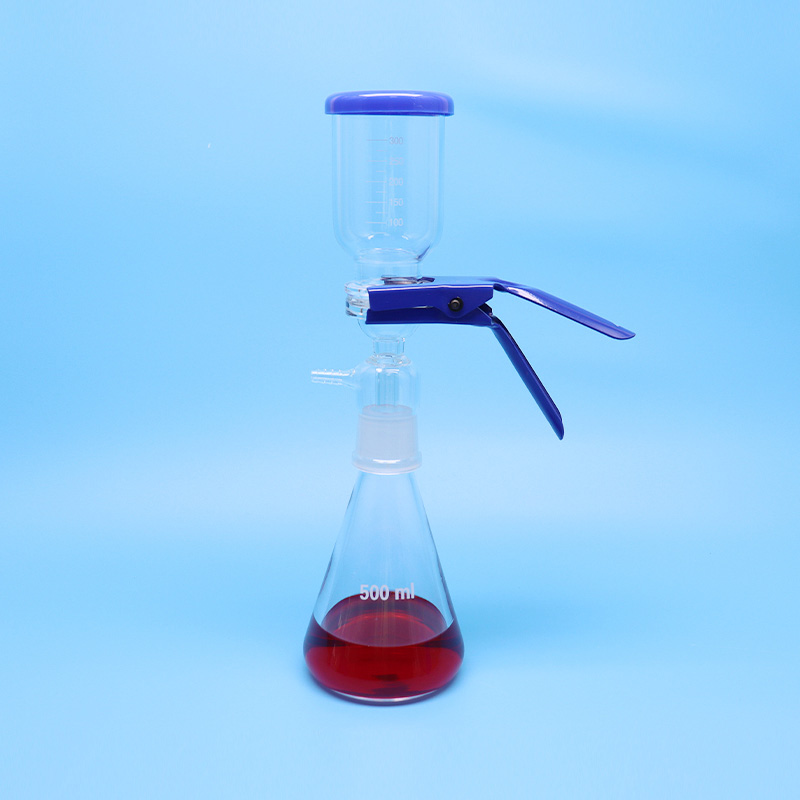

Glass Filter Solvent Vacuum Filtration Apparatus
Solvent Filtration Apparatus
● Smooth surface, no protrusion
● Fine pore size, fast filtration rate
● Safe and durable, with good sealing performance
Solvent Filtration Apparatus
Product Name: Boro 3.3 Glass Beaker
Product Specifications:
250ml-5000ml
Product Material: High borosilicate glass
Product Introduction:
Mainly used for the filtration of aqueous, organic, and corrosive liquids, for the analysis of specific pollutants, particularly recommended for the filtration of HPLC mobile phases, with a certain degree of gas permeation to ensure the purity of the mobile phase and prevent blockage of the HPLC liquid path. It can also be used for sterile testing, culture sterilization filtration, and sterilization filtration of heat sensitive substances.
This filter is made of high-quality silicon glass, which is smooth and transparent, free of impurities and bubbles, corrosion-resistant, and has an annealing point of up to 500°C.
Its fixing device is a circular aluminum alloy clamp with high toughness, which can reliably resist distortion and deformation even after long-term use. The unique circular design allows for a tight fit between the center and the joint, ensuring high stability and preventing liquid leakage.
Mainly used for the filtration of aqueous, organic, and corrosive liquids, for the analysis of specific pollutants, particularly recommended for the filtration of HPLC mobile phases, with a certain degree of gas permeation to ensure the purity of the mobile phase and prevent blockage of the HPLC liquid path. It can also be used for sterile testing, culture sterilization filtration, and sterilization filtration of heat sensitive substances.
This filter is made of high-quality silicon glass, which is smooth and transparent, free of impurities and bubbles, corrosion-resistant, and has an annealing point of up to 500°C.
Its fixing device is a circular aluminum alloy clamp with high toughness, which can reliably resist distortion and deformation even after long-term use. The unique circular design allows for a tight fit between the center and the joint, ensuring high stability and preventing liquid leakage.
Operation method:
1. Firstly, insert the straight tube filter element into the mouth of the suction triangle bottle, gently downward and slightly rotate it to make it fit tightly.

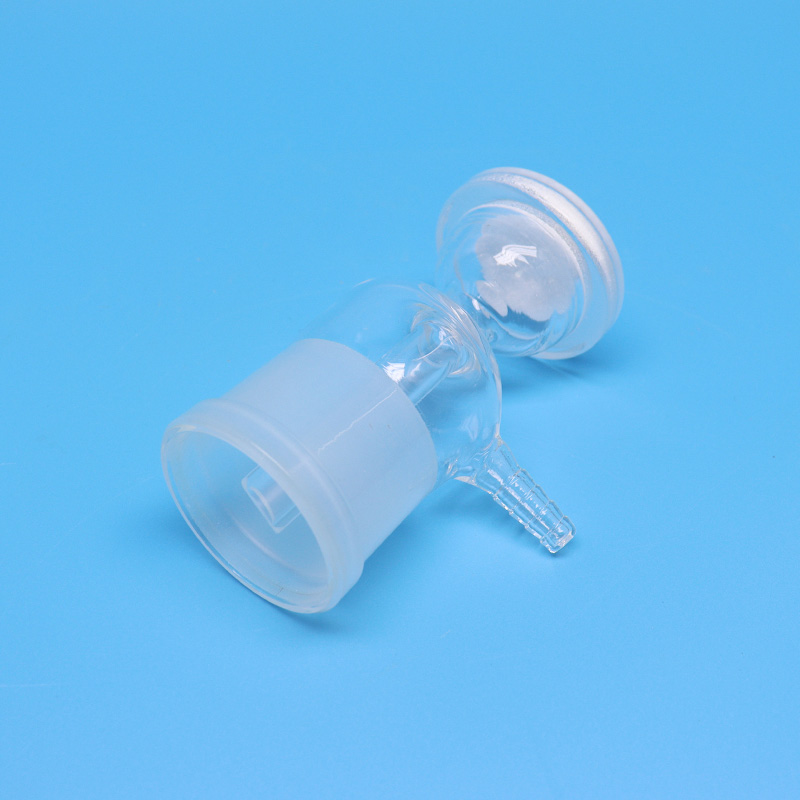

2. Place the filter membrane in the middle of the sand core of the filter element, place the filter cup flat on the filter head, grind the flat surface to match, and clamp it with a clamp.
3. Connect the negative pressure nozzle of the Vacuum pump to the rubber hose, and connect the other end to the rubber hose connection nozzle of the suction triangle bottle.
4. When filtering, inject the solution into the filter cup, turn on the vacuum pump, and under vacuum, the solution flows through the filter membrane on the filter head into the suction triangle bottle for filtration.
1. Firstly, insert the straight tube filter element into the mouth of the suction triangle bottle, gently downward and slightly rotate it to make it fit tightly.
2. Place the filter membrane in the middle of the sand core of the filter element, place the filter cup flat on the filter head, grind the flat surface to match, and clamp it with a clamp.
3. Connect the negative pressure nozzle of the Vacuum pump to the rubber hose, and connect the other end to the rubber hose connection nozzle of the suction triangle bottle.
4. When filtering, inject the solution into the filter cup, turn on the vacuum pump, and under vacuum, the solution flows through the filter membrane on the filter head into the suction triangle bottle for filtration.

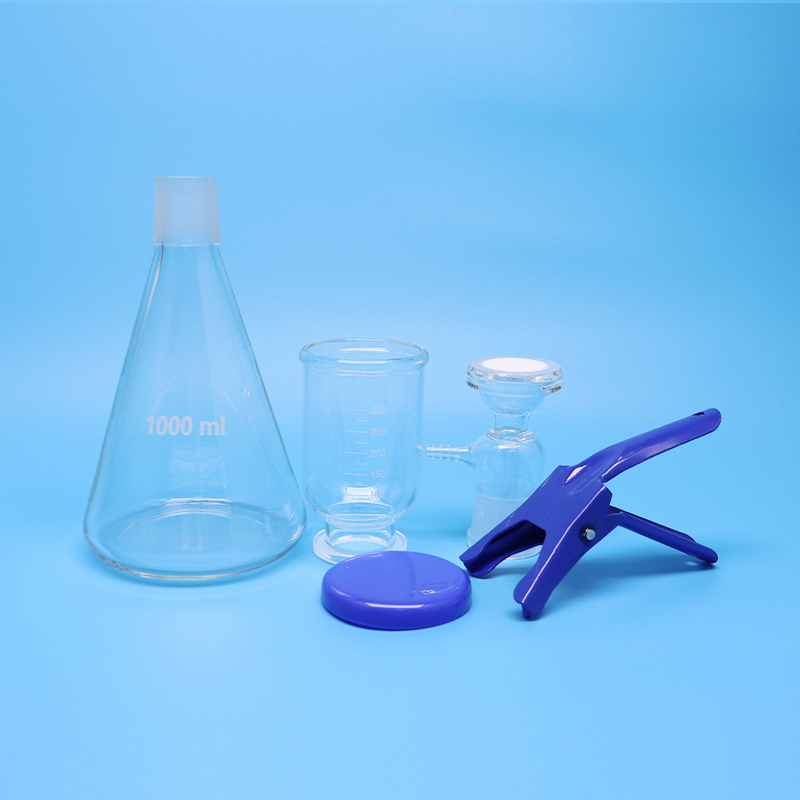

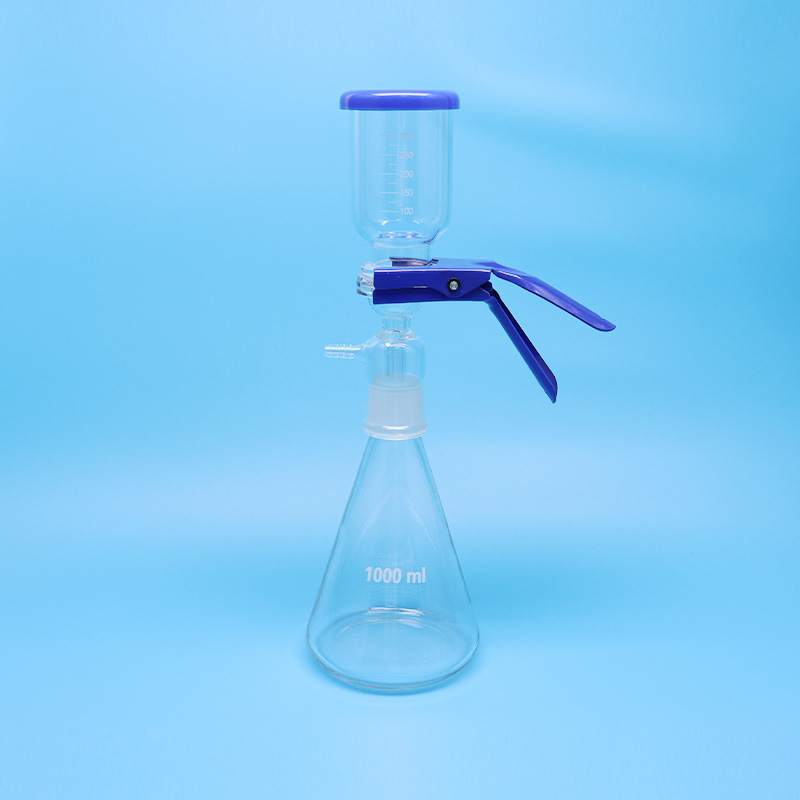

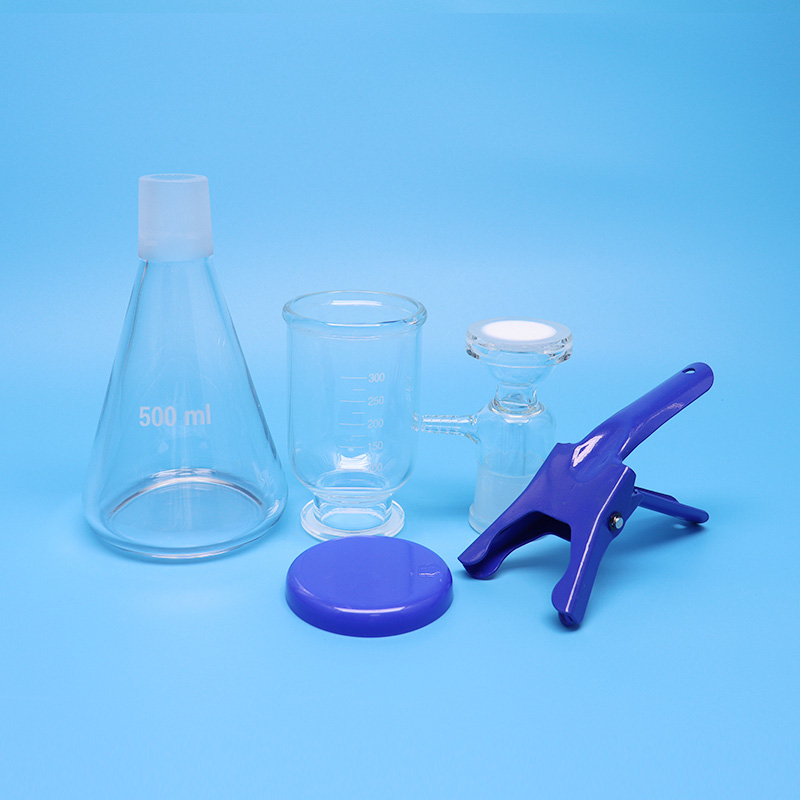

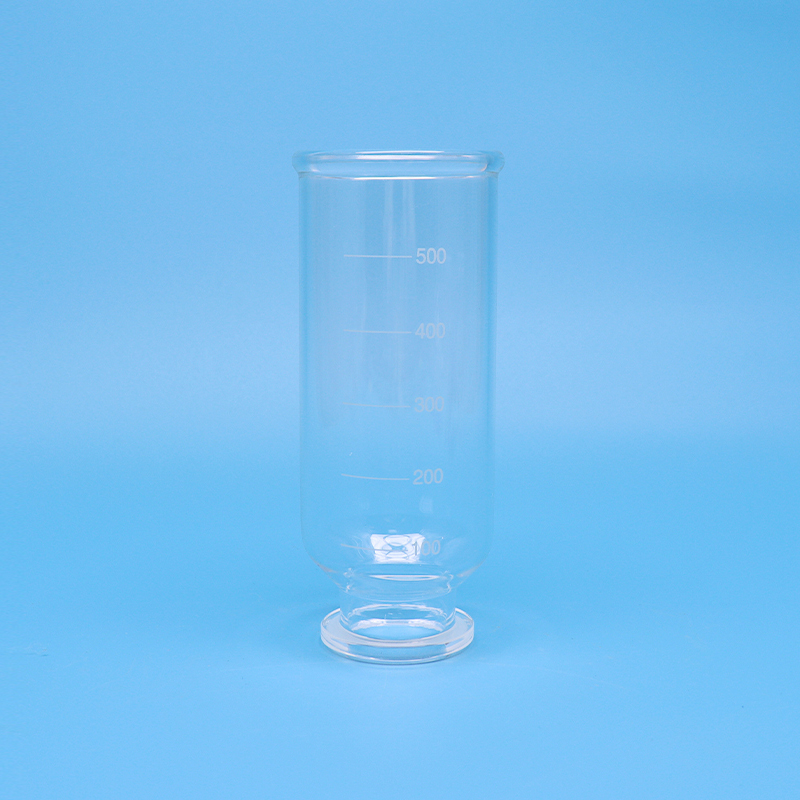

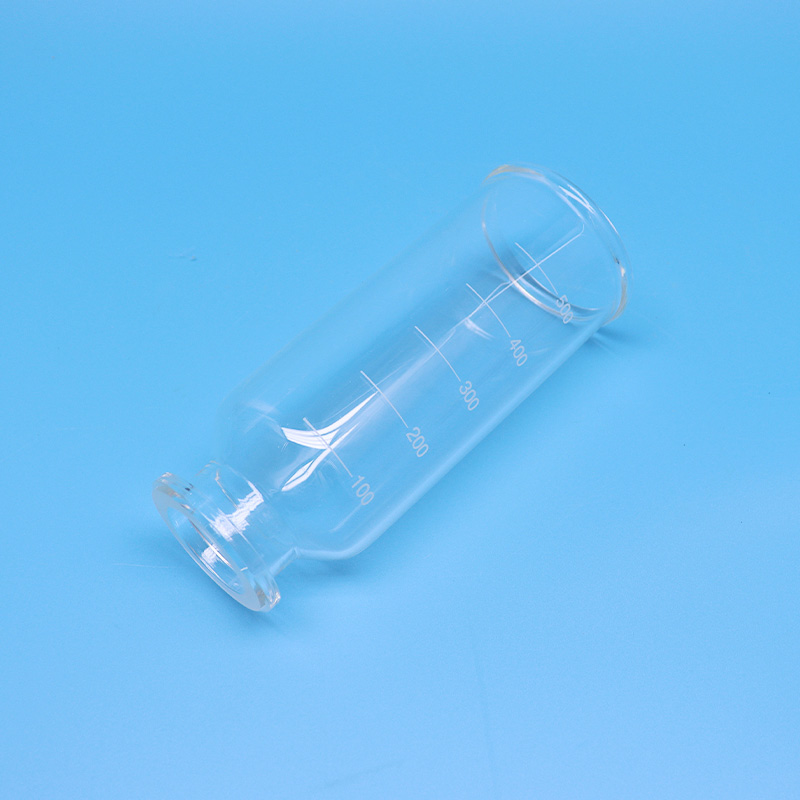

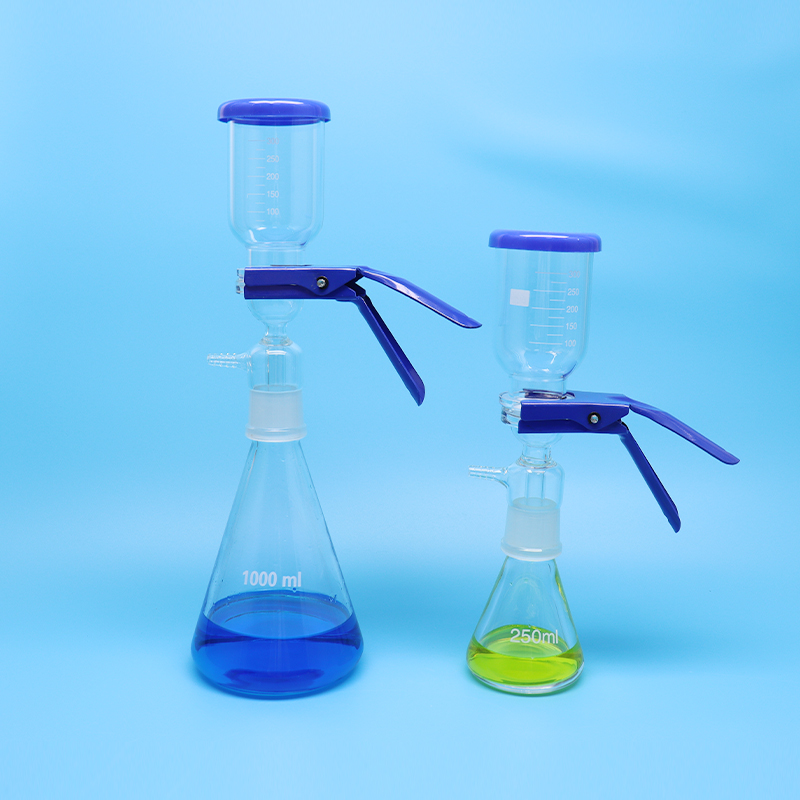

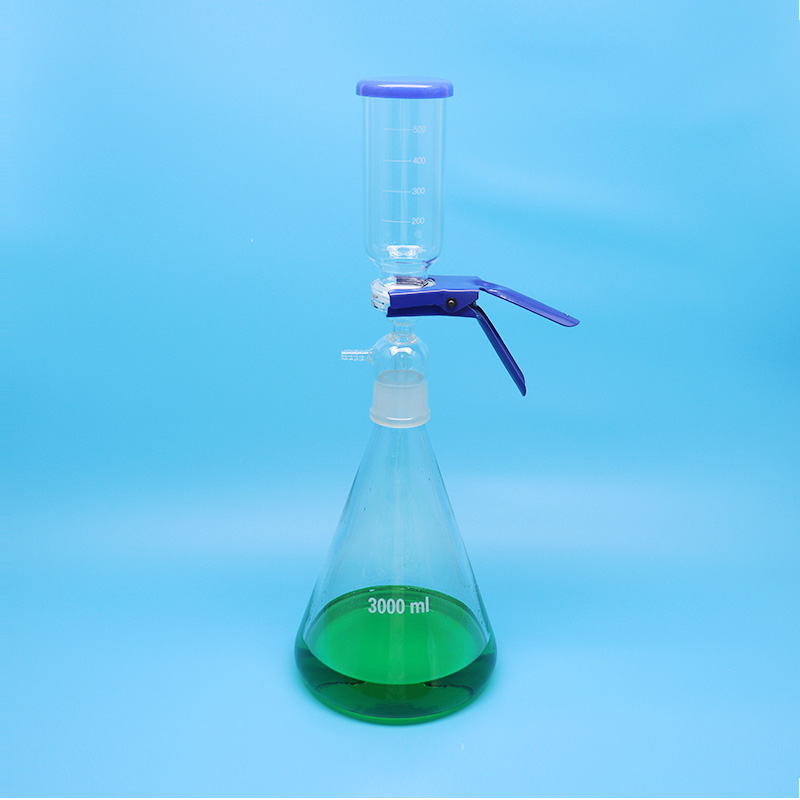

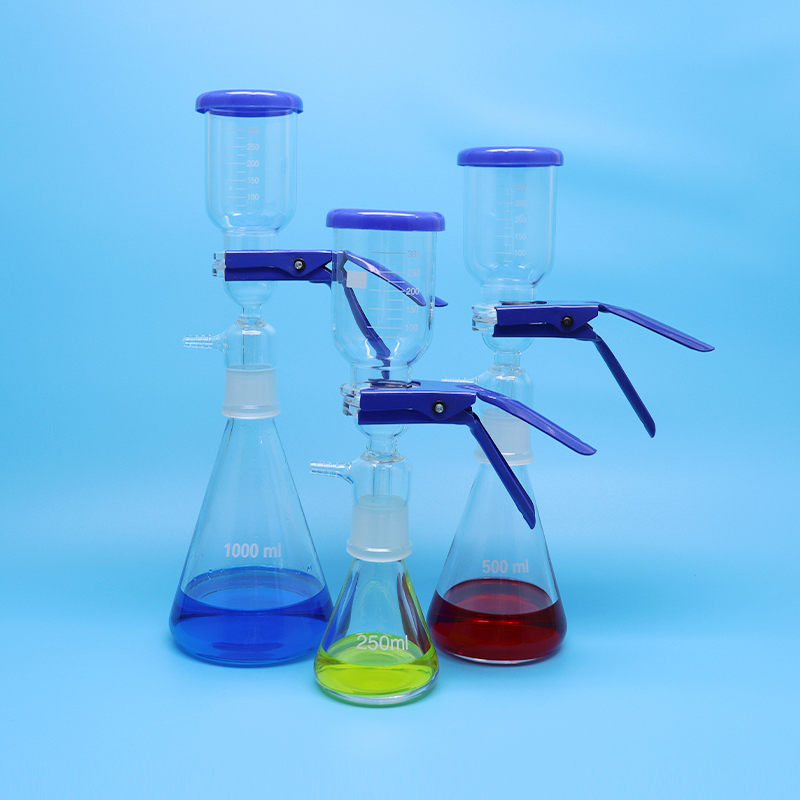

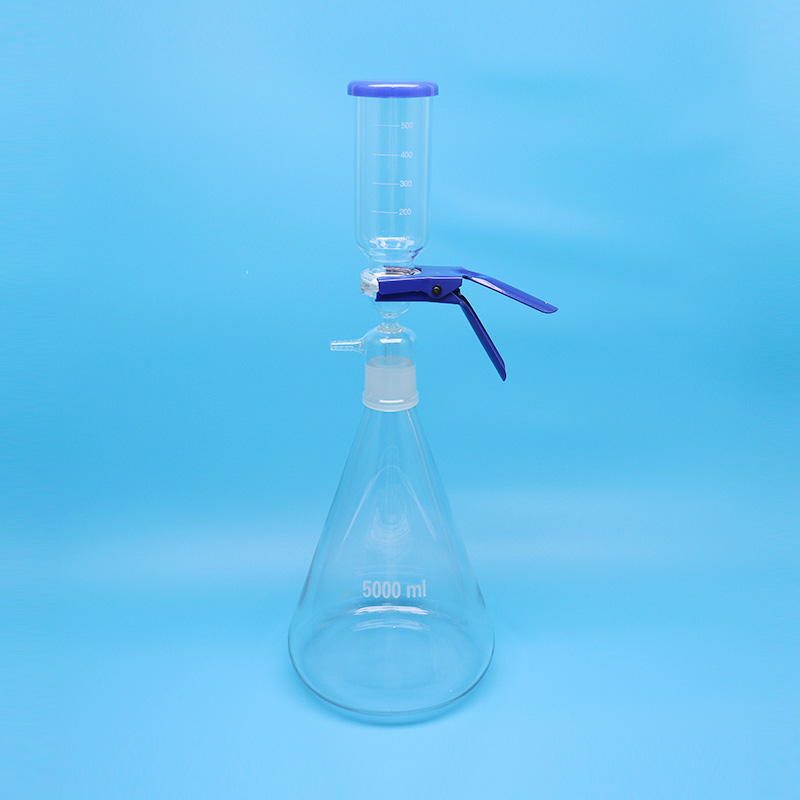

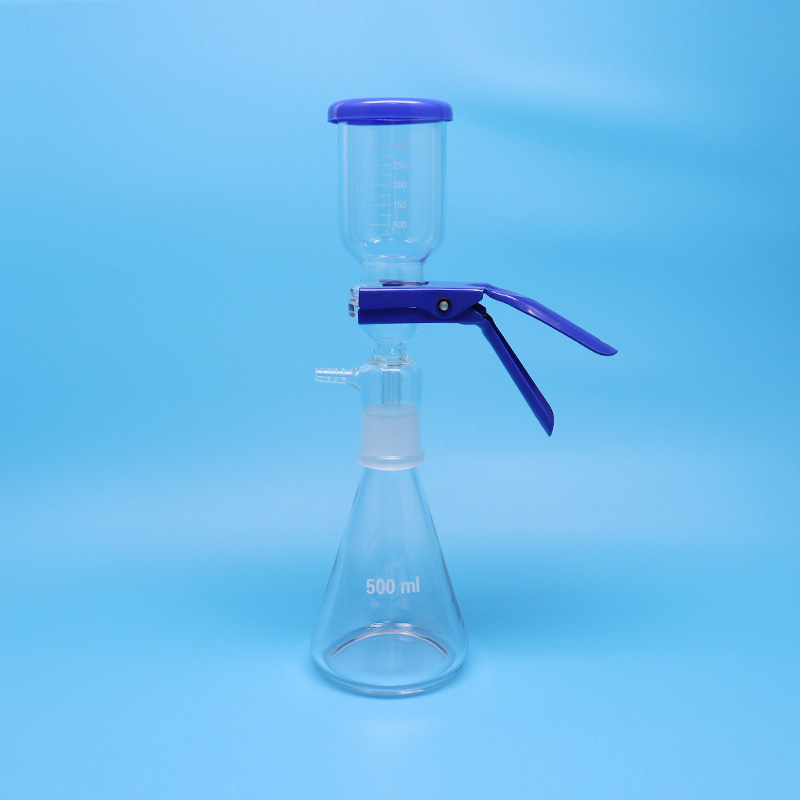

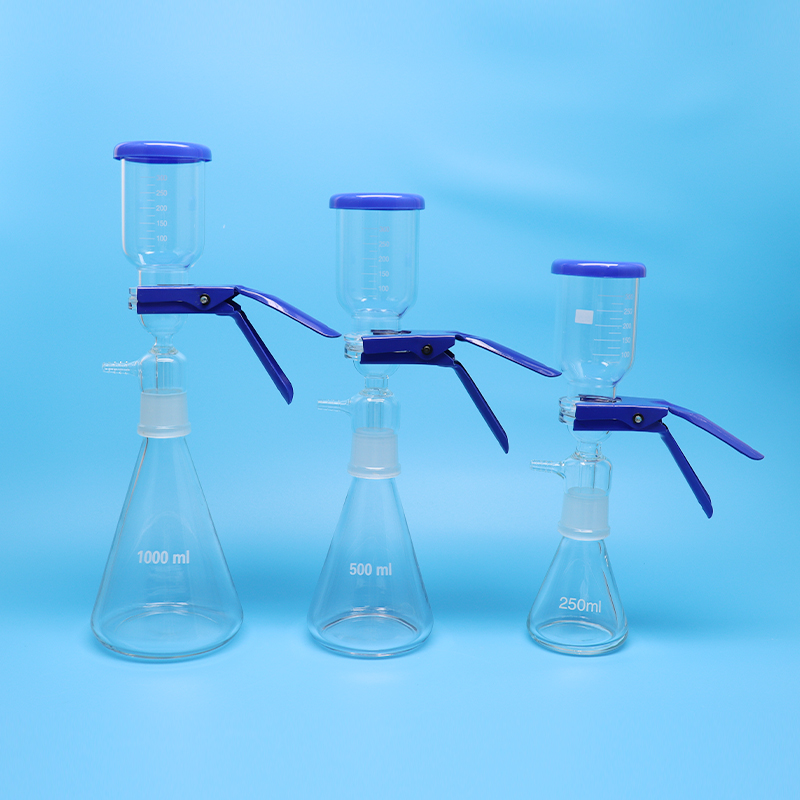

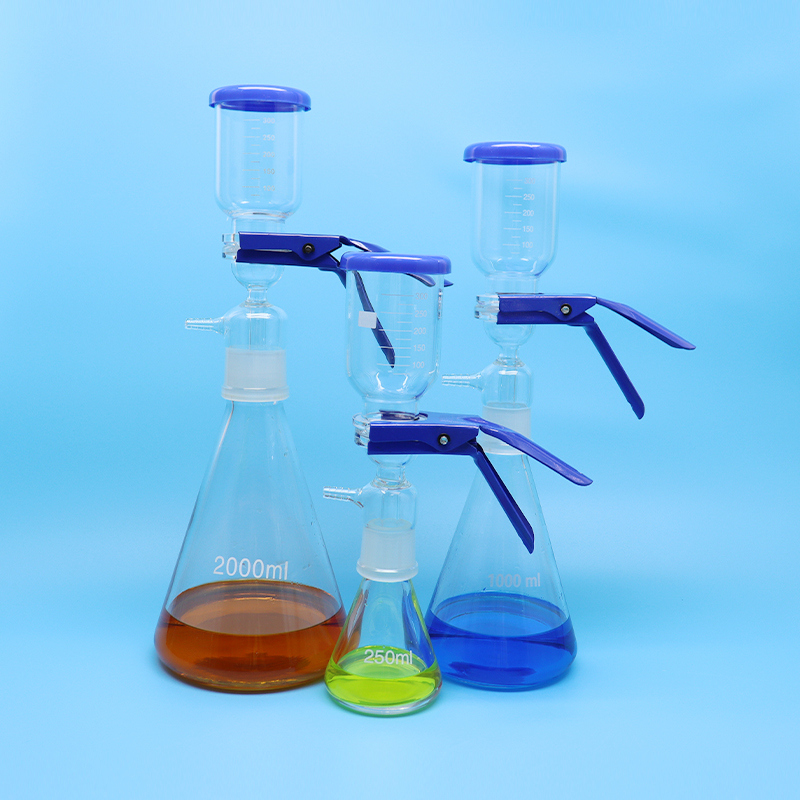

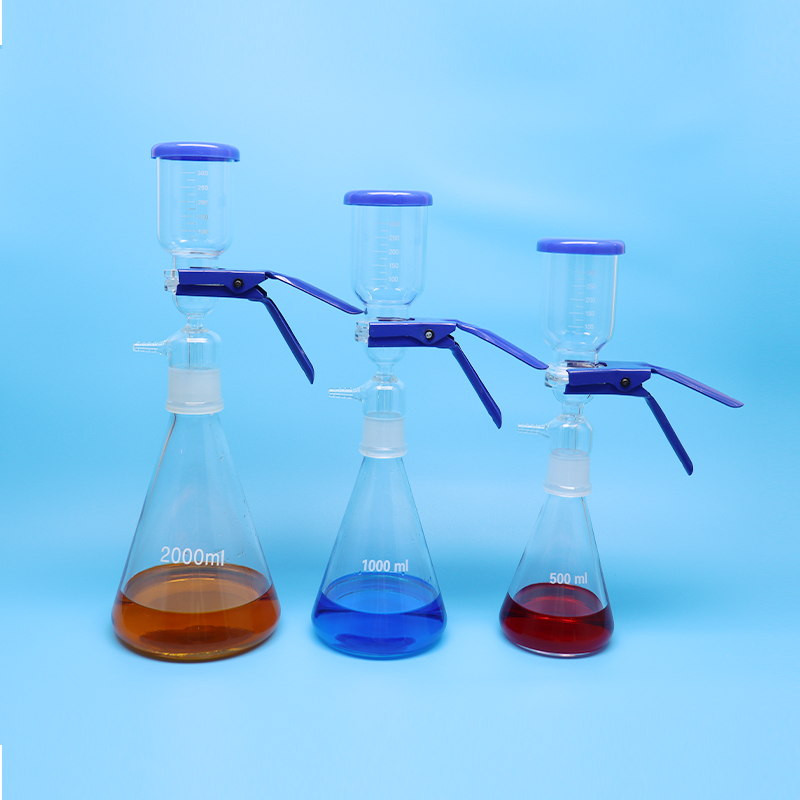

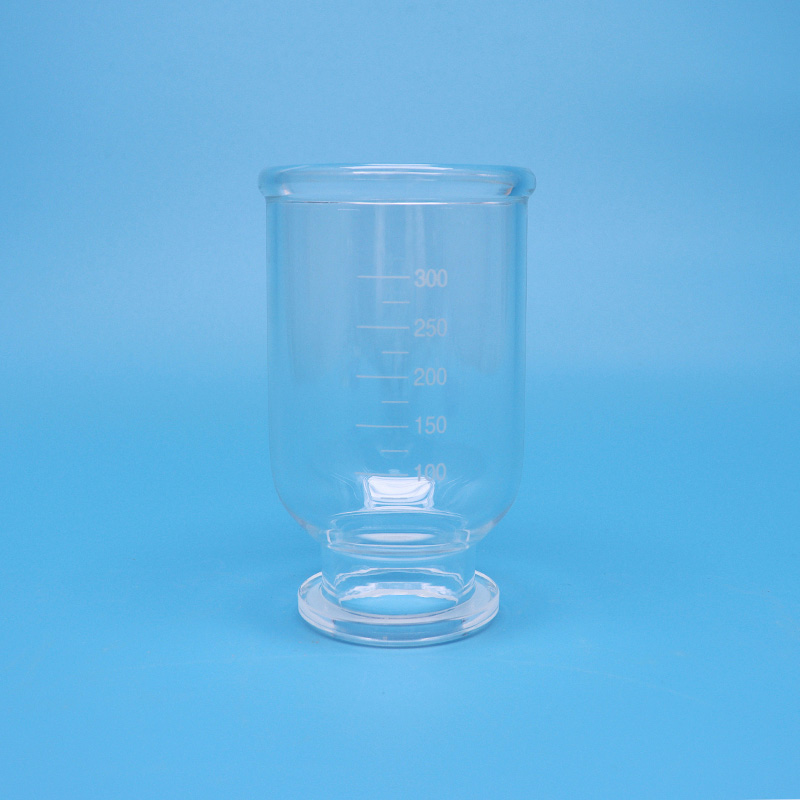

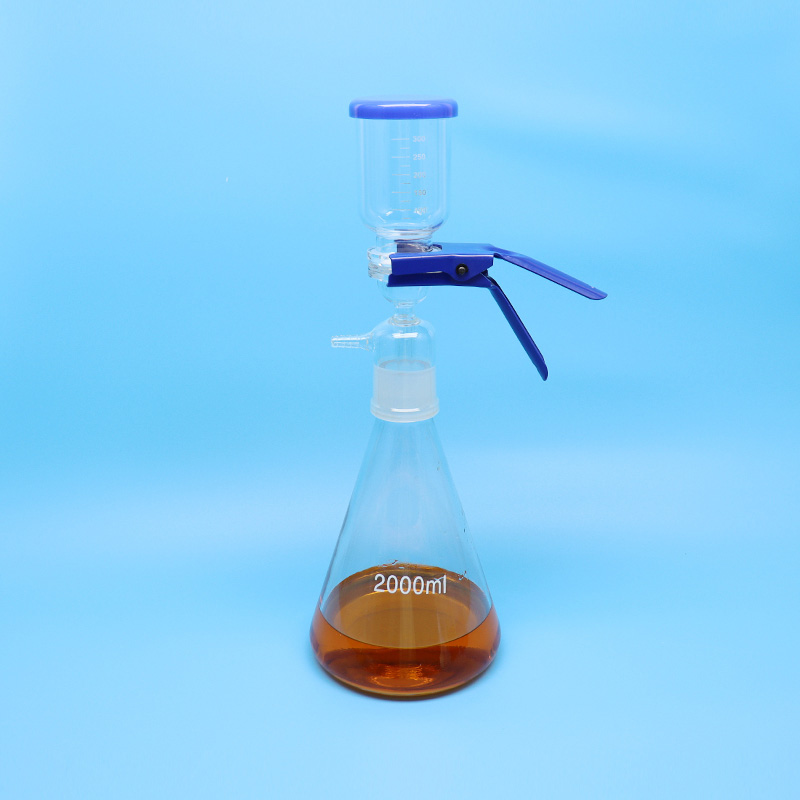

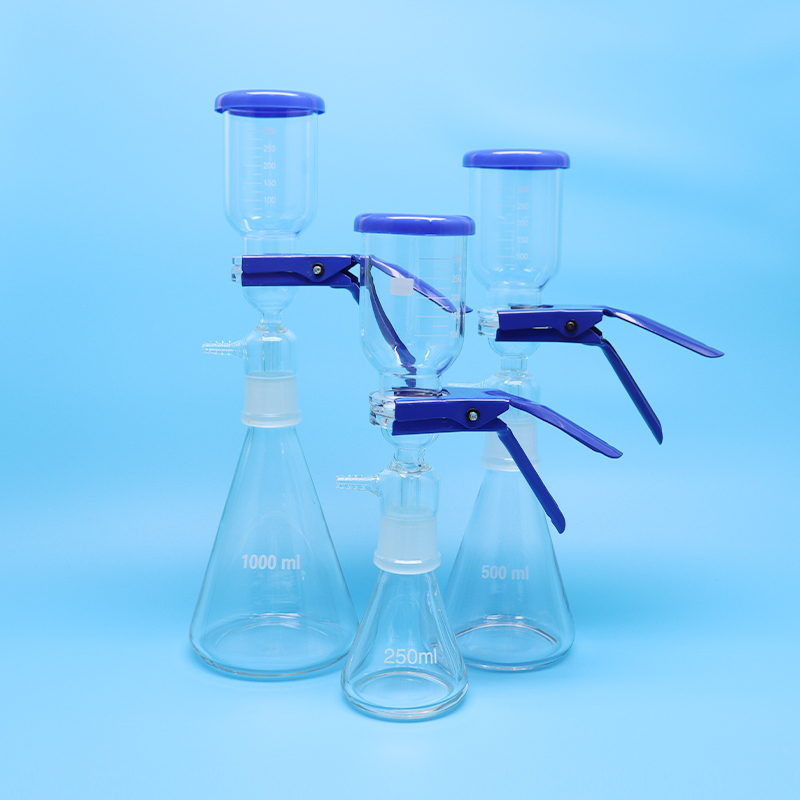

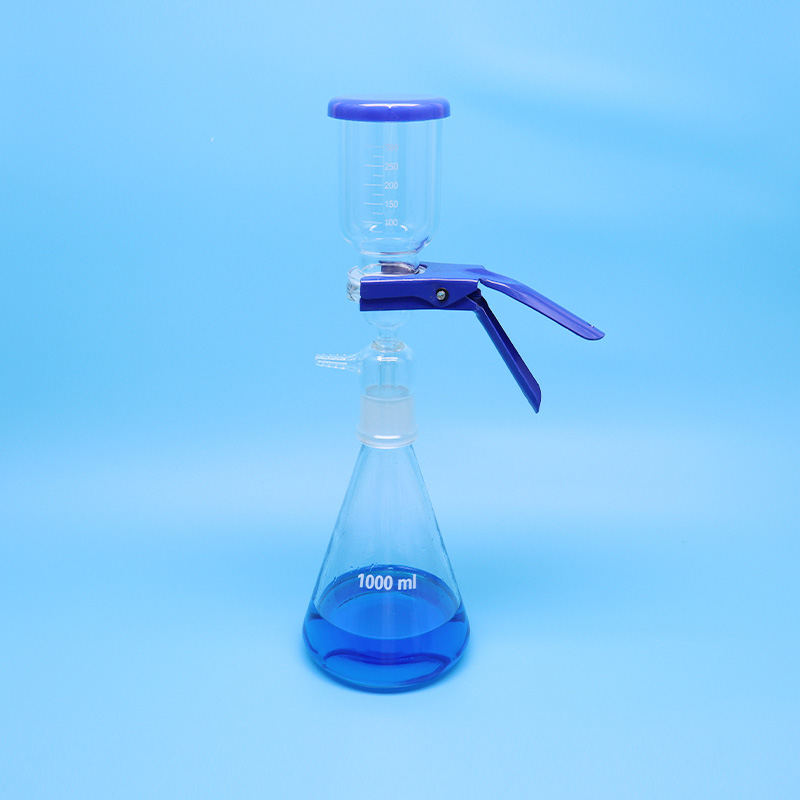

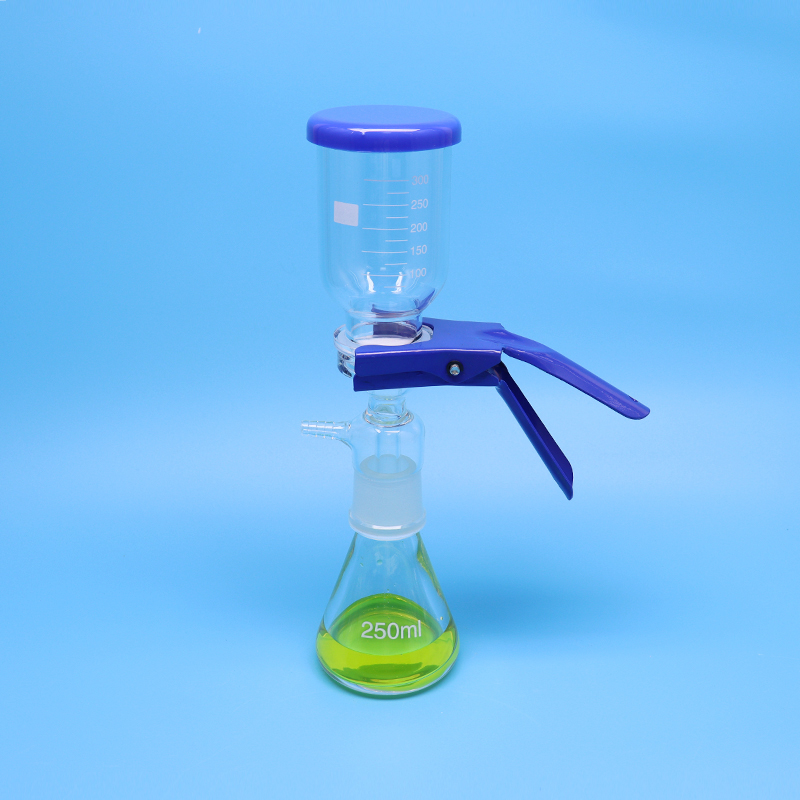

Product Show
● High quality silicate material that can withstand hot pressing disinfection, Durable and sturdy, with high transparency.
● The sand core has a fine pore size and a large effective filtration area, saving filter membranes.
● Good chemical corrosion resistance.

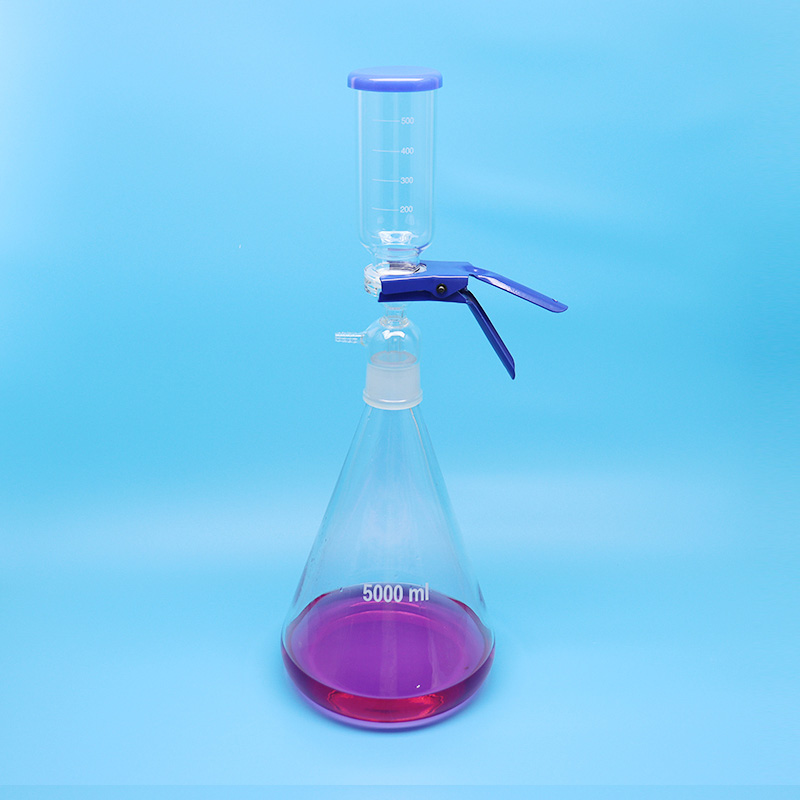

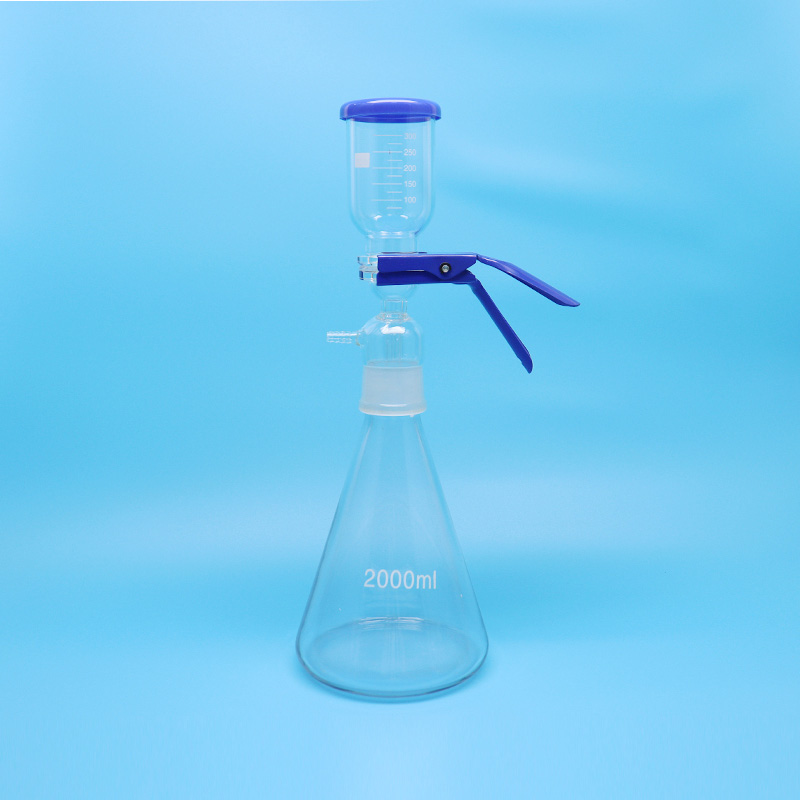

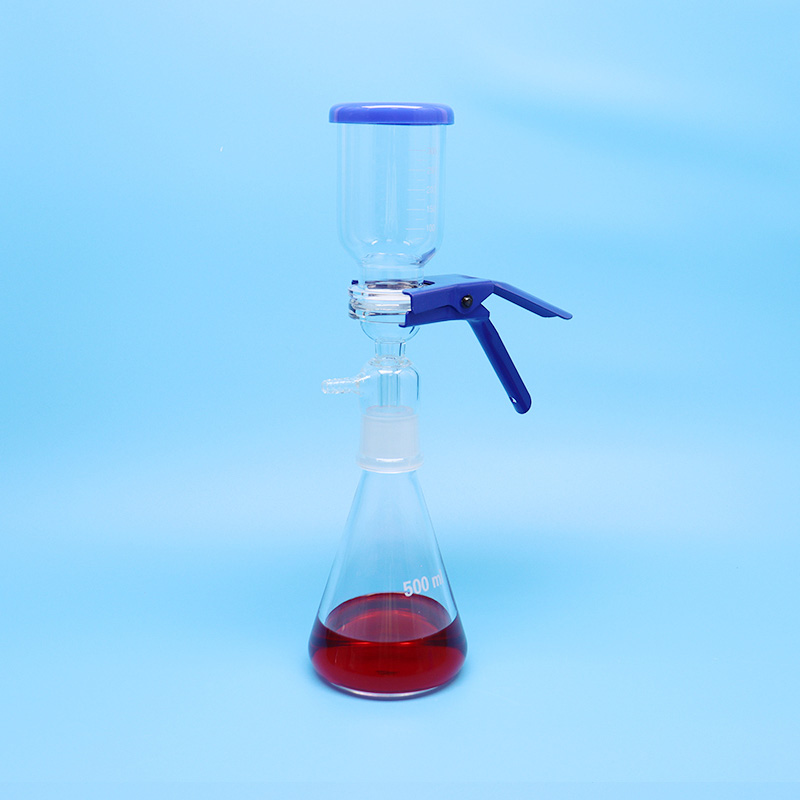

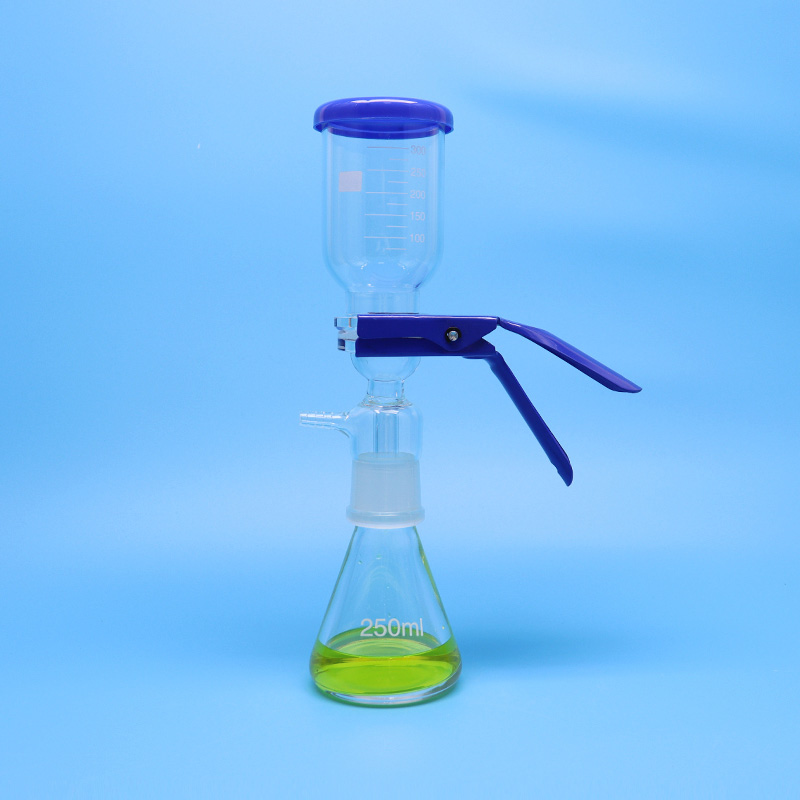

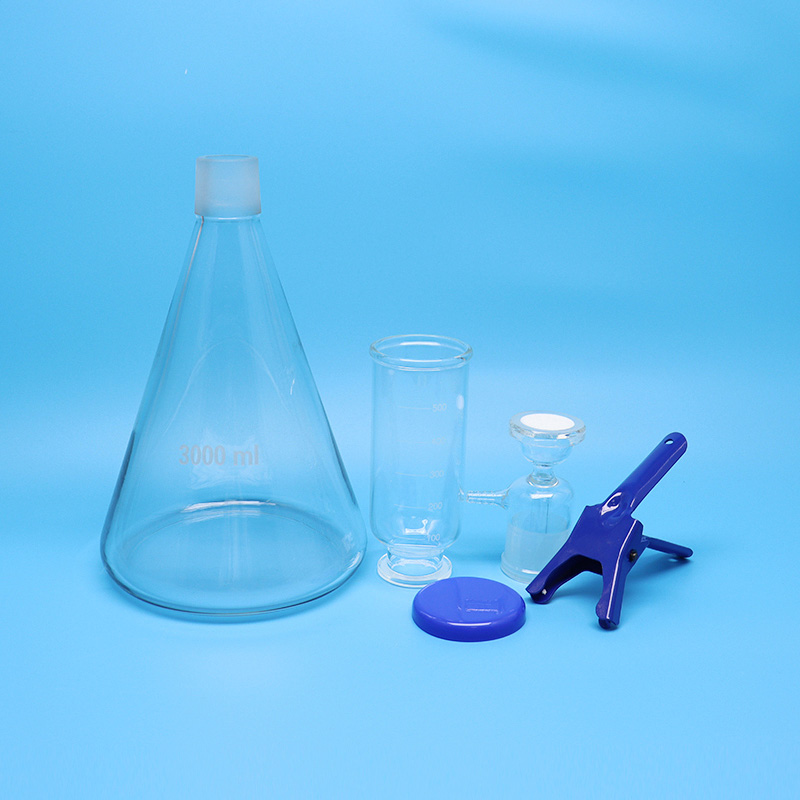

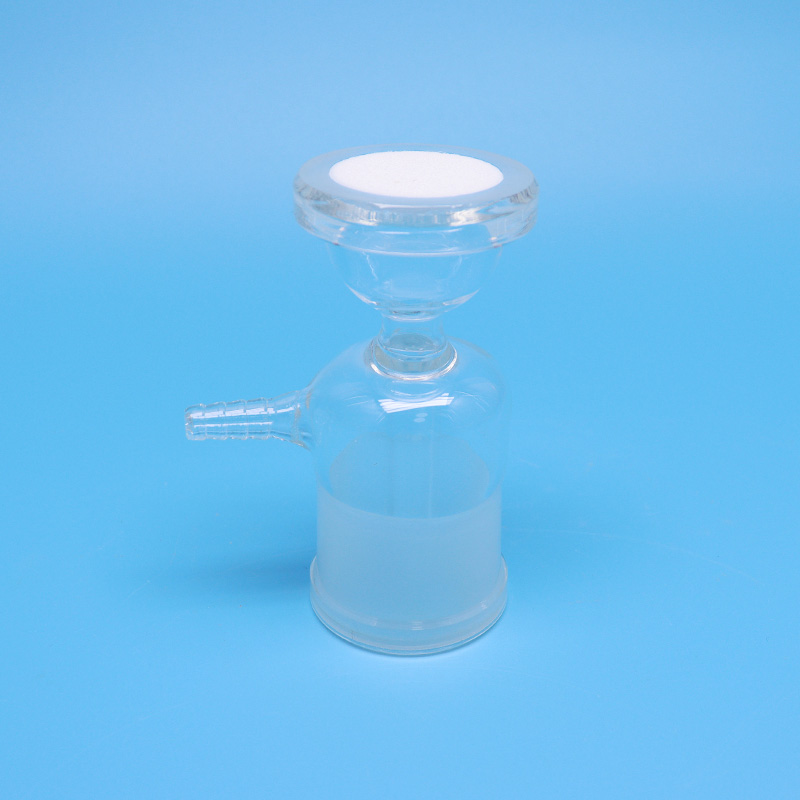

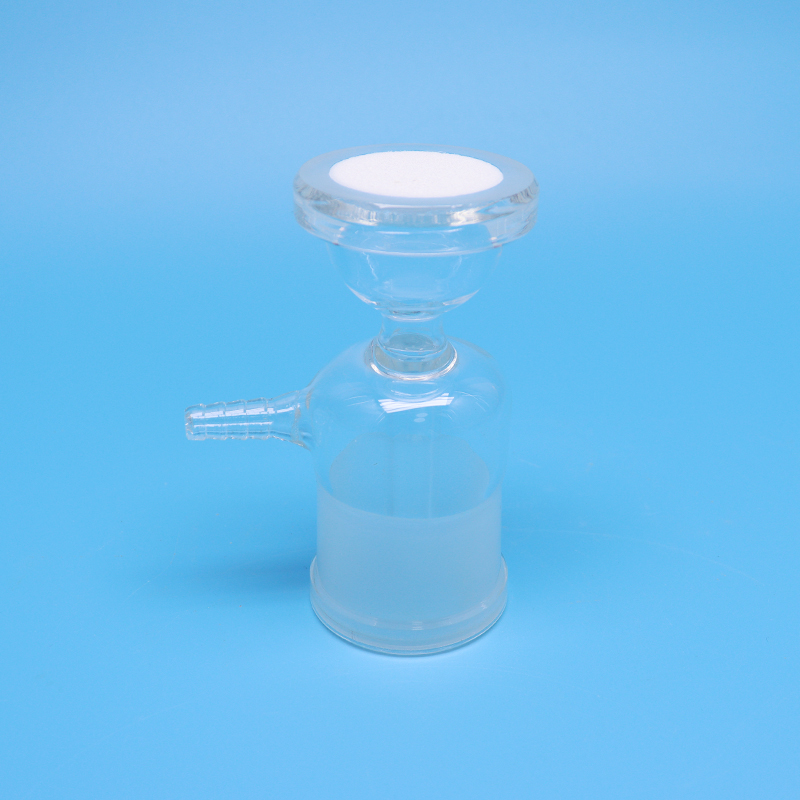

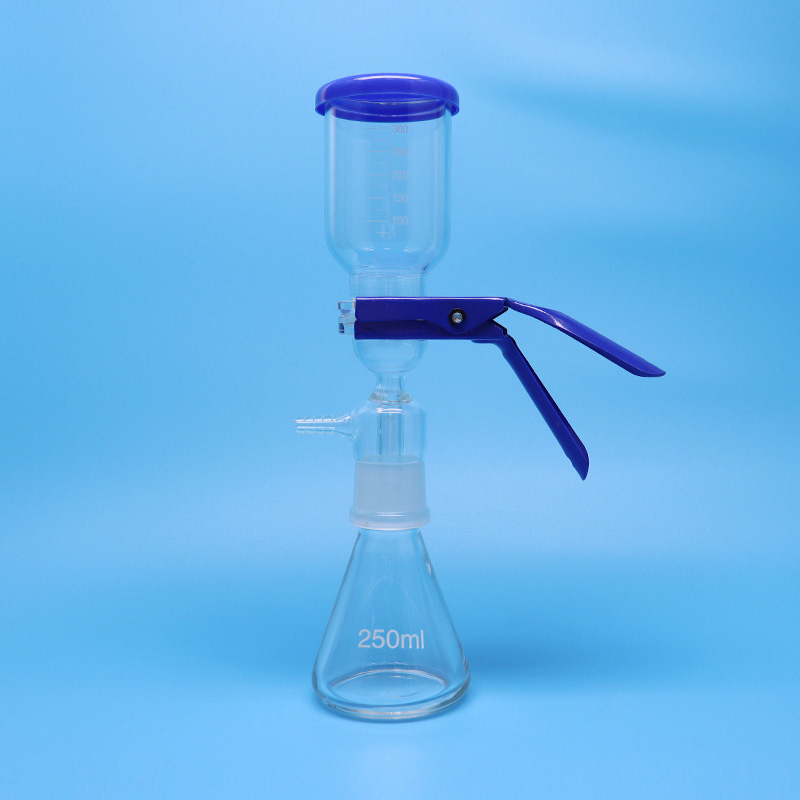

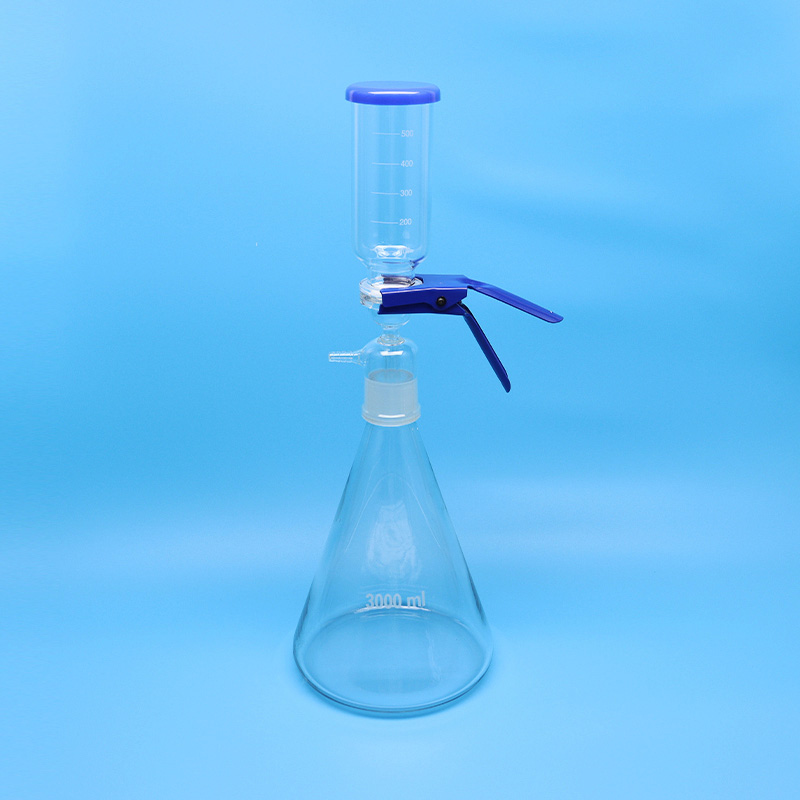

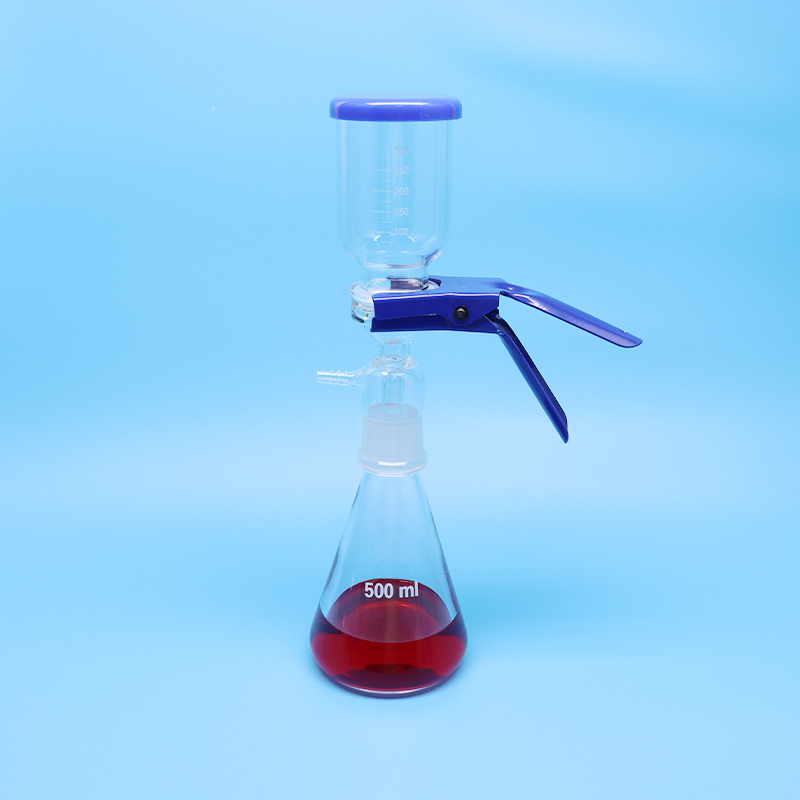

Product Details Show

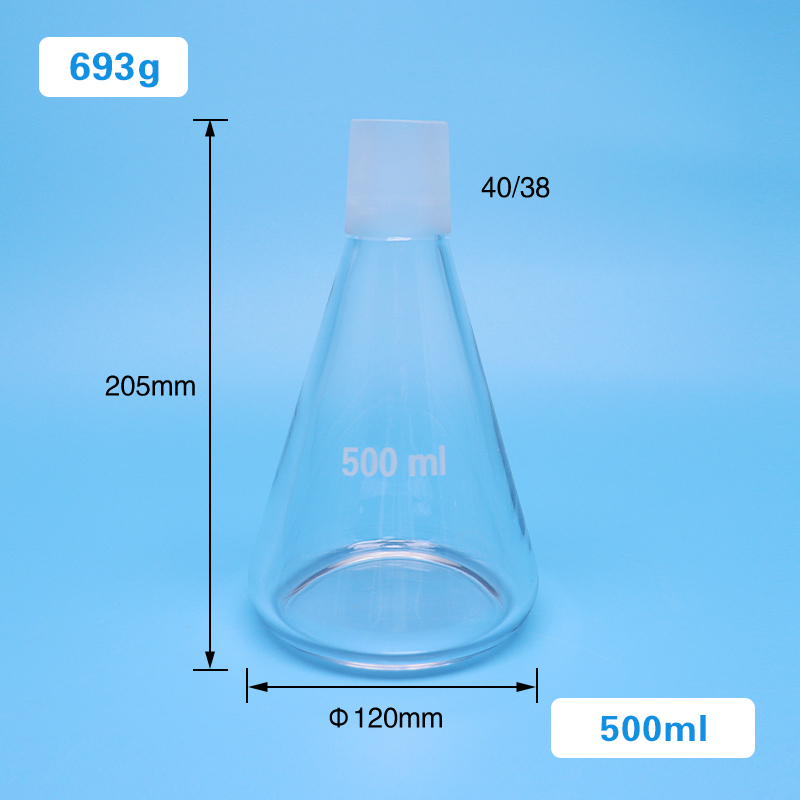

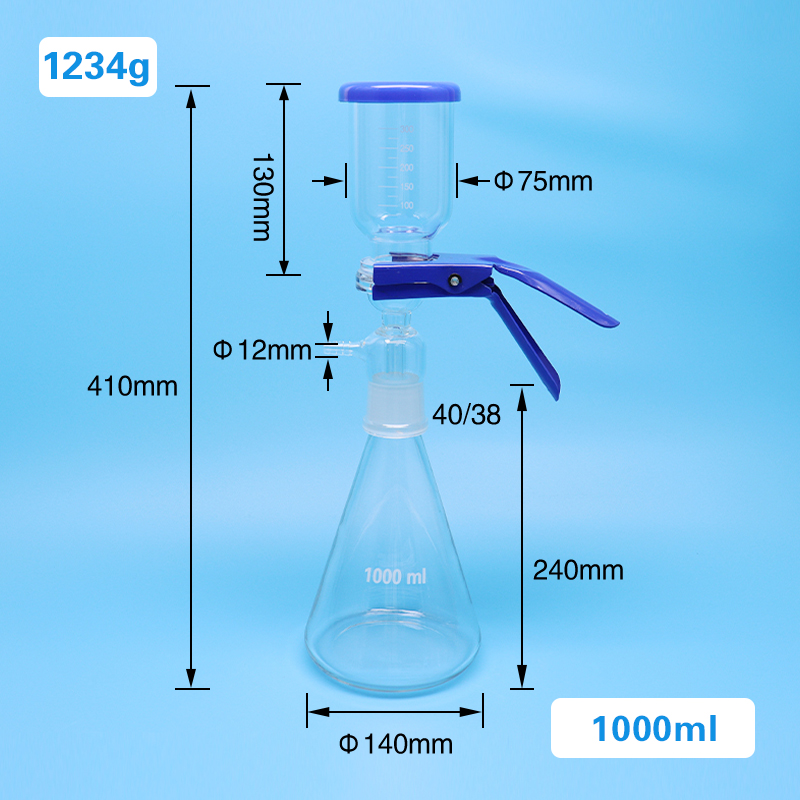

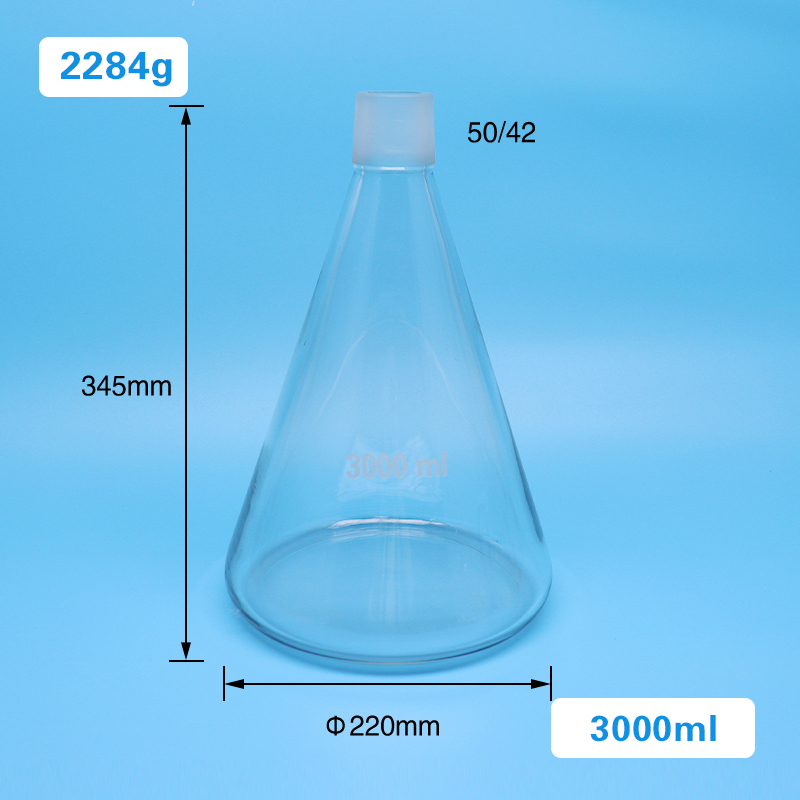

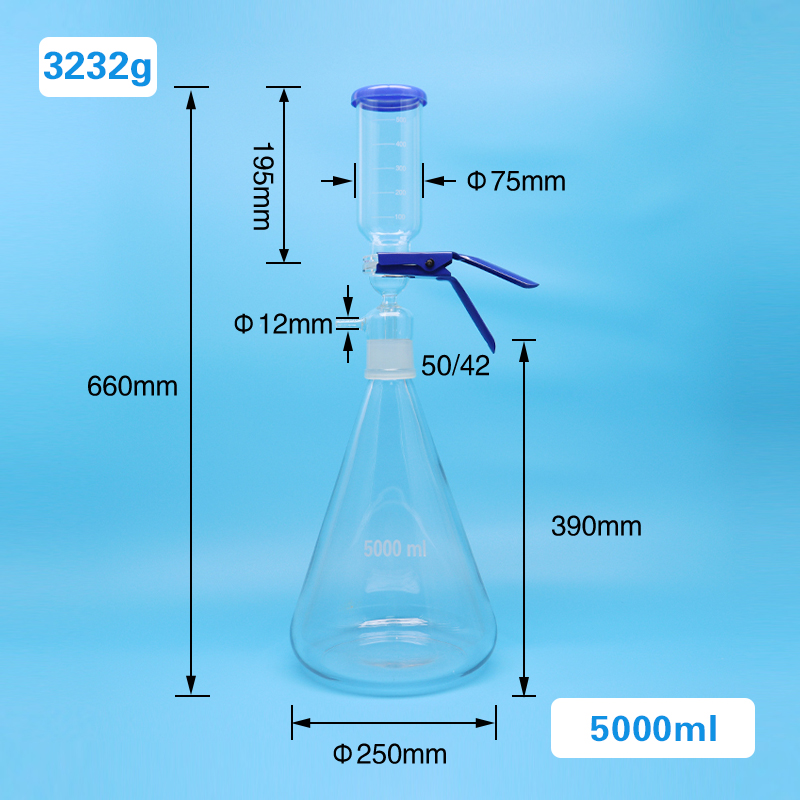

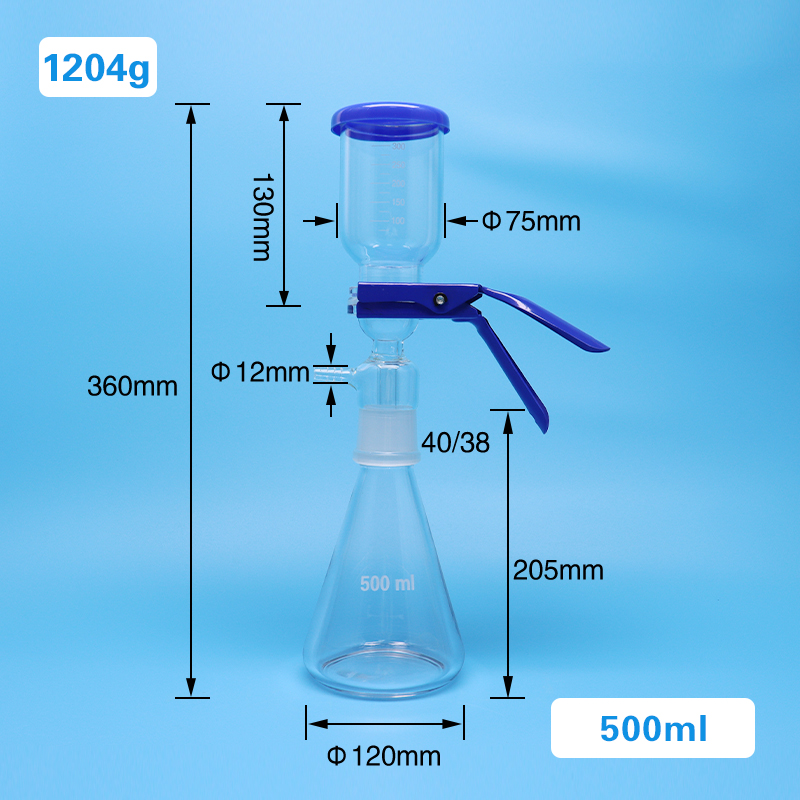

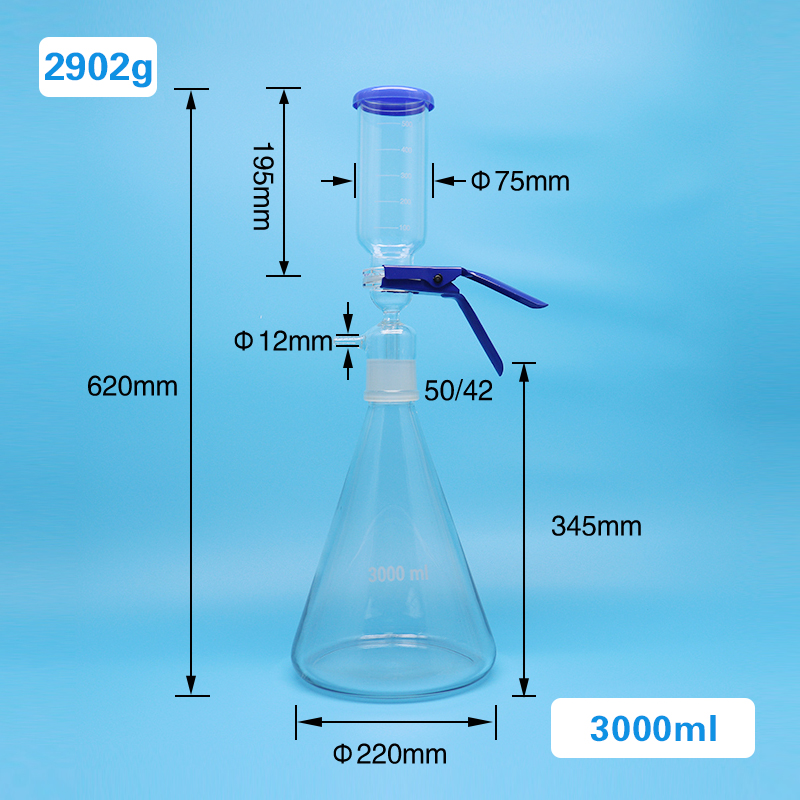

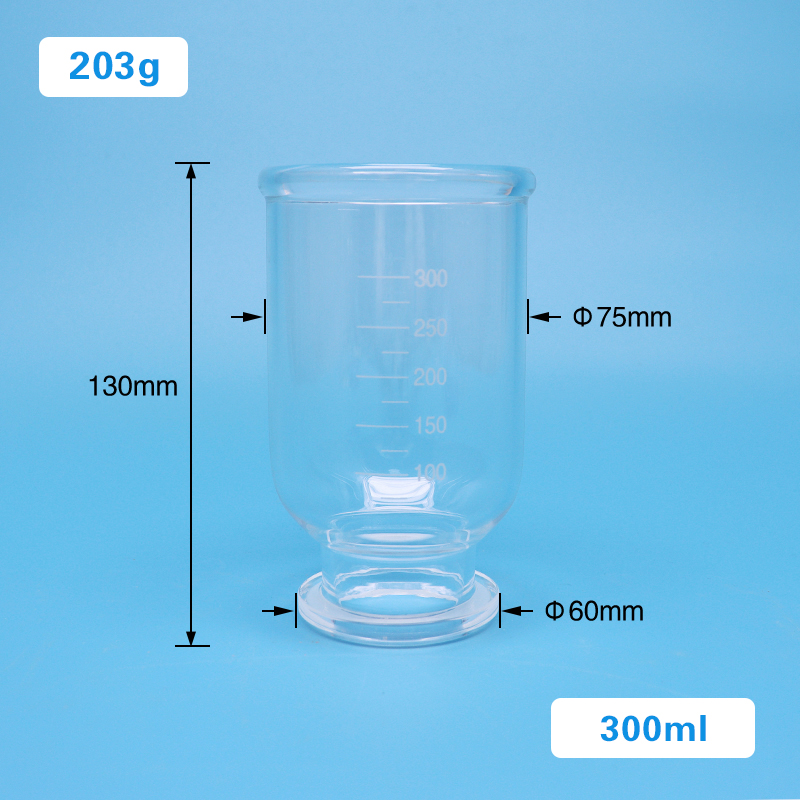

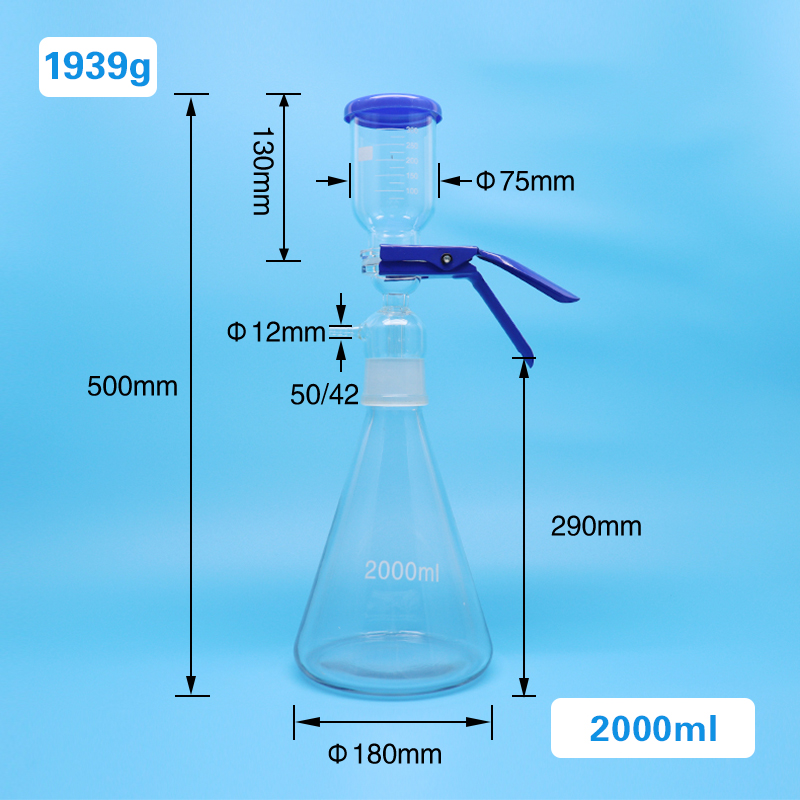

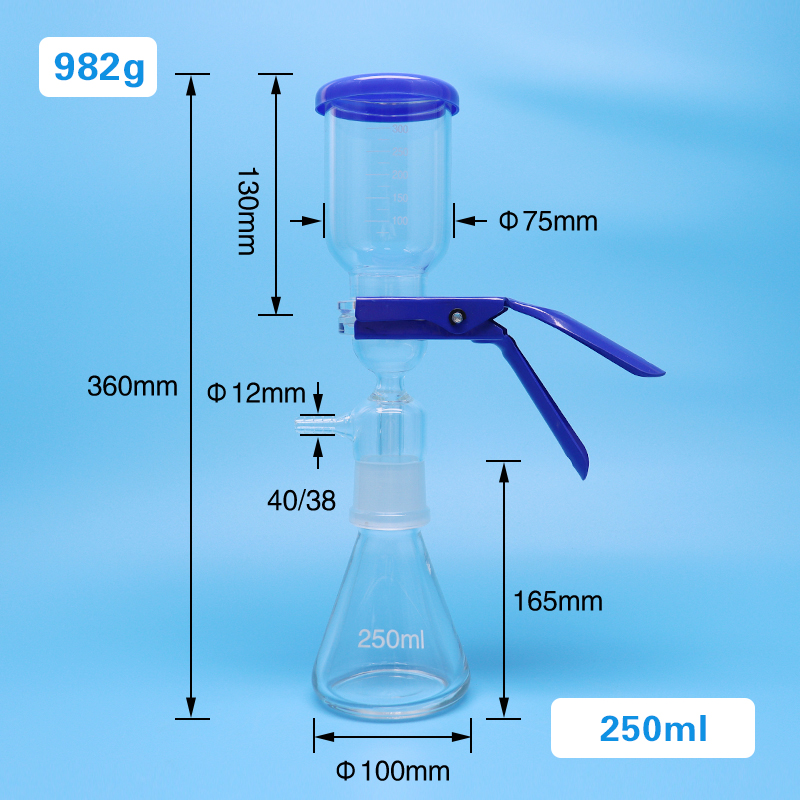

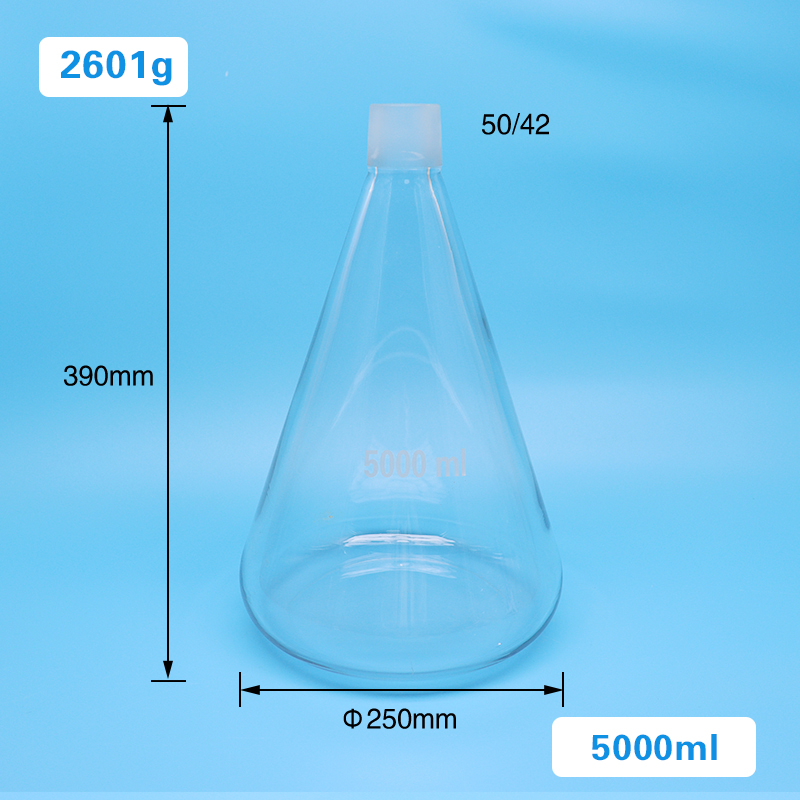

Size Show

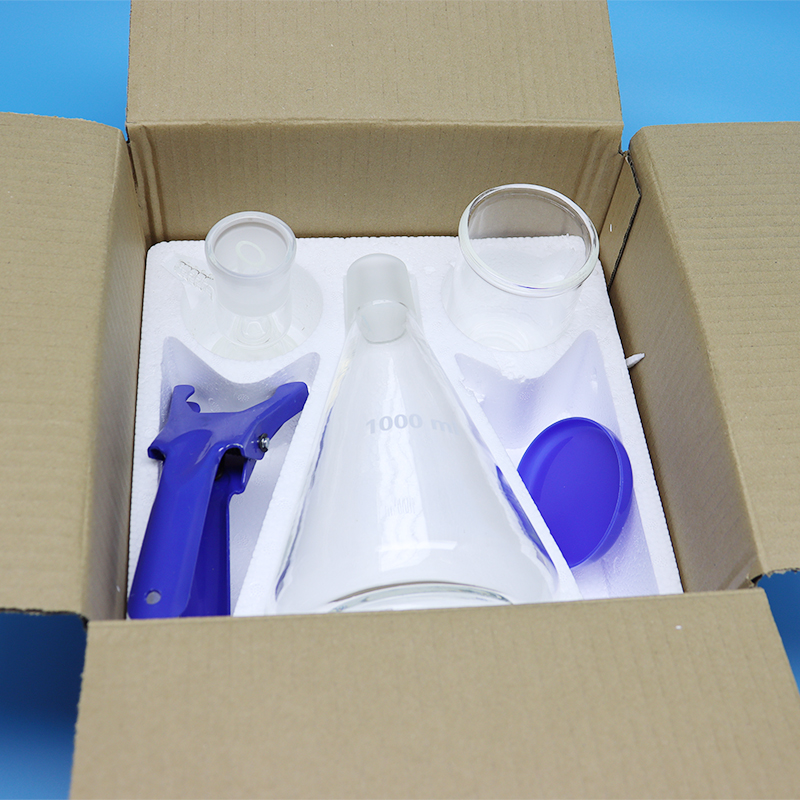

Packing Show
Solvent Filtration Apparatus Specs
| item | Description | Picture | Spec（ml） | Height（mm） | Diameter（mm） | Weight（g） |
| 1 | Solvent Filtration Apparatus |
|
250 | 360 | 982 | |
| 2 | 500 | 360 | 1204 | |||
| 3 | 1000 | 410 | 1234 | |||
| 4 | 2000 | 500 | 1939 | |||
| 5 | 3000 | 620 | 2902 | |||
| 6 | 5000 | 660 | 3232 | |||
| 7 |
|

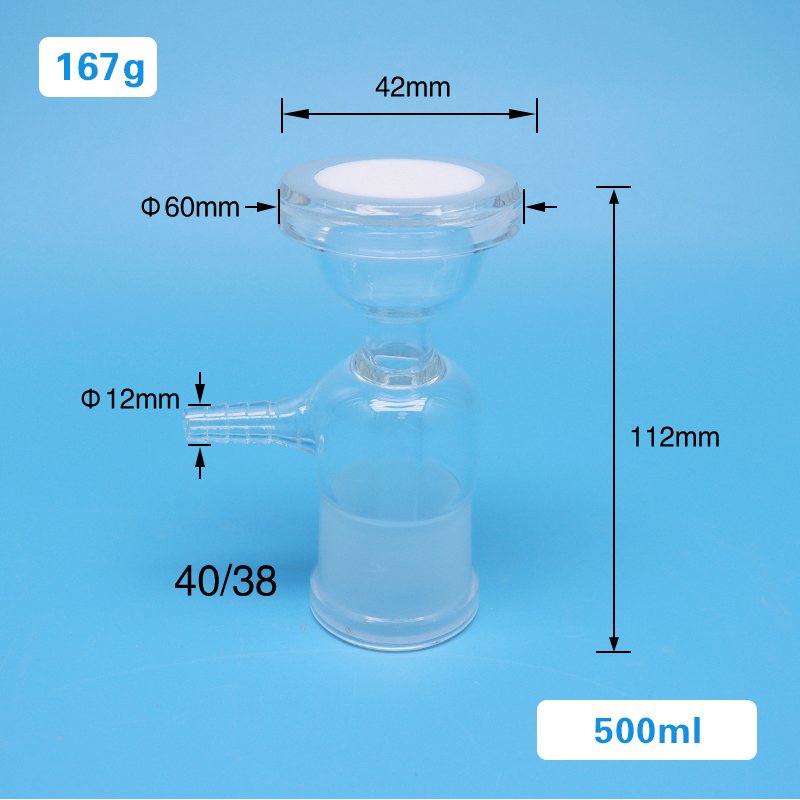

500 | 112 | 60 | 167 | |

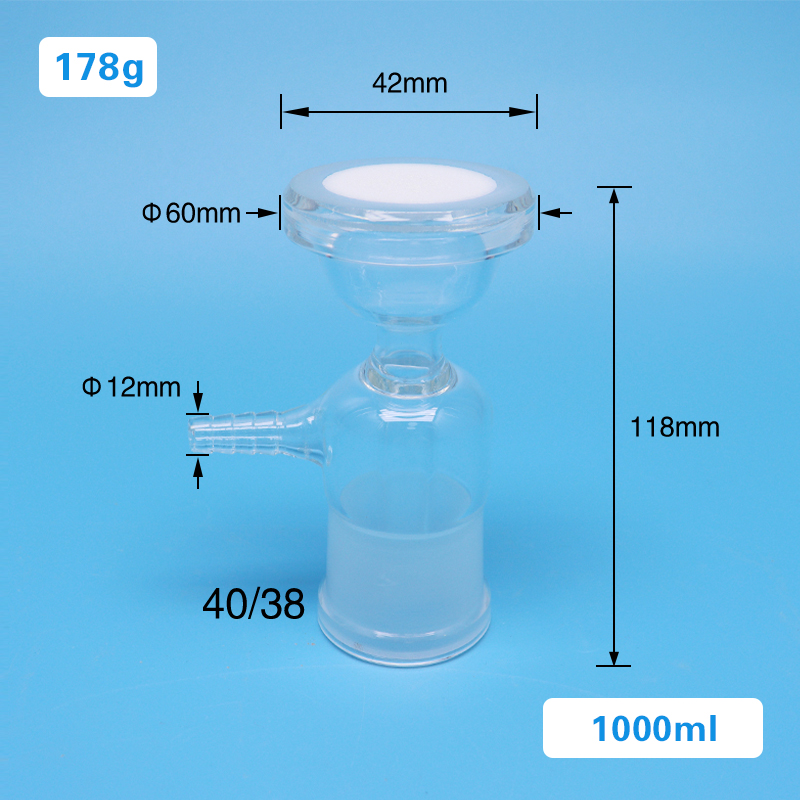

| 8 | 1000 | 118 | 60 | 178 | ||
| 9 | 2000-5000 | 125 | 60 | 197 | ||
| 10 |
|

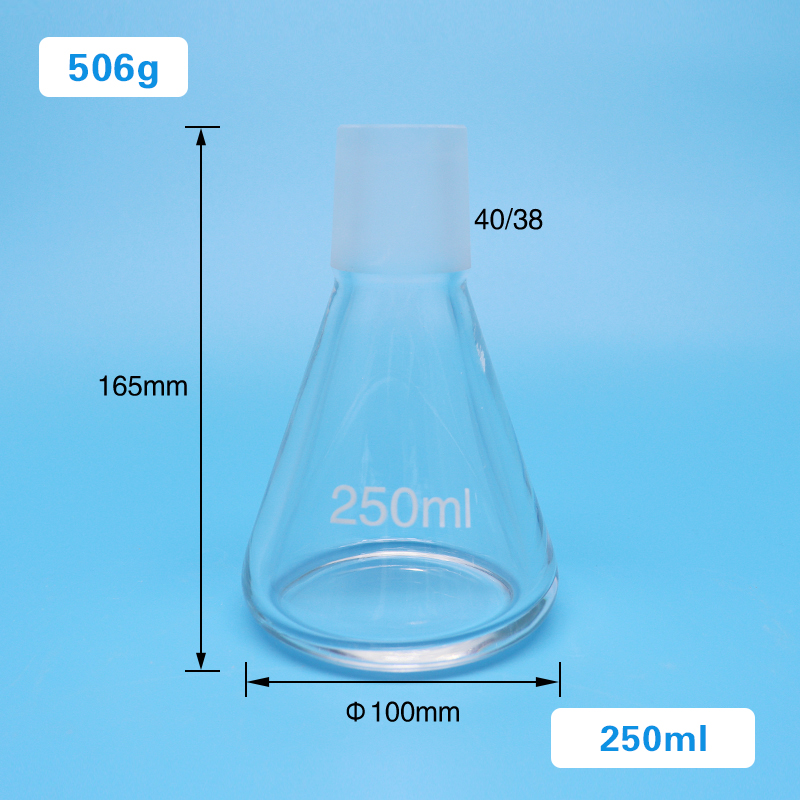

250 | 165 | 100 | 506 | |
| 11 | 500 | 205 | 120 | 693 | ||

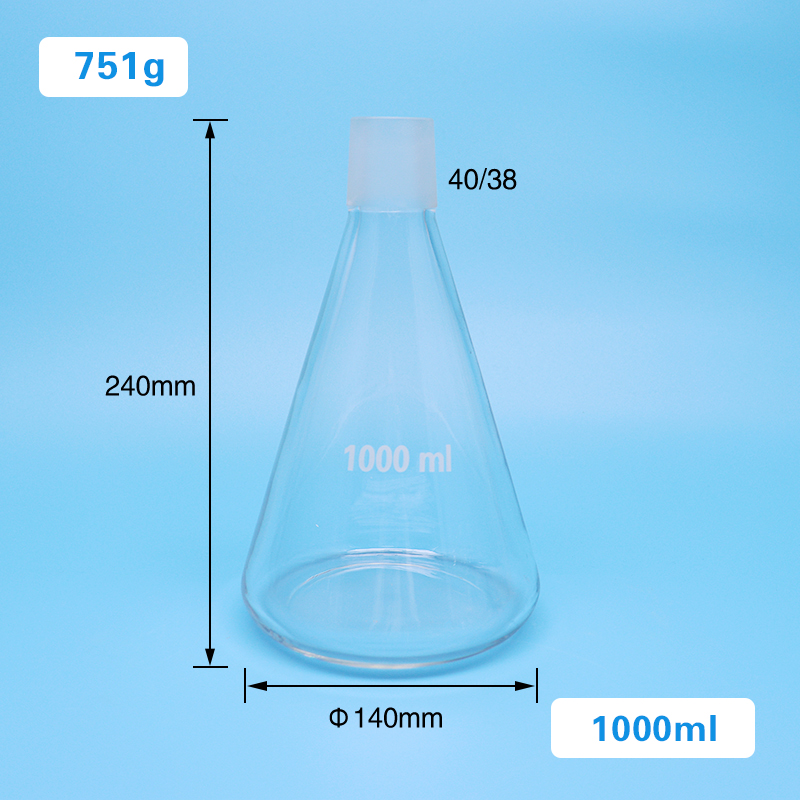

| 12 | 1000 | 240 | 140 | 751 | ||

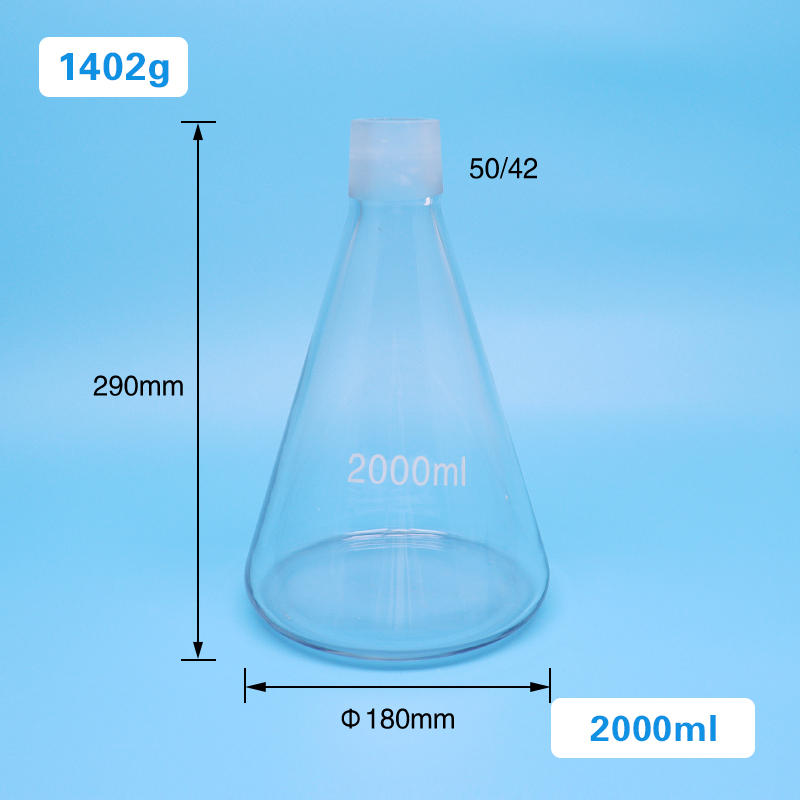

| 13 | 2000 | 290 | 180 | 1402 | ||
| 14 | 3000 | 345 | 220 | 2284 | ||
| 15 | 5000 | 390 | 250 | 2601 | ||
| 16 |
|
300 | 130 | 75 | 203 | |

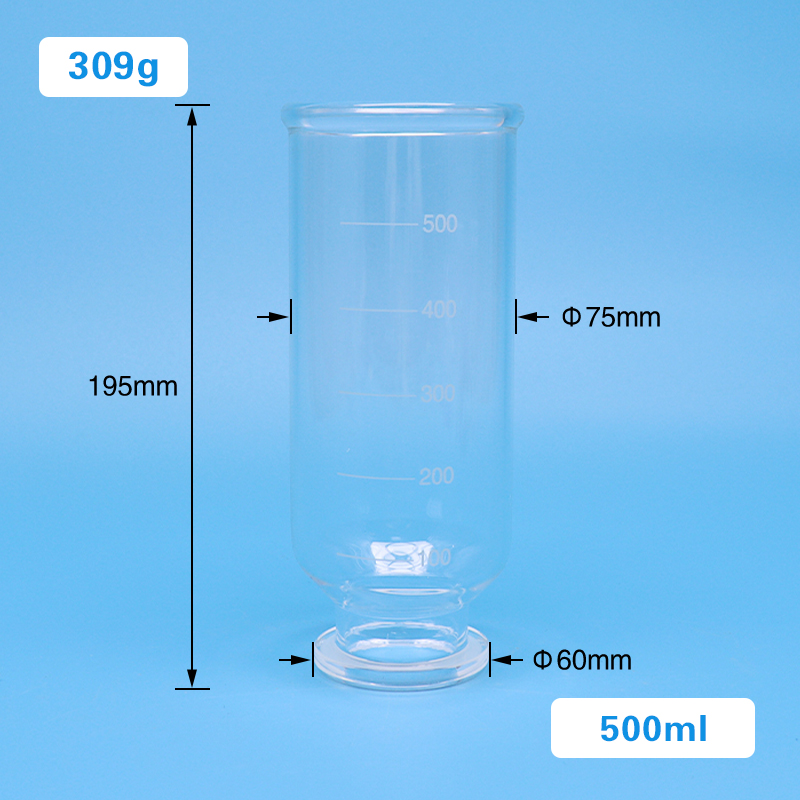

| 17 | 500 | 195 | 75 | 309 |
