Glass Funnel With Fritted Disc
Glass Funnel With Fritted Disc
● Fine workmanship
● Clear and transparent
● Strong stability
Funnel With Fritted Disc
Product Name: Funnel With Fritted Disc
Product Specifications: 30-2000ml
Product Material: High borosilicate glass
Product Introduction: The sand core filter plate of the funnel with fritted disc is made of sintered glass material, which can filter acid liquids and treat them with acid, also known as acid resistant funnel or glass vertical melting funnel. According to its aperture size, it is divided into specifications such as G0 to G6.

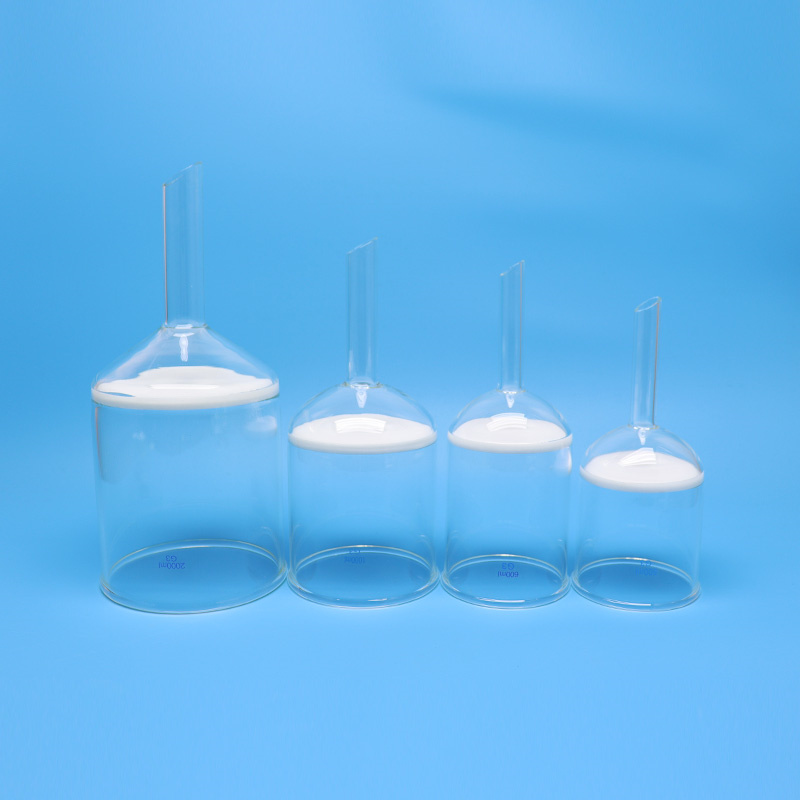

Product Show
● Carefully selected materials, finely crafted, and convenient to use.
● Low thermal expansion coefficient and strong fracture stability.
● The welding is tight and does not damage the entire surface filtration of the sand core.
● Smooth and round, with high transparency.

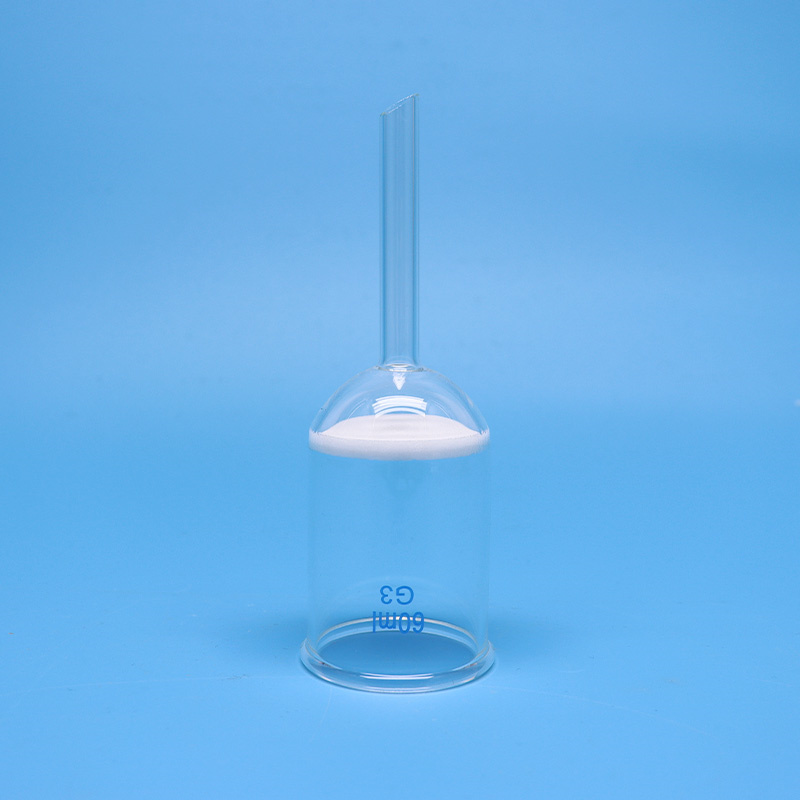

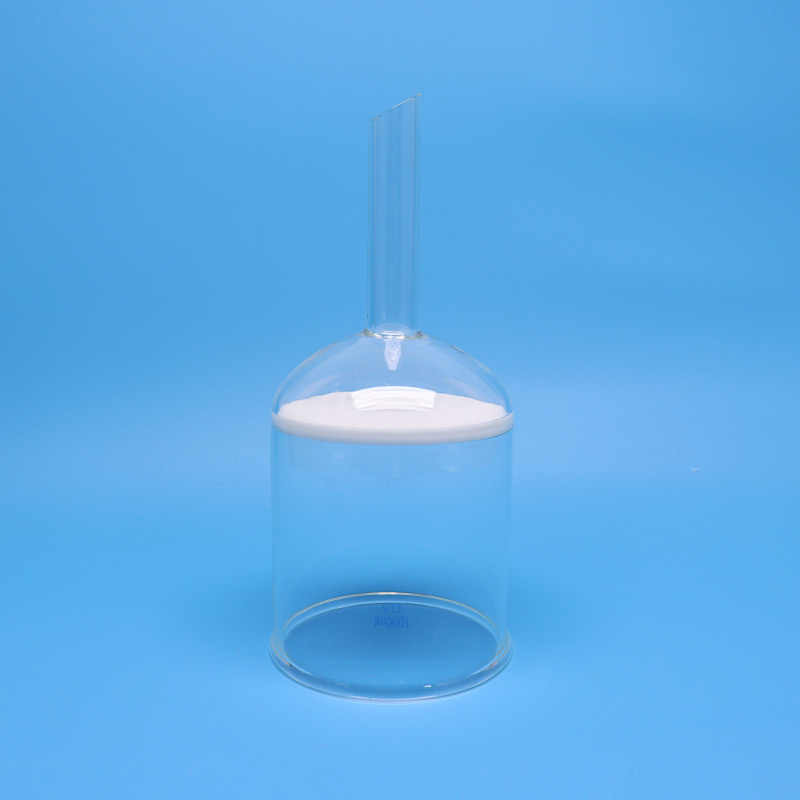

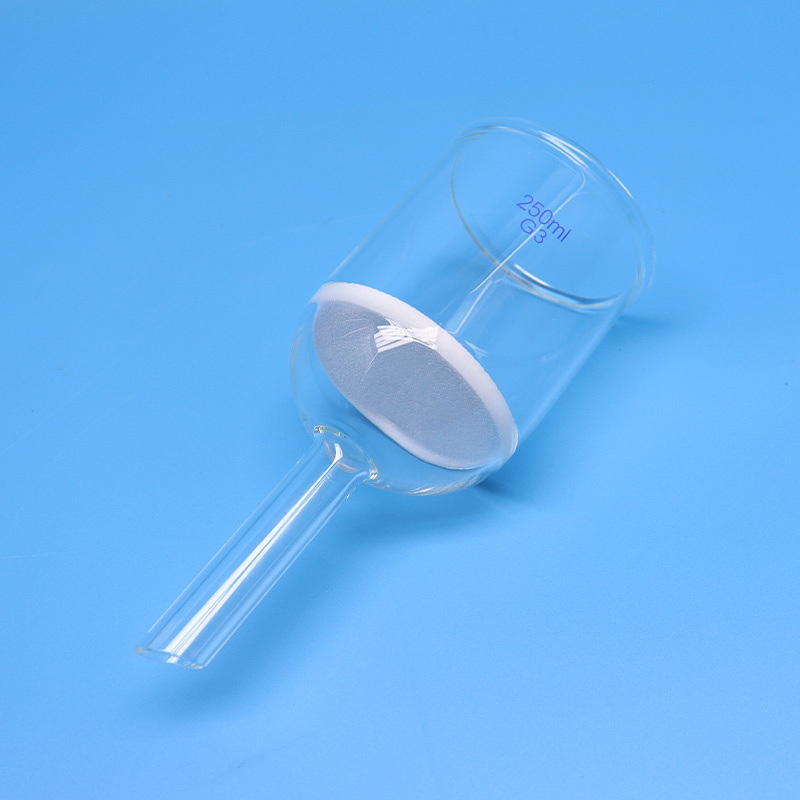

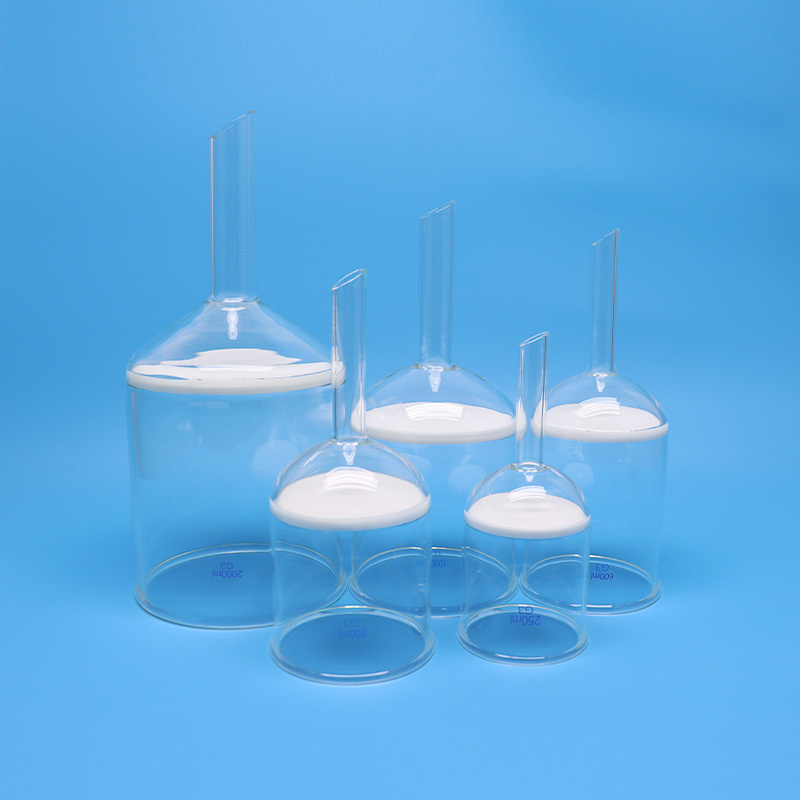

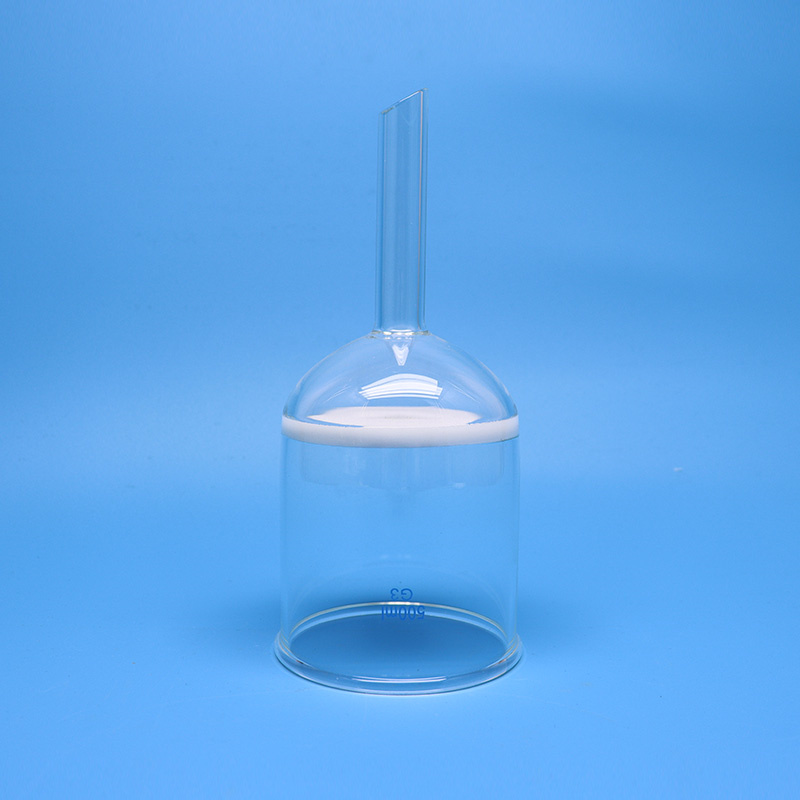

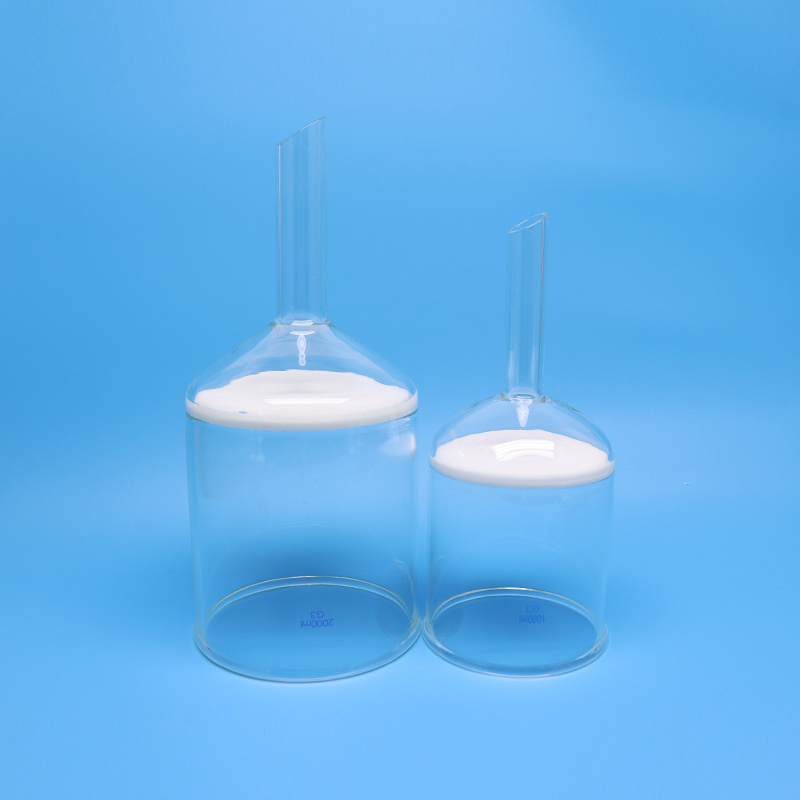

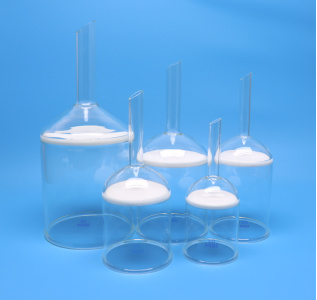

Funnel With Fritted Disc Show
Specifications and Lntroduction of Fritted Disc

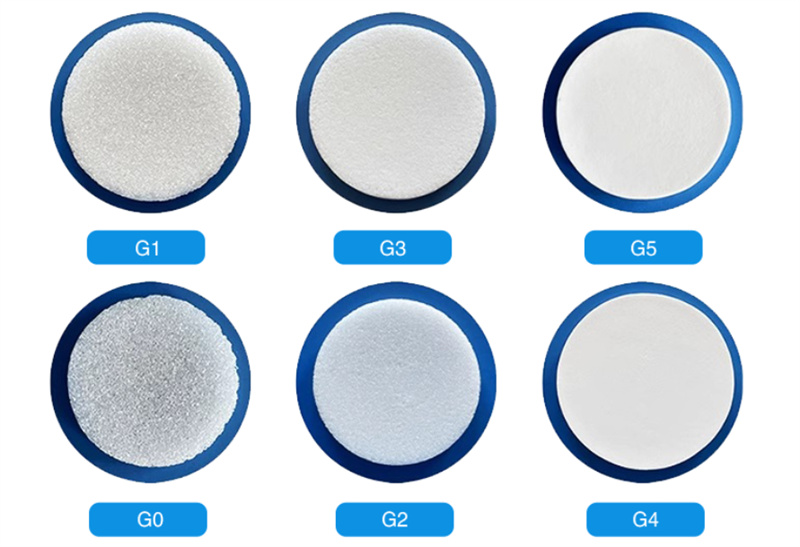

As shown in the figure: the fritted disk aperture G0>G1>G2>G3>G4>G5>G6. The larger the number, the smaller the aperture. The commonly used ones are G2/G3 fritted disk, G3 is used to filter out fine sediment. Under normal pressure, the water output is slow or non-existent, and it is more effective when combined with pressure or suction filtration. G0-G2 fritted disk, due to its coarse pore size, can be naturally filtered under normal pressure.
Standards and Applications
| International standard | Original standard | Filter plate aperture (micrometers) | General purpose |
| P250 | C00 | 160-250 | Filter out large particle precipitates |
| P160 | G0 | 100-160 | Filter out coarse particle precipitation, collect and distribute gas molecules |
| P100 | G1A | 70-100 | Treated water |
| P70 | G1A | 50-70 | Filter out large sediment and gelatinous sediment |
| P50 | G2 | 30-50 | Filter out large sediment and gas for washing purposes |
| P30 | G3 | 16-30 | Filter out fine sediment and mercury for filtration purposes |
| P16 | G4A | 7-16 | Filter out fine particle precipitates, collect or distribute fine molecular gases |
| P7 | G4 | 4-7 | Filter out fine or extremely fine precipitates in the liquid |
| P4 | G5 | 2-4 | Filter out extremely fine sediment and larger bacteria |
| P2 | G6 | 1.2-2.0 | Filter out Escherichia coli and Staphylococcus aureus |

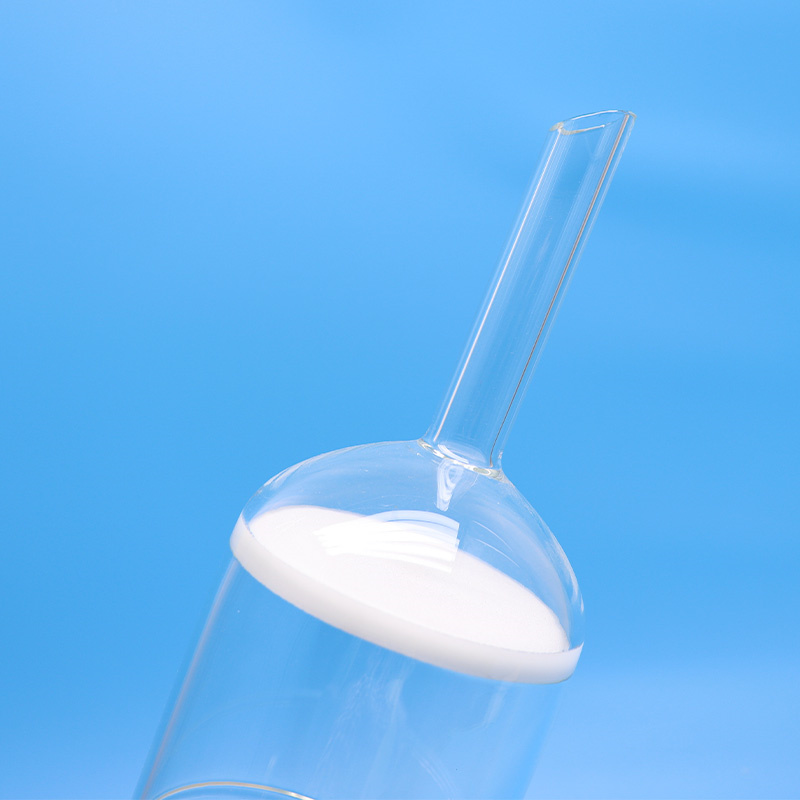

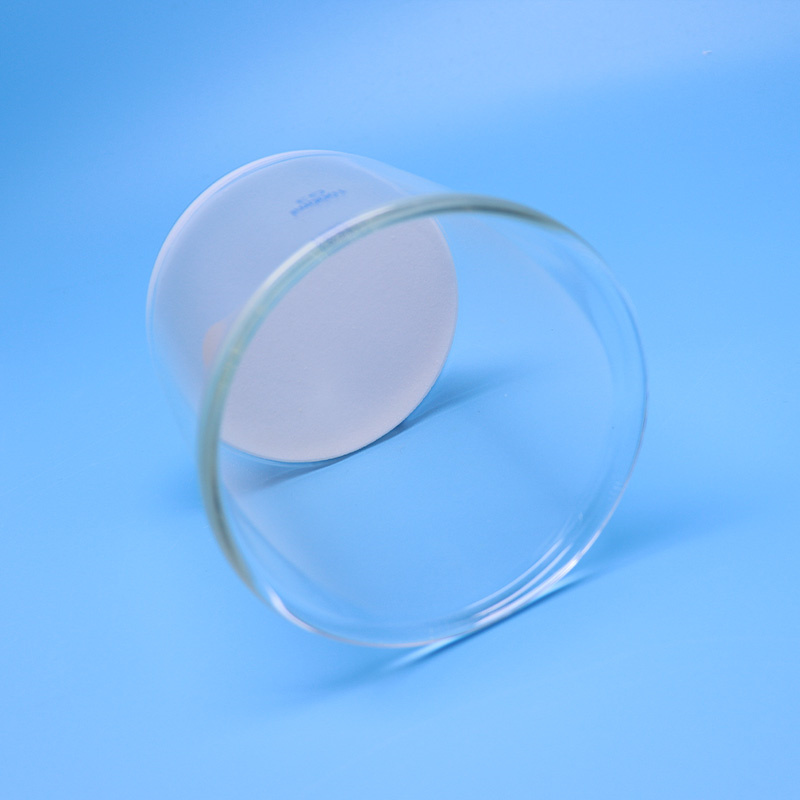

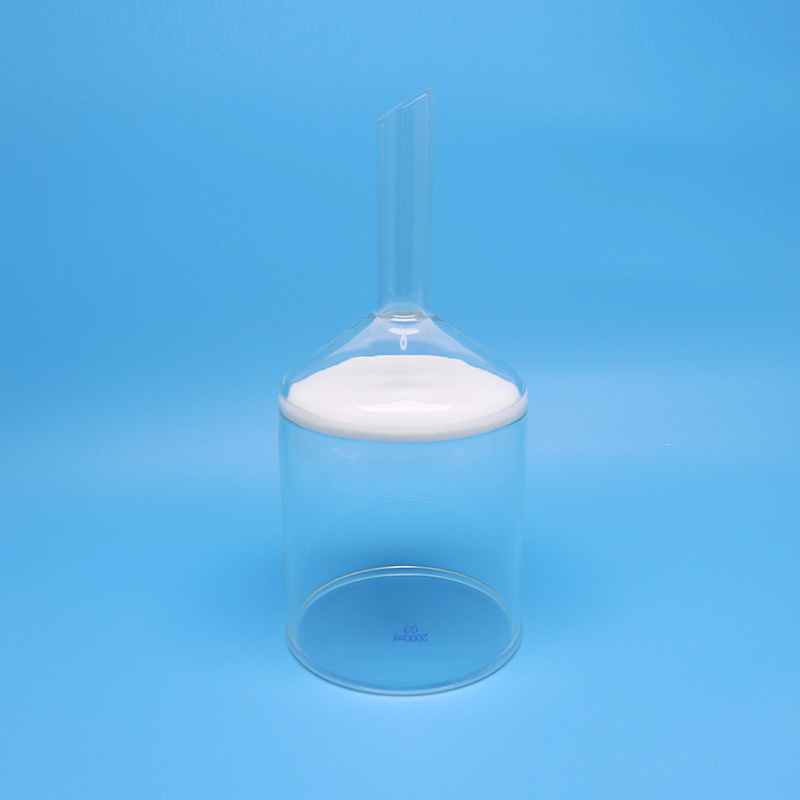

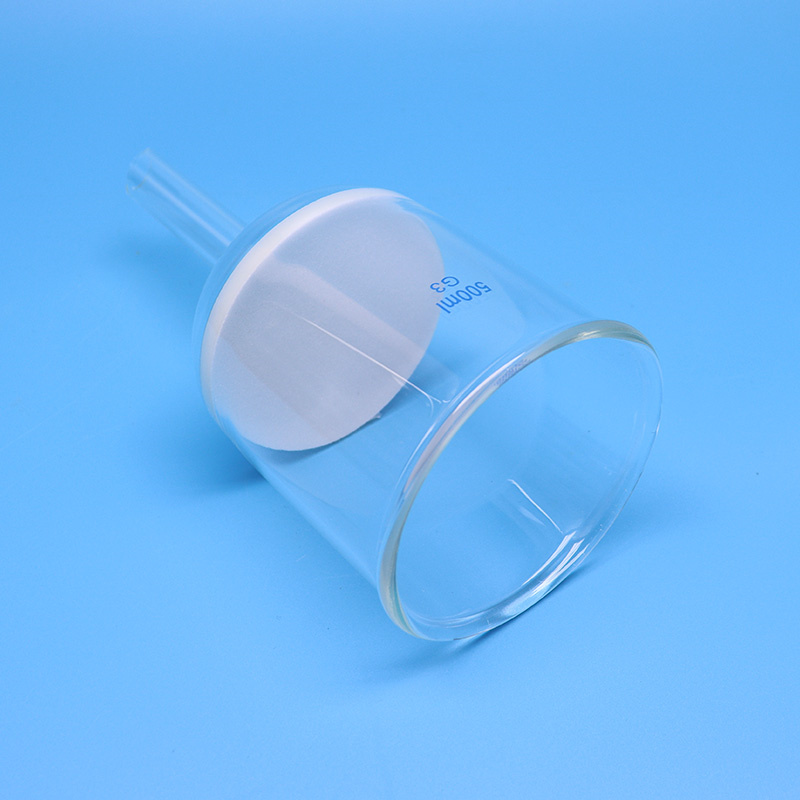

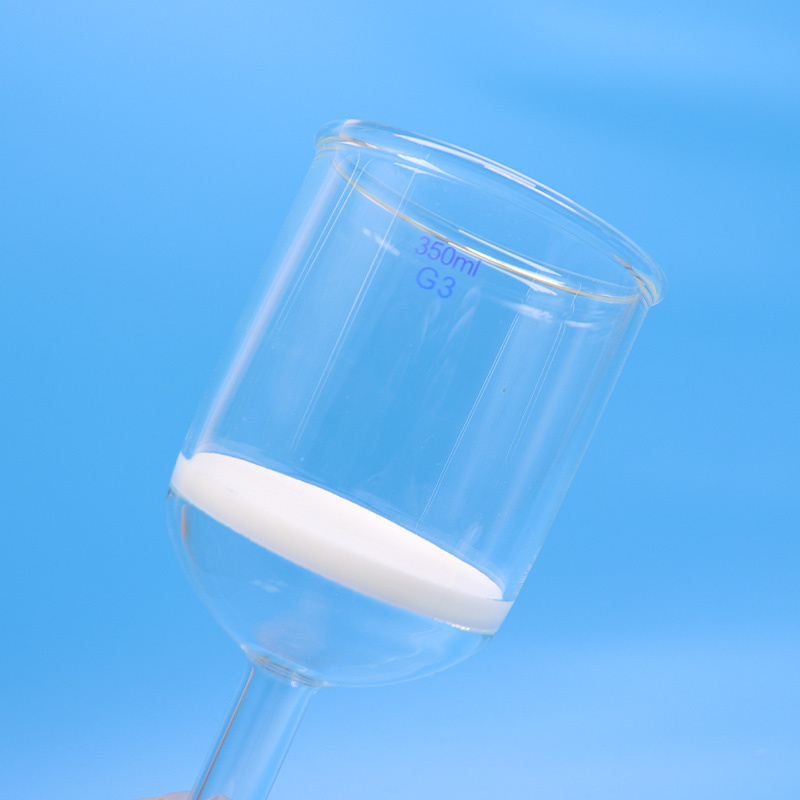

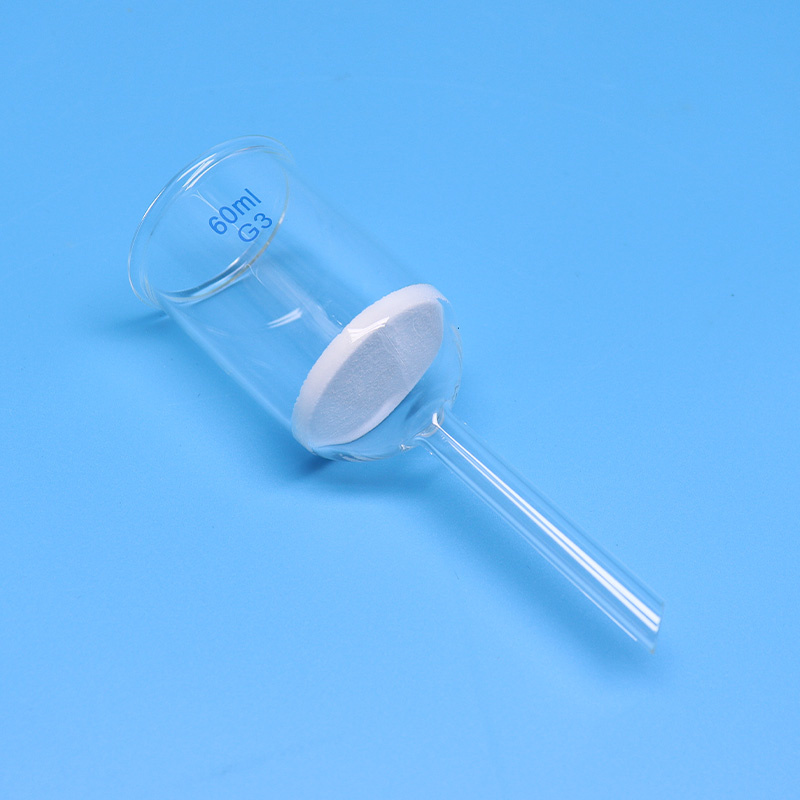

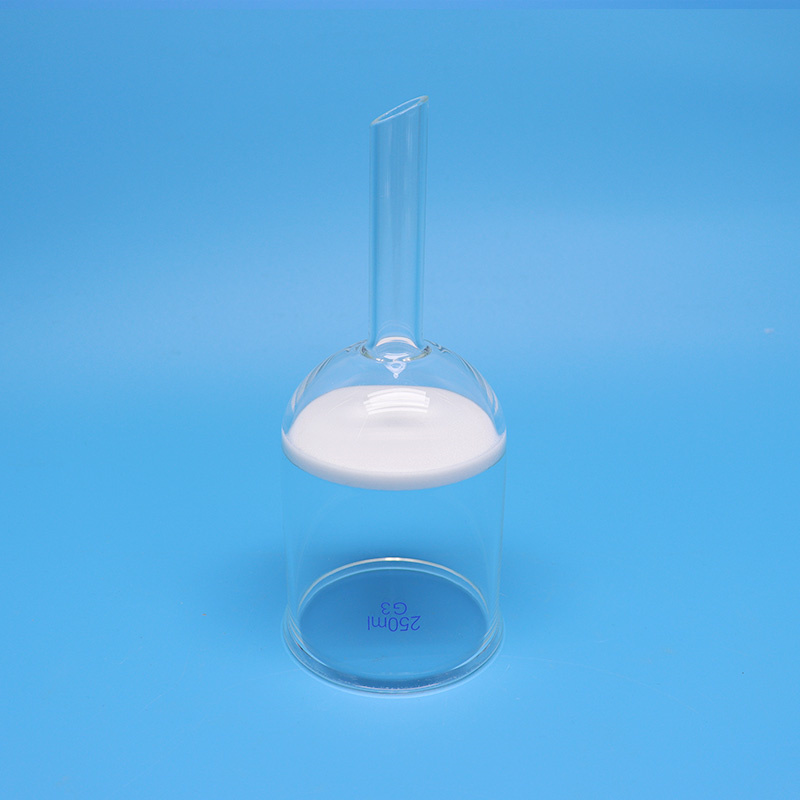

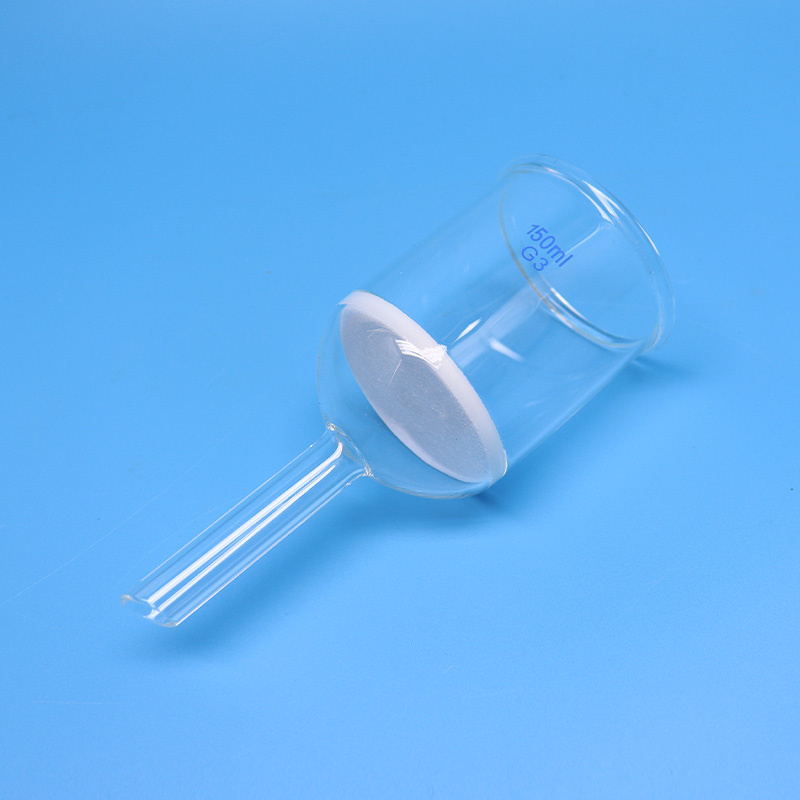

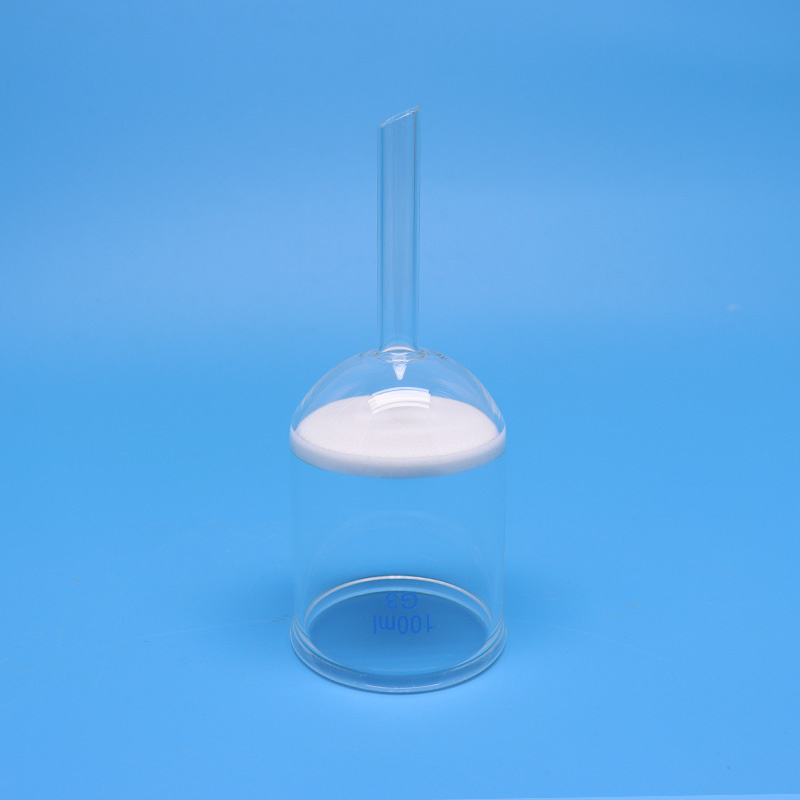

Product Details Show

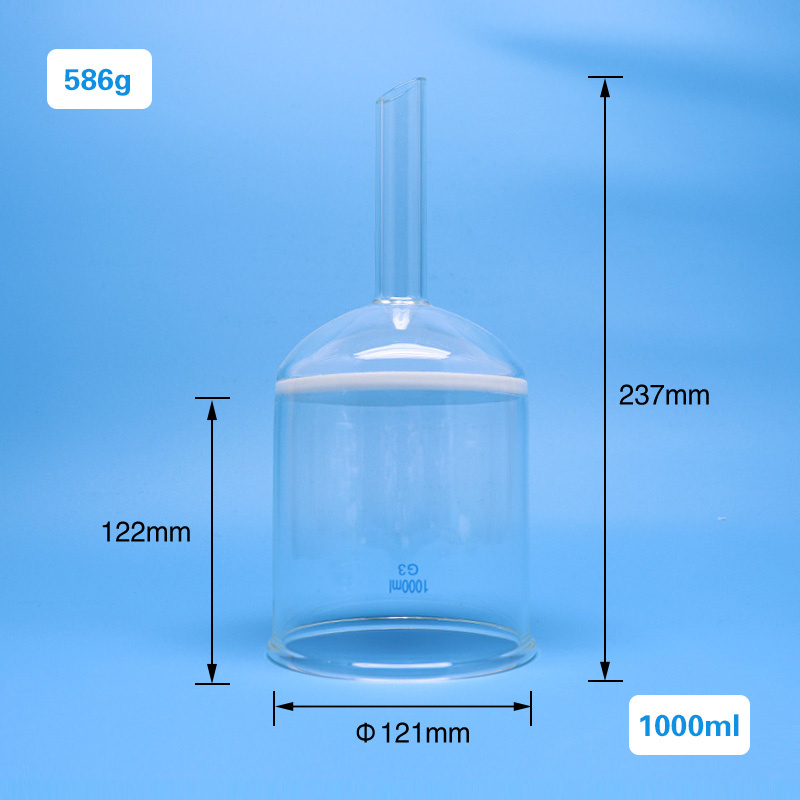

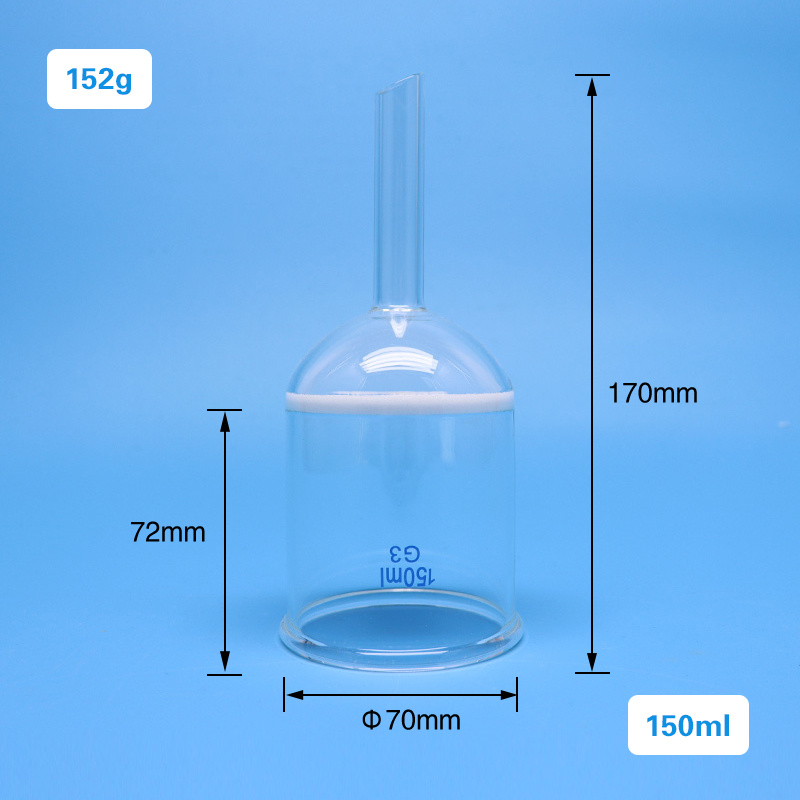

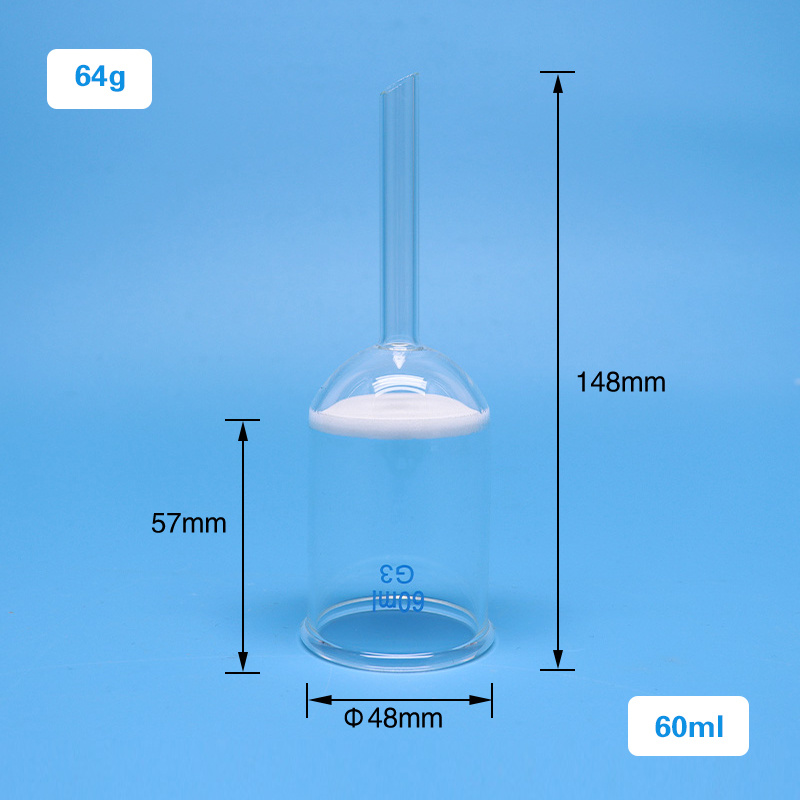

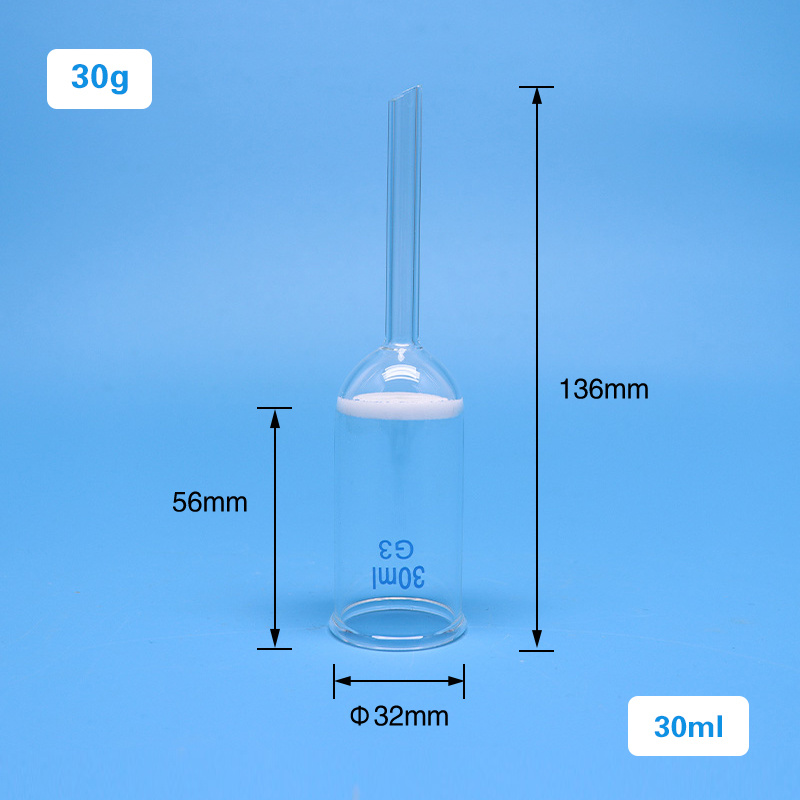

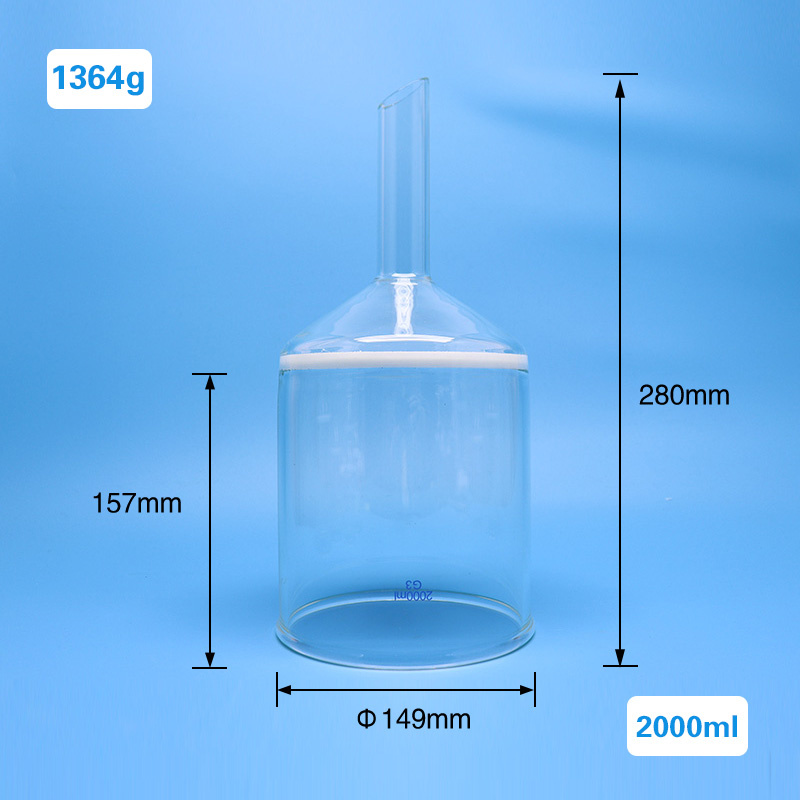

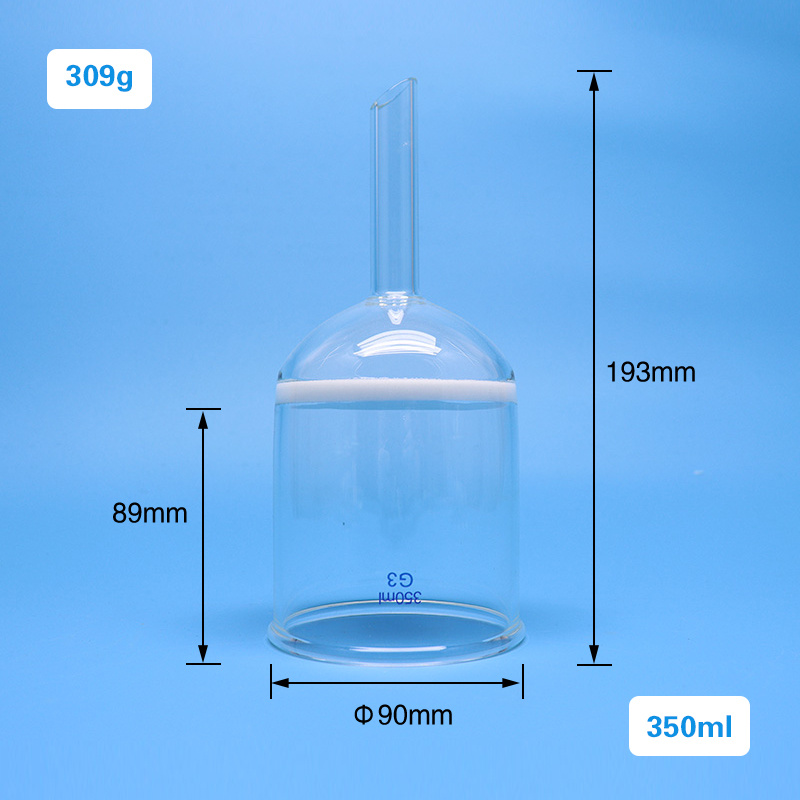

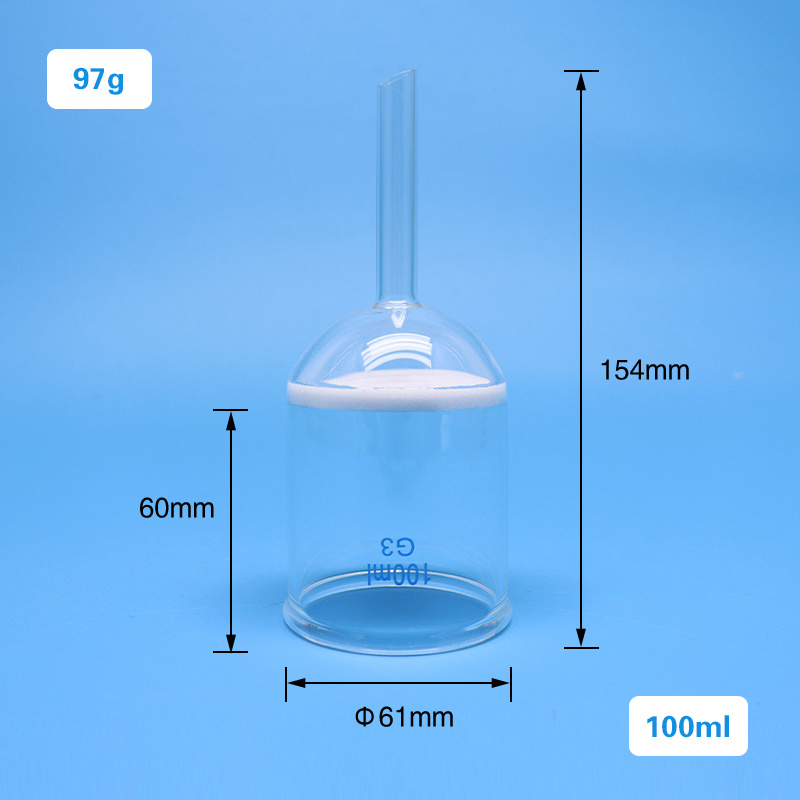

Size Show
Funnel with Fritted Disc Specs
| Item | Description | Picture | Capacity（ml） | Outer Diameter（mm） | Height（mm） | Height from Filter to Mouth（mm） | Weight（g） |
| 1 | Glass Funnel with Fritted Disc |  |
30 | 32 | 136 | 56 | 30 |
| 2 | 60 | 48 | 148 | 57 | 64 | ||
| 3 | 100 | 61 | 154 | 60 | 97 | ||
| 4 | 150 | 70 | 170 | 72 | 152 | ||

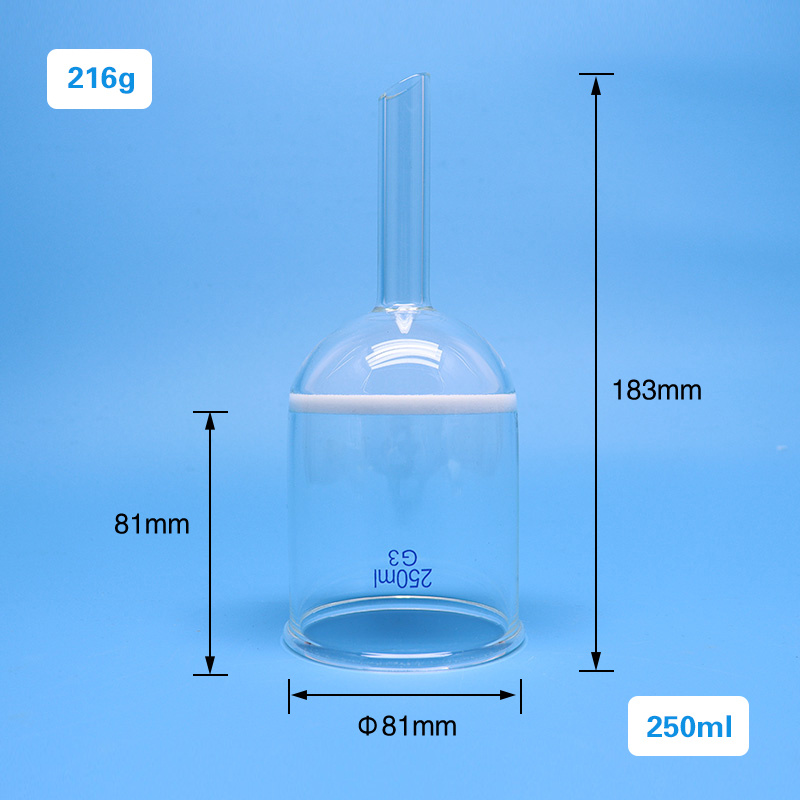

| 5 | 250 | 81 | 183 | 81 | 216 | ||
| 6 | 350 | 90 | 193 | 89 | 309 | ||

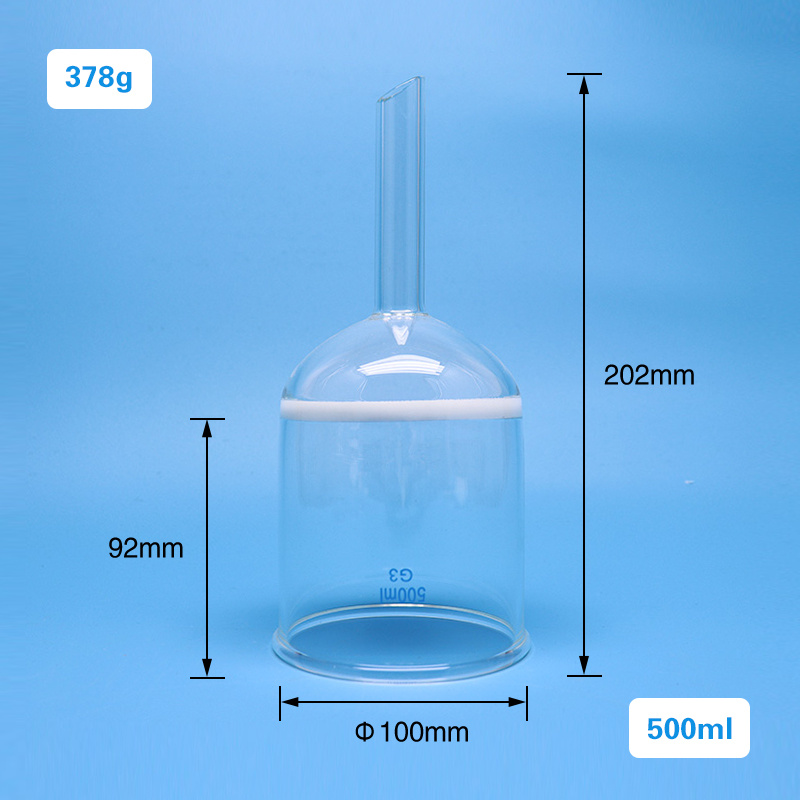

| 7 | 500 | 100 | 202 | 92 | 378 | ||

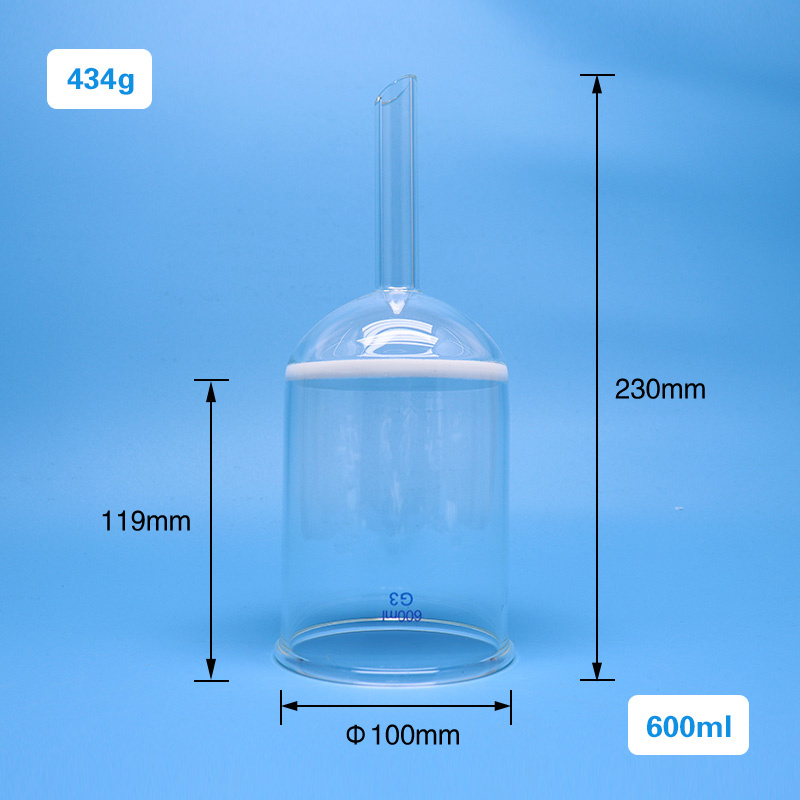

| 8 | 600 | 100 | 230 | 119 | 434 | ||
| 9 | 1000 | 121 | 237 | 122 | 586 | ||
| 10 | 2000 | 149 | 280 | 157 | 1364 |
Precautions
The newly purchased filtering instrument needs to be filtered with acid solution before use, washed clean with distilled water, and dried before use. For sterilization filters, high-pressure sterilization is required before use. After use, a washing solution should be used for filtration, and then soaked in the washing solution for 48 hours before being taken out and rinsed with distilled water, filtered, dried, and stored. During the drying process, do not open the oven halfway. Wait until the oven has cooled to room temperature before opening and removing it to prevent explosion. After use, it is necessary to wash it to avoid affecting the filtration efficiency due to sediment blockage. Attention should be paid to slow heating or cooling, and it is not advisable to filter hydrofluoric acid, hot concentrated phosphoric acid, hot or cold concentrated alkaline solution during use.
