Pressure Vessel with PTFE Screw Plug
Pressure Vessel with PTFE Screw Plug
● Uniform pipe diameter
● Uniform wall thickness
● High transparency
Pressure Vessel with PTFE Screw Plug
Product Name: Pressure Vessel with PTFE Screw Plug
Product Specifications: 5-100ml
Product Material: High borosilicate glass
Product Introduction: The main body is cylindrical thick walled glass, with an internal threaded mouth and a PTFE threaded sealing cap (including an O-ring). At the factory, it undergoes individual pressure tests and can withstand up to 6 atmospheres of pressure, making it suitable for pressure reactions.

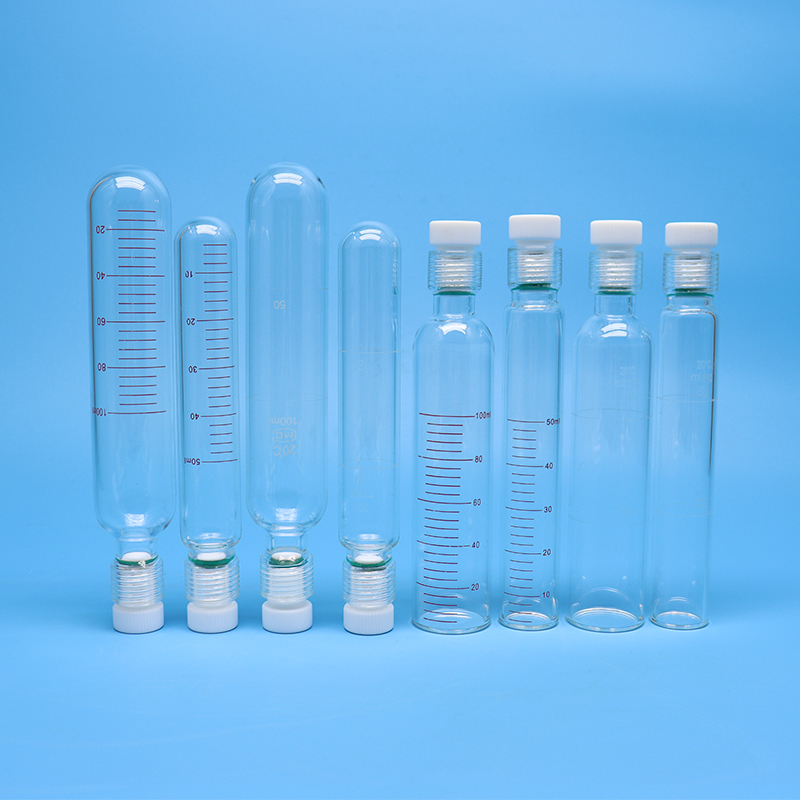

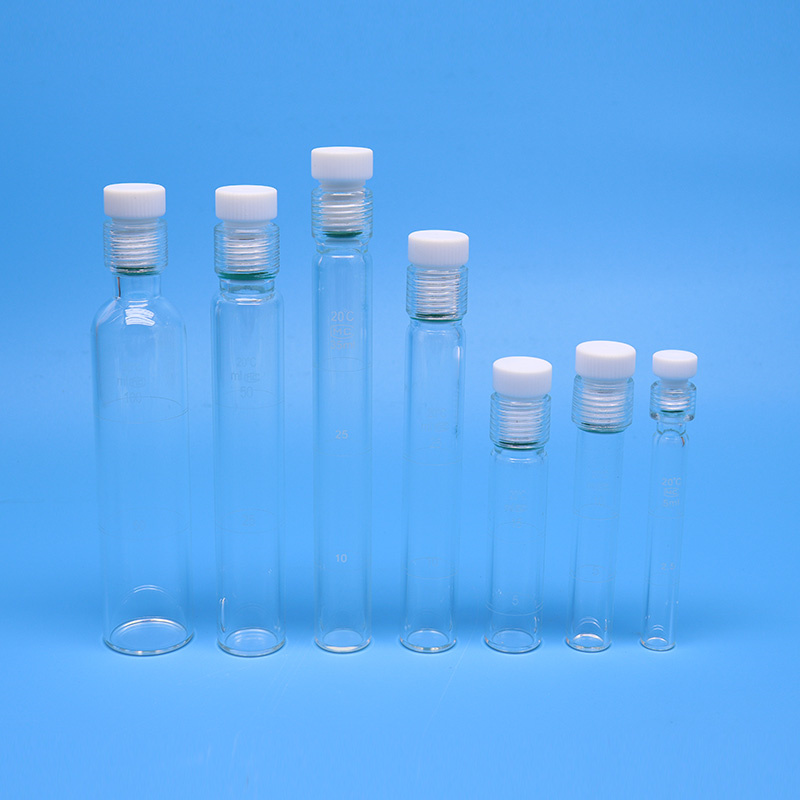

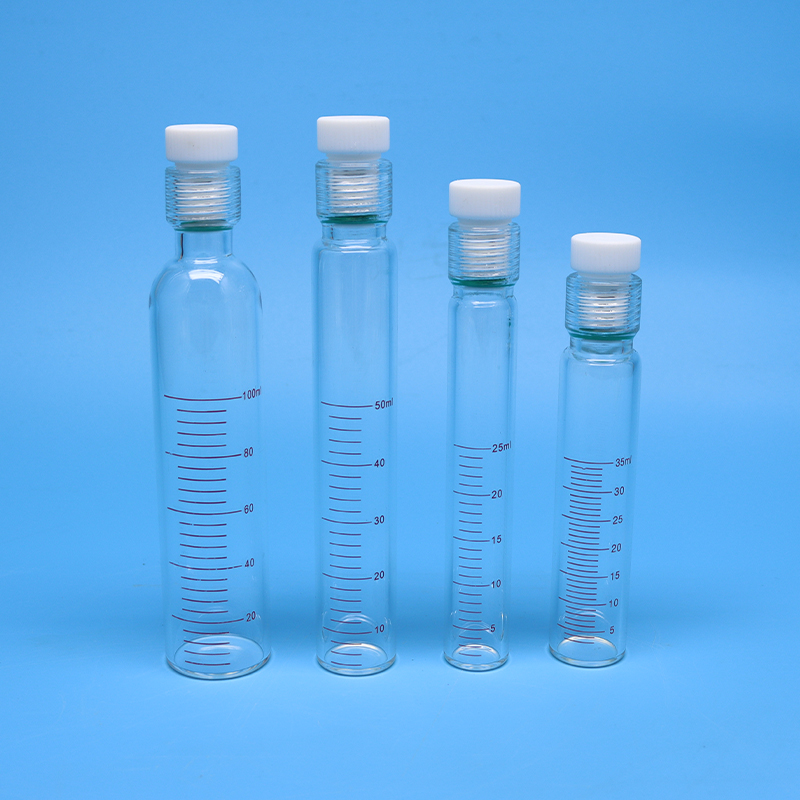

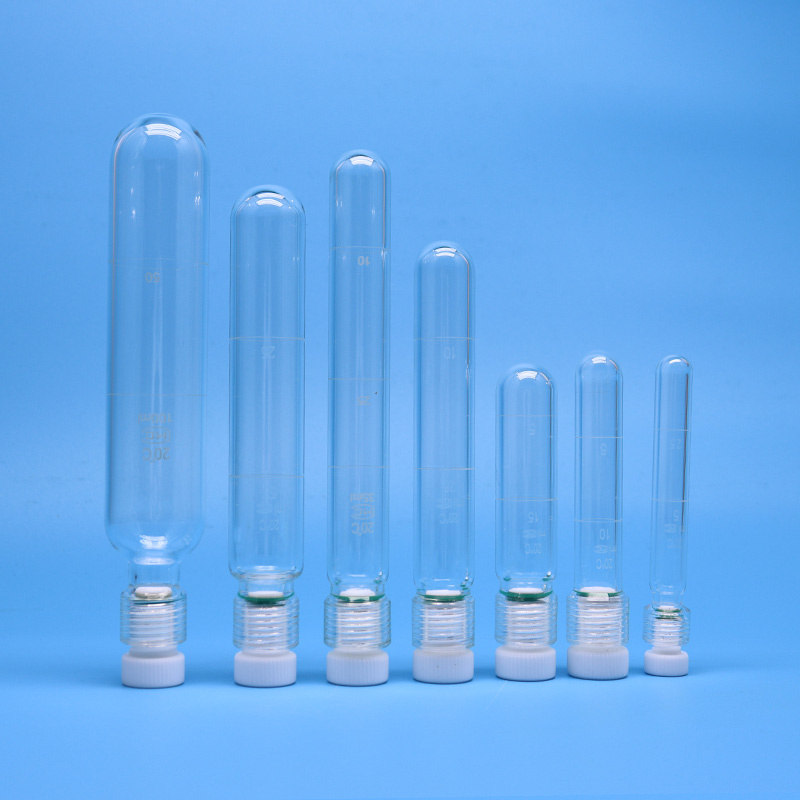

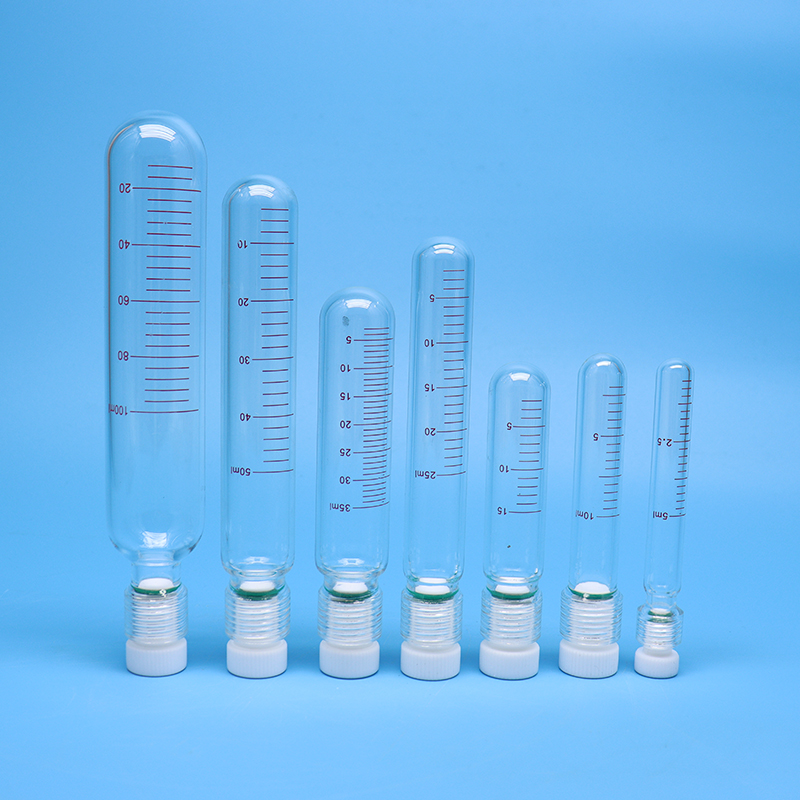

Product Show
● Acid and alkali resistant and various organic solvents.
● The bottle has internal threads and good sealing.
● Thickened glass wall, high temperature resistant, clean and transparent.

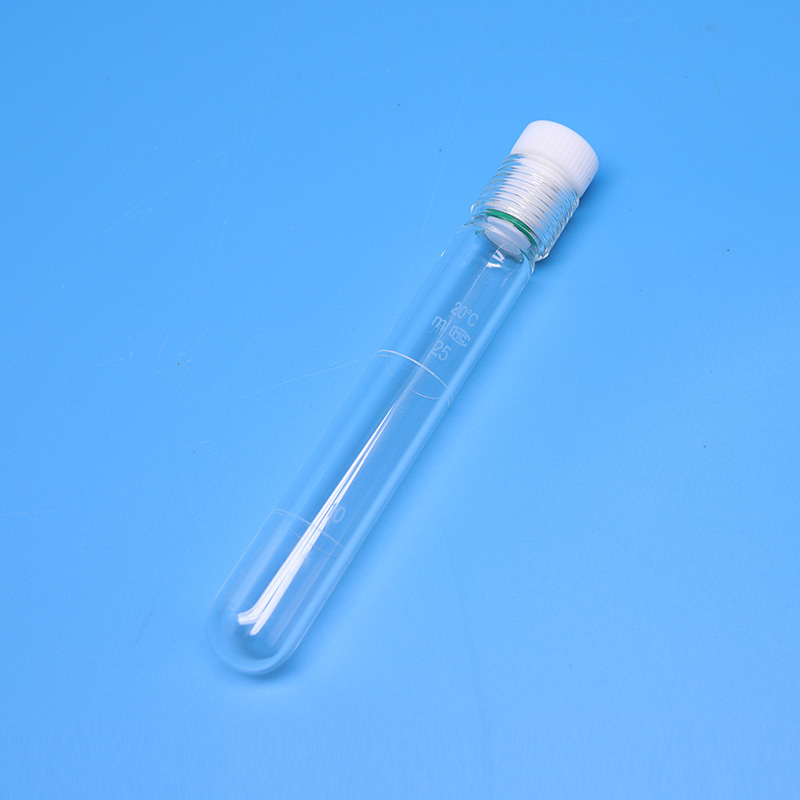

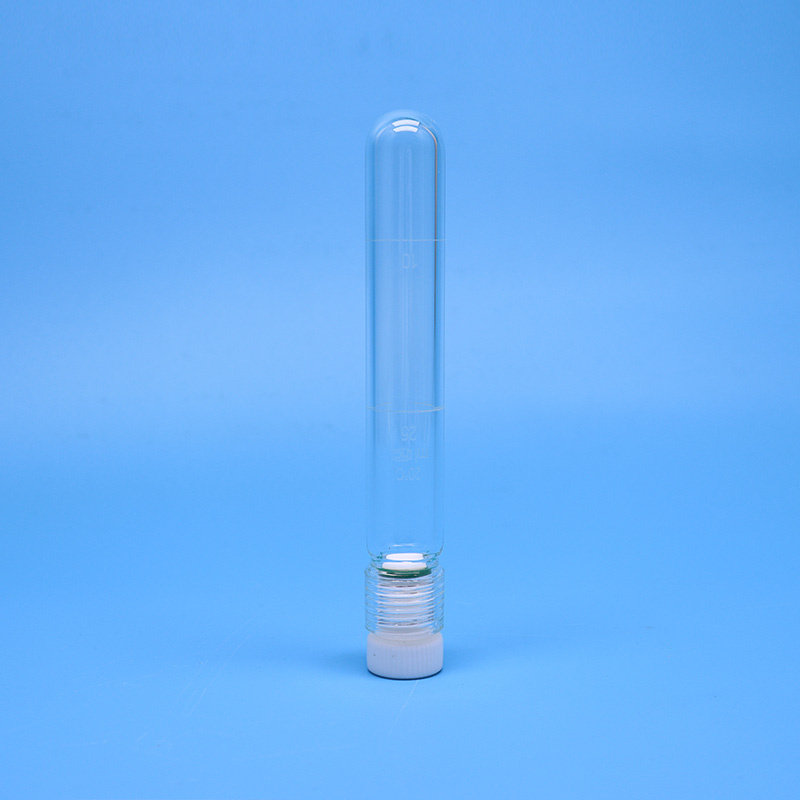

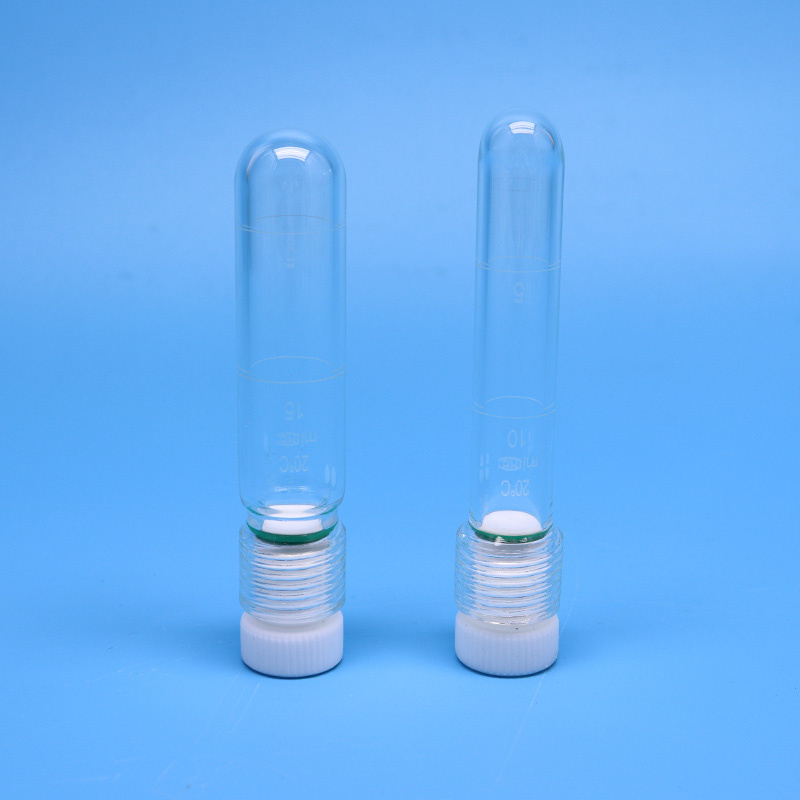

Round bottom Show

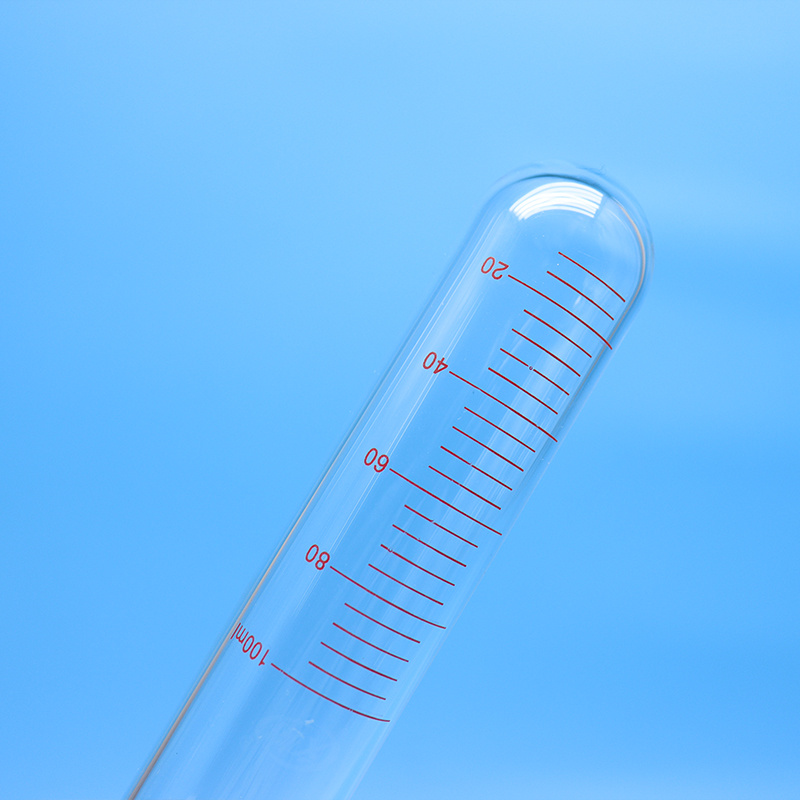

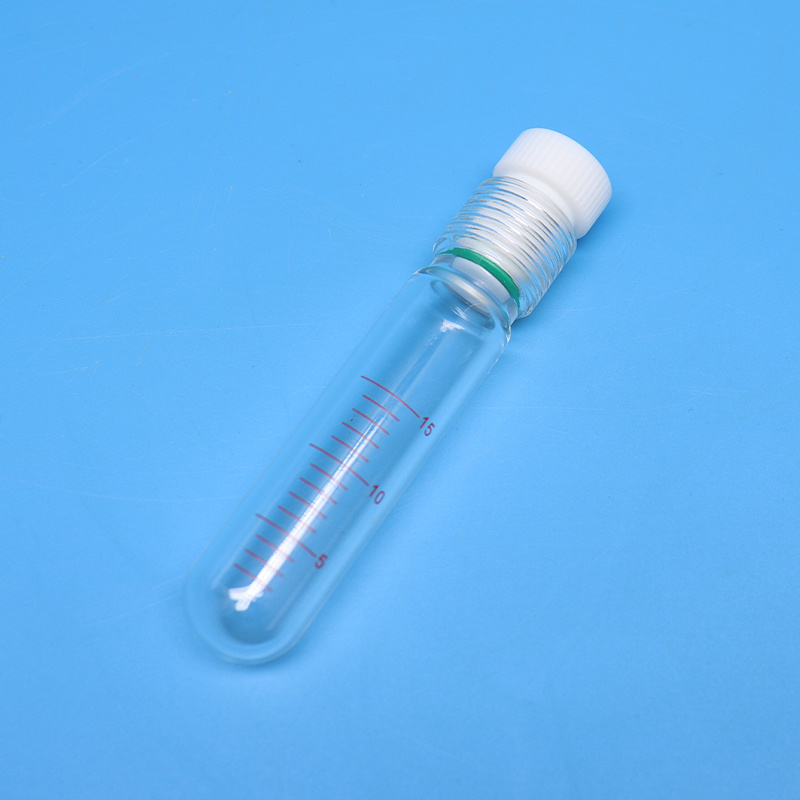

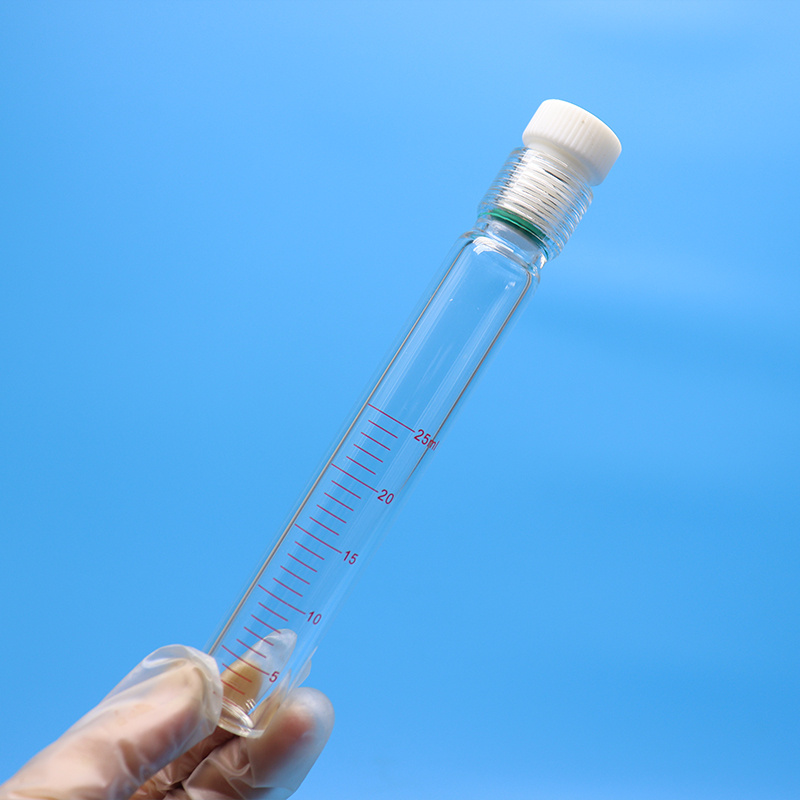

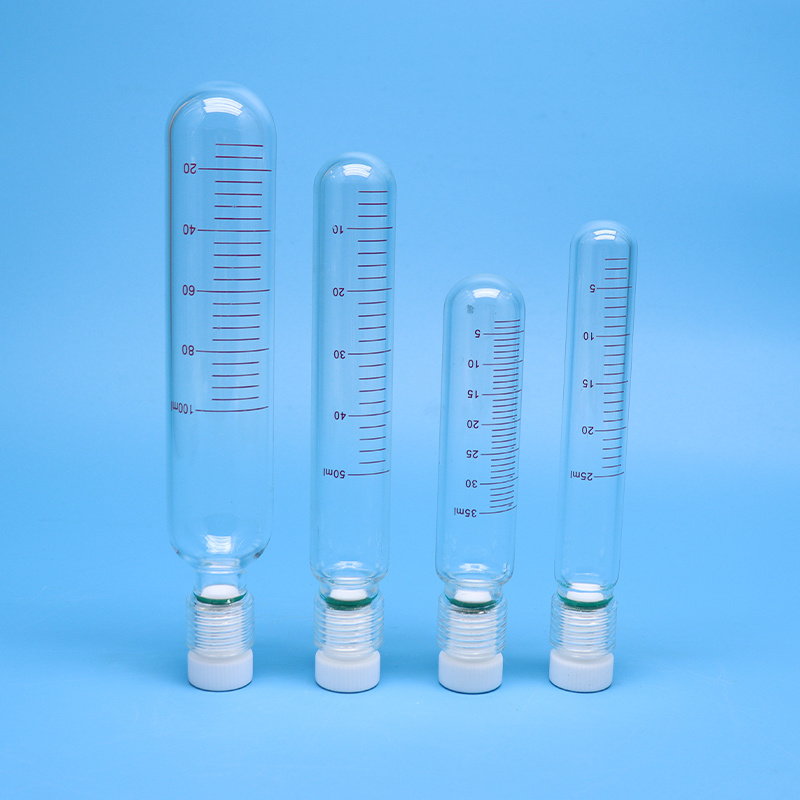

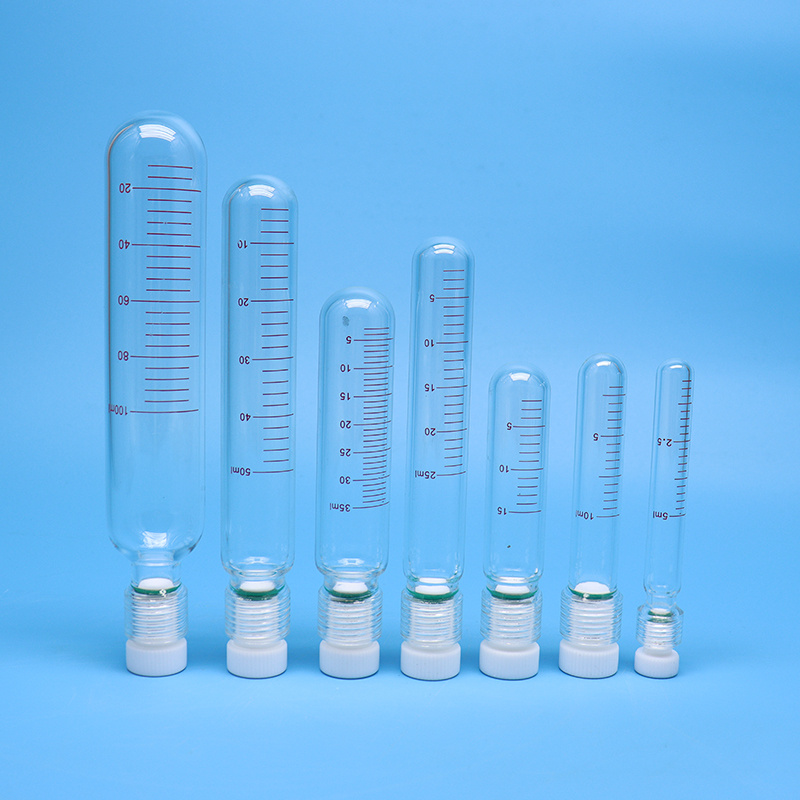

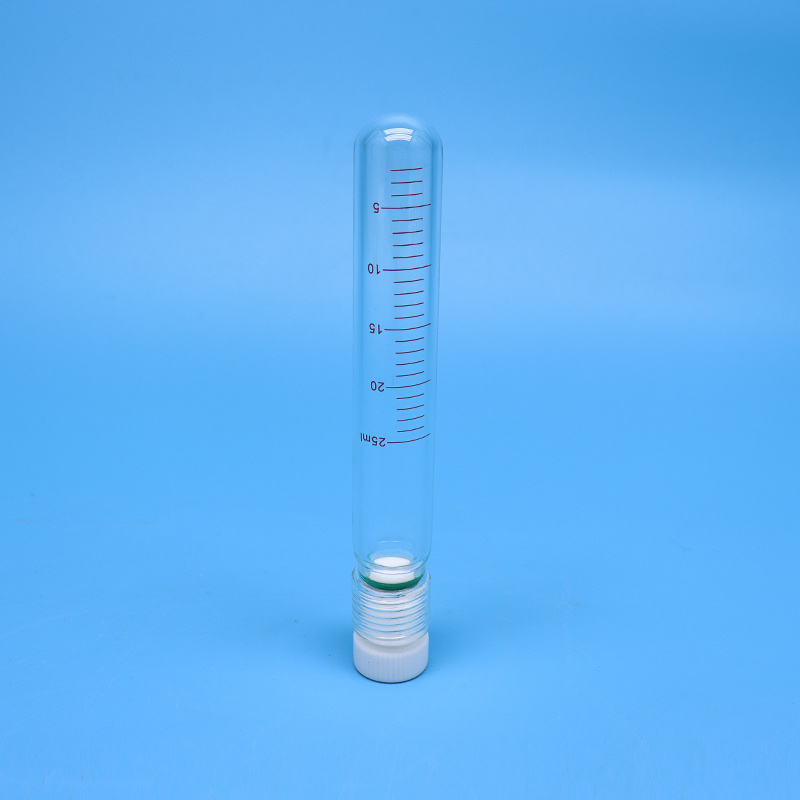

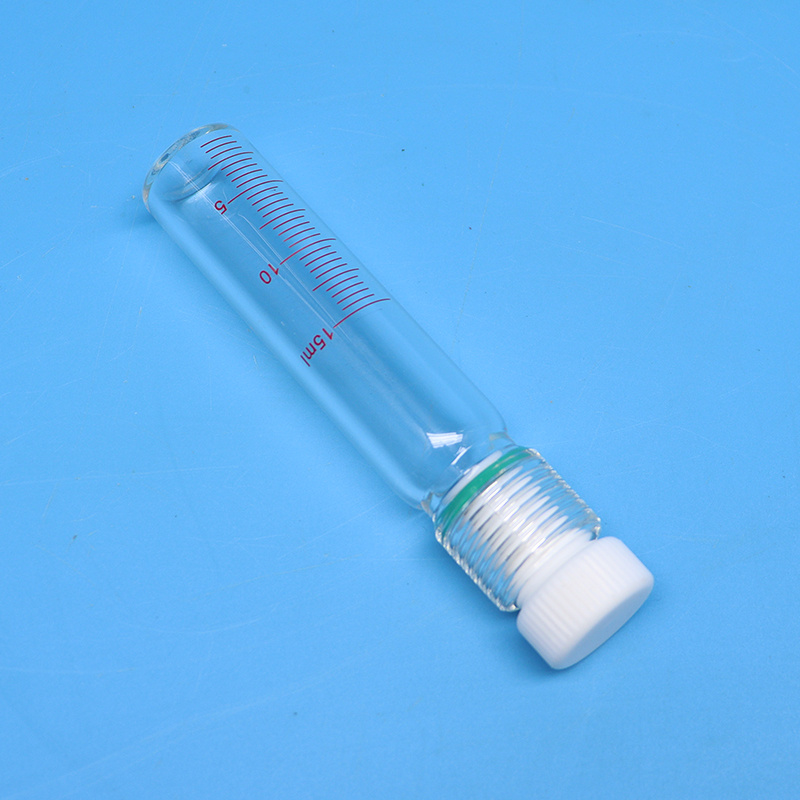

Round bottom (with scale) Show

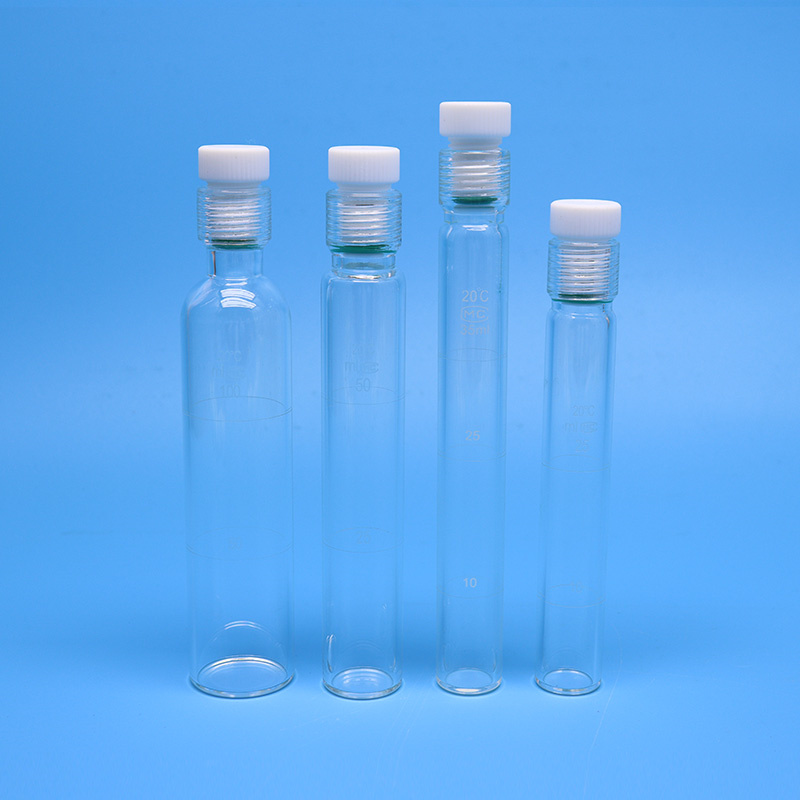

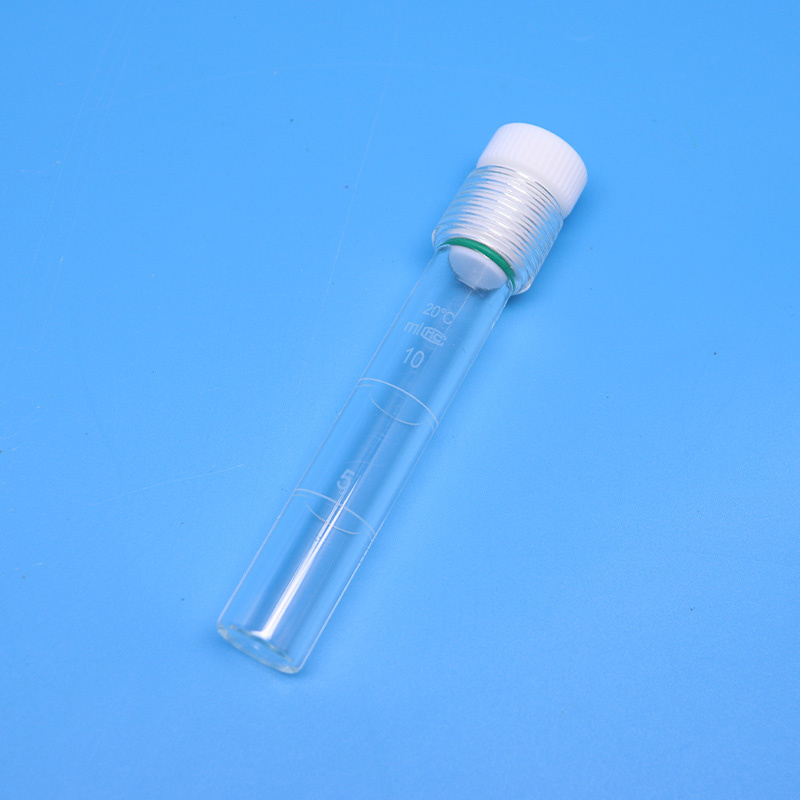

Flat bottom Show

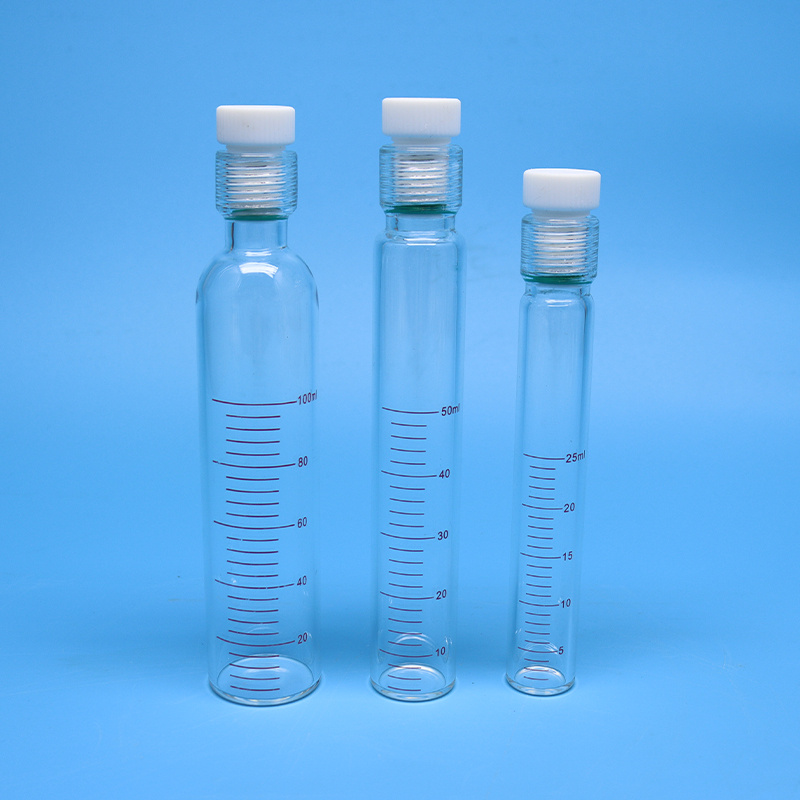

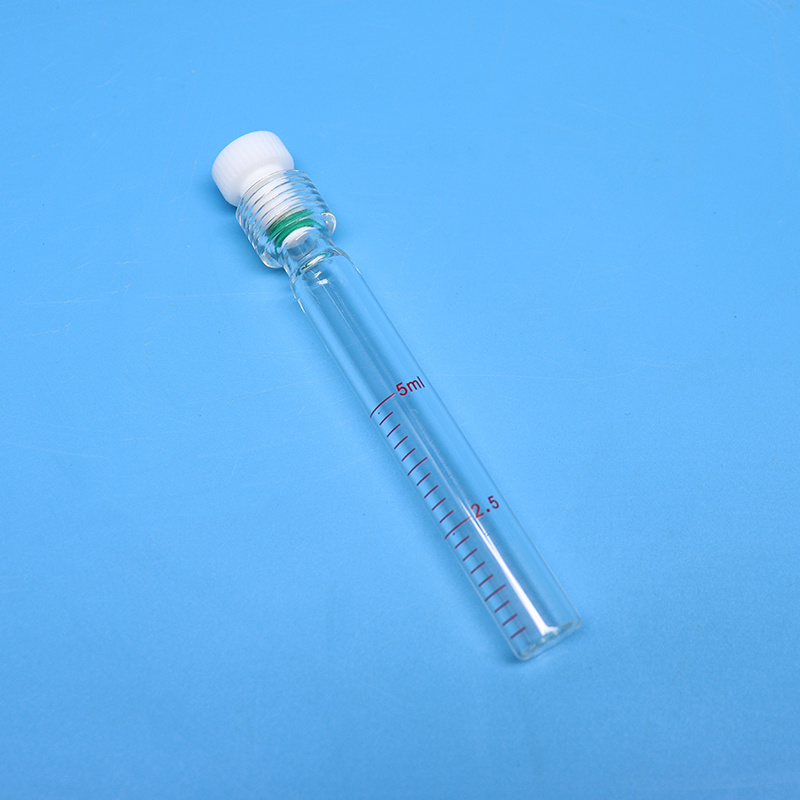

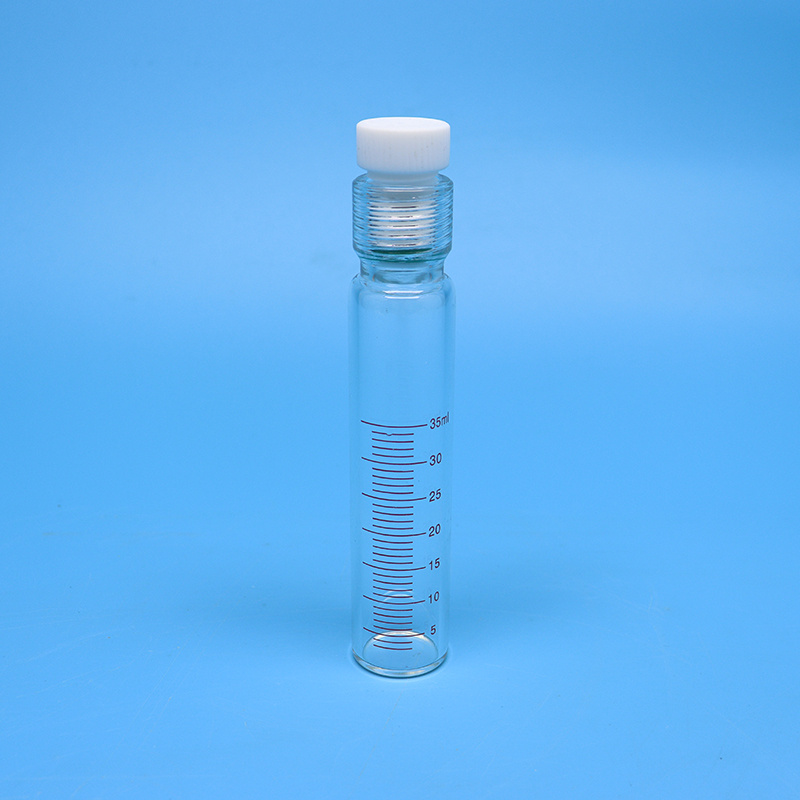

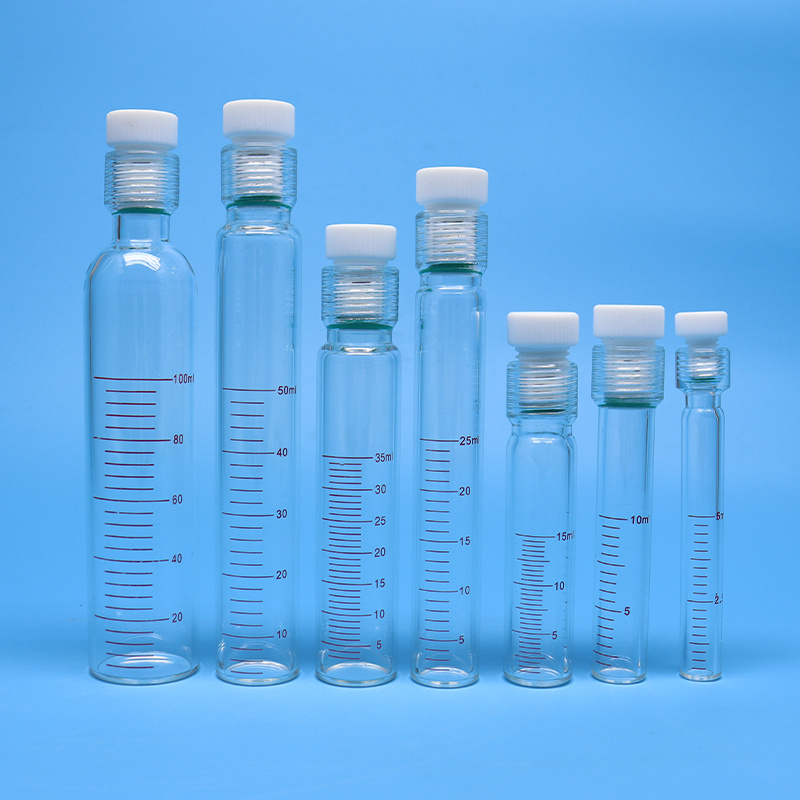

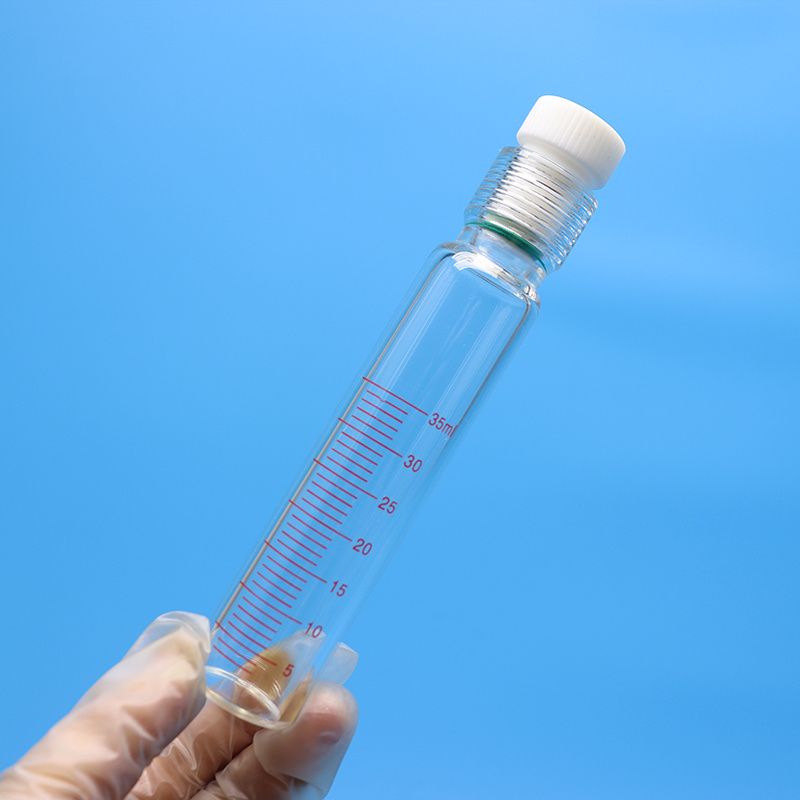

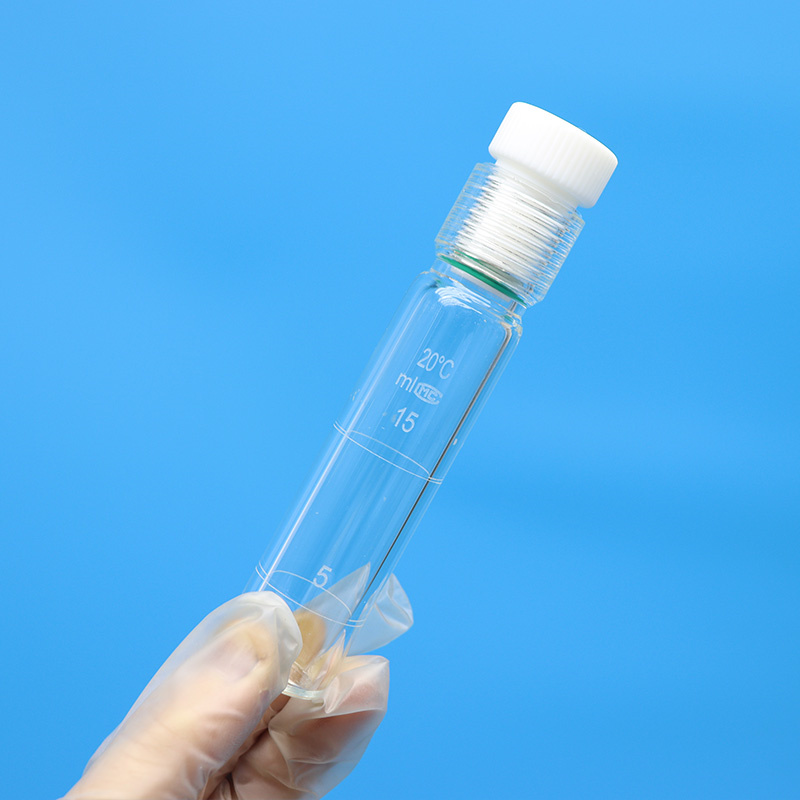

Flat bottom (with scale) Show

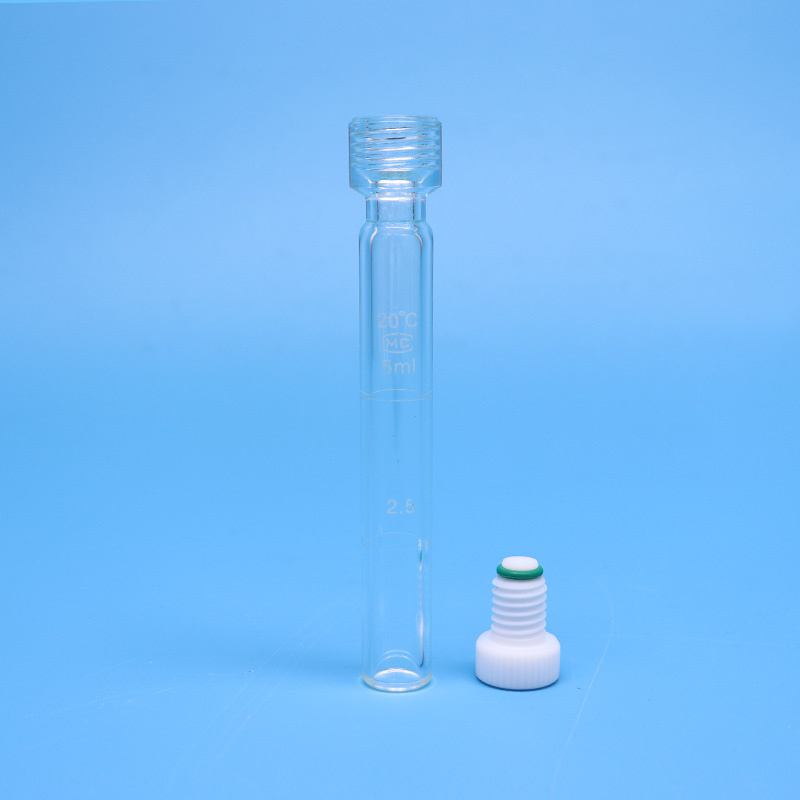

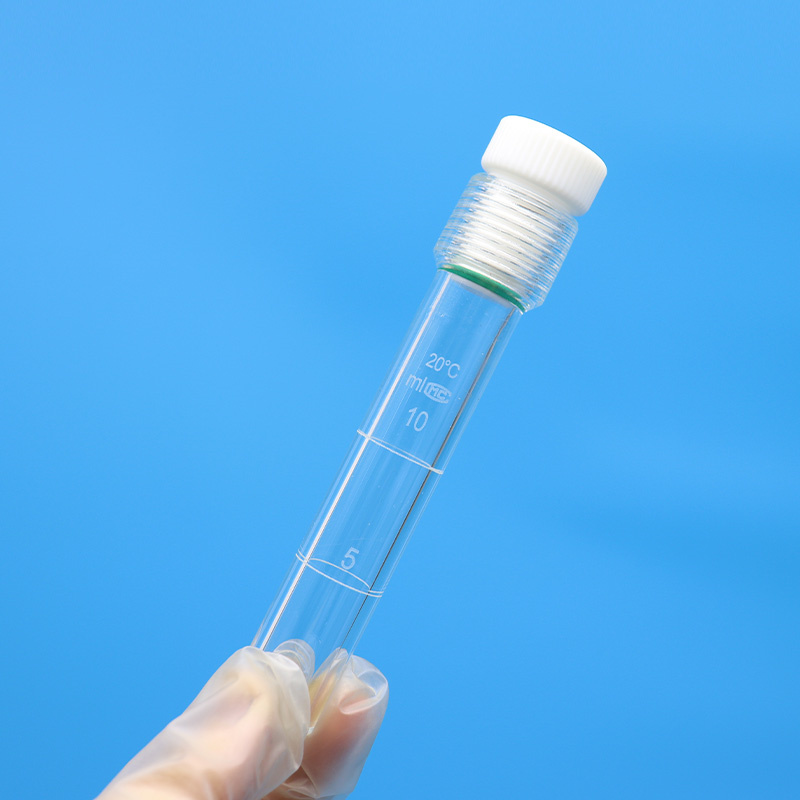

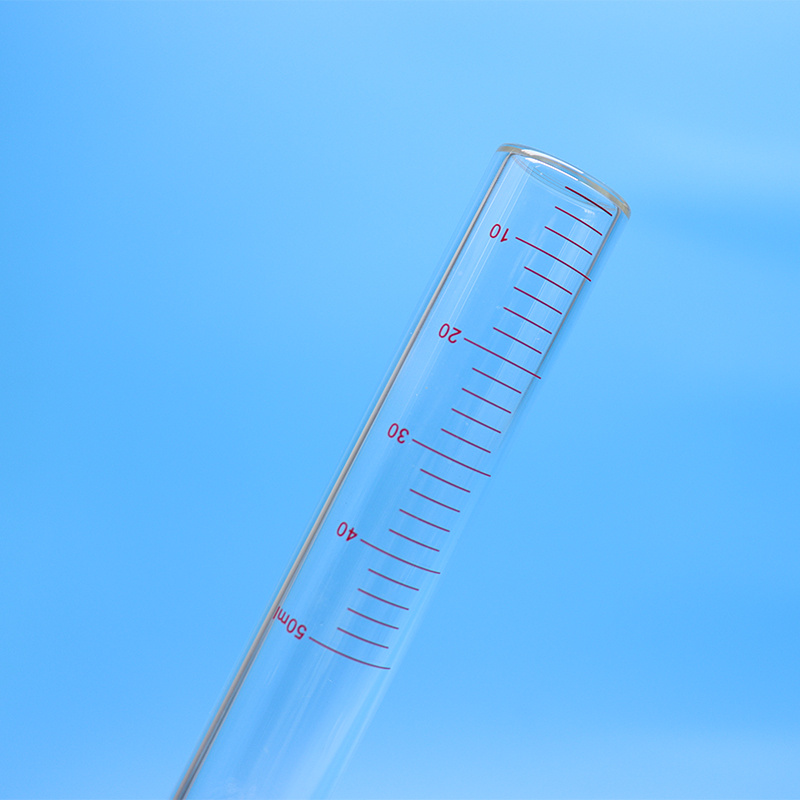

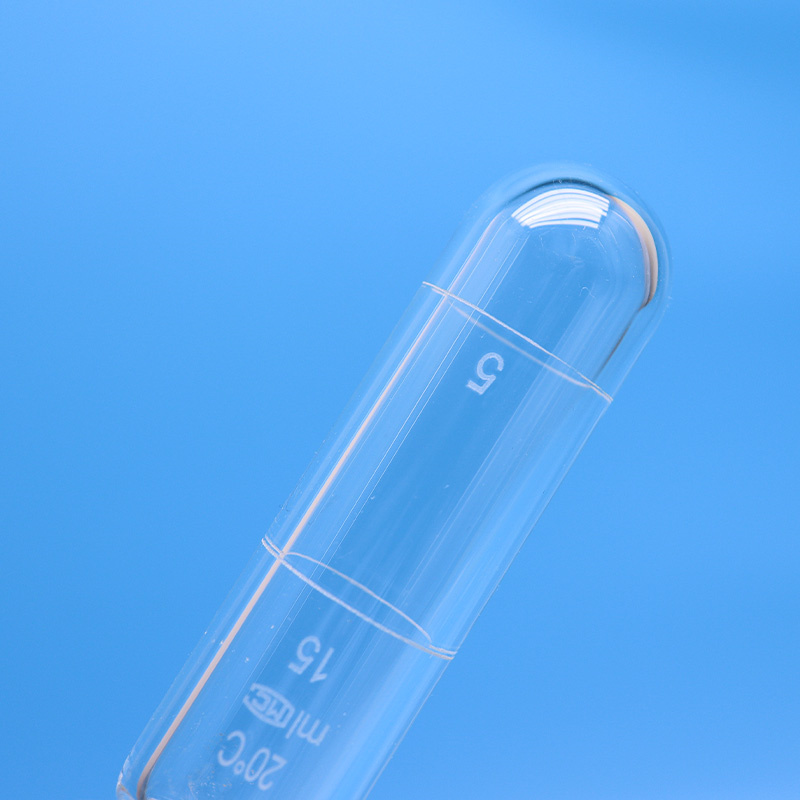

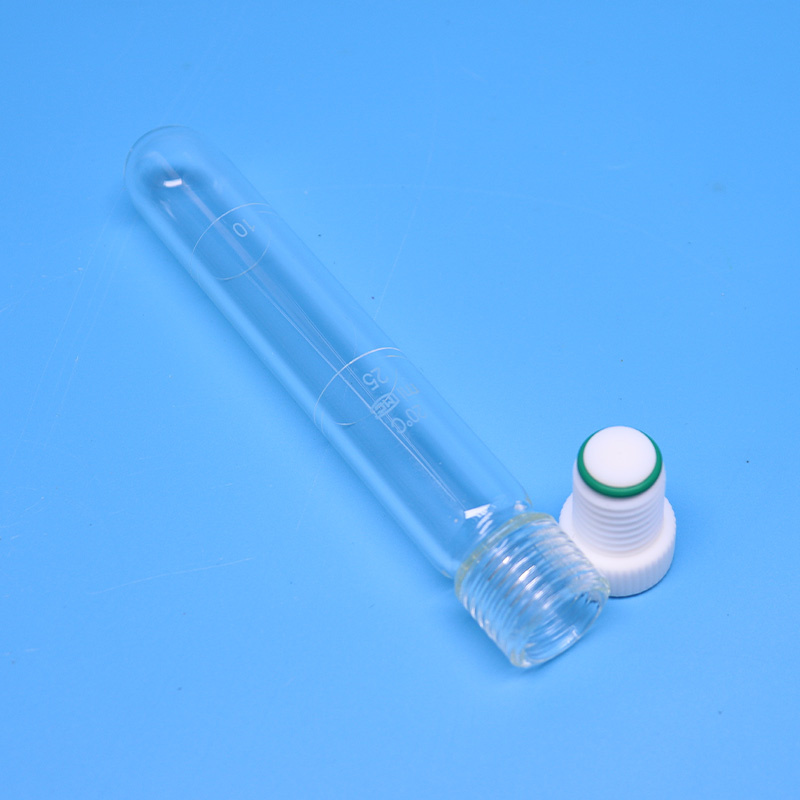

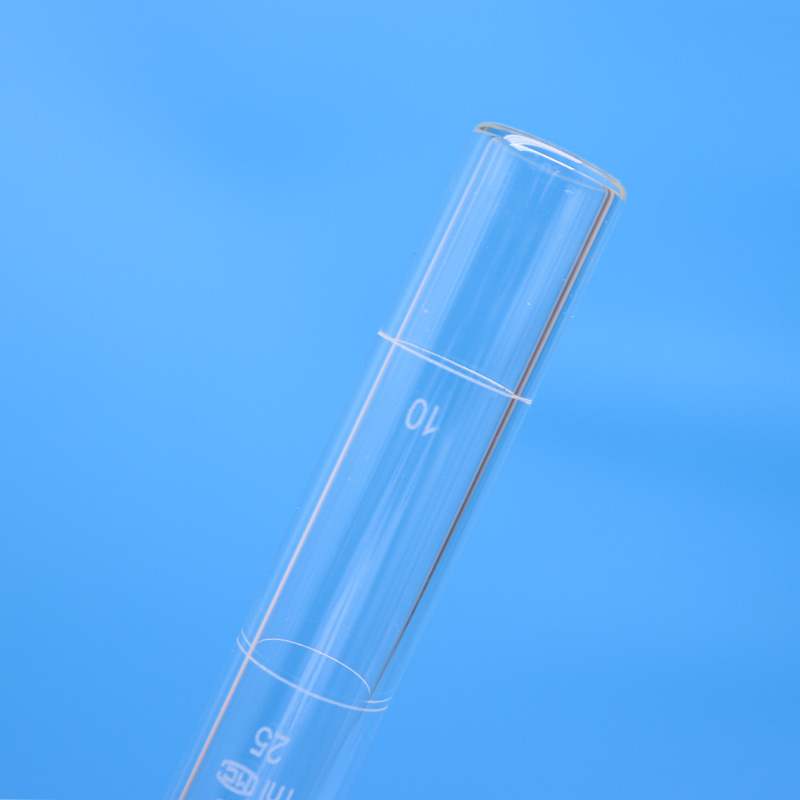

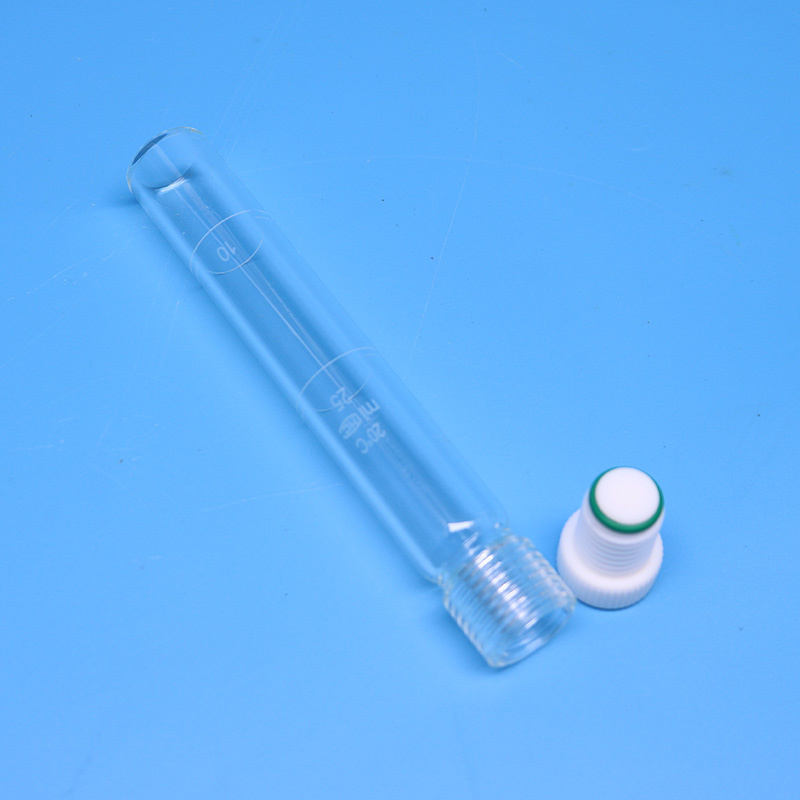

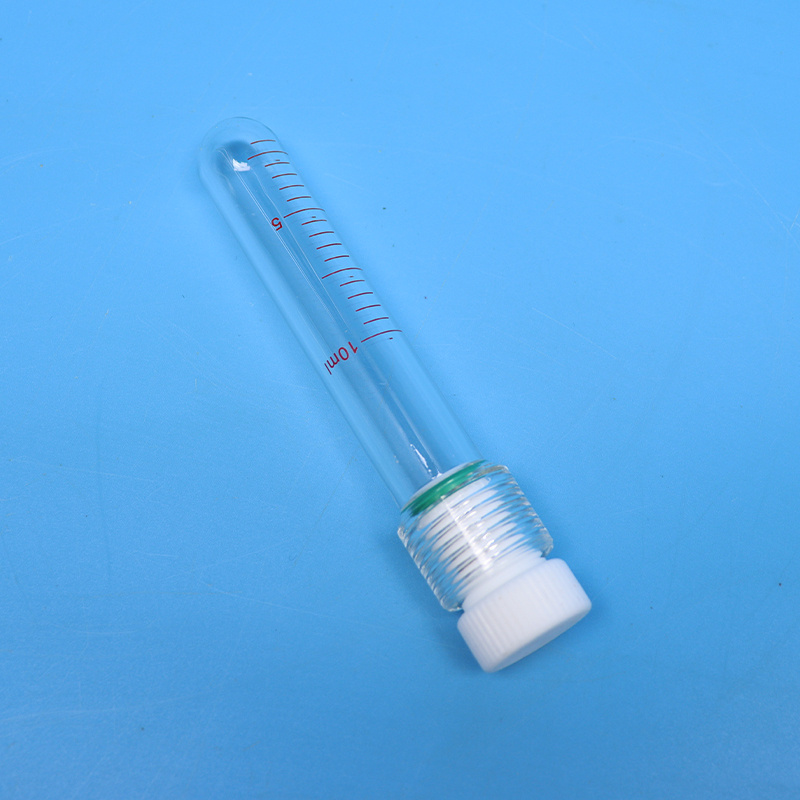

Product Details Show

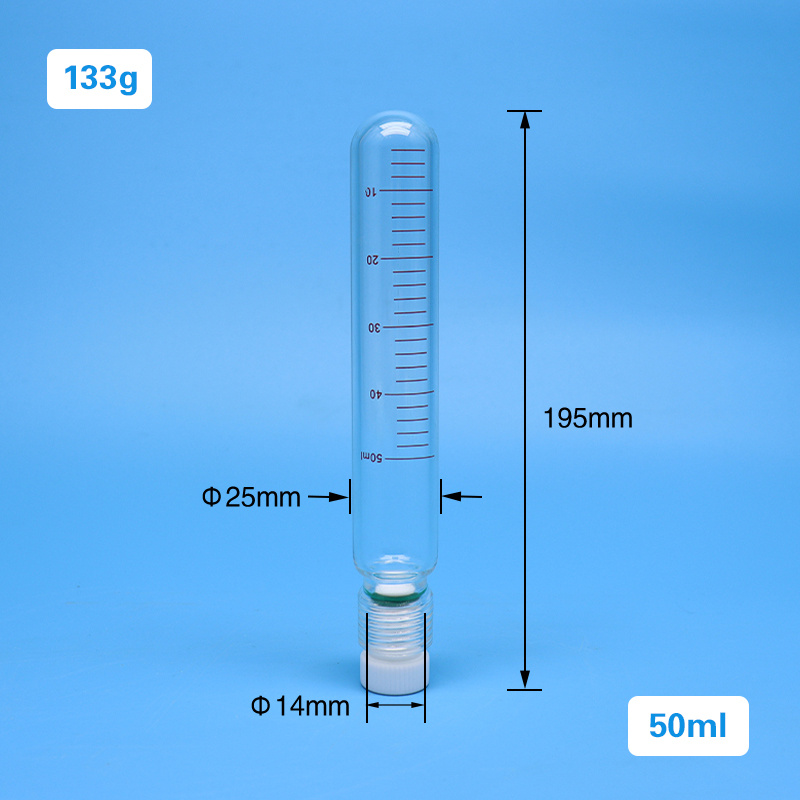

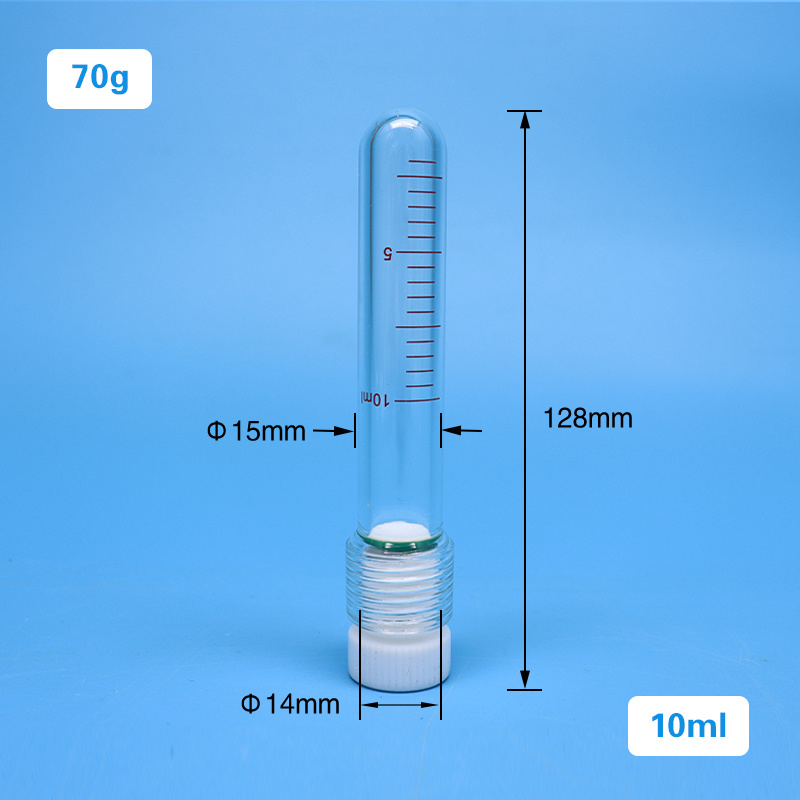

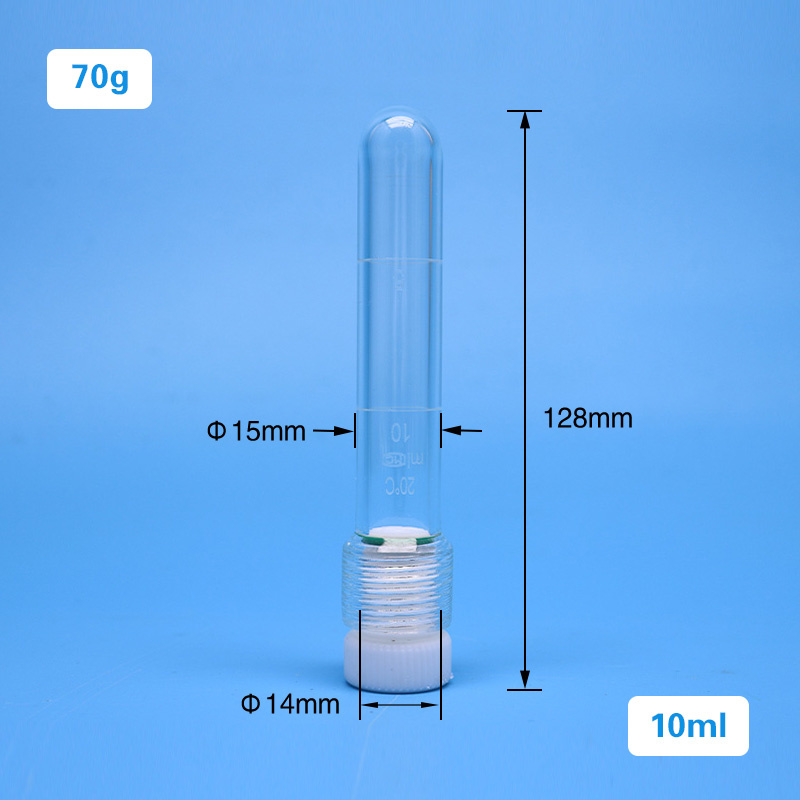

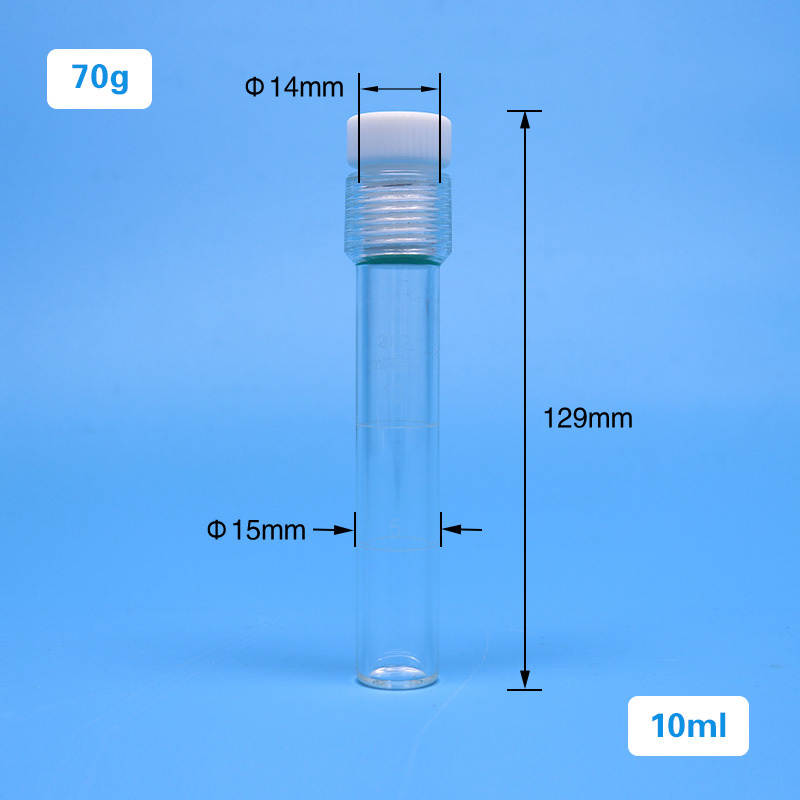

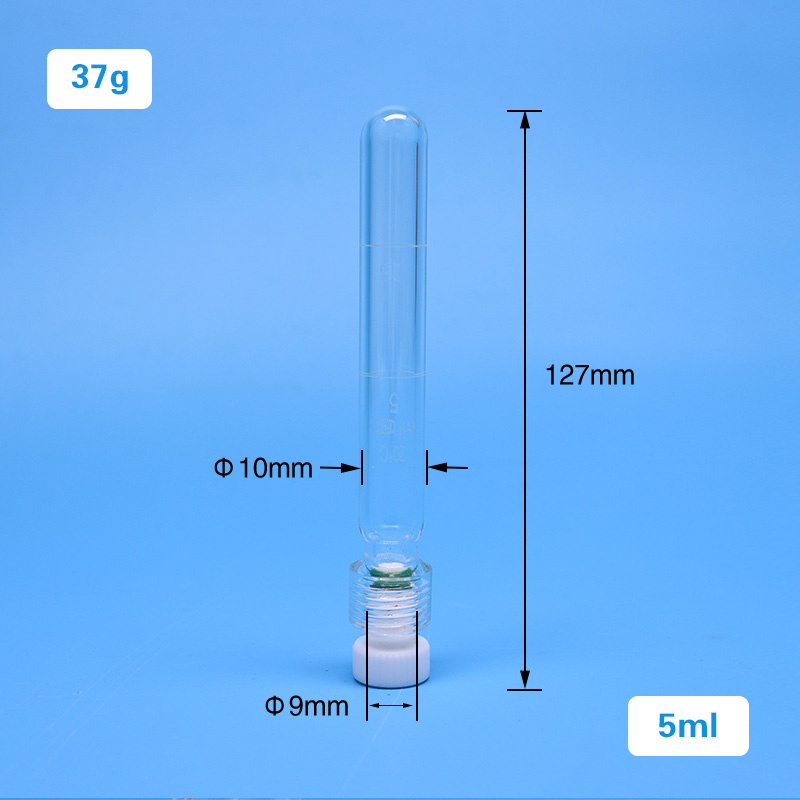

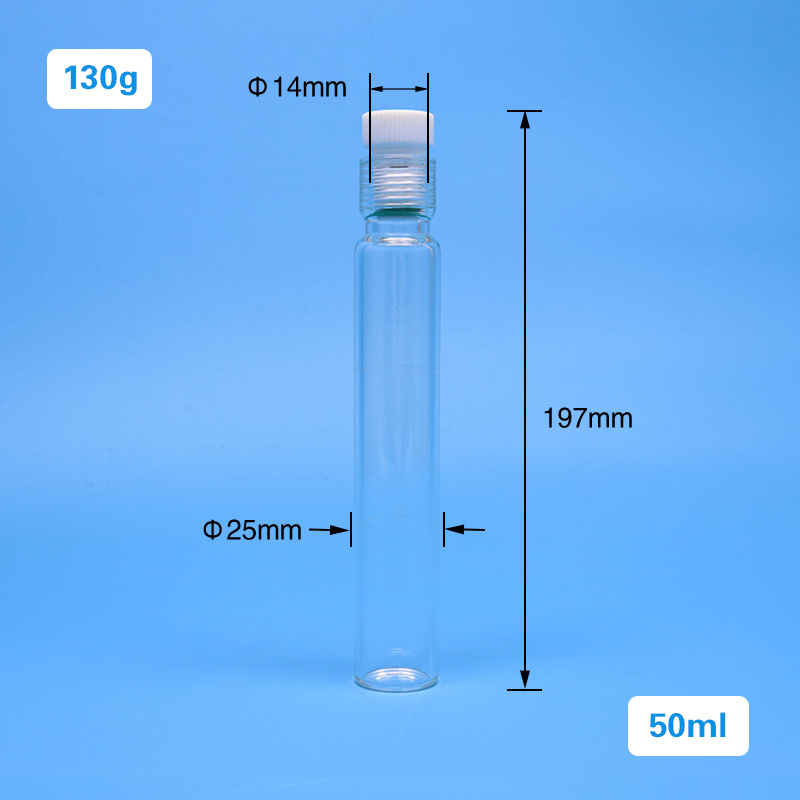

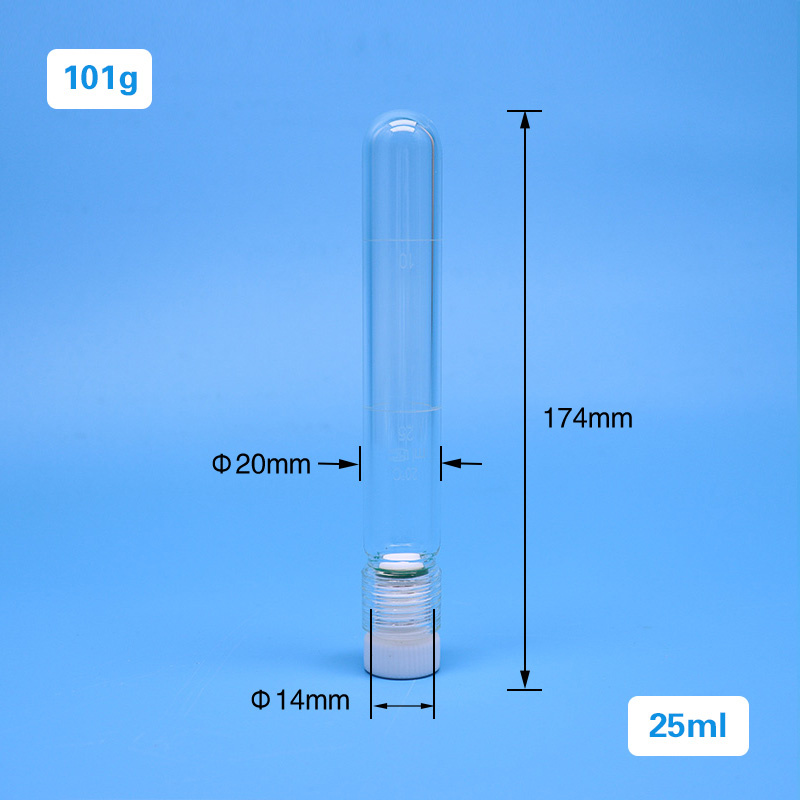

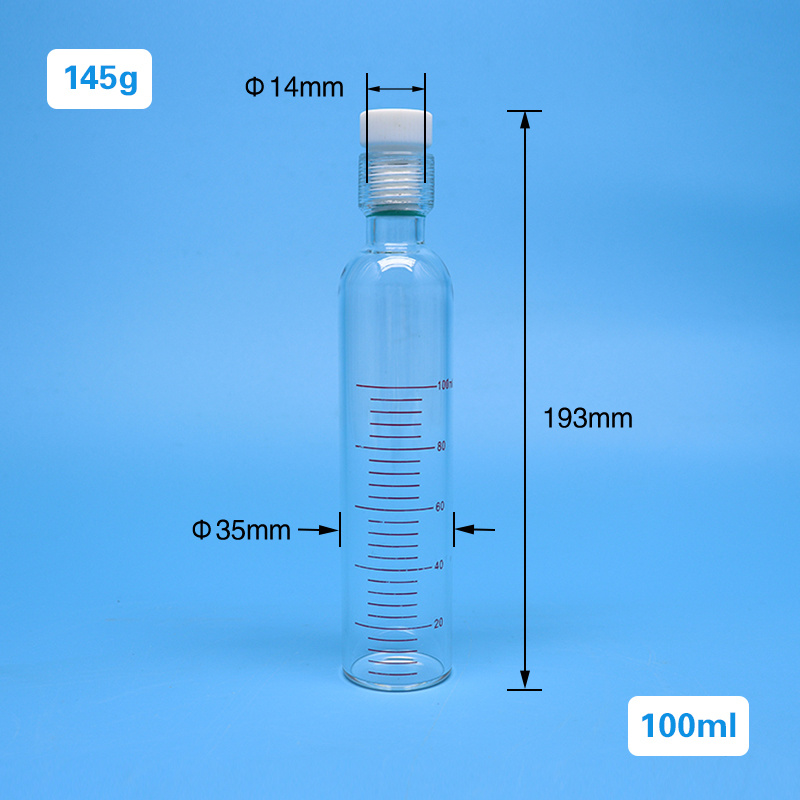

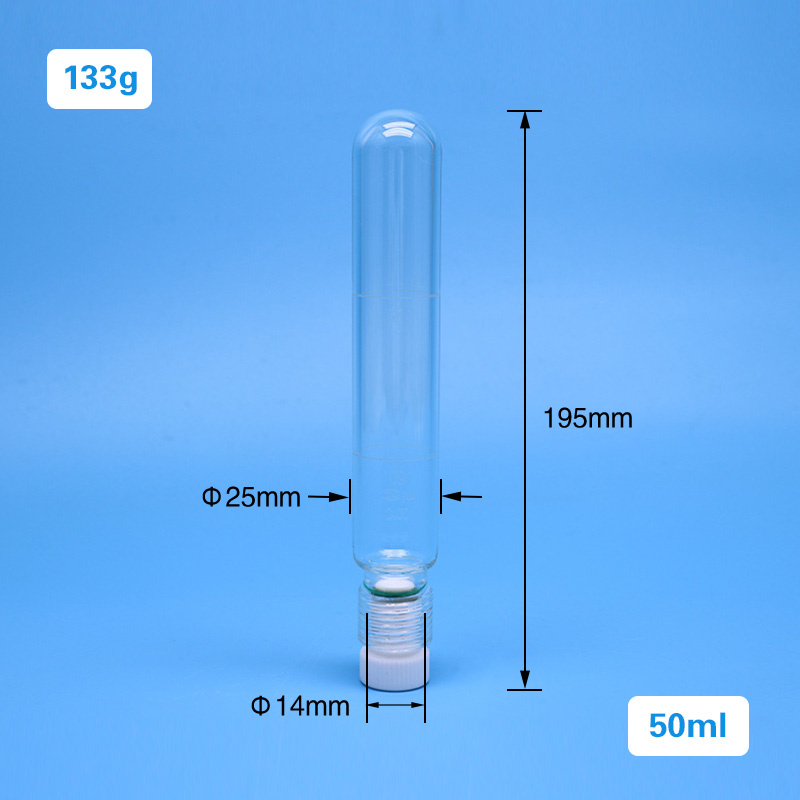

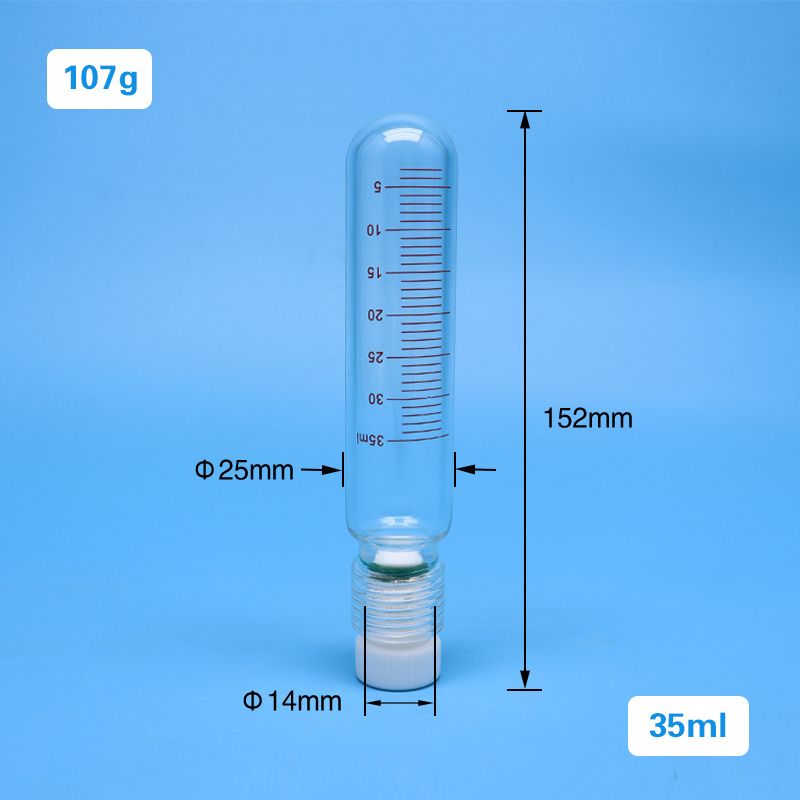

Size Show
Pressure Vessel with PTFE Screw Plug Specs
| Description | Picture | Capacity（ml） | Outer Diameter（mm） | Height（mm） | Internal caliber（mm） | Weight（g） |
| Round bottom |  |

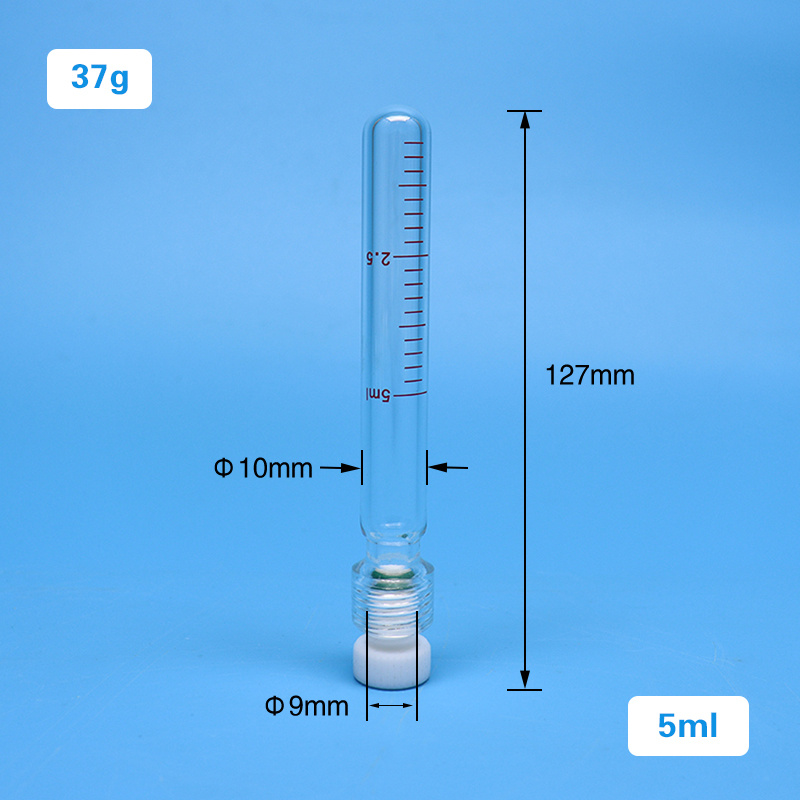

5 | 10 | 127 | 9 | 37 |
| 10 | 15 | 128 | 14 | 70 | ||

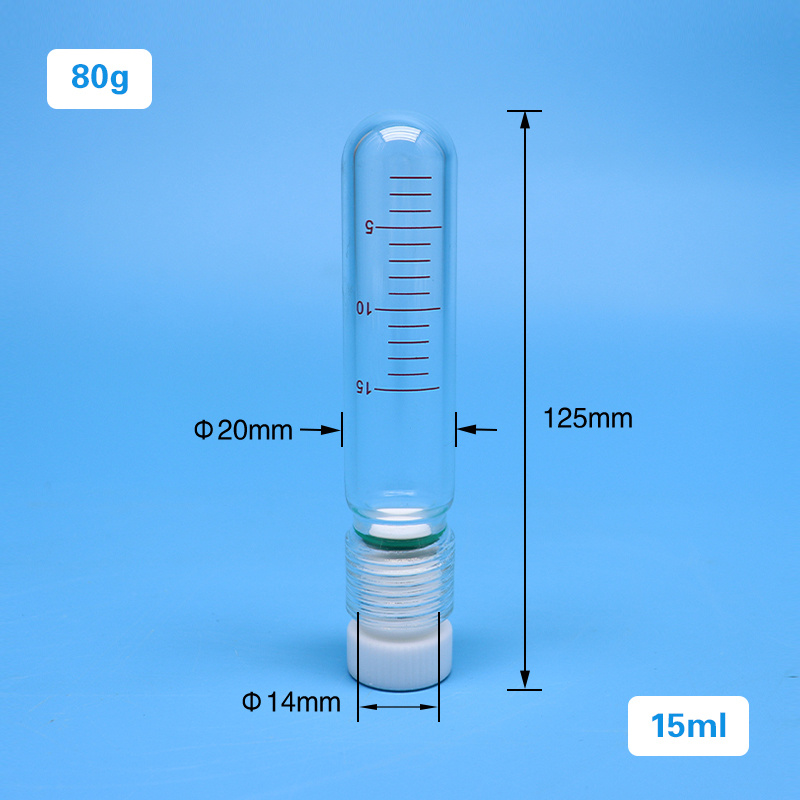

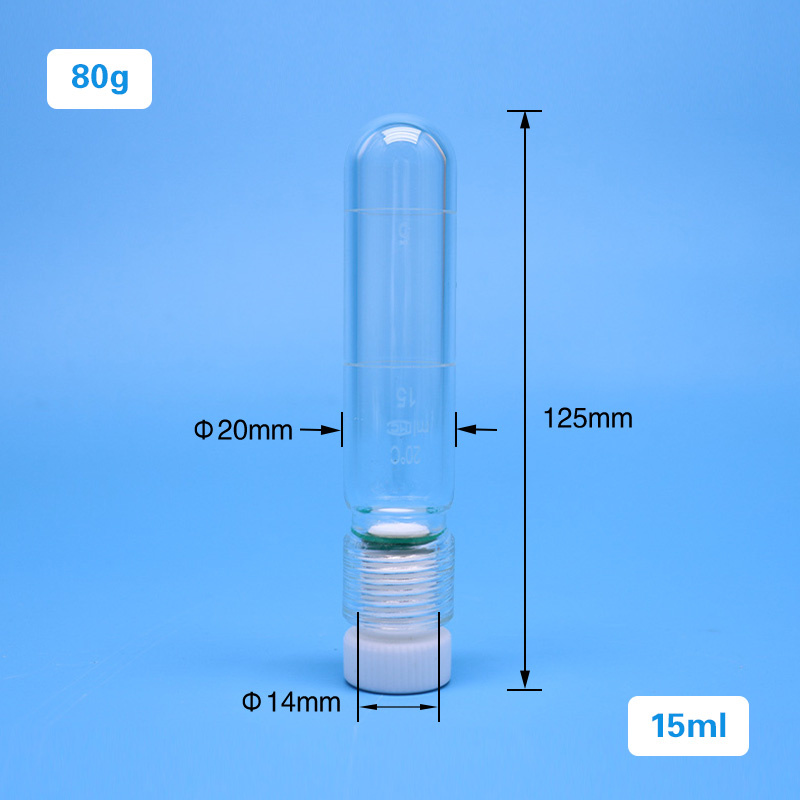

| 15 | 20 | 125 | 14 | 80 | ||
| 25 | 20 | 174 | 14 | 101 | ||
| 35 | 25 | 152 | 14 | 107 | ||
| 50 | 25 | 195 | 14 | 133 | ||

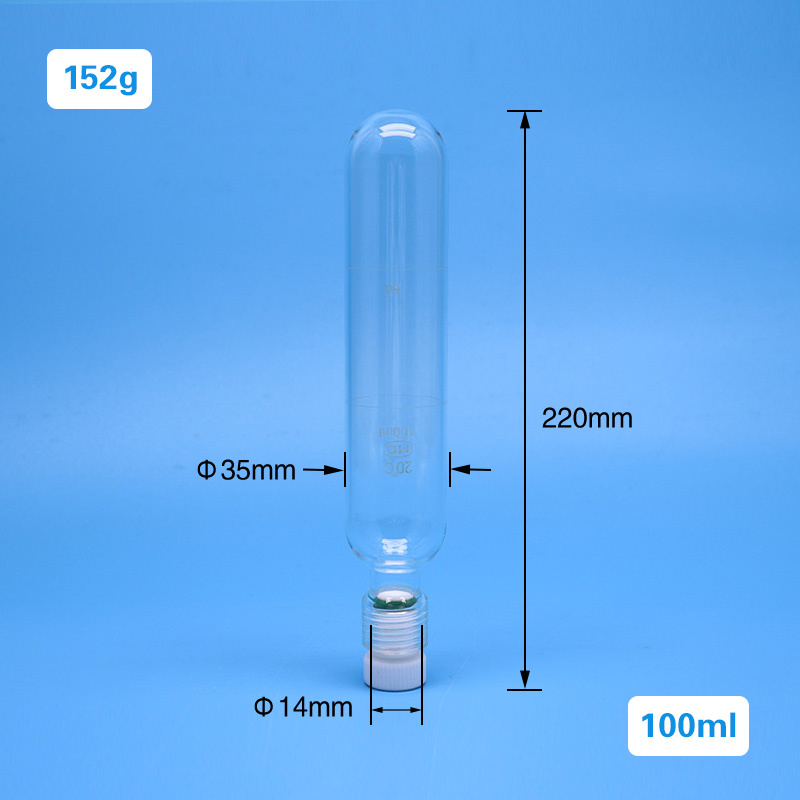

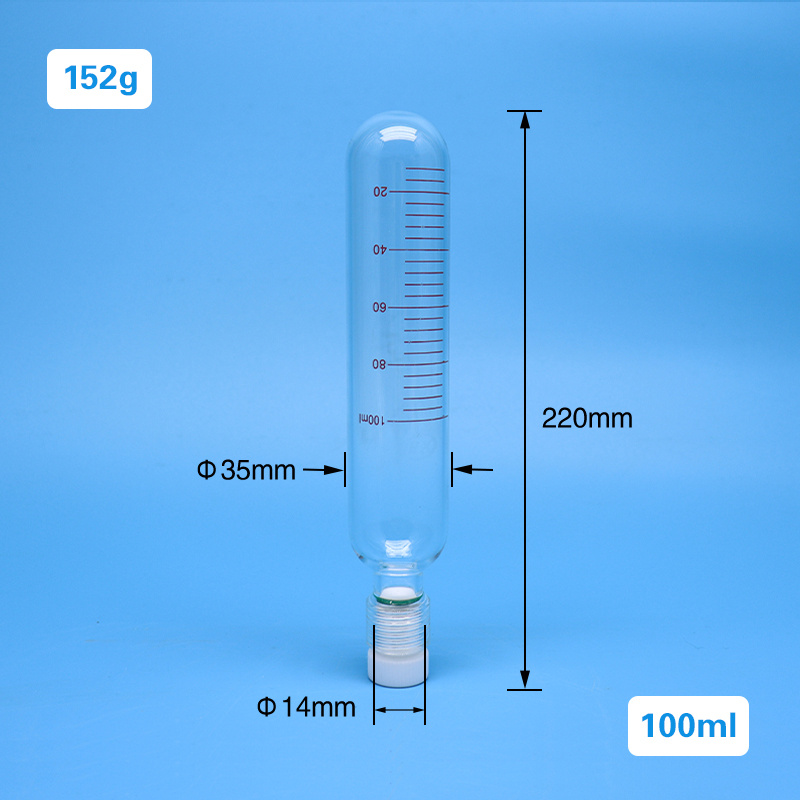

| 100 | 35 | 220 | 14 | 152 | ||

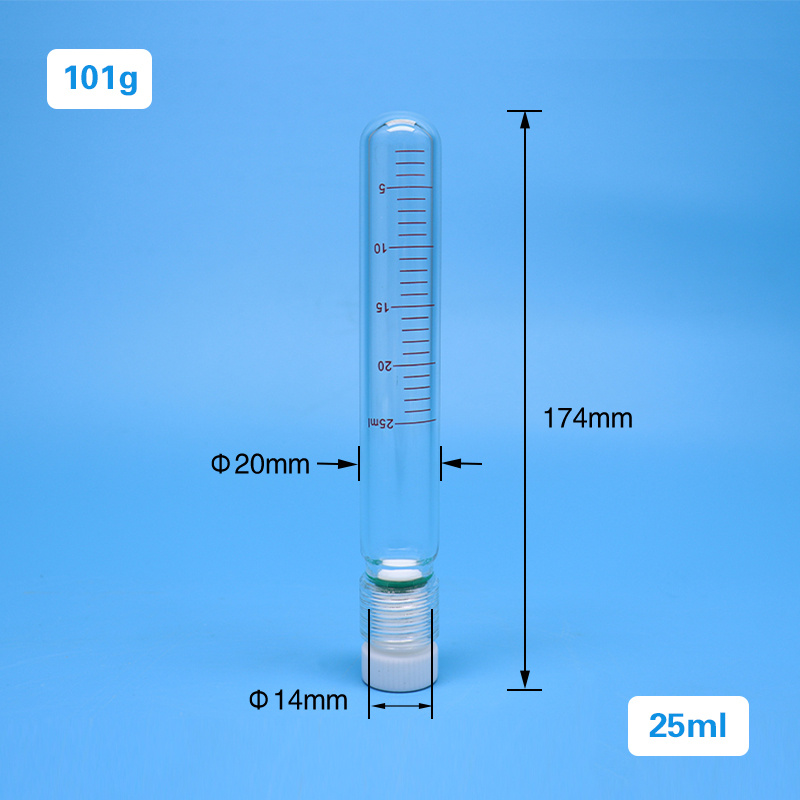

| Round bottom（with scale） |  |
5 | 10 | 127 | 9 | 37 |
| 10 | 15 | 128 | 14 | 70 | ||
| 15 | 20 | 125 | 14 | 80 | ||
| 25 | 20 | 174 | 14 | 101 | ||

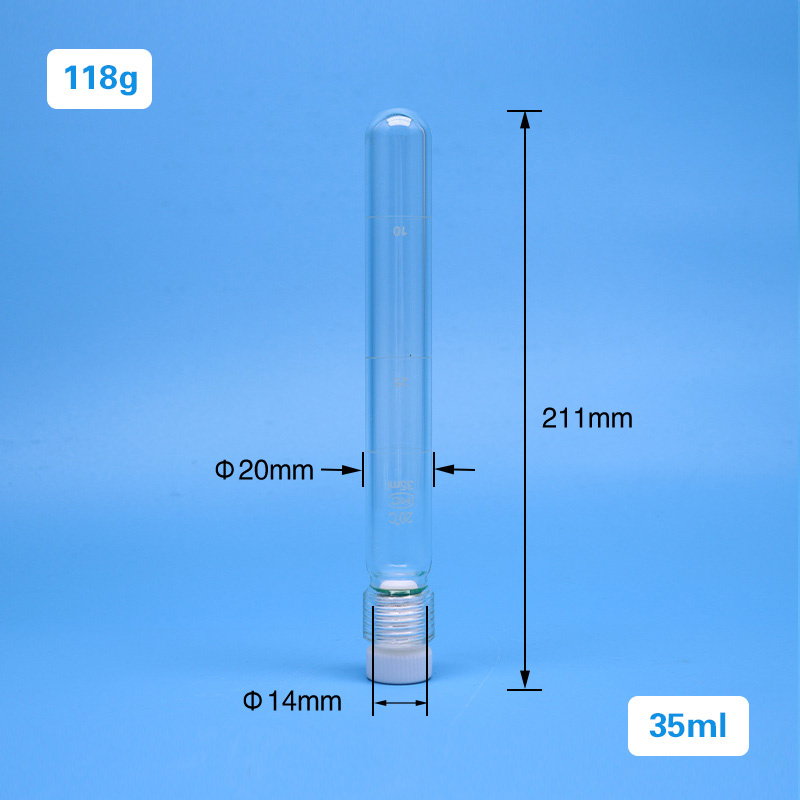

| 35 | 20 | 211 | 14 | 118 | ||
| 50 | 25 | 195 | 14 | 133 | ||
| 100 | 35 | 220 | 14 | 152 | ||

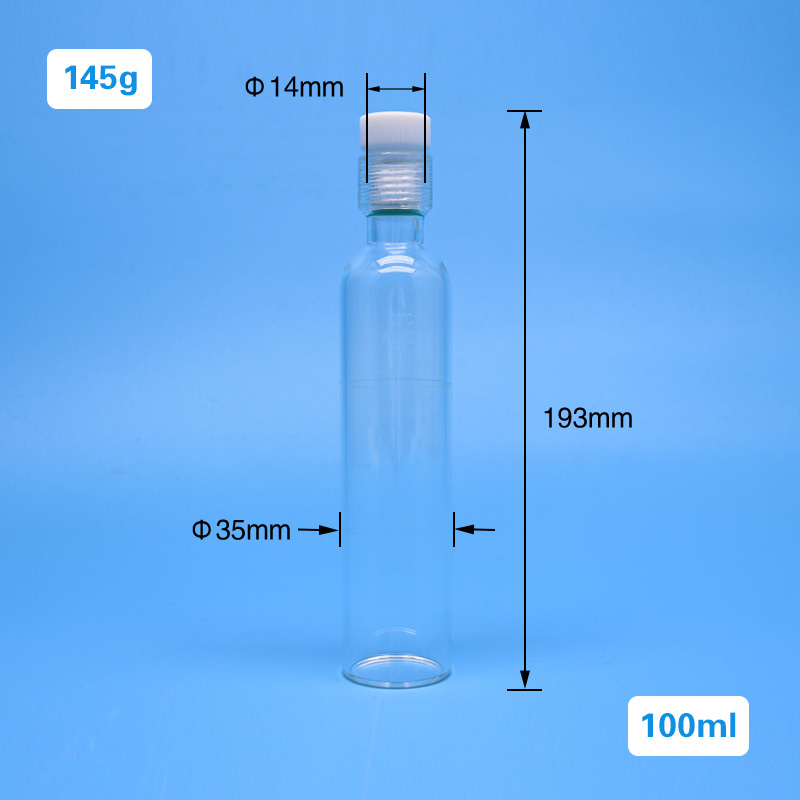

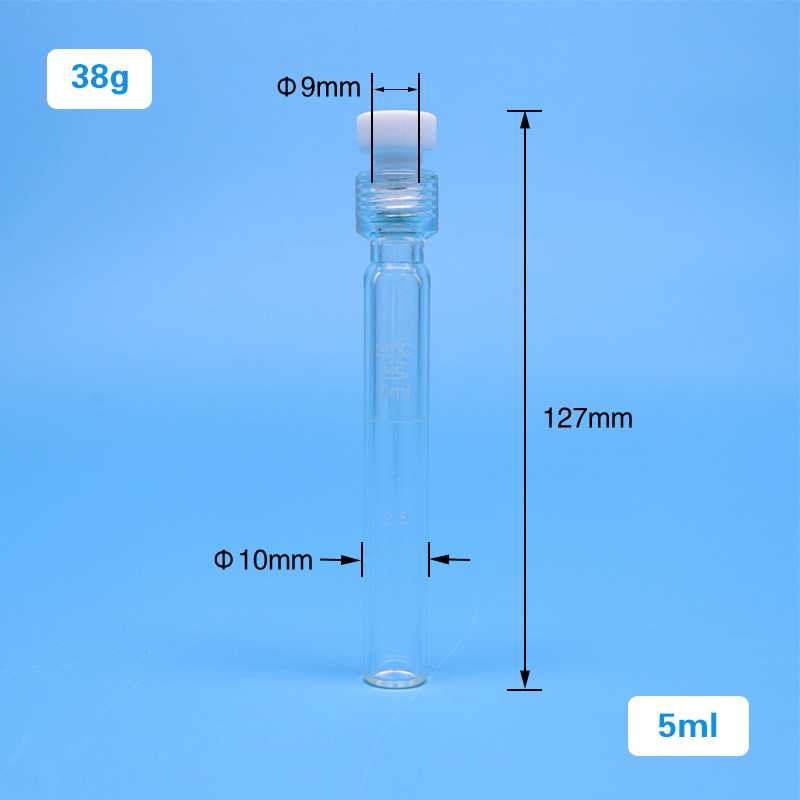

| Flat bottom |  |
5 | 10 | 127 | 9 | 38 |
| 10 | 15 | 129 | 14 | 70 | ||

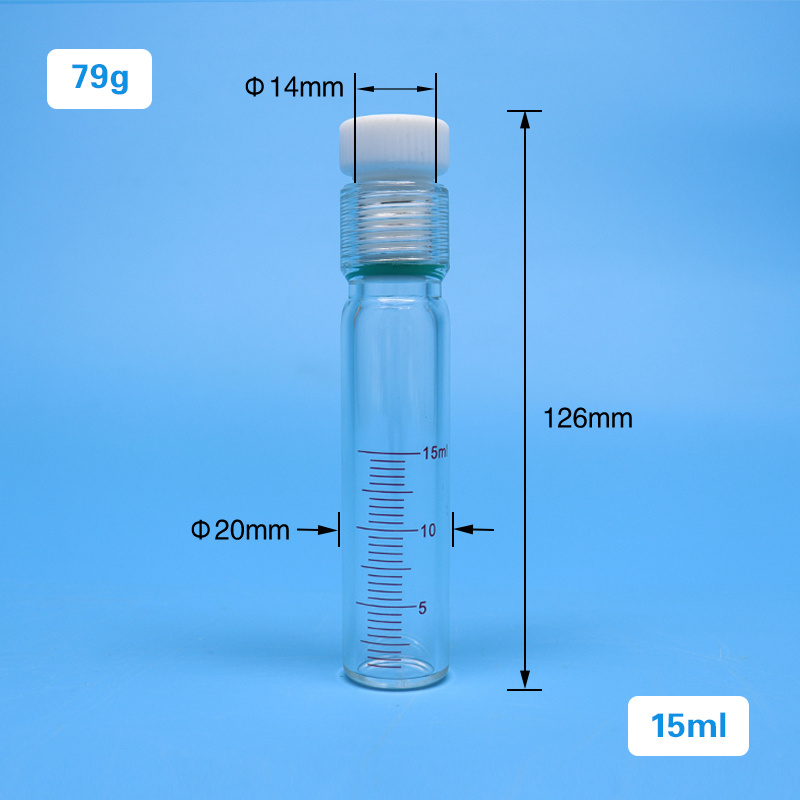

| 15 | 20 | 126 | 14 | 79 | ||

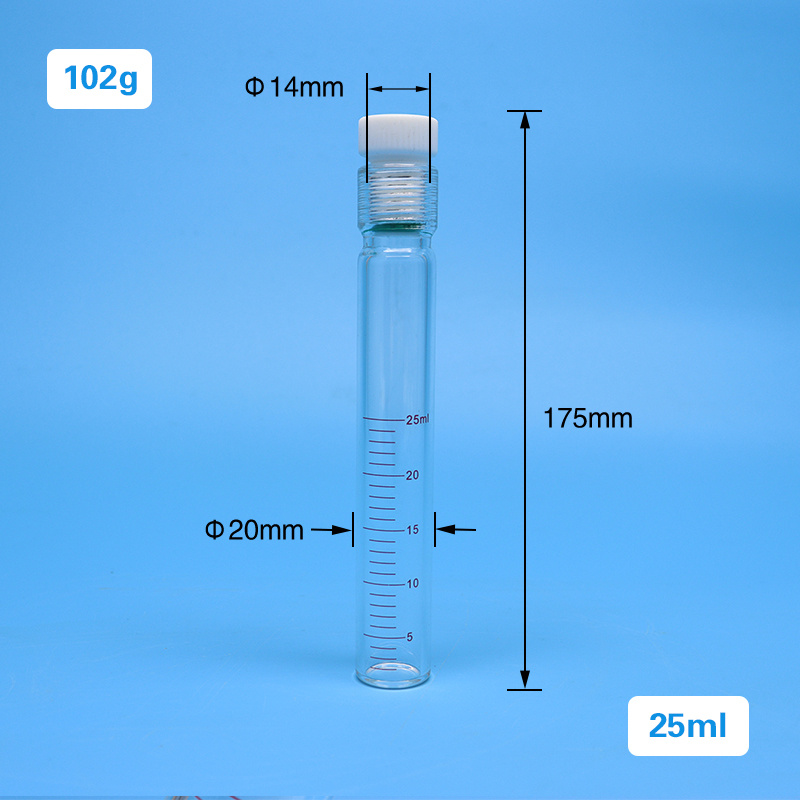

| 25 | 20 | 175 | 14 | 102 | ||

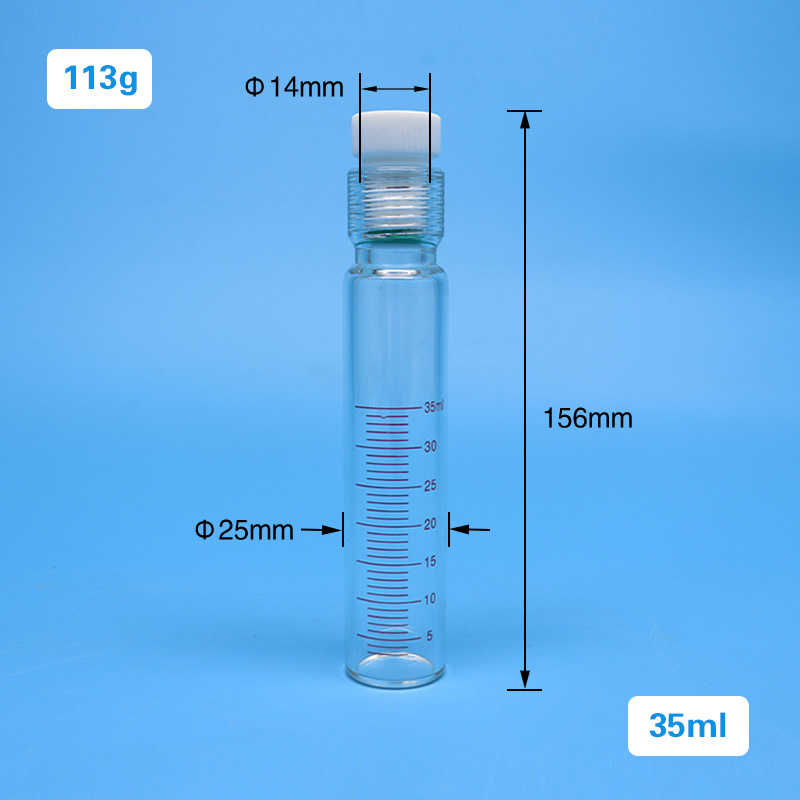

| 35 | 25 | 156 | 14 | 113 | ||
| 50 | 25 | 197 | 14 | 130 | ||
| 100 | 35 | 193 | 14 | 145 | ||

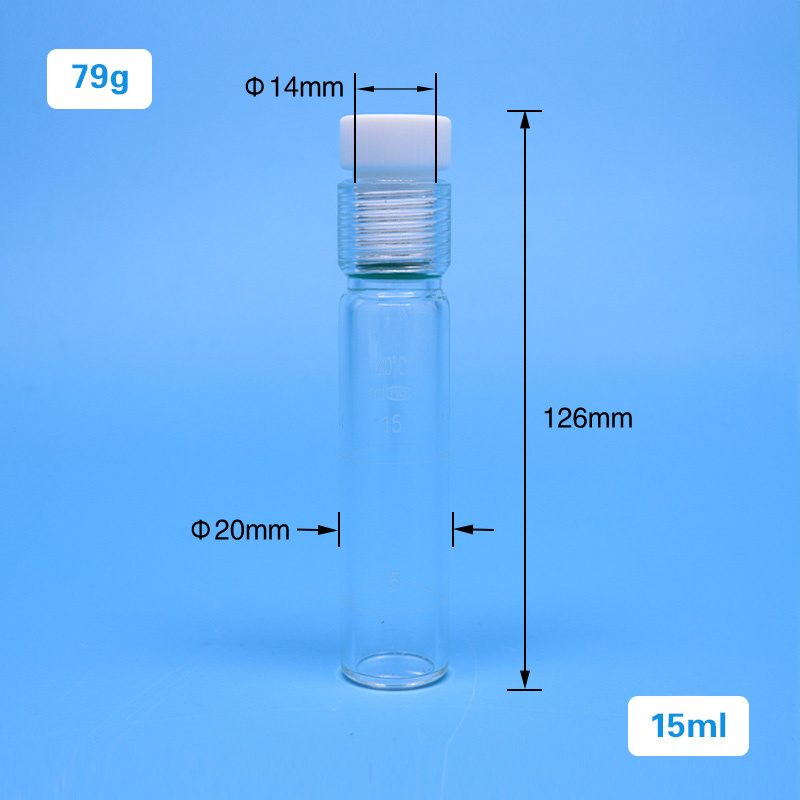

| Flat bottom（with scale） |  |

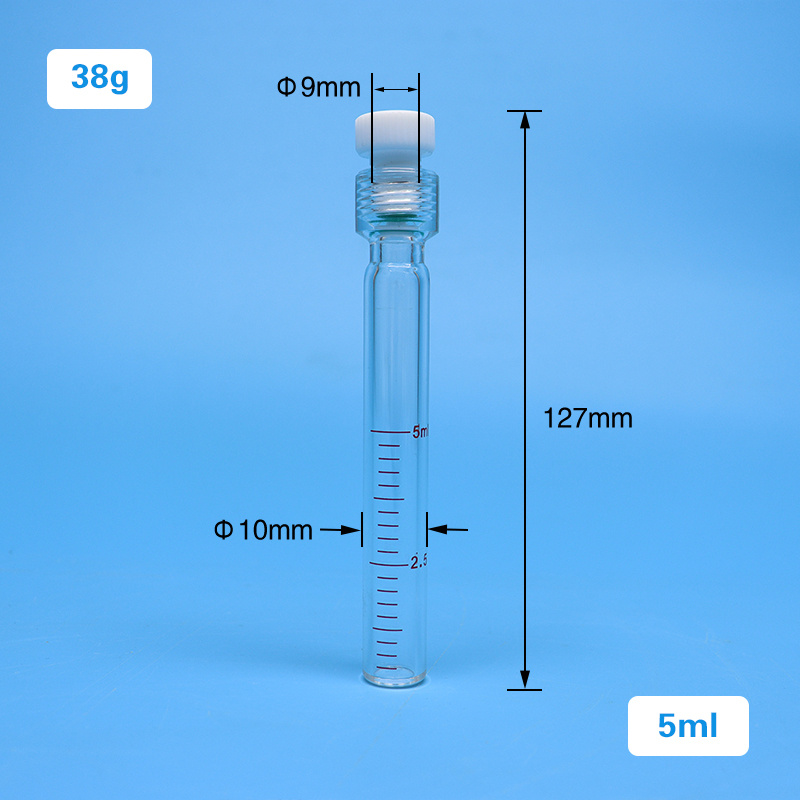

5 | 10 | 127 | 9 | 38 |

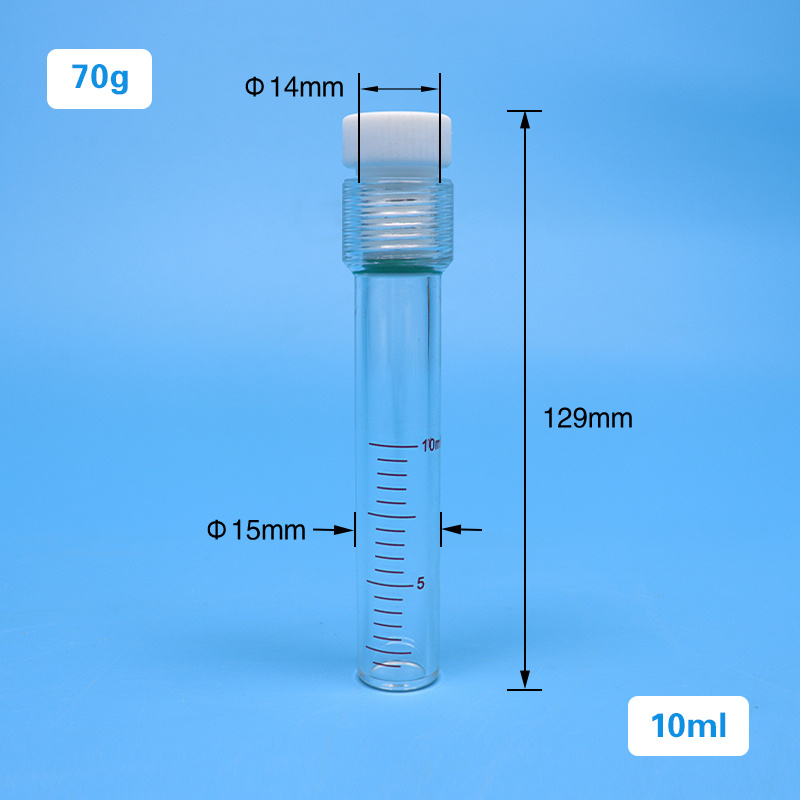

| 10 | 15 | 129 | 14 | 70 | ||
| 15 | 20 | 126 | 14 | 79 | ||

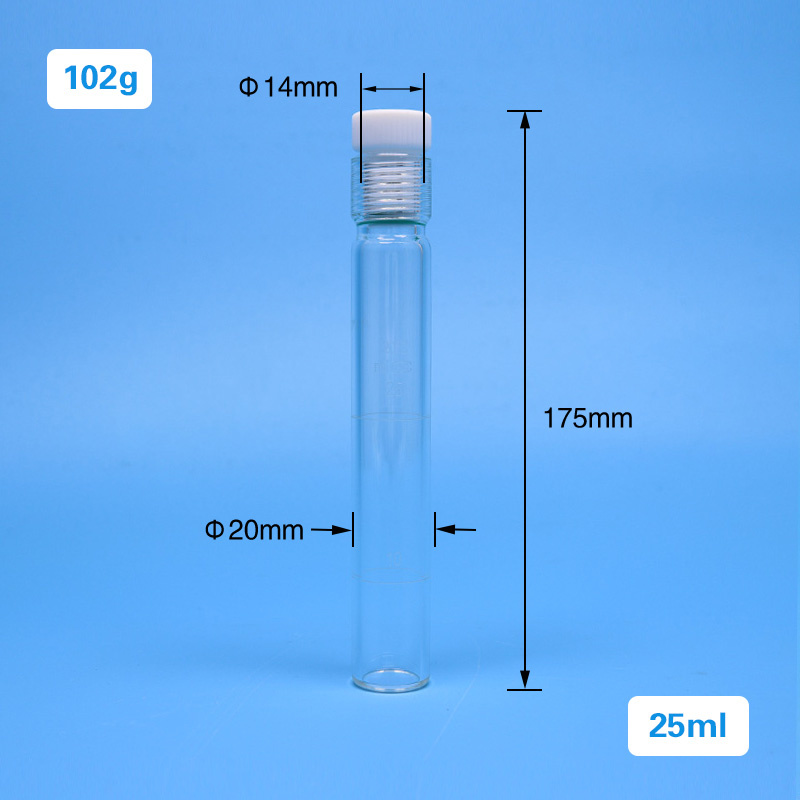

| 25 | 20 | 175 | 14 | 102 | ||

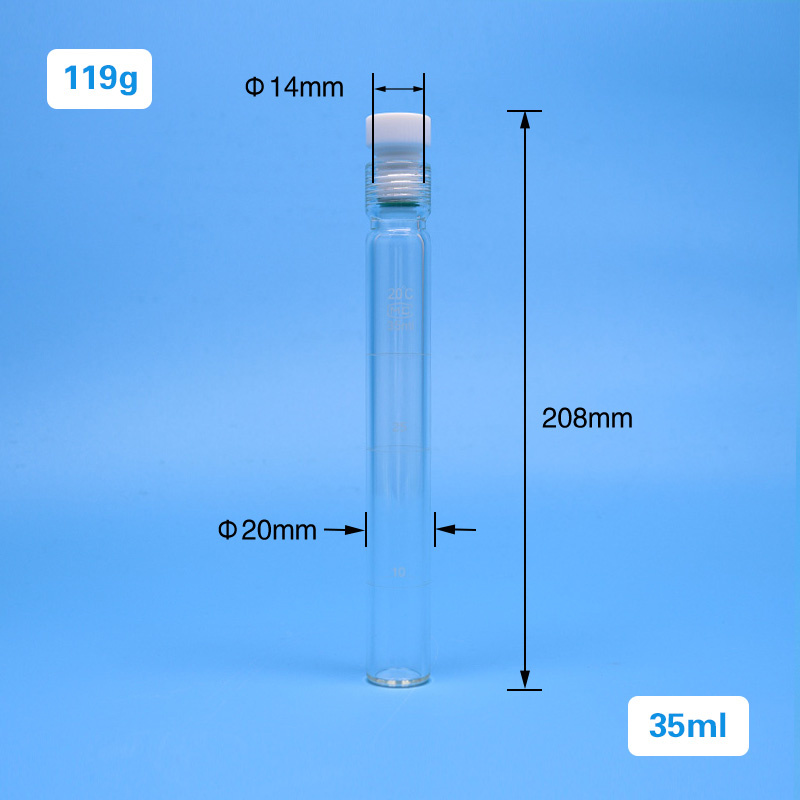

| 35 | 20 | 208 | 14 | 119 | ||

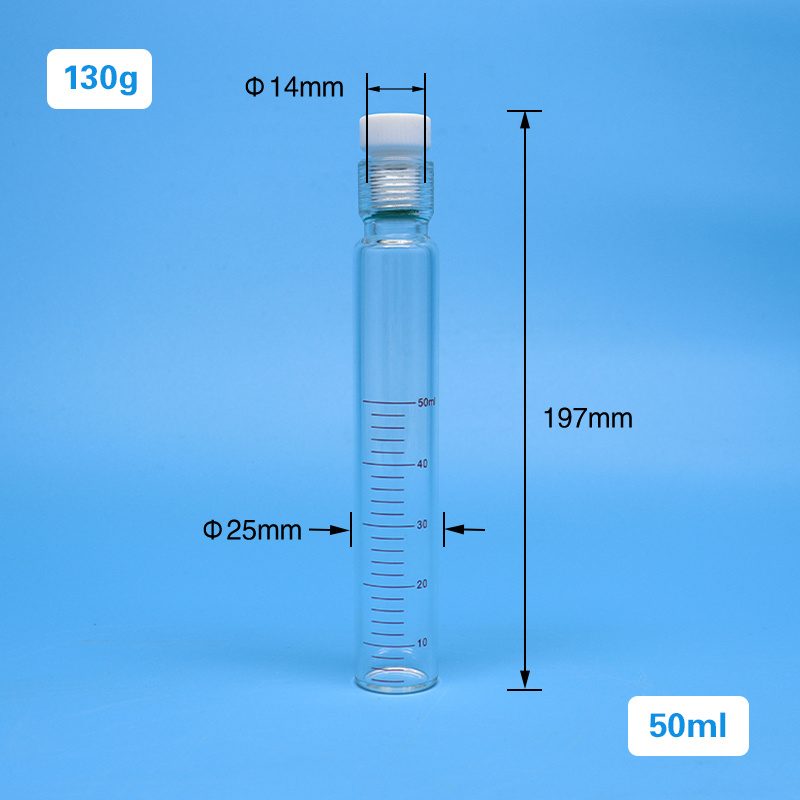

| 50 | 25 | 197 | 14 | 130 | ||
| 100 | 35 | 193 | 14 | 145 |
Precautions
Due to the special nature of this product and the condition of the product after use (such as scratches), the safety of this product and the resulting damage cannot be guaranteed. Dual safety protection measures must be used, ncluding the use of safety barriers and operation inside a fume hood. This product cannot be used for microwave reactions, as microwaves can cause PTFE to expand upon heating, eading to glass cracking. At the same time, pay attention not to scratch the inner wall of the pressure resistant tube during cleaning. Once scratched, do not use it.
