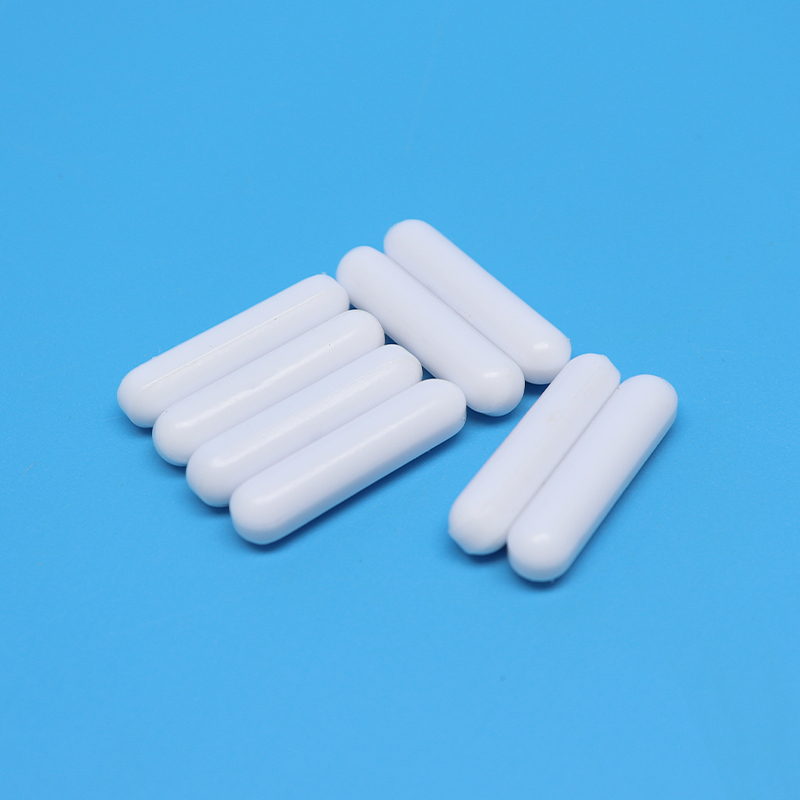

Strong Lab White PTFE Coated Magnetic Stir Bar

    Contact us
    product details

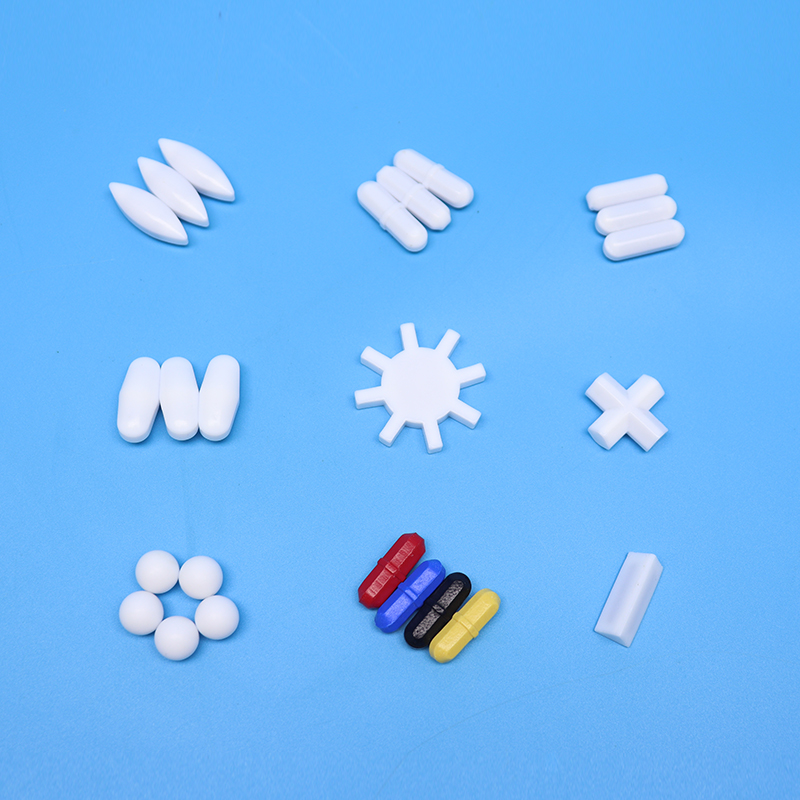

    PTFE Magnetic Stir Bar

    ● Polytetrafluoroethylene material
    ● Super strong magnetic force
    ● Non stick lubrication
    ● Complete specifications
    • product-description1

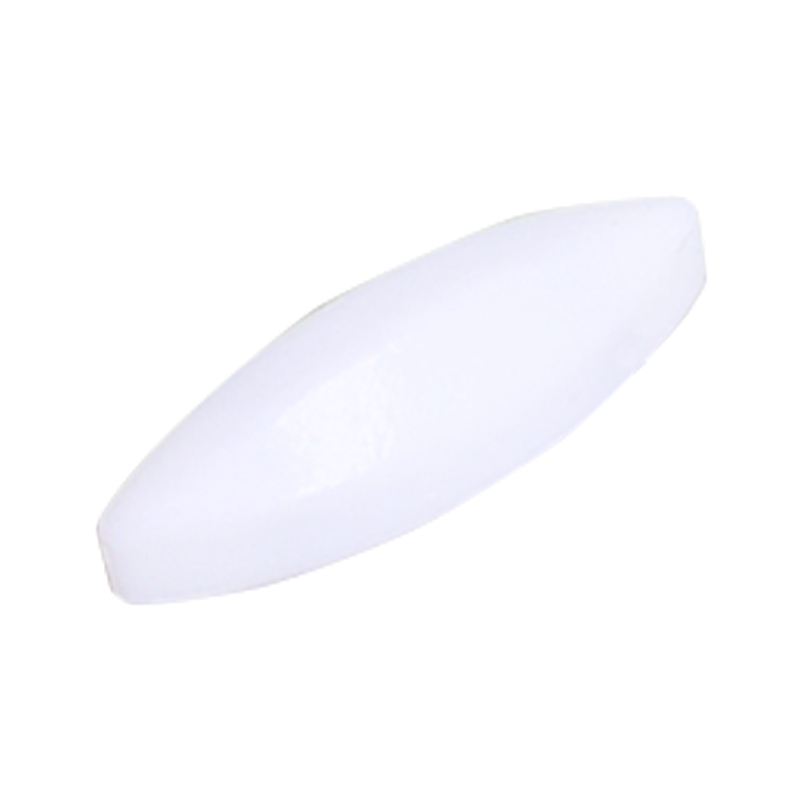

      Type A
    • product-description2

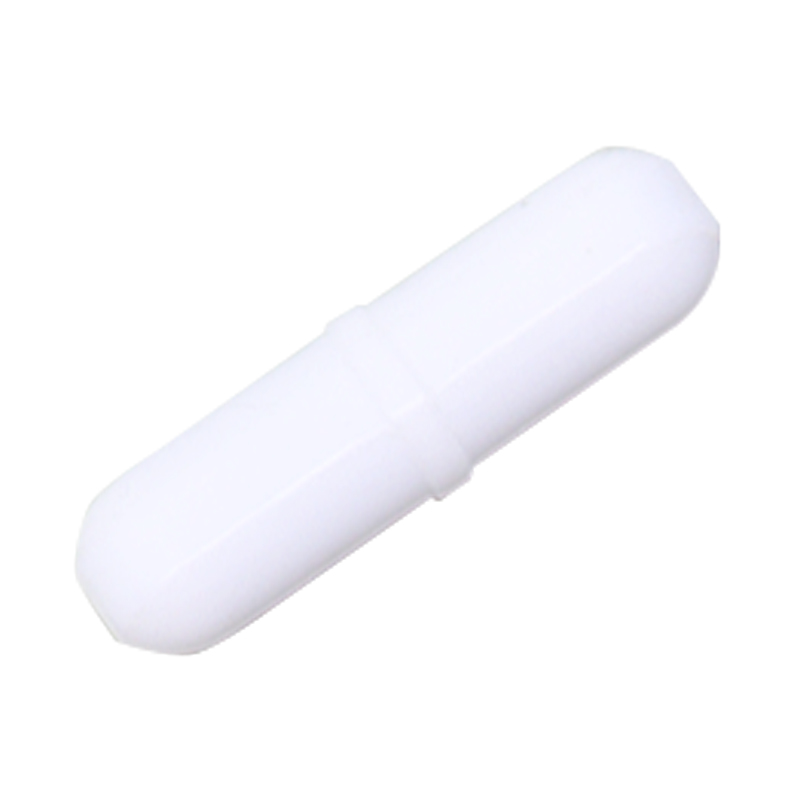

      Type B

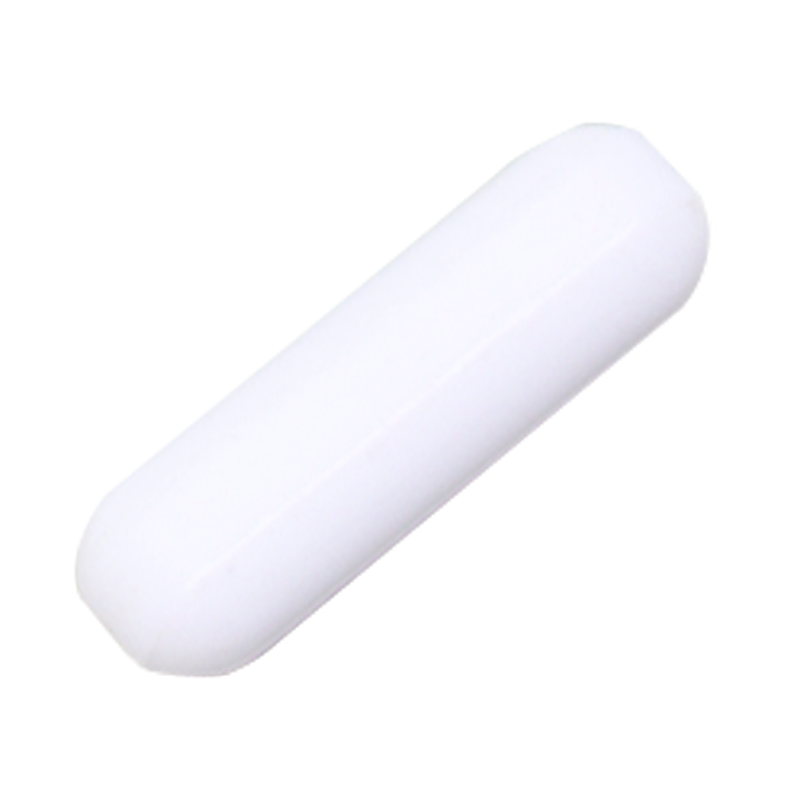

    • product-description3
      Type C
    • product-description4

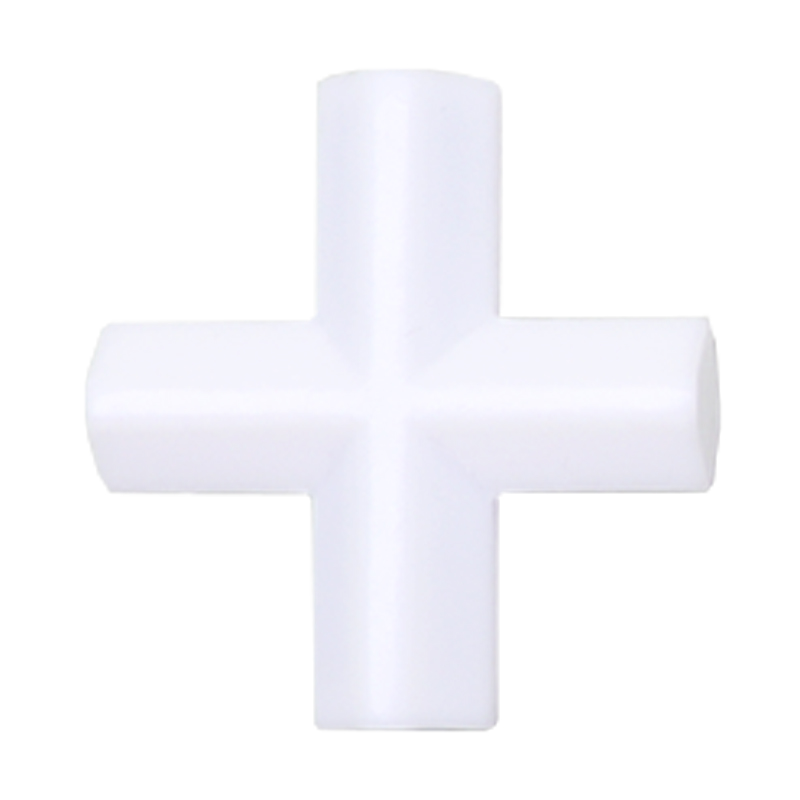

      Cross Shape
    • product-description5

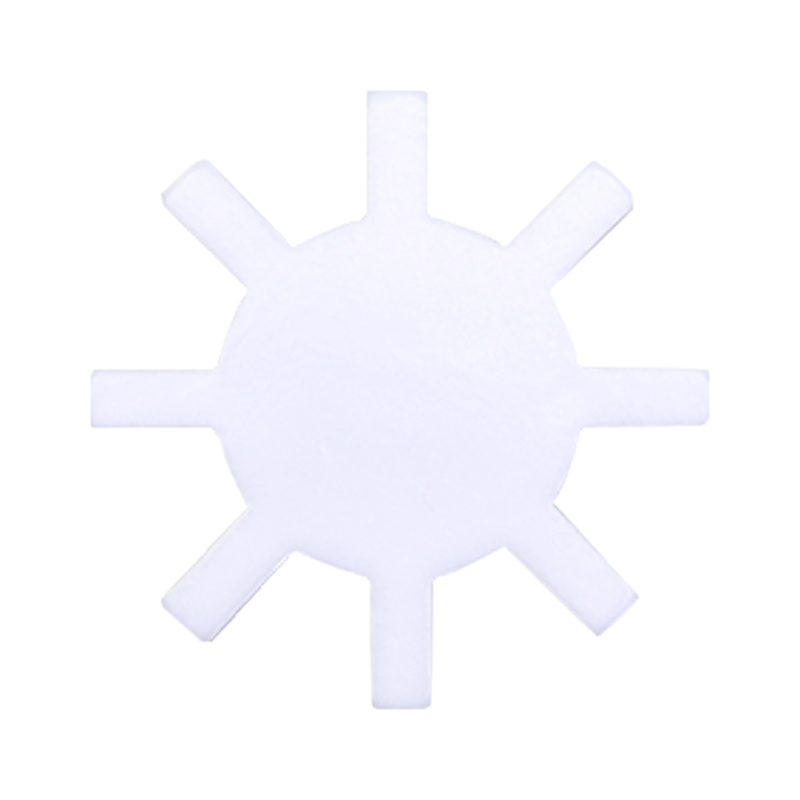

      Gear Shape

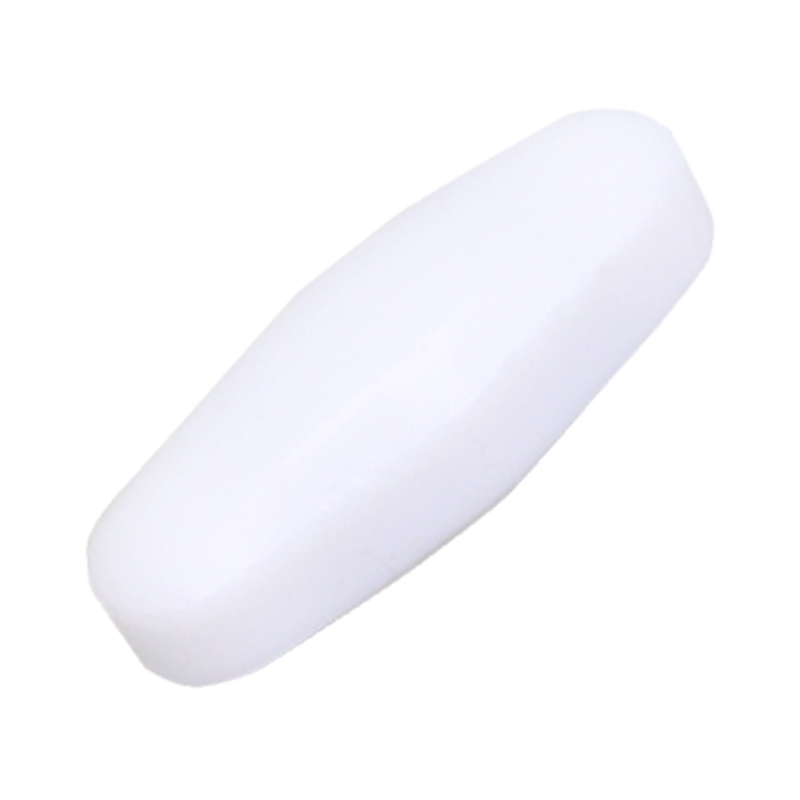

    • product-description6
      H Shape

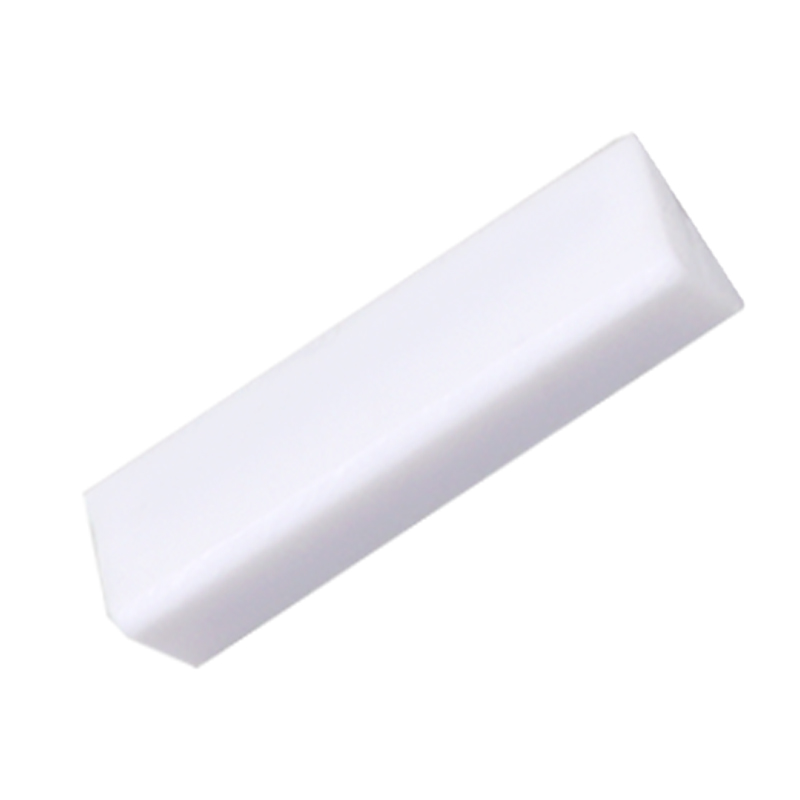

    • product-description7
      S Shape
    • product-description8

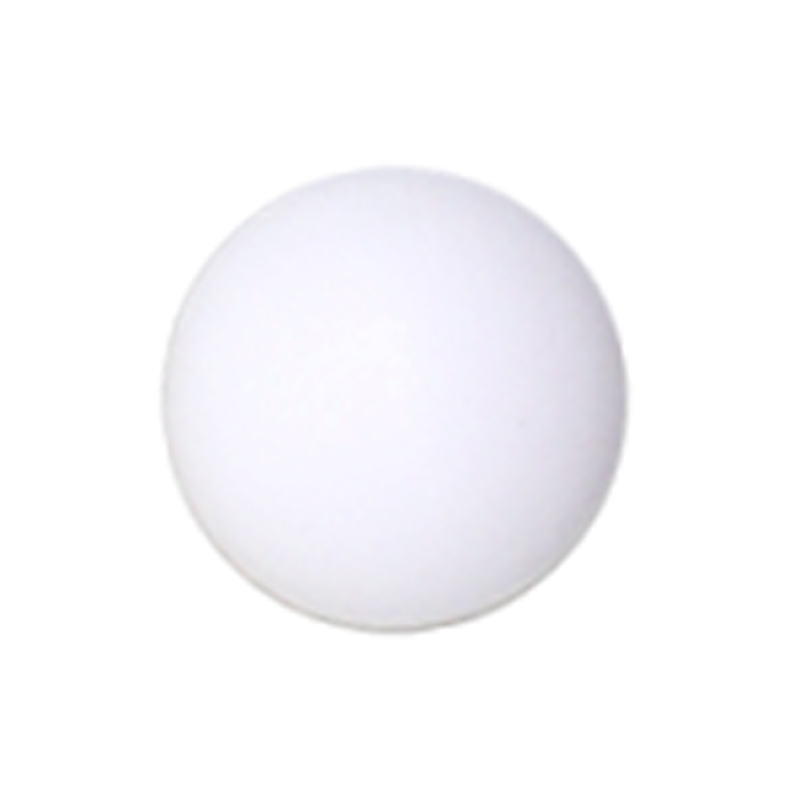

      Ball Shape

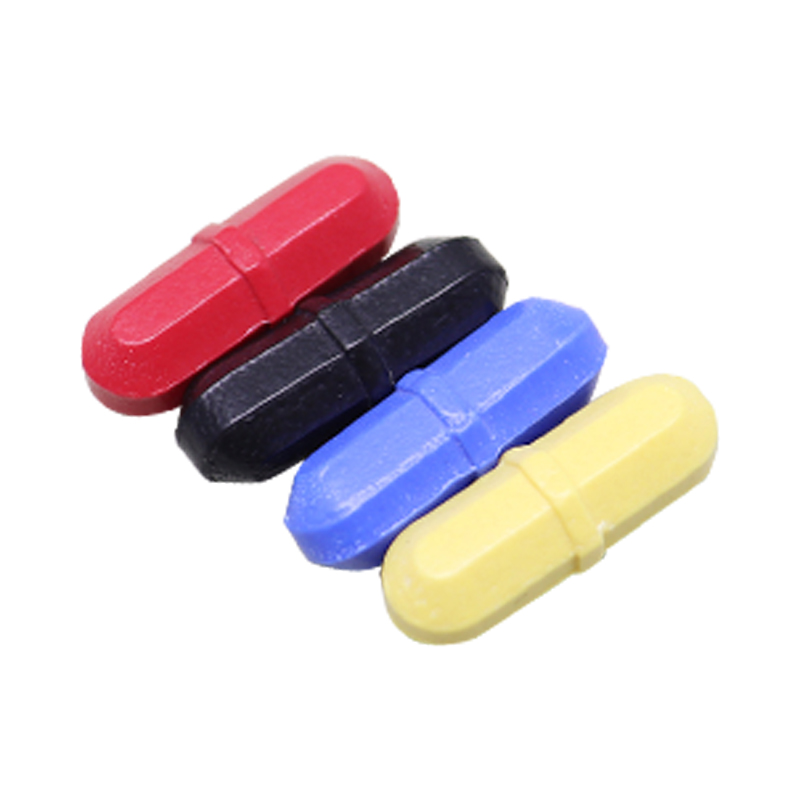

    • product-description9
      Color Type

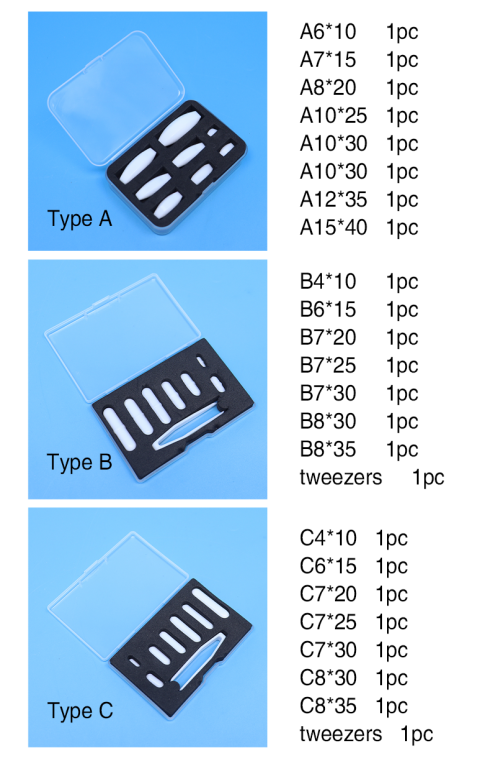

    PTFE Magnetic Stir Bar Set

    1 (2)
    Product Name: PTFE Magnetic Stir Bar
    Product Type: Type A(Egg Shape), Type B(Cylindrical Shape with Centre Pivot), Type C(Cylindrical Shape), Cross Shape, Gear Shape, H Shape, S Shape, Ball Shape, Color Type, Set A, Set B, Set C.
    Product Material: PTFE+Magnet（N35）
    Product Introduction: PTFE has good chemical resistance and can tolerate almost all chemical solvents. Appearance pure white, high temperature resistance -200~+250℃, short-term resistance to 300℃ on electric heating plate: low temperature resistance:-196°C can maintain an elongation of 5%, it needs to be used on asbestos mesh and should not be directly exposed to open flames. High lubrication: the lowest friction coefficient in solid materials, non adhesive: does not adhere to any substance; Strong self lubrication: The friction coefficient in solid materials is 0.04.
    Product Features: The PTFE Magnetic Stir Bar is made of refined PTFE and high-quality permanent magnetic steel, which has the advantages of wear resistance, high temperature resistance, chemical corrosion resistance, non toxicity, strong stirring force, stable operation, excellent manufacturing, novel style, scientific and beautiful appearance.

    Product  Show

    ● Strong magnetic force
    ● High lubrication, non stick and non damaging to glass
    ● Corrosion resistance
    product-description11

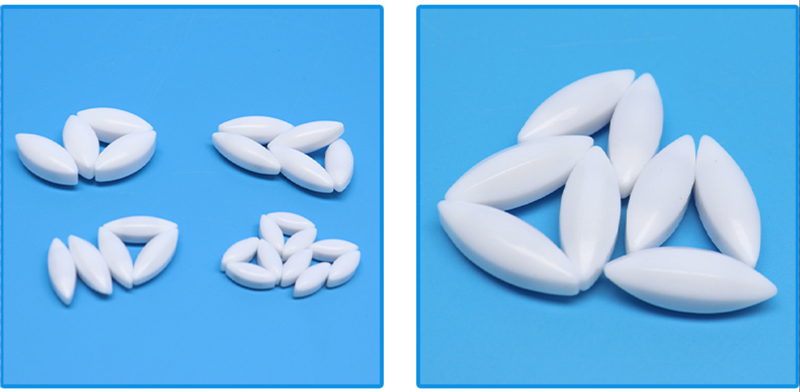

    • product-description12
      Type A Show

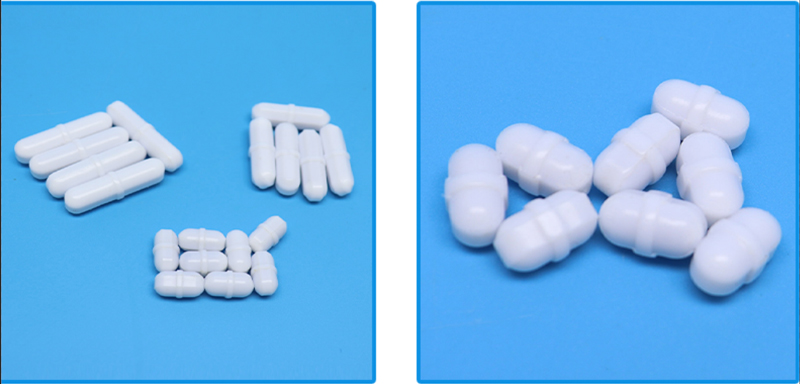

    • product-description13
      Type B Show
    • product-description14

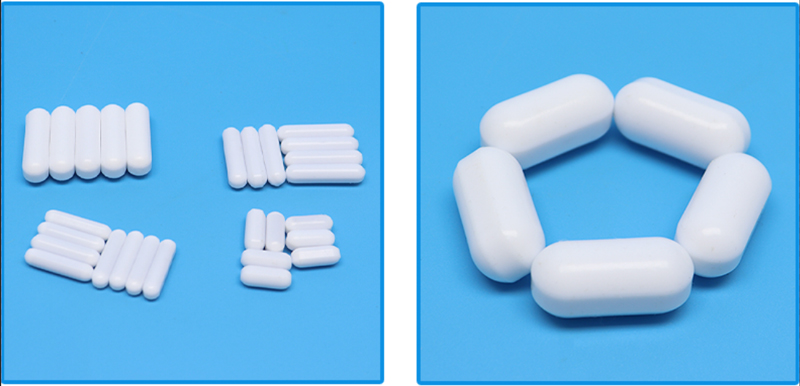

      Type C Show

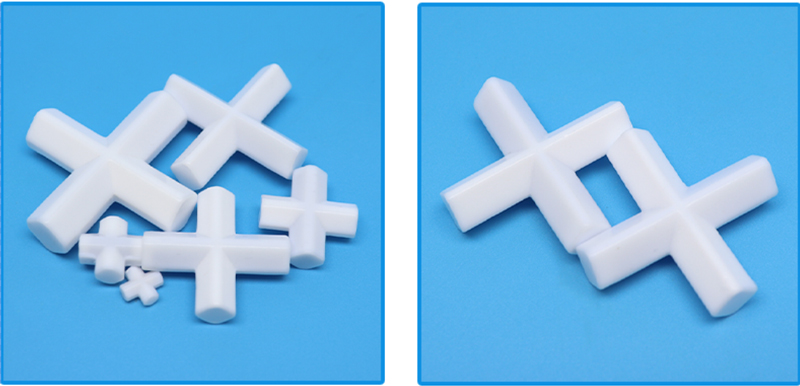

    • product-description15
      Cross Shape Show

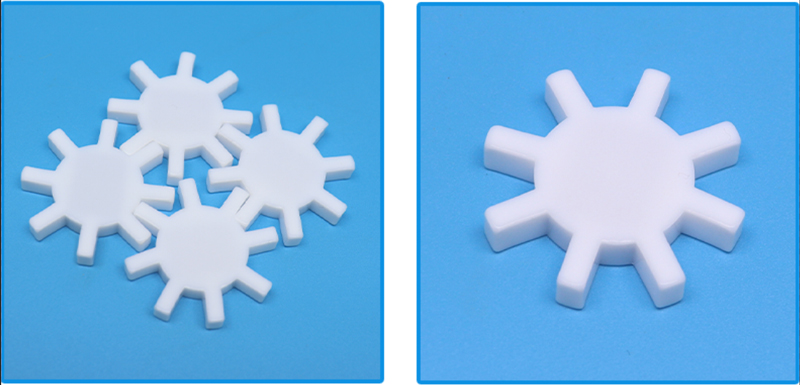

    • product-description16
      Gear Shape Show

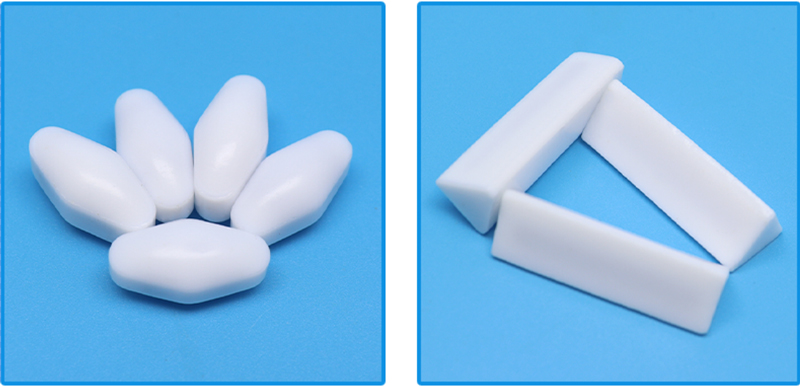

    • product-description17
      H Shape Show                        S Shape Show

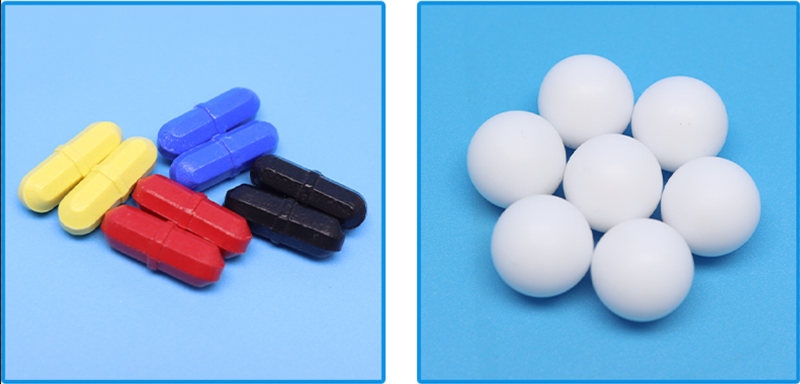

    • product-description18
      Color Tape Show                        Ball Shape Show

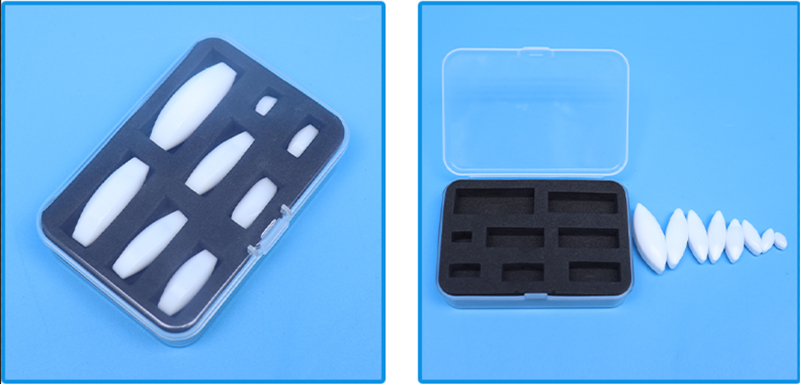

    • product-description19
      Type A Set Show
    • product-description20

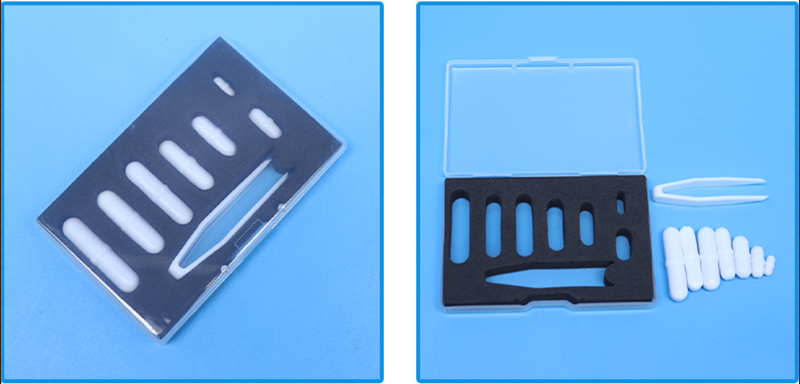

      Type B Set Show

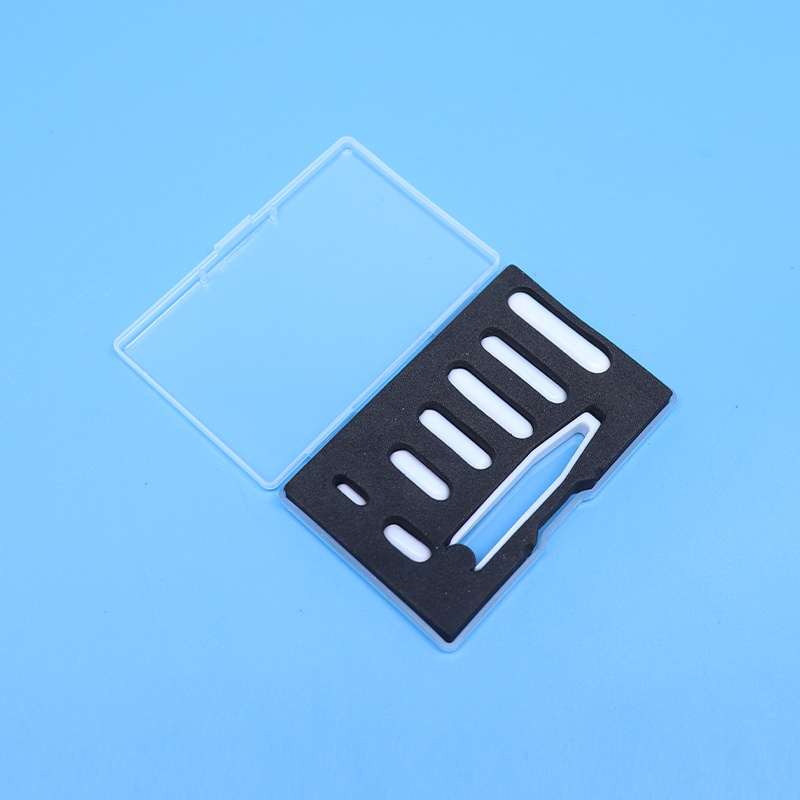

    • product-description21

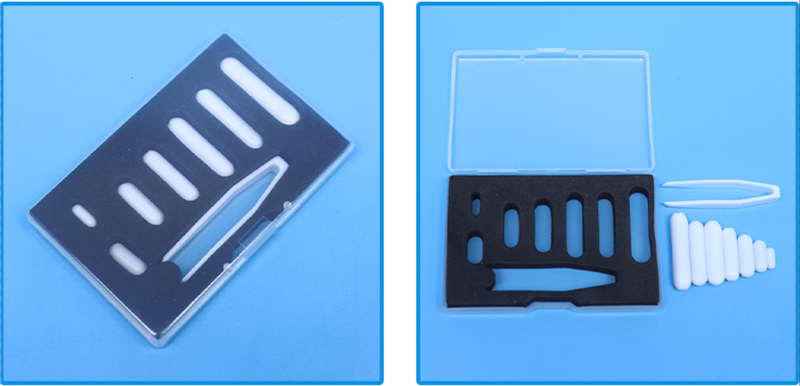

      Type C Set Show

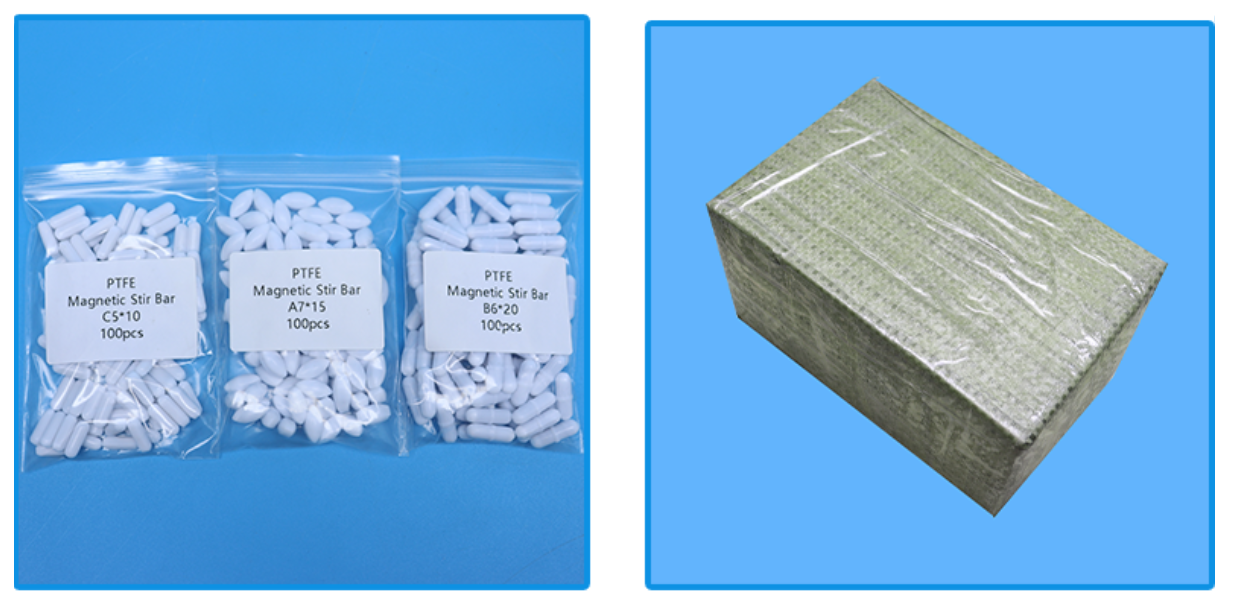

    Packing Show

    4

    Magnetic Stir Bar Specs

    Item Description Picture PN Spec Dia (mm) Length (mm) Weight(g)
    1 PTFE Magnetic Stir Bar Type A (Egg Shape) product description01 B00101 A3*5 3 5 0.06
    B00102 A5*7 5 7 0.3
    B00103 A4*8 4 8 0.2
    B00104 A5*10 6 8 0.4
    B00105 A6*8 6 8 0.5
    B00106 A6*10 6 10 0.6
    B00107 A7*15 7 15 1.2
    B00108 A8*20 8 20 2.2
    B00109 A9*20 9 20 3
    B00110 A9*25 9 25 3.5
    B00111 A10*25 10 25 4.3
    B00112 A10*30 10 30 5.3
    B00113 A12*35 12 35 8.6
    B00114 A13*35 13 35 9.6
    B00115 A15*40 15 40 13.8
    B00116 A15*45 15 45 15.4
    B00117 A17*50 17 50 21.5
    B00118 A18*60 18 60 31.9
    B00119 A18*70 18 70 40
    B00120 A25*70 25 70 66.4
    B00121 A25*100 25 100 90
    2 PTFE Magnetic Stir Bar Type B (Cylindrical Shape with Centre Pivot) product description02 B00201 B3*6 3 6 0.15
    B00202 B4*8 4 8 0.4
    B00203 B4*10 4 10 0.4
    B00204 B5*10 5 10 0.6
    B00205 B5*15 5 15 1.1
    B00206 B5*20 5 20 1.44
    B00207 B6*12 6 12 0.96
    B00208 B6*15 6 15 1.5
    B00209 B6*20 6 20 2.2
    B00210 B6*25 6 25 2.5
    B00211 B6*30 6 30 3.5
    B00212 B7*20 7 20 2.6
    B00213 B7*25 7 25 3.1
    B00214 B7*30 7 30 4
    B00215 B7*35 7 35 4.7
    B00216 B8*15 8 15 2.3
    B00217 B8*20 8 20 3.5
    B00218 B8*25 8 25 4.4
    B00219 B8*30 8 30 5.1
    B00220 B8*35 8 35 6.6
    B00221 B8*40 8 40 7.6
    B00222 B8*45 8 45 7.6
    B00223 B8*50 8 50 8.9
    B00224 B9*25 9 25 5
    B00225 B9*30 9 30 6.2
    B00226 B9*35 9 35 7.6
    B00227 B9*40 9 40 9.9
    B00228 B9*45 9 45 10
    B00229 B9*50 9 50 10.7
    B00230 B9*55 9 55 11.2
    B00231 B9*65 9 65 14.2
    B00232 B10*40 10 40 11.2
    B00233 B10*50 10 50 14.2
    B00234 B10*60 10 60 14.4
    B00235 B10*70 10 70 19.7
    B00236 B10*80 10 80 22.4
    B00237 B10*100 10 100 27.8
    B00238 B12*55 12 55 23.2
    3 PTFE Magnetic Stir Bar Type C (Cylindrical Shape) product description03 B00301 C3*5 3 5 0.11
    B00302 C3*6 3 6 0.14
    B00303 C3*7 3 7 0.15
    B00304 C3*9 3 9 0.23
    B00305 C3*10 3 10 0.3
    B00306 C3*12 3 12 0.3
    B00307 C3*15 3 15 0.35
    B00308 C4*8 4 8 0.3
    B00309 C4*10 4 10 0.5
    B00310 C5*15 5 15 1
    B00311 C5*20 5 20 1.2
    B00312 C6*10 6 10 0.9
    B00313 C6*15 6 15 0.5
    B00314 C6*20 6 20 2.1
    B00315 C6*25 6 25 2.4
    B00316 C6*30 6 30 3.4
    B00317 C7*18 7 18 2.1
    B00318 C7*20 7 20 2.5
    B00319 C7*22 7 22 3
    B00320 C7*25 7 25 3
    B00321 C7*30 7 30 4
    B00322 C8*20 8 20 3.6
    B00323 C8*25 8 25 4.3
    B00324 C8*30 8 30 5.1
    B00325 C8*35 8 35 6.5
    B00326 C8*40 8 40 7.7
    B00327 C8*45 8 45 8
    B00328 C8*50 8 50 8.5
    B00329 C8*60 8 60 11.1
    B00330 C9*40 9 40 11.8
    B00331 C9*45 9 45 10
    B00332 C9*50 9 50 10.5
    B00333 C10*40 10 40 11.7
    B00334 C10*50 10 50 14.5
    B00335 C10*60 10 60 16.8
    B00336 C10*70 10 70 19.2
    B00337 C10*80 10 80 23.2
    B00338 C10*100 10 100 27.7
    B00339 C16*35 16 35 22
    4 PTFE Magnetic Stir Bar Type D (Cross Shape) product description04 B00401 10*10 10 10 0.53
    B00402 15*15 15 15 3.3
    B00403 20*20 20 20 5.2
    B00404 25*25 25 25 8.6
    B00405 30*30 30 30 10
    B00406 35*35 35 35 13.4
    B00407 40*40 40 40 18.4
    5 PTFE Magnetic Stir Bar Type E (Gear Shape) product description05 B00501 7*40 40 / 12.1
    6 PTFE Magnetic Stir Bar Type F (H Shape) product description06 B00601 10*20 10 20 3.3
    B00602 12*26 12 26 5.8
    B00603 13*33 13 33 10
    B00604 13*40 13 40 13.7
    7 PTFE Magnetic Stir Bar Type G (S Shape) product description07 B00701 10*10*25 10 25 5.4
    B00702 13*13*40 13 25 12.1
    B00703 15*15*50 13 25 19.9
    8 PTFE Magnetic Stir Bar Type H (Ball Shape) product description08 B00801 12 12 12 2.5
    9 Color PTFE Magnetic Stir Bar product description09 B00901 B8*25 8 25 4.2
    B00902 B8*25 8 25 4.2
    B00903 B8*25 8 25 4.2
    B00904 B8*25 8 25 4.2

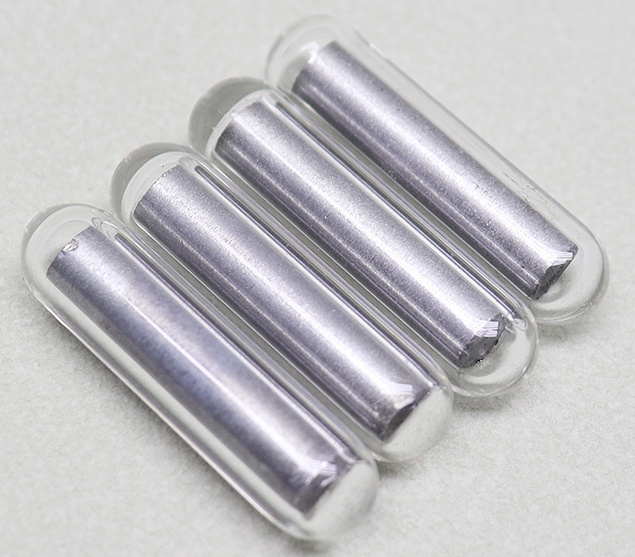

    10 Glass Magnetic Stir Bar product description10 B01001 8*32 8 32 5.9
    B01002 8*40 8 40 7.5
    B01003 10*32 10 32 6.9

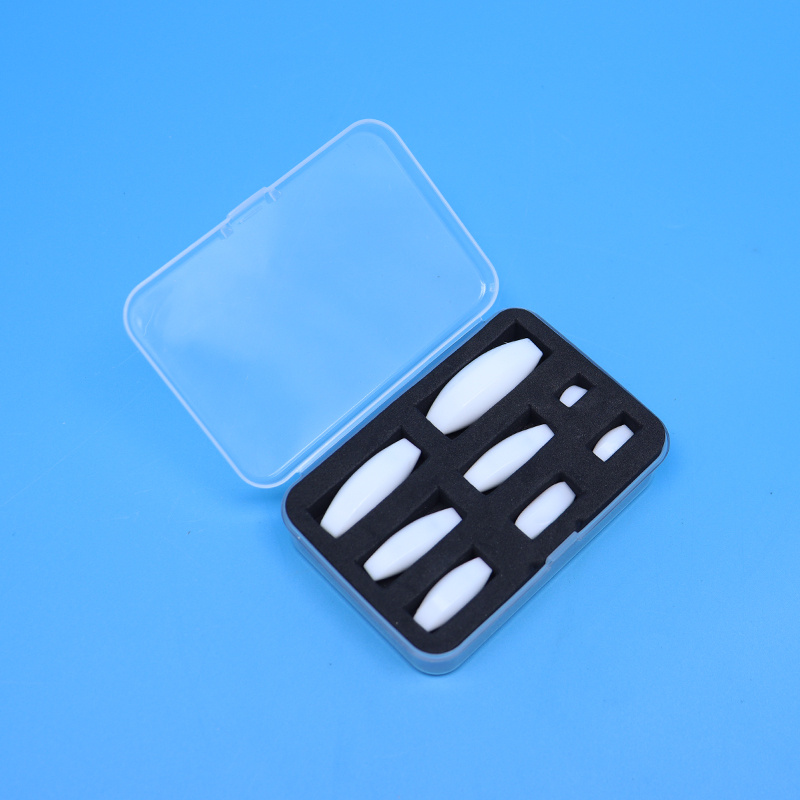

    11 PTFE Magnetic Stir Bar Set Type A product description11 B02001 A6*10 A7*15 A8*20 A10*25 A10*30 A10*30 A12*35 A15*40 / / 76

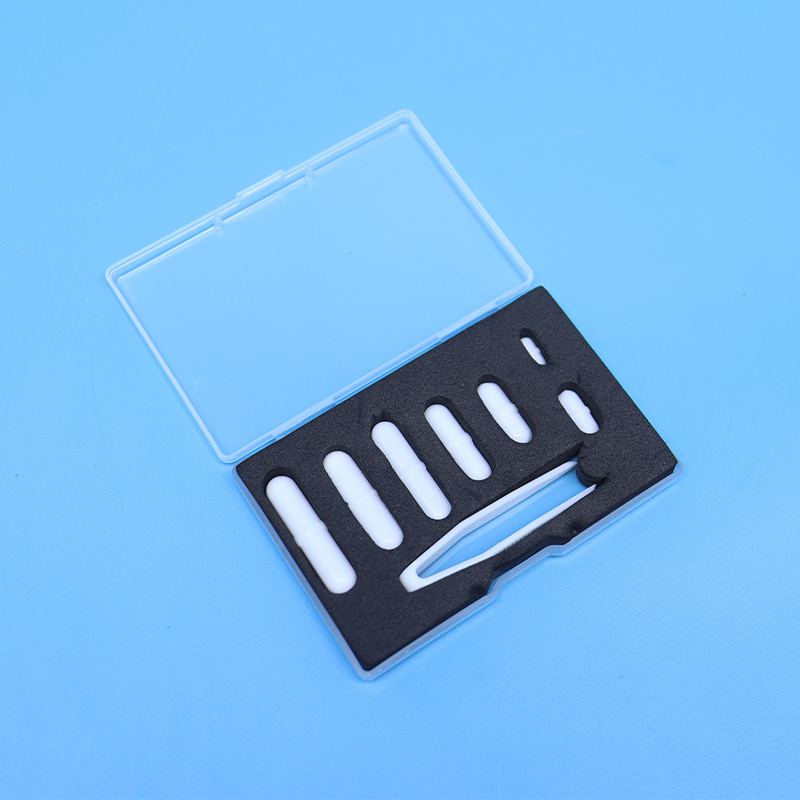

    12 PTFE Magnetic Stir Bar Set Type B product description12 B02002 B4*10 B6*15 B7*20 B7*25 B7*30 B8*30 B8*35 / / 46
    13 PTFE Magnetic Stir Bar Set Type C product description13 C4*10 C6*15 C7*20 C7*25 C7*30 C8*30 C8*35 / / 43

    Product Selection

    ● Shape selection
    Type A is suitable for use in round bottomed containers, Type B is suitable for flat bottomed containers. Type C is suitable for cylindrical containers with low concentration and concave convex flat bottoms.
    ● Length selection
    Generally, the length of the stirrer is selected based on 1/2 or 1/3 of the outer diameter of the container.
    ● Selection of diameter
    Determine based on the concentration of the stirred solution, and if the concentration is high, choose a larger diameter as much as possible.
