Thickened High-Borosilicate Glass Chromatography Cylinder
Product Features
1.Sintering process, high structural strength
2.Strong chemical stability, acid and alkali corrosion resistance
3.High transparency, easy to monitor experimental progress
4. Complete specifications to meet different needs.
Product Category
● Single tank chromatography cylinder
● Suitable for unfolding a single chromatography plate
● Relatively high solvent usage
● Suitable for regular thin layer colors
● Spectral experiment, easy to operate

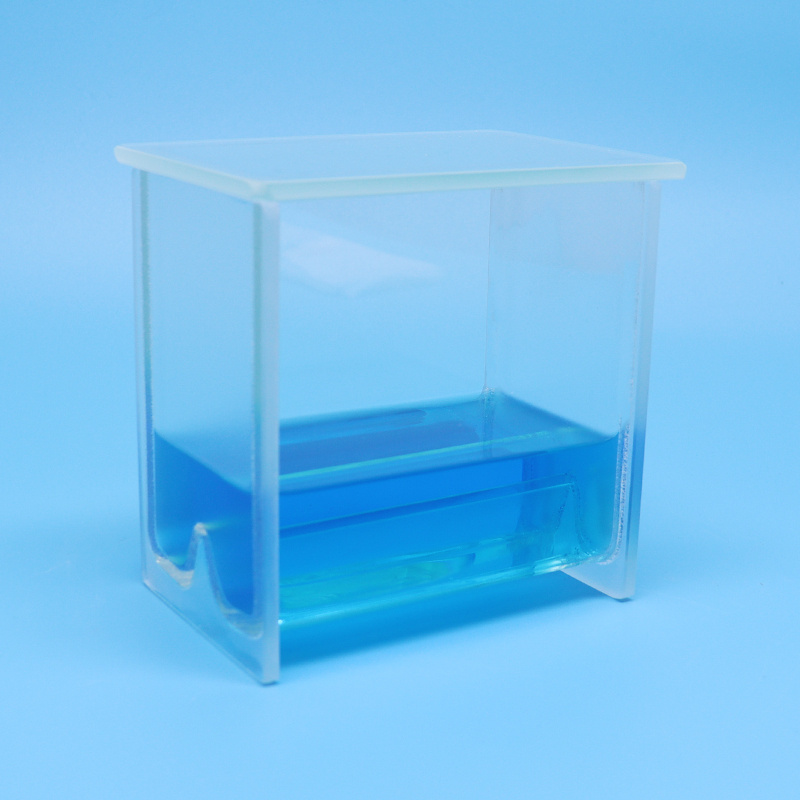

● Double tank chromatography cylinder
● Pre adsorption can be performed
● Relatively small volume, saves solvent, and facilitates pre adsorption of solvent vapor
● Suitable for thin-layer chromatography experiments with high separation requirements, increasing experimental stability.
Chromatography Cylinder
● Heat and high temperature resistance
● Sturdy and durable
● High hardness

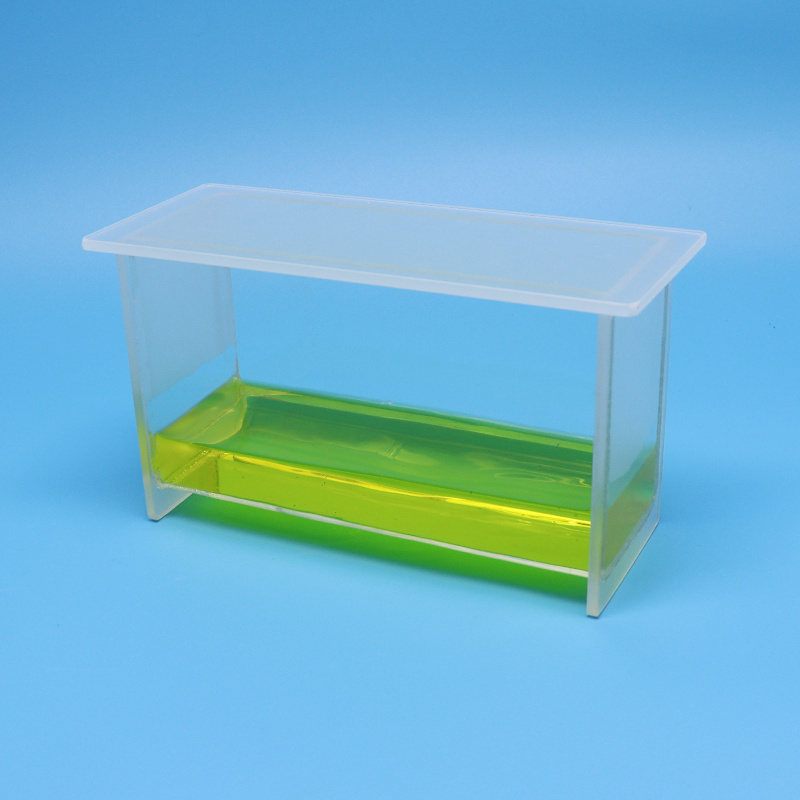

Single Groove

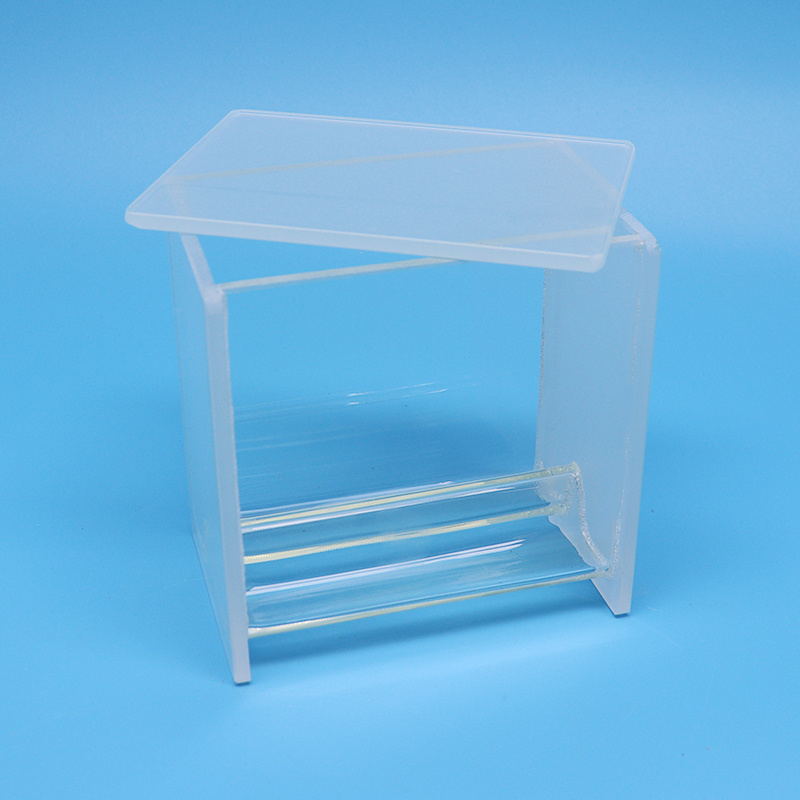

Double Groove
Product Name: Chromatography Cylinder
Product Specifications: 100*100mm/100*200mm 200*100mm/200*200mm
Product Material: The cylinder body is made of high borosilicate glass, and the cylinder head is made of ordinary glass.
Product Features: 1. Low solvent consumption 2. Reusable solvent vapor pre adsorption 3. Easy to pre adsorb the unfolded thin layer under different steam conditions
About the product: P-type chromatography cylinder (single tank), also known as flat bottomed thin-layer chromatography development cylinder (P-type). Thin layer chromatography is a modern rapid micro separation technology that is widely used in environmental protection, biological testing, and industrial product quality inspection due to its advantages of convenience, speed, good performance, and high sensitivity. The bottom of the p-type cylinder is flat and made of flat glass double right angle molding, which has good flatness and sealing properties, meeting the analysis requirements of TLC.

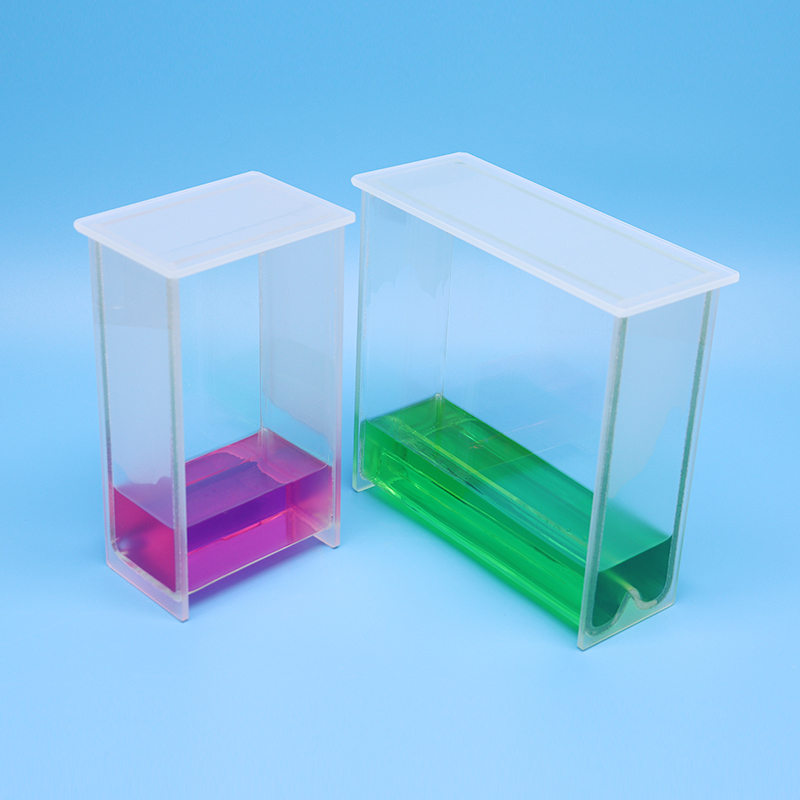

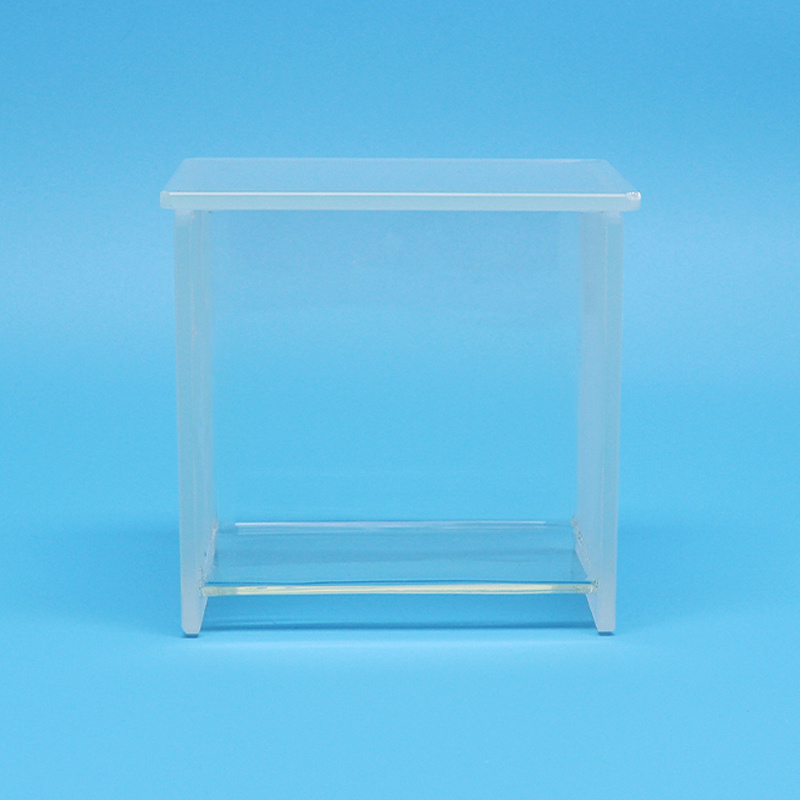

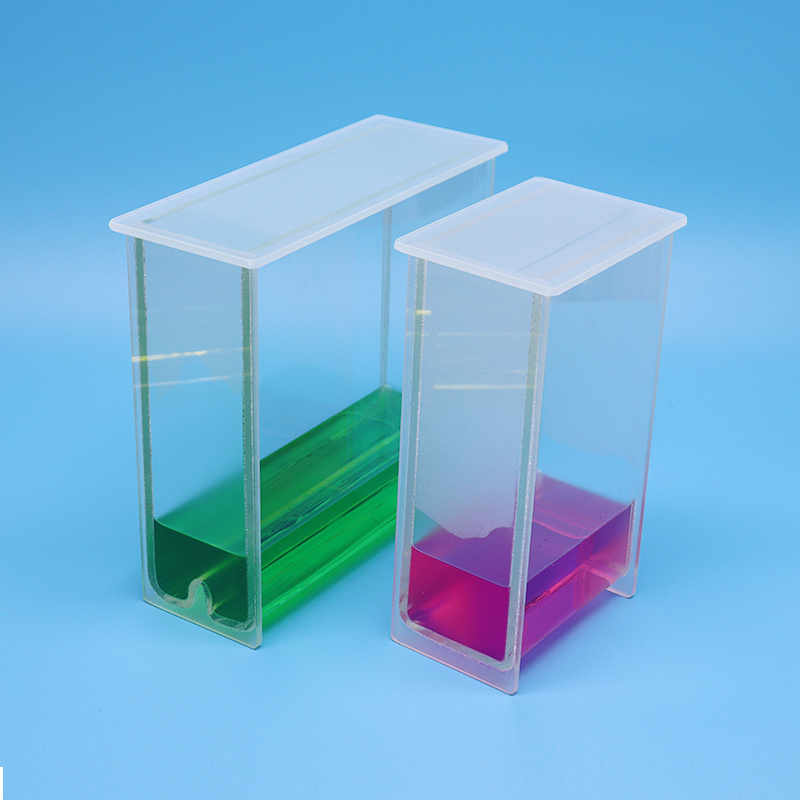

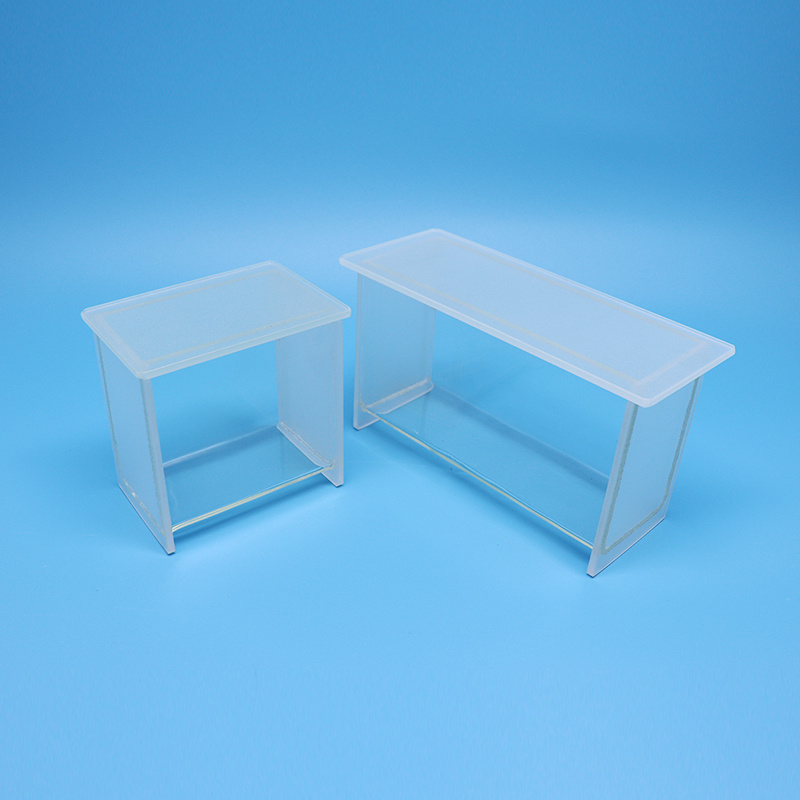

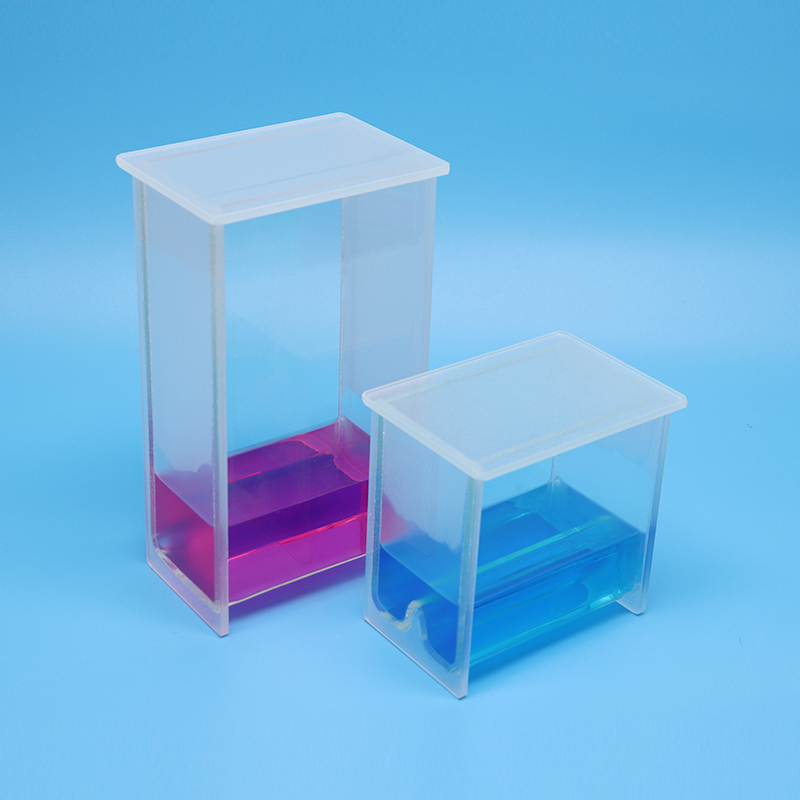

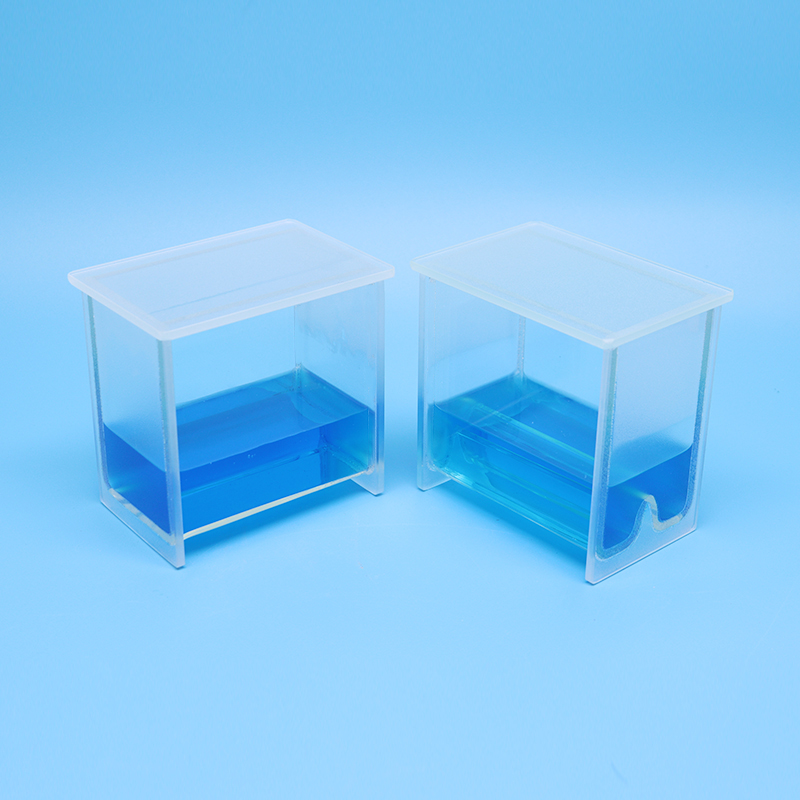

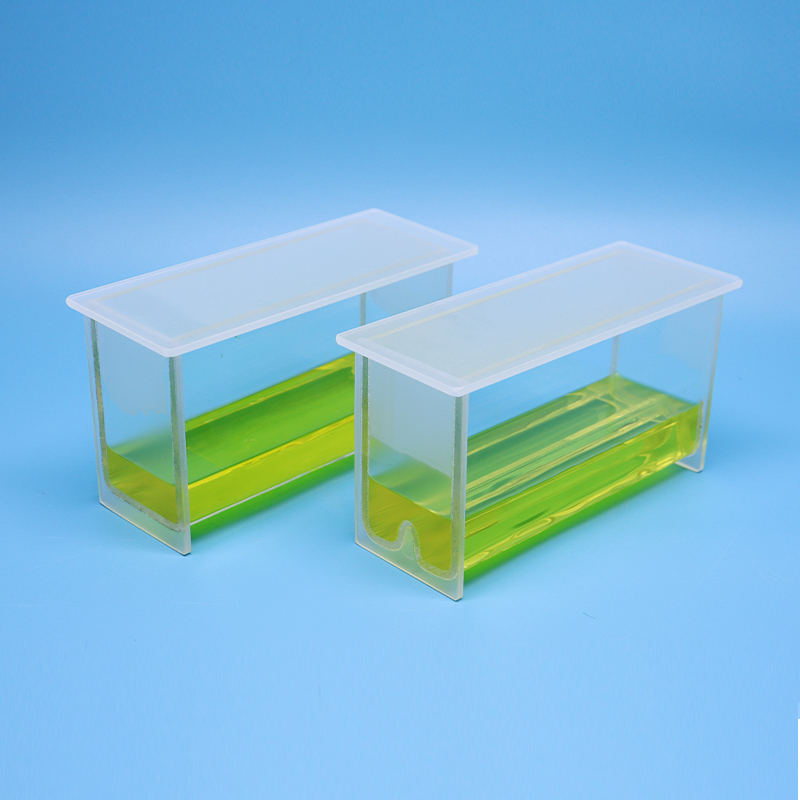

Product Show
● Thickened high borosilicate cylinder body, with higher smoothness, high temperature resistance, corrosion resistance, and excellent chemical inertness.
● Matching chromatography cover design effectively avoids solvent evaporation.
● Sintering process, non adhesive, no leakage, good separation effect.

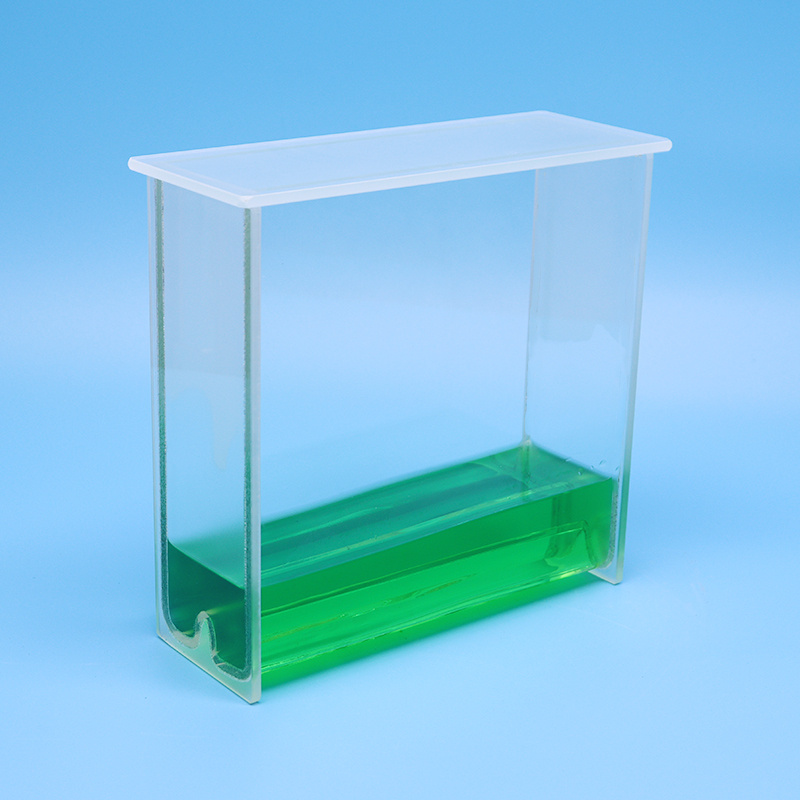

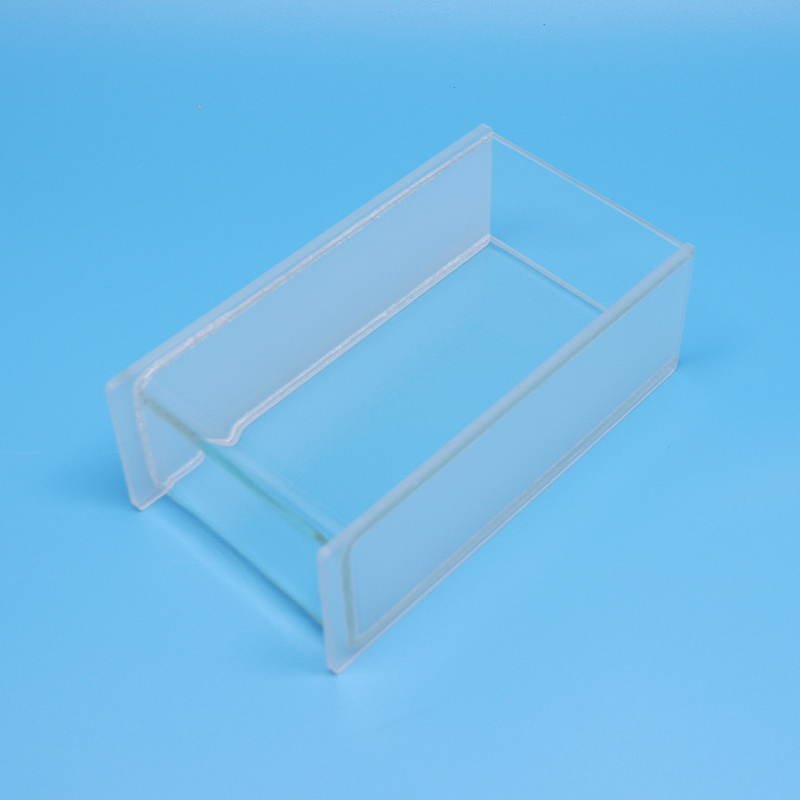

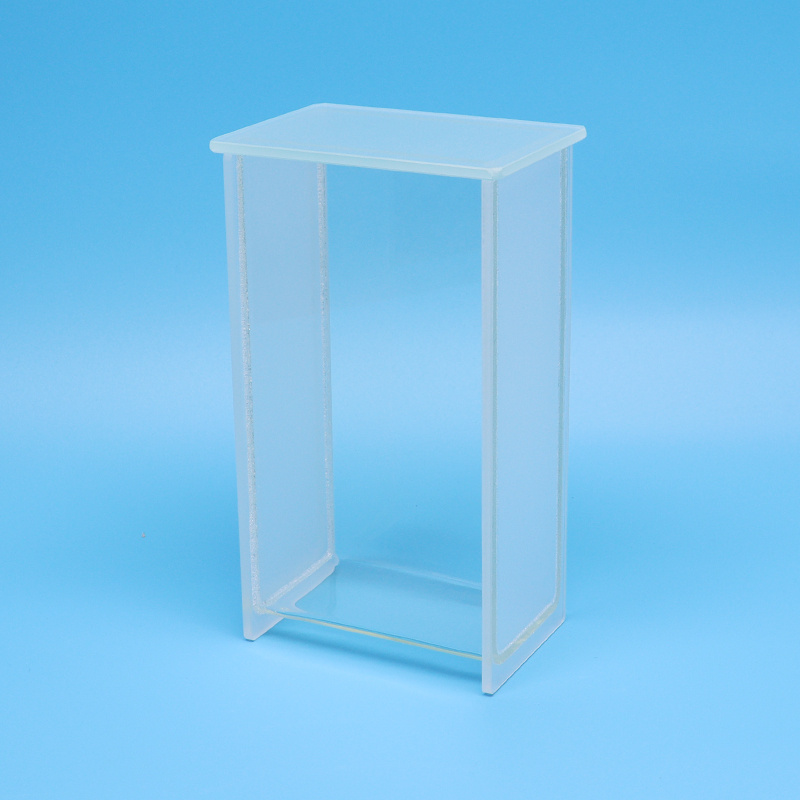

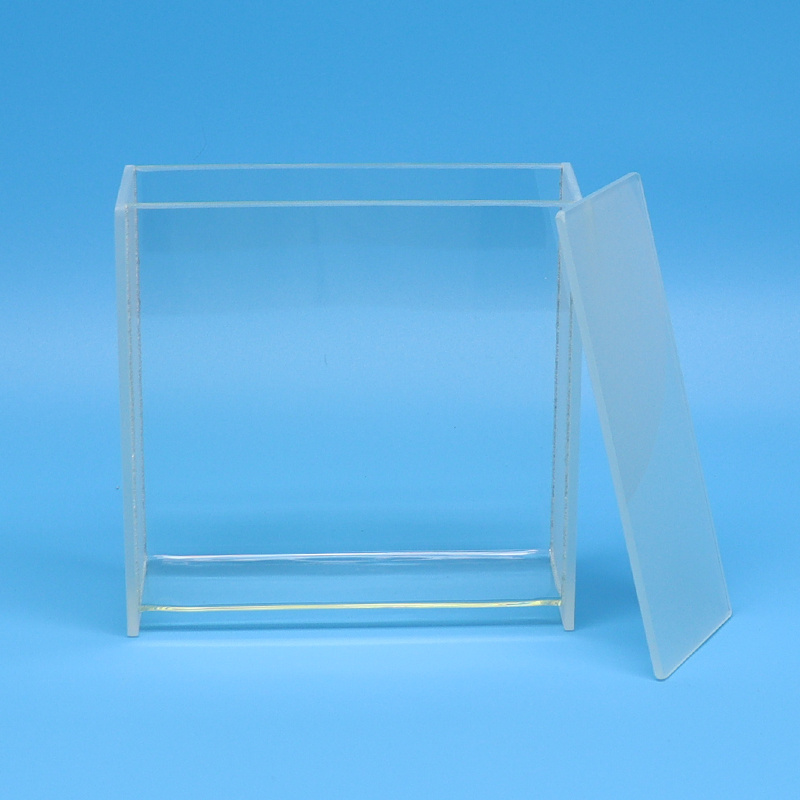

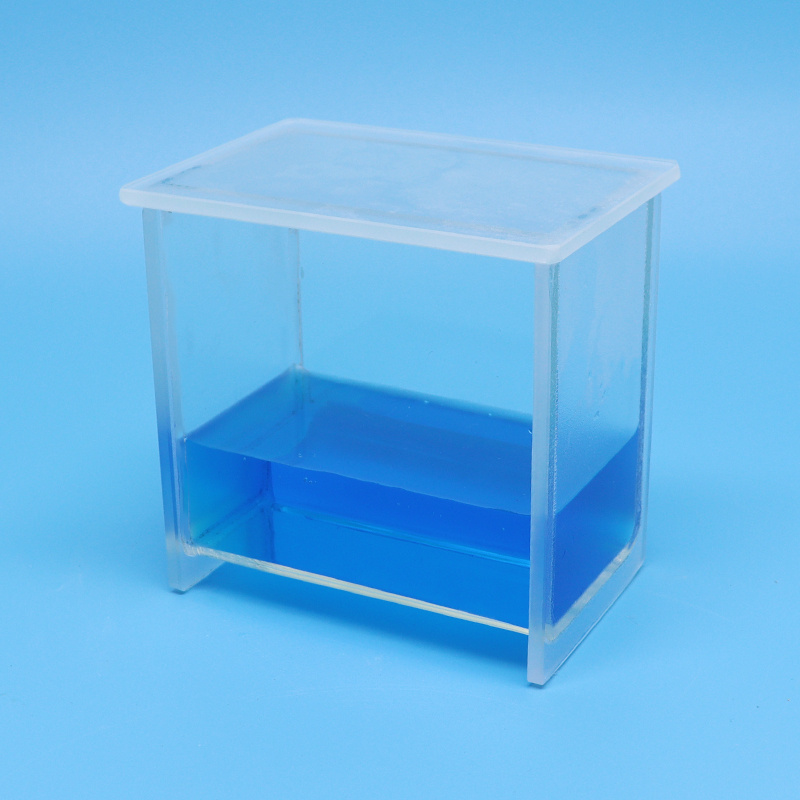

Single Groove Show

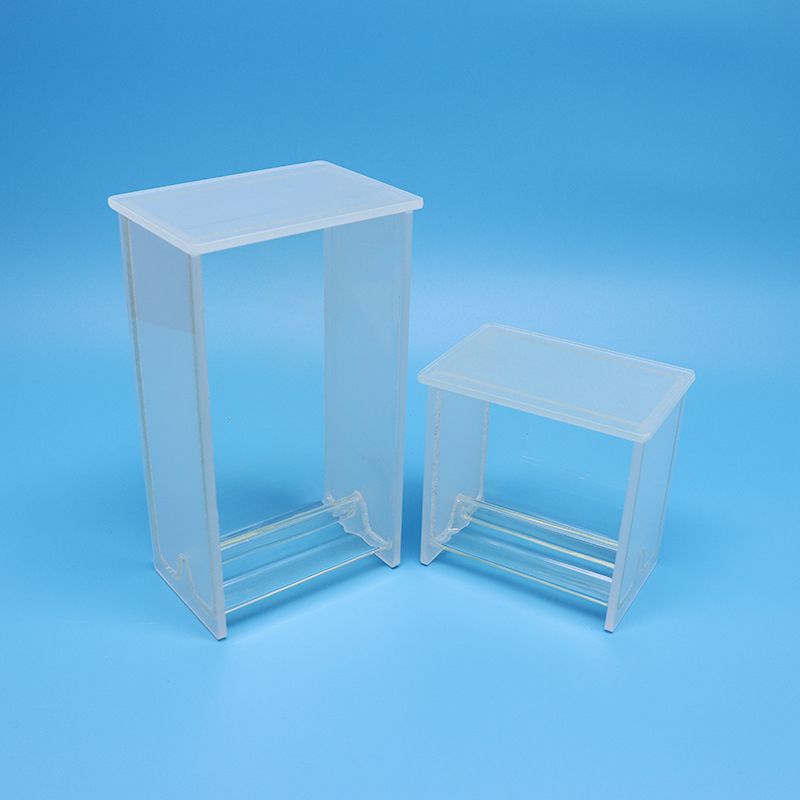

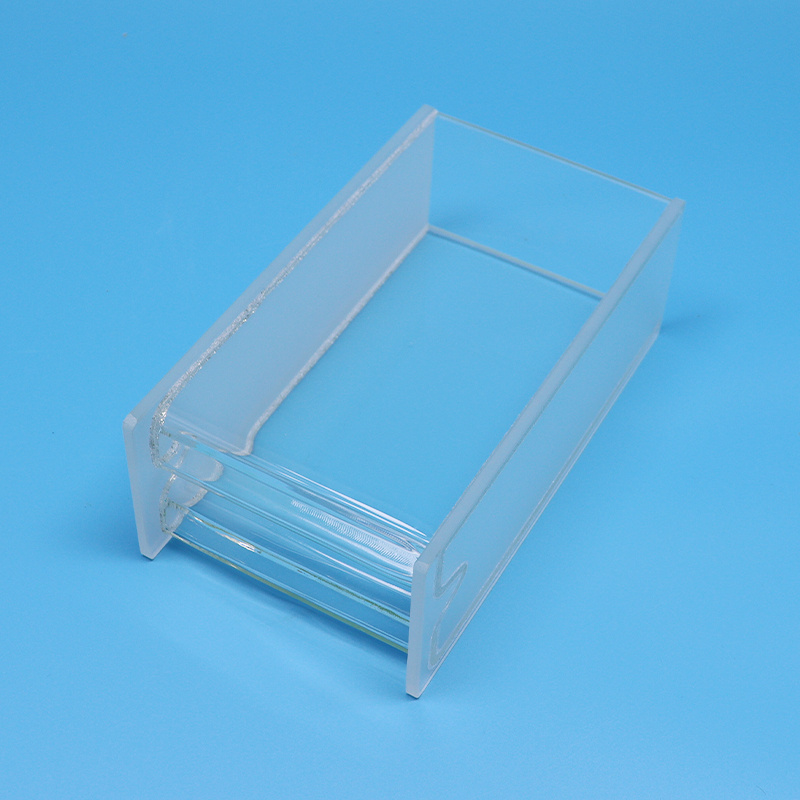

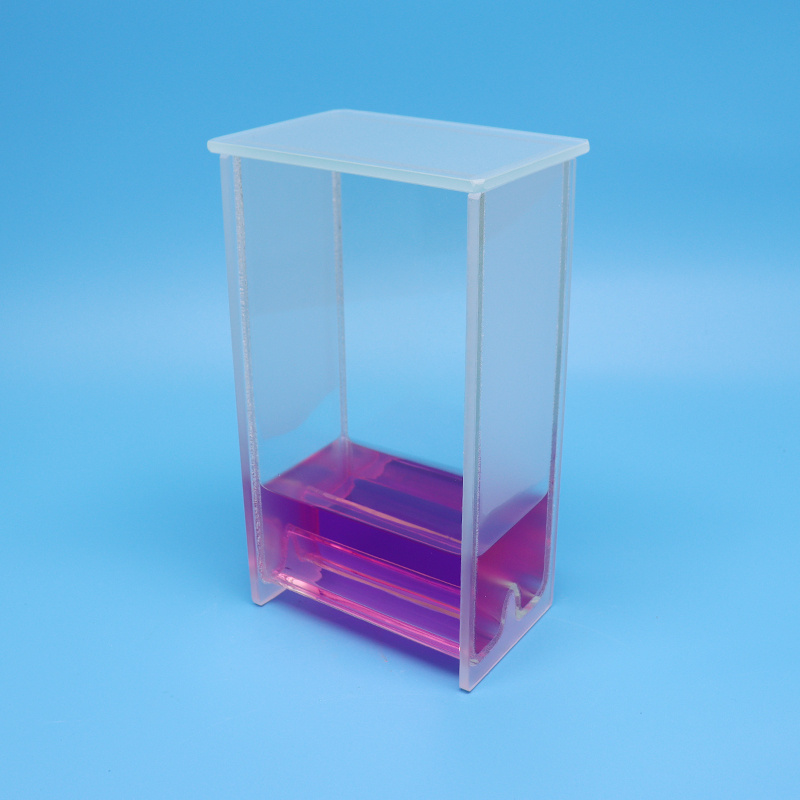

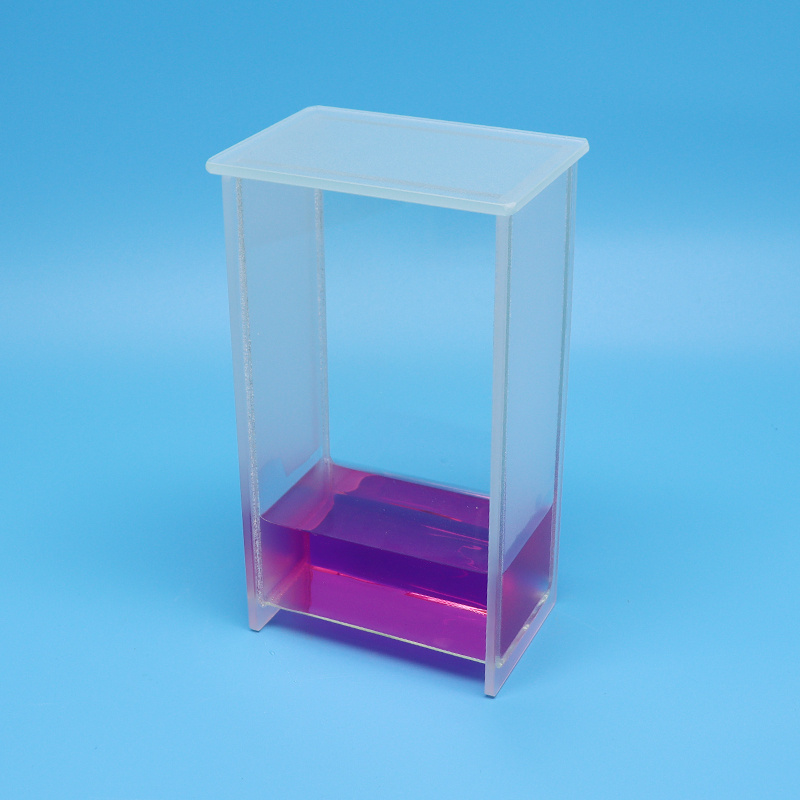

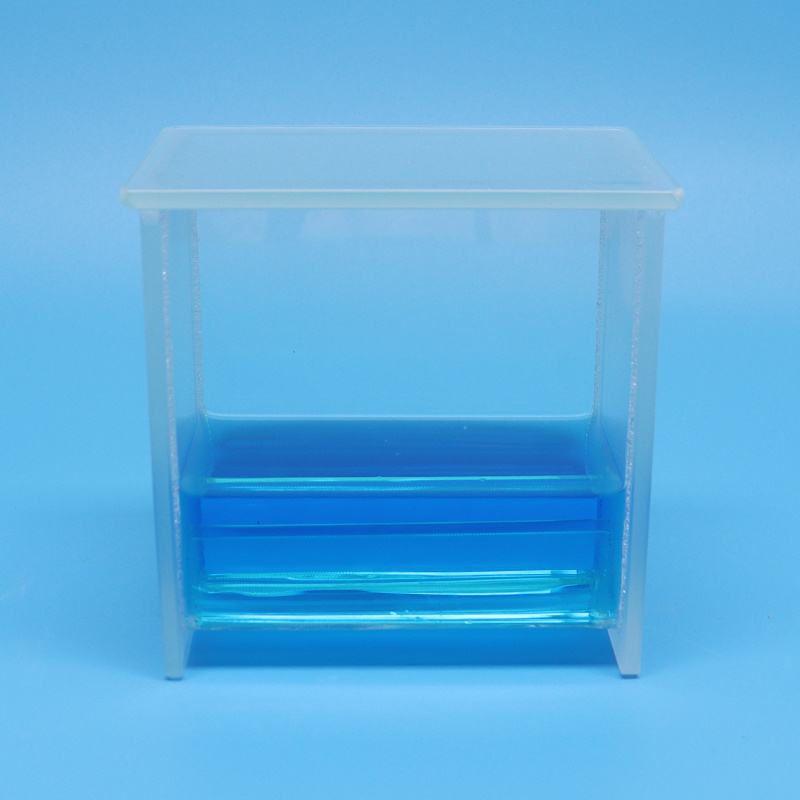

Double Groove Show

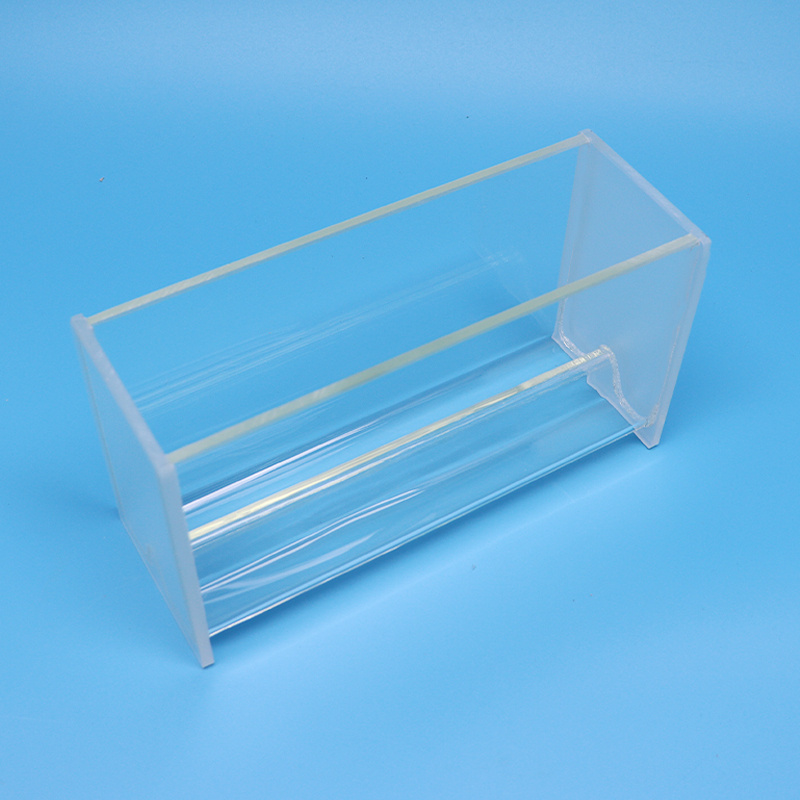

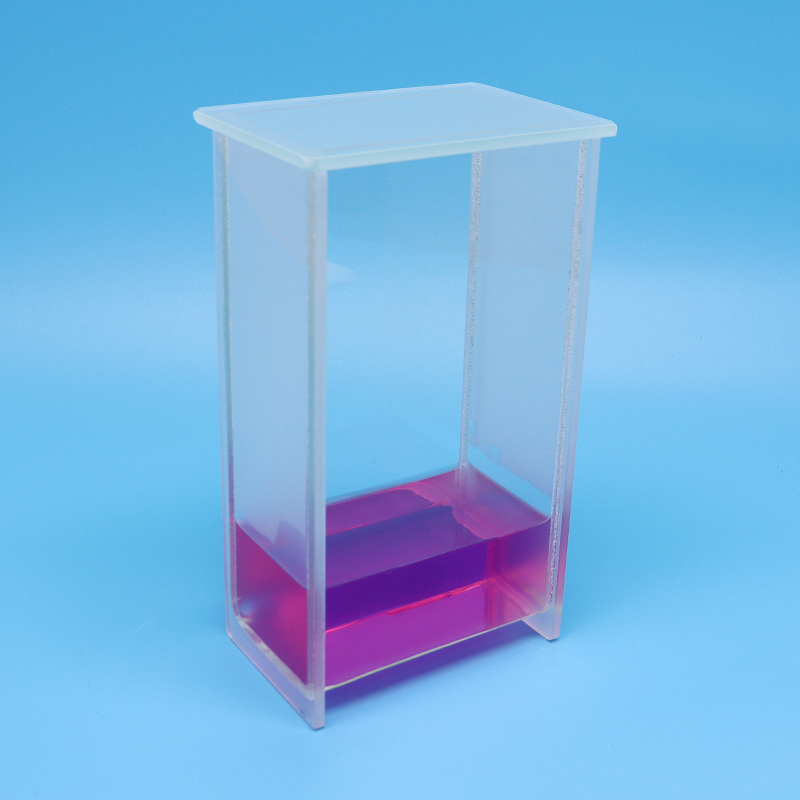

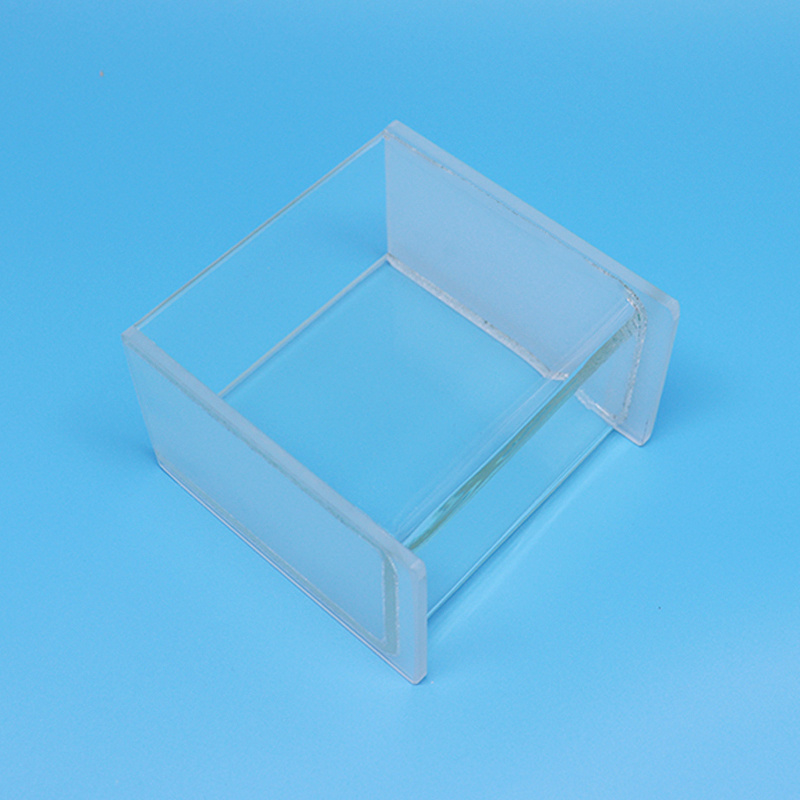

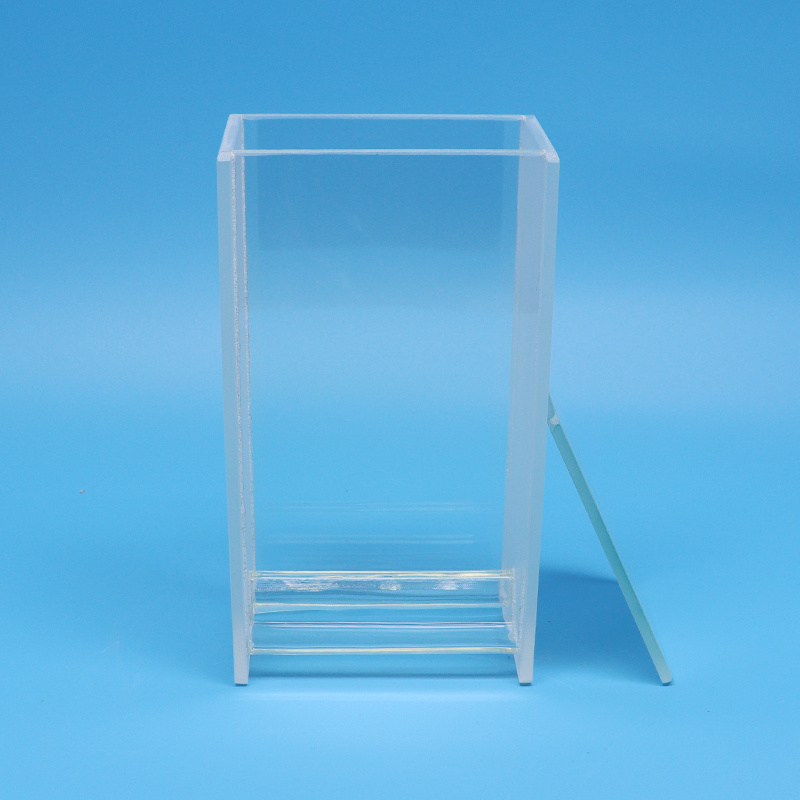

Product Details Show

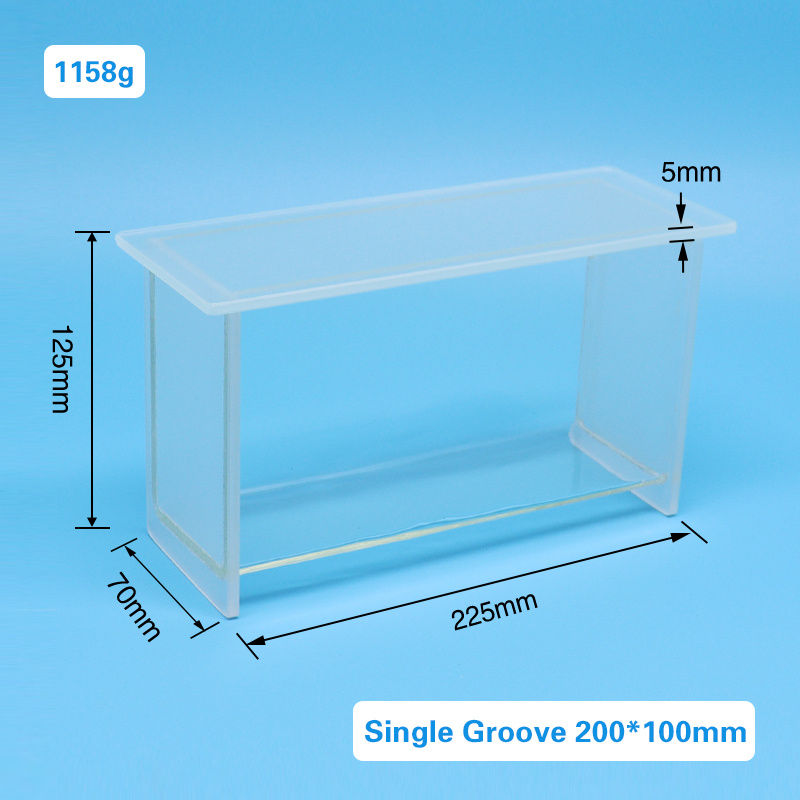

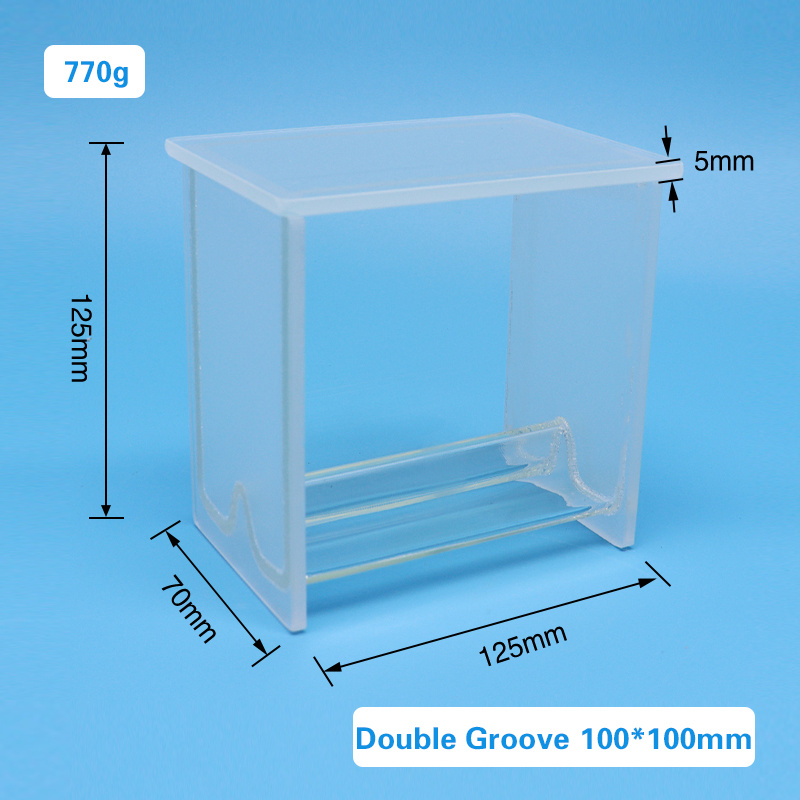

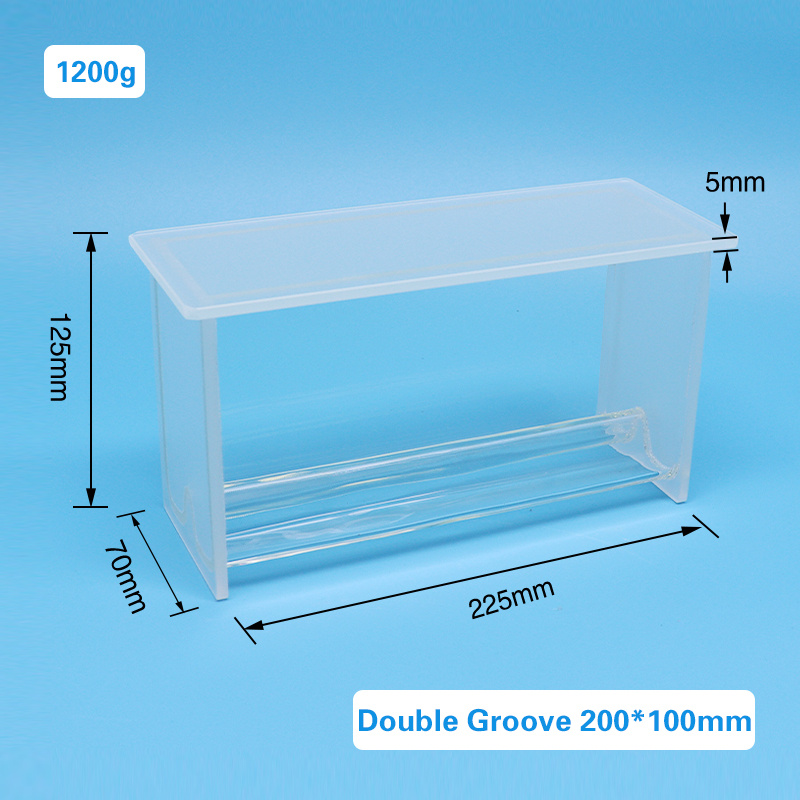

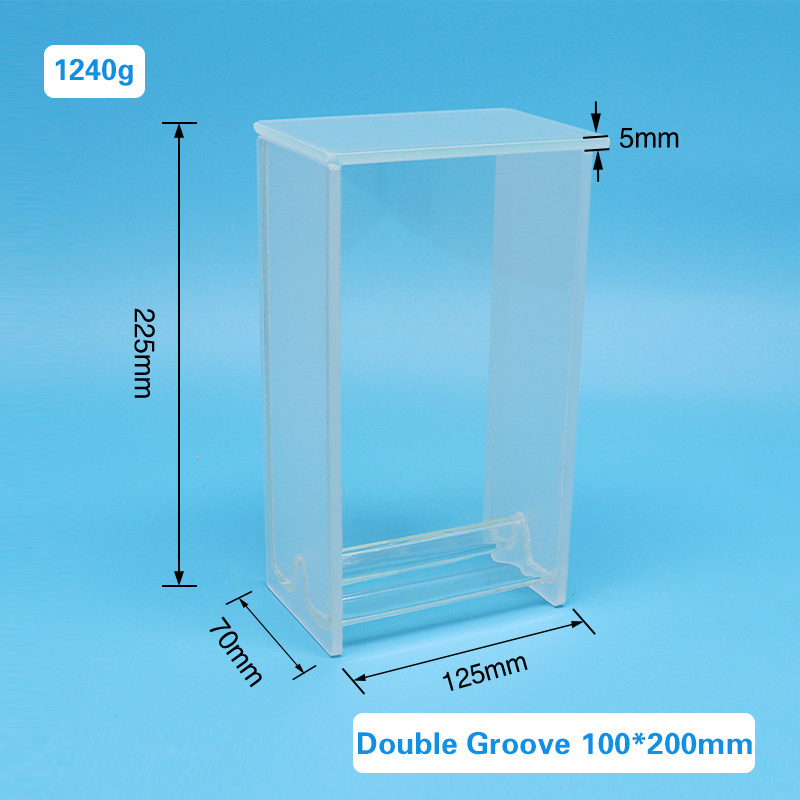

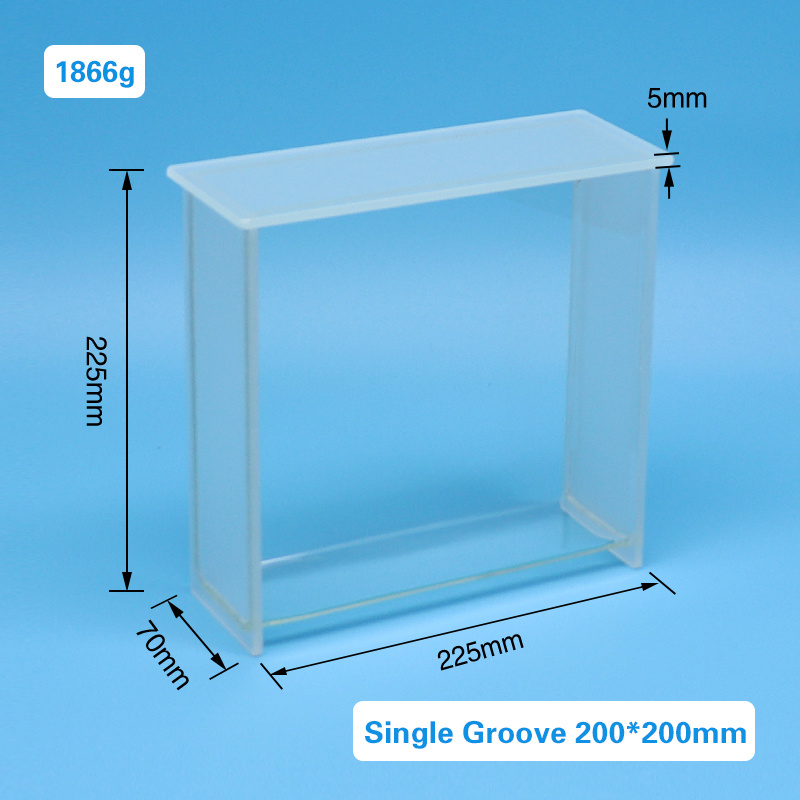

Size Show

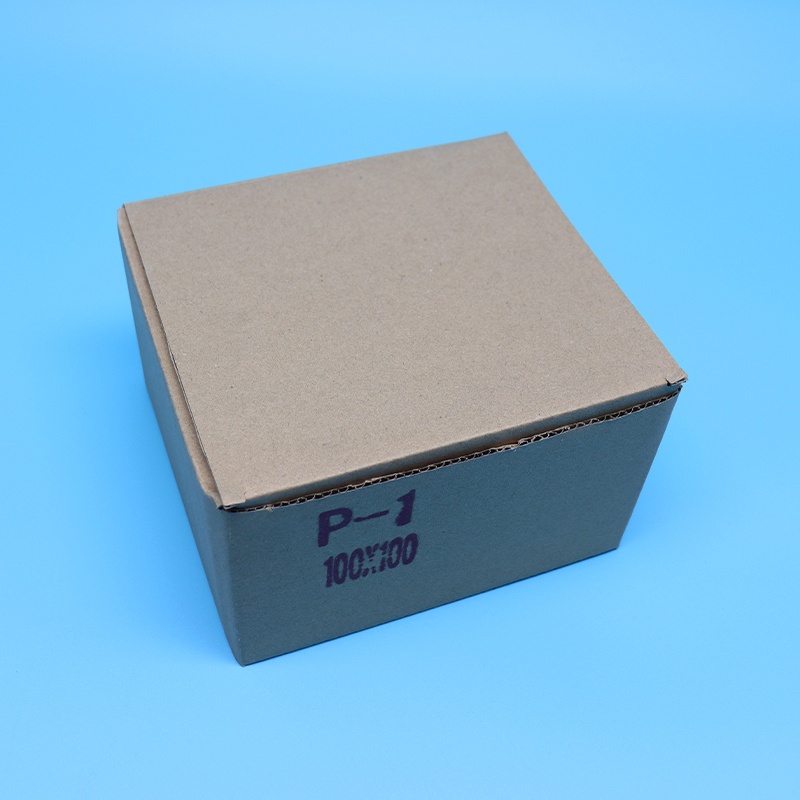

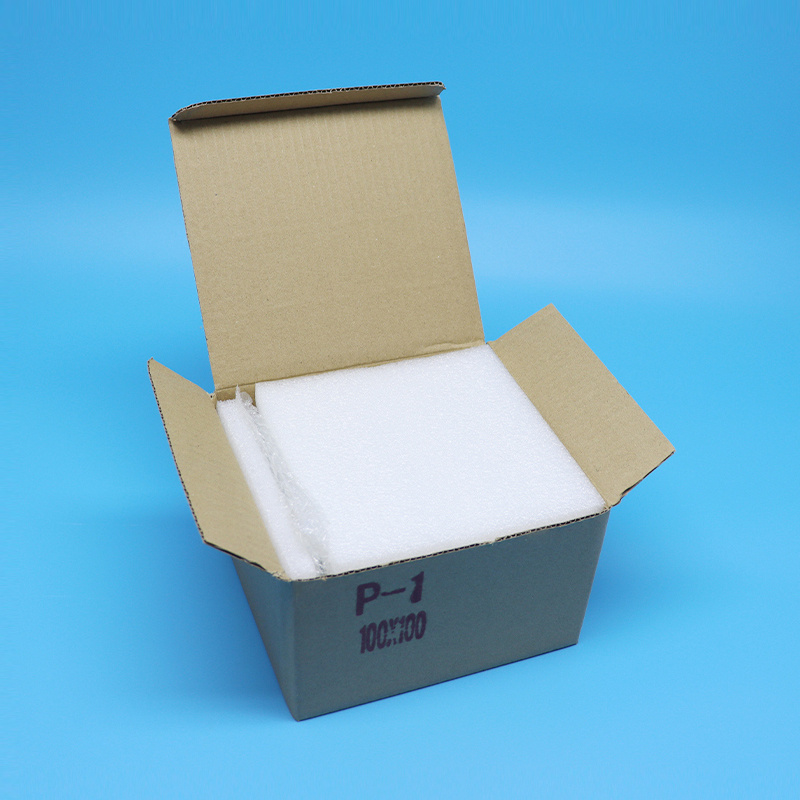

Packing Show
Chromatography Cylinder Specs
| Item | Description | Picture | Spec （mm） | Length（mm） | Width（mm） | Height （mm） | Weight (g) |
| 1 | Chromatography cylinder（Single Groove） |  |

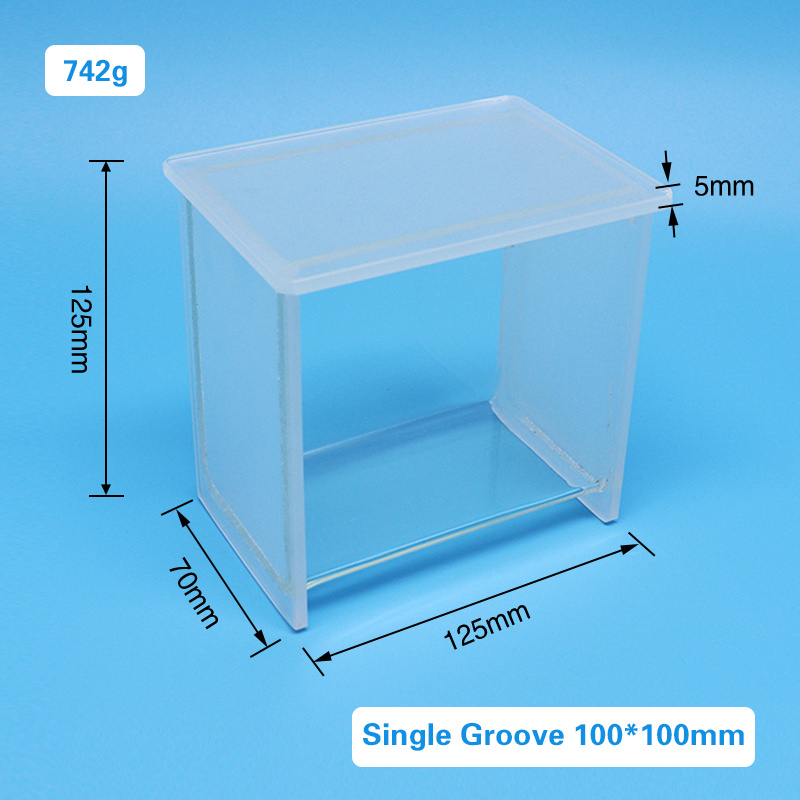

100*100 | 125 | 70 | 125 | 742 |

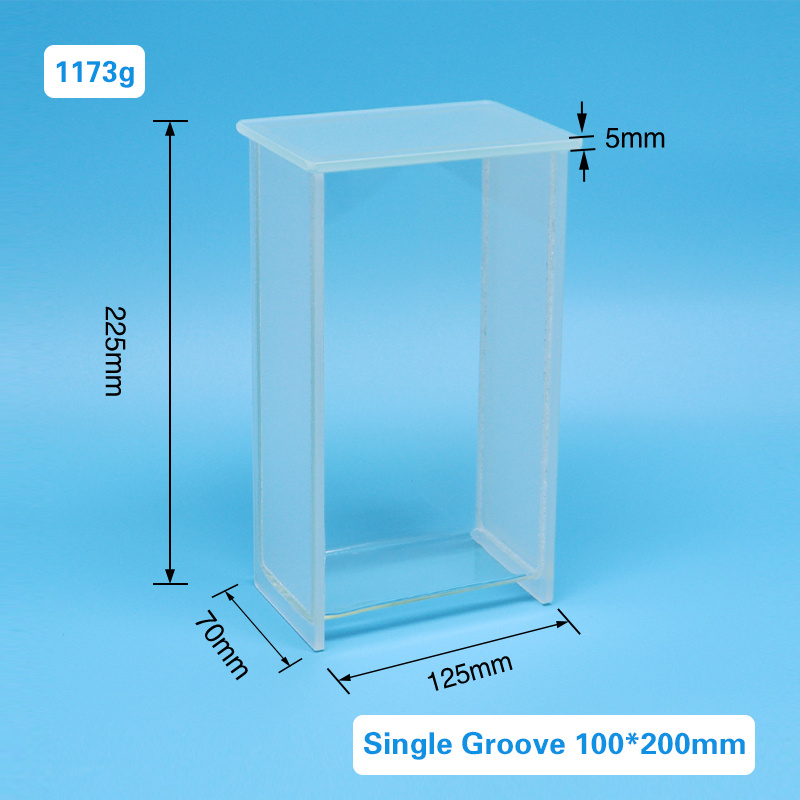

| 2 | 100*200 | 125 | 70 | 225 | 1173 | ||
| 3 | 200*100 | 225 | 70 | 125 | 1158 | ||
| 4 | 200*200 | 225 | 70 | 225 | 1866 | ||
| 5 | Chromatography cylinder（Double Groove） |  |
100*100 | 125 | 70 | 125 | 770 |
| 6 | 100*200 | 125 | 70 | 225 | 1240 | ||
| 7 | 200*100 | 225 | 70 | 125 | 1200 | ||

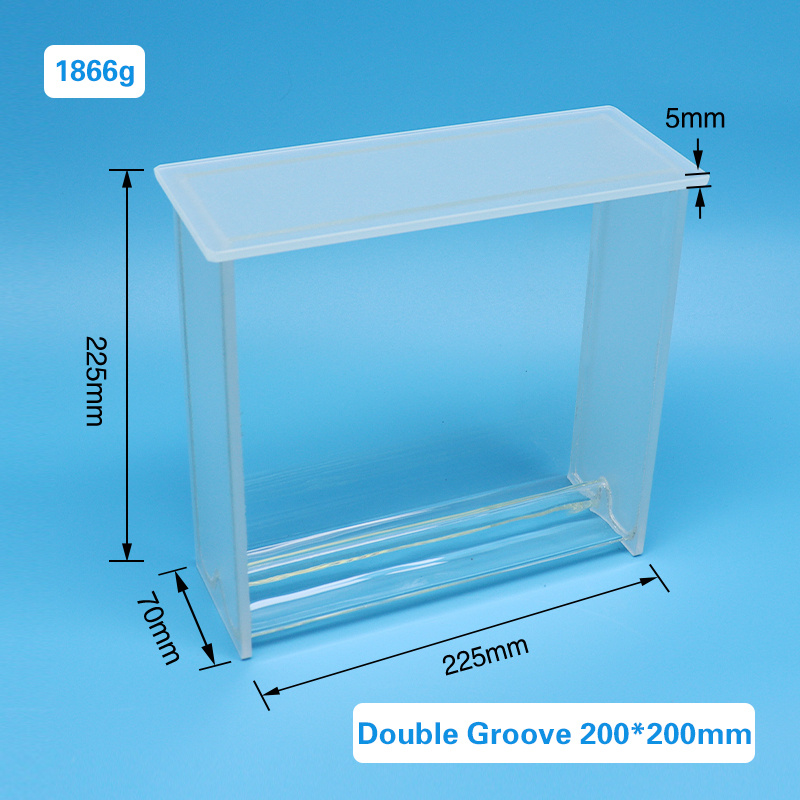

| 8 | 200*200 | 225 | 70 | 225 | 1866 | ||

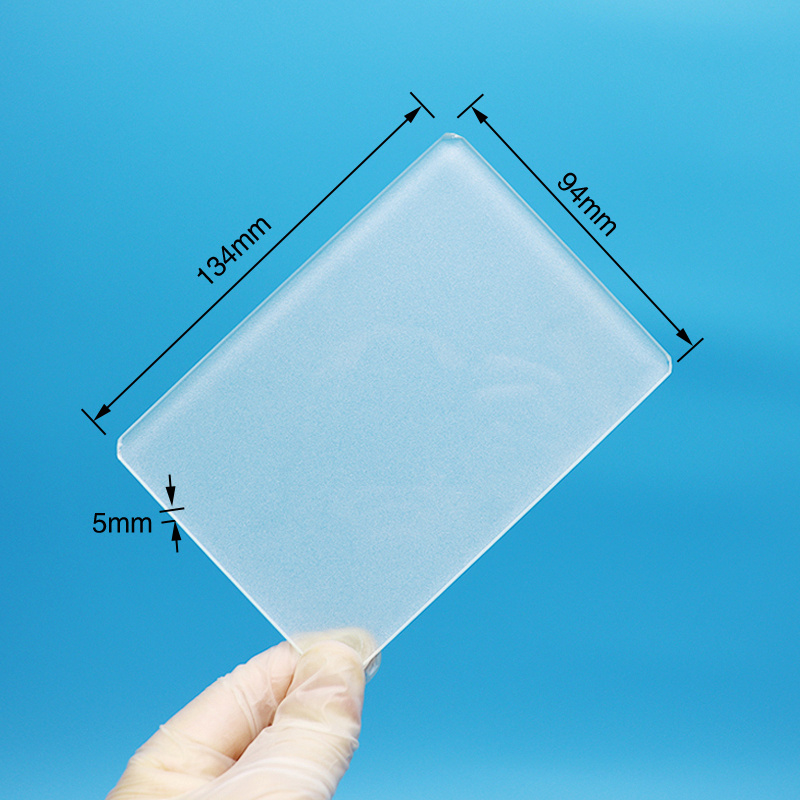

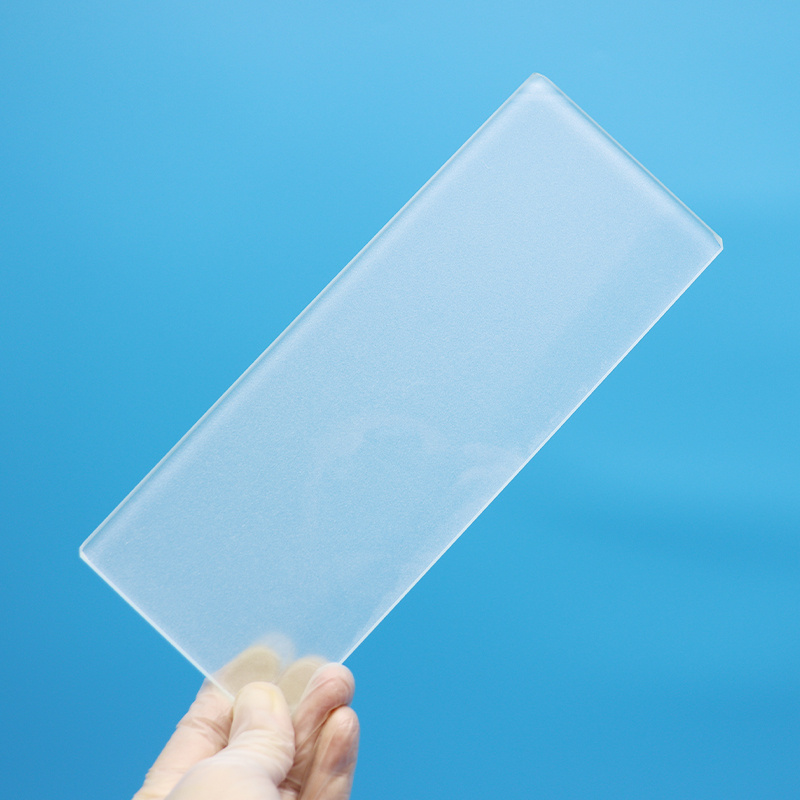

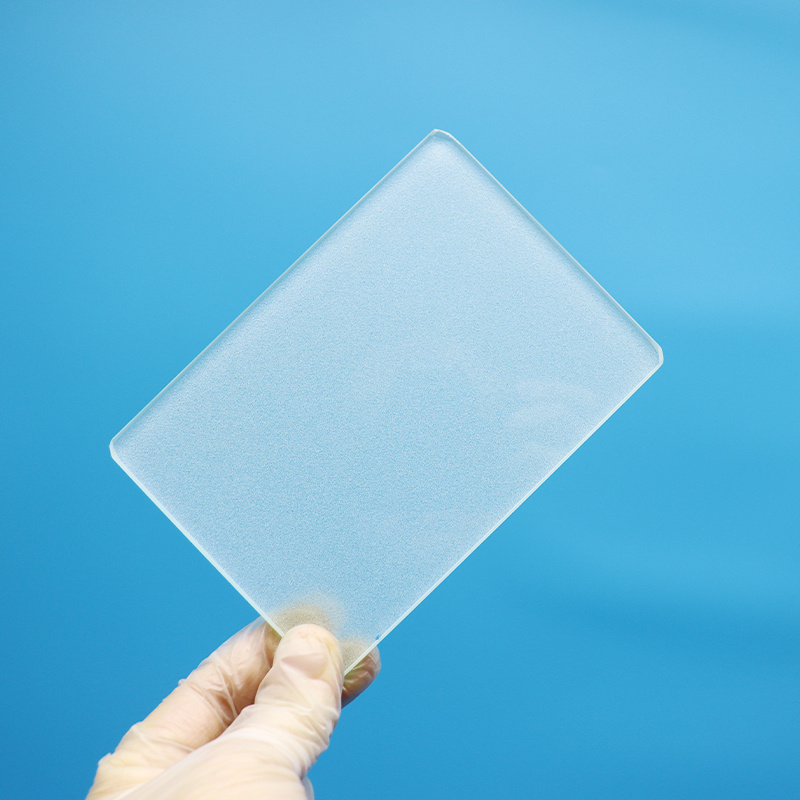

| 9 | Lid |  |
134*94 | 134 | 94 | 5 | / |

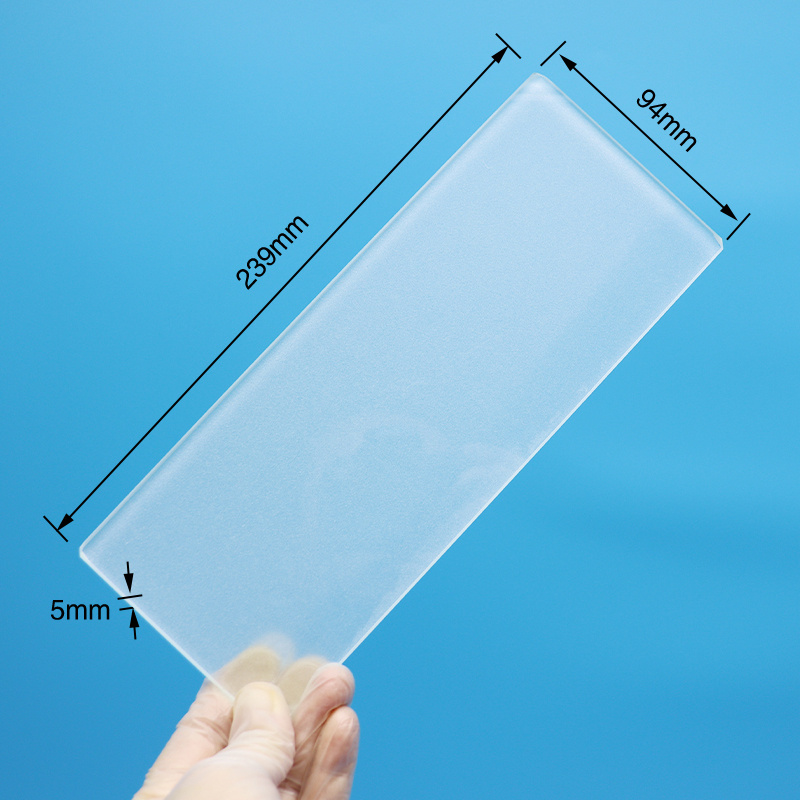

| 10 | 239*94 | 239 | 94 | 5 |
Product Usage
Chromatography cylinder is a glass container used for thin layer chromatography experiments, mainly for separating and purifying compounds, widely used in industries such as food, pharmaceuticals, environment, and chemical industry.
